2011 YAMAHA GRIZZLY 125 check engine

8-9
1
2
3
4
5
6
78
9
10
11

2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug
1. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.
TIP
If a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.
3. Install the spark plug cap.
EBU23267
Engine oil
The engine oil level should be checked before
each ride. In addition, the oil must be changed at
the intervals specified in the periodic maintenance
and lubrication chart. Specified spark plug:
NGK/CR7HSA
1. Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)

8-10
1
2
3
4
5
6
78
9
10
11

To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIP

If the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.
3. Remove the engine oil filler cap, and then
wipe the engine oil dipstick off with a clean
rag.4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.TIP
The engine oil should be between the minimum
and maximum level marks.
5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE:
Be sure the engine oil is at the
correct level, otherwise engine damage
1. Engine oil filler cap
2. Dipstick
2
1

1. Maximum level mark
2. Minimum level mark
1
2

8-11
1
2
3
4
5
6
78
9
10
11

may result.
[ECB00851]

6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
To change the engine oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase.
NOTICE:
When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these
parts.

[ECB00311]

5. Clean the oil strainer with solvent.
6. Check the O-ring for damage and replace it if
necessary.
7. Install the oil strainer, compression spring,
O-ring and engine oil drain bolt. Tighten the
engine oil drain bolt to the specified torque.
NOTICE:
Before installing the engine oil
drain bolt, be sure to install the O-ring,
compression spring and oil strain-
er.
[ECB00321]

1. Engine oil drain bolt
2. O-ring
3. Spring
4. Oil strainer
1
4
3
21

8-12
1
2
3
4
5
6
78
9
10
11

8. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIP

Be sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.
NOTICE

ECB00330

Do not use oils with a diesel specification of
“CD” or oils of a higher quality than speci-
fied. In addition, do not use oils labeled “EN-
ERGY CONSERVING II” or higher.

Make sure that no foreign material enters the
crankcase.
9. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oilis leaking, immediately turn the engine off and
check for the cause.
10. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
EBU27026
Transmission oil
The transmission oil level should be checked be-
fore each ride. In addition, the transmission oil
must be changed at the intervals specified in the
periodic maintenance and lubrication chart.
To check the transmission oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few minutes until the oil settles, and
then loosen the transmission oil check screw
located at the right side of the crankcase until
oil flows out. Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m·kgf, 23 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
1.25 L (1.32 US qt, 1.10 Imp.qt)

8-15
1
2
3
4
5
6
78
9
10
11

7. Check the oil filler bolt gasket for damage, and
replace it if necessary.
8. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
NOTICE

ECB01061
Make sure that no oil gets on the tires or
wheels.
9. Start the engine, and then let it idle for several
minutes while checking the transmission for
oil leakage. If oil is leaking, immediately turn
off the engine and check for the cause.
10. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
EBU23846
Cleaning the engine and V-belt case air
filter elements
Both air filter elements should be cleaned at the
specified intervals in the periodic maintenance
chart.
Engine air filter element
TIP

There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. Recommended transmission oil:
See page 10-1.
Oil quantity:
0.6 L (0.63 US qt, 0.53 Imp.qt)
Tightening torque:
Transmission oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Air filter case check hose
1

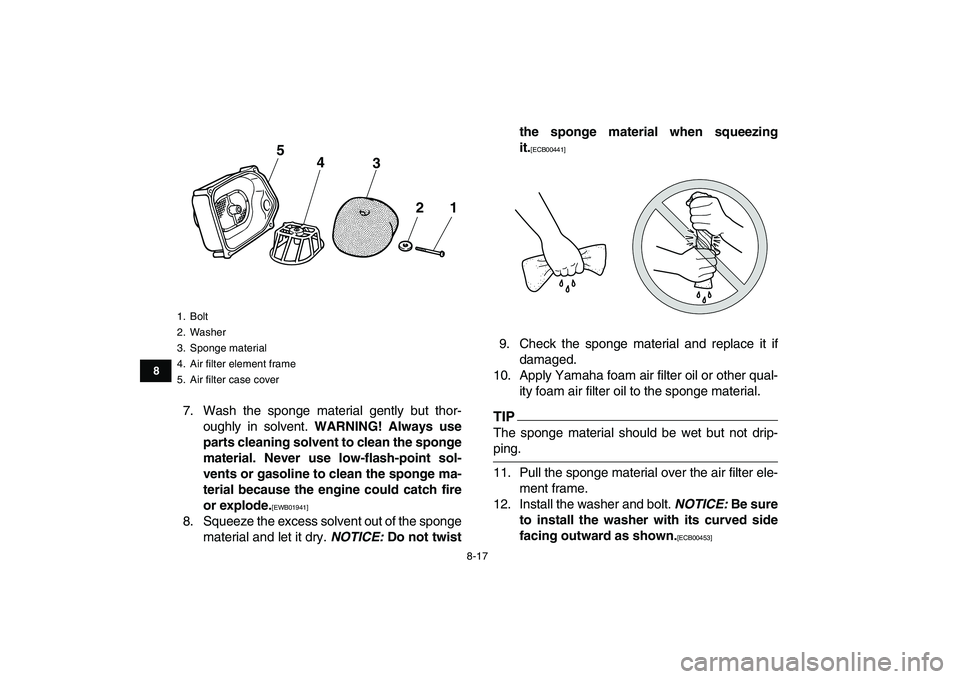

8-17
1
2
3
4
5
6
78
9
10
11

7. Wash the sponge material gently but thor-
oughly in solvent.
WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01941]

8. Squeeze the excess solvent out of the sponge
material and let it dry.
NOTICE:
Do not twistthe sponge material when squeezing
it.
[ECB00441]

9. Check the sponge material and replace it if
damaged.
10. Apply Yamaha foam air filter oil or other qual-
ity foam air filter oil to the sponge material.TIP

The sponge material should be wet but not drip-
ping.
11. Pull the sponge material over the air filter ele-
ment frame.
12. Install the washer and bolt.
NOTICE:
Be sure
to install the washer with its curved side
facing outward as shown.
[ECB00453]

1. Bolt
2. Washer
3. Sponge material
4. Air filter element frame
5. Air filter case cover
3 4
21
5

8-18
1
2
3
4
5
6
78
9
10
11

13. Install the air filter element into the air filter
case.
NOTICE:
Make sure that the air filter
element is properly seated in the air filter
case. Never operate the engine with the air
filter element removed. This will allow un-
filtered air to enter the engine, causing rap-
id engine wear and possible engine
damage. Additionally, operation without
the air filter element will affect carburetor
jetting with subsequent poor performance
and possible engine overheating.
[ECB00461]

14. Connect the air filter case cover to the air filter
joint.15. Install the air filter case cover by installing the
screws, and then tighten the air filter joint
screw.
16. Install the breather hose.
17. Install the seat.TIP
The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfiltered
air entering the engine.
V-belt case air filter element
1. Place the ATV on a level surface.
2. Remove the front carrier by removing the
bolts.
1. Washer
1

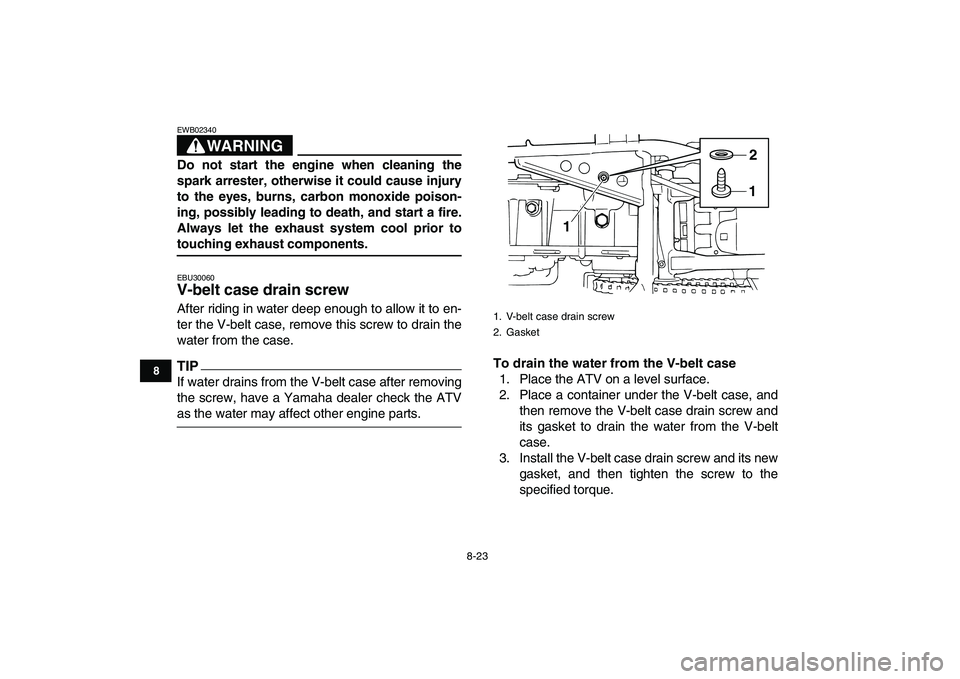

8-23
1
2
3
4
5
6
78
9
10
11
WARNING

EWB02340
Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
EBU30060
V-belt case drain screw
After riding in water deep enough to allow it to en-
ter the V-belt case, remove this screw to drain the
water from the case.
TIP

If water drains from the V-belt case after removing
the screw, have a Yamaha dealer check the ATV
as the water may affect other engine parts.
To drain the water from the V-belt case
1. Place the ATV on a level surface.
2. Place a container under the V-belt case, and
then remove the V-belt case drain screw and
its gasket to drain the water from the V-belt
case.
3. Install the V-belt case drain screw and its new
gasket, and then tighten the screw to the
specified torque.
1. V-belt case drain screw
2. Gasket
1
12
