Page 97 of 106

MOTORCYCLE CARE AND STORAGE
7-4
7 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine over.
[EWA10951]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-31.
TIPMake any necessary repairs before
storing the motorcycle.
U1CYE1E0.book Page 4 Tuesday, July 20, 2010 10:17 AM
Page 98 of 106

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height:
1450 mm (57.1 in)
Seat height:
805 mm (31.7 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
130 mm (5.12 in)
Minimum turning radius:
3100 mm (122.0 in)Weight:Curb weight:
291 kg (642 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Inline 4-cylinder
Displacement:
1298 cm³
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio:
10.80 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 20W-40 or 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
3.80 L (4.02 US qt, 3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt, 3.52 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil SAE
80 API GL-5
Quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)Radiator capacity (including all routes):
2.60 L (2.75 US qt, 2.29 Imp.qt)
Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
25.0 L (6.61 US gal, 5.50 Imp.gal)
Fuel reserve amount:
5.5 L (1.45 US gal, 1.21 Imp.gal)Fuel injection:Throttle body:
ID mark:
3P6D 20Spark plug(s):Manufacturer/model:
NGK/CR8E
Manufacturer/model:
DENSO/U24ESR-N
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:
1.563 (75/48)
Final drive:
Shaft
Secondary reduction ratio:
2.698 (35/37 x 21/27 x 33/9)
010305070
90110130 ˚F
-20 -10 0 10 20
304050 ˚C
SAE 20W-50SAE 20W-40
U1CYE1E0.book Page 1 Tuesday, July 20, 2010 10:17 AM
Page 99 of 106

SPECIFICATIONS
8-2
8
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
2.529 (43/17)
2nd:
1.773 (39/22)
3rd:
1.348 (31/23)
4th:
1.077 (28/26)
5th:
0.929 (26/28)Chassis:Frame type:
Diamond
Caster angle:
26.00 °
Trail:
109.0 mm (4.29 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
METZELER/Roadtec Z6G
Manufacturer/model:
BRIDGESTONE/BT021F FRear tire:Type:
TubelessSize:
180/55 ZR17M/C (73W)
Manufacturer/model:
METZELER/Roadtec Z6C
Manufacturer/model:
BRIDGESTONE/BT021R F
Loading:Maximum load:
212 kg (467 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
270 kPa (2.70 kgf/cm², 39 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
Loading condition:
90–212 kg (198–467 lb)
Front:
270 kPa (2.70 kgf/cm², 39 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Front:
270 kPa (2.70 kgf/cm², 39 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:
Cast wheelRim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
135.0 mm (5.31 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
U1CYE1E0.book Page 2 Tuesday, July 20, 2010 10:17 AM
Page 100 of 106

SPECIFICATIONS
8-3
8
Wheel travel:
125.0 mm (4.92 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LEDOil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Auxiliary DC jack fuse:
3.0 ABackup fuse:
10.0 A
U1CYE1E0.book Page 3 Tuesday, July 20, 2010 10:17 AM
Page 101 of 106

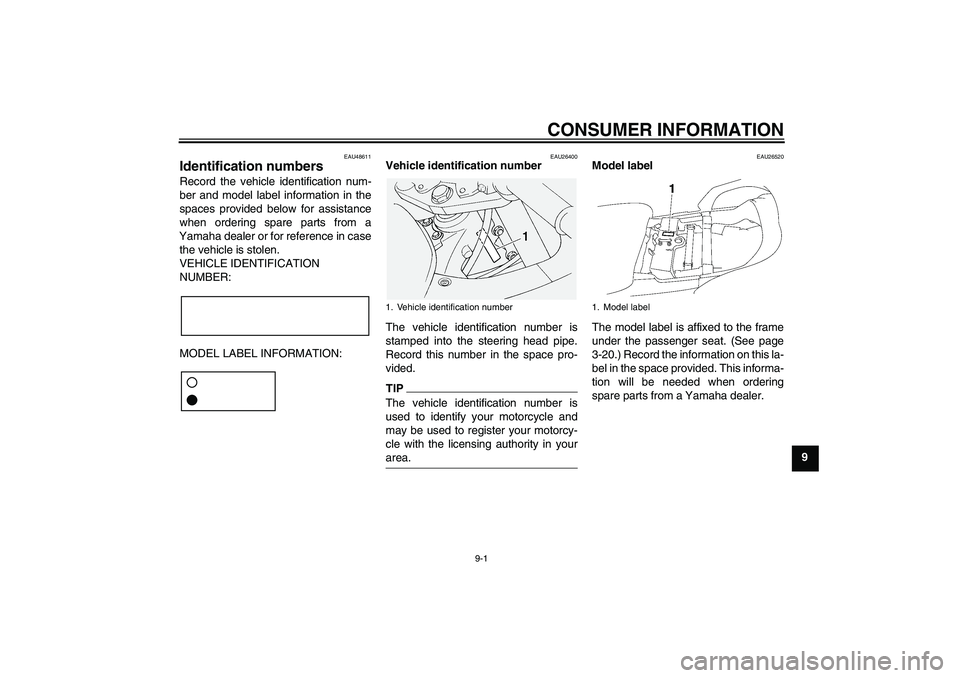

CONSUMER INFORMATION
9-1
9
EAU48611
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26520
Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-20.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U1CYE1E0.book Page 1 Tuesday, July 20, 2010 10:17 AM
Page 102 of 106

INDEXAABS ....................................................... 3-16
ABS warning light.................................... 3-5
Accessory box....................................... 3-24
Air filter element, cleaning..................... 6-17
Anti-theft alarm (optional)...................... 3-13
Auxiliary DC jack ................................... 3-33
Auxiliary light bulb ................................. 6-35BBattery................................................... 6-31
Brake and clutch fluid levels,
checking ............................................. 6-24
Brake and clutch fluids, changing ......... 6-26
Brake and clutch levers,
checking and lubricating ..................... 6-27
Brake and shift pedals,
checking and lubricating ..................... 6-27
Brake lever ............................................ 3-16
Brake lever free play, checking ............. 6-23
Brake light switches .............................. 6-23
Brake pedal ........................................... 3-16CCables, checking and lubricating .......... 6-26
Care ........................................................ 7-1
Catalytic converters .............................. 3-19
Centerstand and sidestand,
checking and lubricating ..................... 6-28
Clutch lever .................................. 3-15, 6-22
Coolant.................................................. 6-16
Cowlings, opening and closing ............. 3-26DDimmer switch ...................................... 3-13EEngine break-in ....................................... 5-3Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ........... 6-12
Engine stop switch................................ 3-14
Engine trouble warning light ................... 3-4
FFinal gear oil ......................................... 6-15
Front and rear brake pads, checking .... 6-24
Front fork, adjusting .............................. 3-27
Front fork, checking .............................. 6-29
Front turn signal light ............................ 6-34
Fuel....................................................... 3-18
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather/overflow hose ......... 3-19
Fuel tank cap ........................................ 3-17
Fuses, replacing ................................... 6-32GGrip warmer adjusting knob.................. 3-30HHandlebar position, adjusting ............... 3-25
Handlebar switches .............................. 3-13
Hazard switch ....................................... 3-14
Headlight beams, adjusting .................. 3-25
Headlight bulb....................................... 6-33
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-31
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-5
Indicator lights and warning lights .......... 3-4LLicense plate light bulb, replacing ........ 6-35
MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution ................................. 7-1
Model label .............................................. 9-1
Multi-function display............................... 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13RRear suspension, lubricating ................. 6-29
Rear view mirrors .................................. 3-27
Rider seat height, adjusting................... 3-21SSafety information ................................... 1-1
Seats ..................................................... 3-20
Shifting .................................................... 5-2
Shift pedal ............................................. 3-15
Shock absorber assembly, adjusting .... 3-29
Sidestand .............................................. 3-31
Spark plugs, checking ........................... 6-11
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starting the engine .................................. 5-1
Start switch............................................ 3-14
Steering, checking................................. 6-30
Storage.................................................... 7-3
U1CYE1E0.book Page 1 Tuesday, July 20, 2010 10:17 AM
Page 103 of 106

INDEX
Storage compartments ......................... 3-23
Swingarm pivots, lubricating ................. 6-29TTachometer ............................................ 3-6
Throttle grip and cable,
checking and lubricating ..................... 6-26
Throttle grip free play, checking ........... 6-19
Tires...................................................... 6-20
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-34
Turn signal switch ................................. 3-13VValve clearance .................................... 6-19
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-30
Wheels.................................................. 6-22
Windshield position adjusting switch .... 3-14
U1CYE1E0.book Page 2 Tuesday, July 20, 2010 10:17 AM
Page 104 of 106
A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM
