2011 YAMAHA BANSHEE 350 transmission oil

EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ............................................... 4-1
Handlebar switches ................................... 4-2
Throttle lever ............................................. 4-2
Throttle OverRide System ......................... 4-3
Speed limiter ............................................. 4-3
Clutch lever ............................................... 4-4
Brake lever ................................................ 4-4
Brake pedal ............................................... 4-5
Parking brake ............................................ 4-5
Shift pedal ................................................. 4-7
Kickstarter ................................................. 4-7
Fuel tank cap ............................................. 4-7
Fuel ........................................................... 4-8Fuel cock ................................................... 4-9
Starter (choke) ......................................... 4-11
Seat ......................................................... 4-11
Adjusting the front shock absorber
assemblies ............................................. 4-12
Adjusting the rear shock absorber
assembly ................................................ 4-13
PRE-OPERATION CHECKS ..........................5-1
Fuel and 2-stroke engine oil mixing ratio ... 5-3
Transmission oil ......................................... 5-3
Coolant ...................................................... 5-3
Front and rear brakes ................................ 5-3
Throttle lever .............................................. 5-4
Drive chain ................................................. 5-4
Tires ........................................................... 5-4
Chassis fasteners ...................................... 5-6
Instruments, lights and switches ................ 5-7
OPERATION...................................................6-1
Starting a cold engine ................................ 6-1
Starting a warm engine .............................. 6-2
Shifting ....................................................... 6-2
Engine break-in .......................................... 6-4
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-6

Accessories and loading ........................... 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................7-2
BE CAREFUL WHERE YOU RIDE ............ 7-8
TURNING YOUR ATV ............................. 7-11
CLIMBING UPHILL .................................. 7-12
RIDING DOWNHILL................................. 7-15
CROSSING A SLOPE.............................. 7-16
CROSSING THROUGH SHALLOW
WATER .................................................. 7-17
RIDING OVER ROUGH TERRAIN .......... 7-18
SLIDING AND SKIDDING ........................ 7-19
WHAT TO DO IF... ................................... 7-20
WHAT TO DO... ....................................... 7-20
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the
emission control system .......................... 8-3
General maintenance and lubrication
chart ........................................................ 8-5
Checking the spark plugs .......................... 8-9
Transmission oil ...................................... 8-10
Coolant .................................................... 8-13
Cleaning the air filter element ................. 8-18Cleaning the spark arrester ..................... 8-22
Changing the carburetor settings ............. 8-23
Adjusting the engine idling speed ............ 8-32
Adjusting the throttle lever free play ........ 8-34
Brakes ...................................................... 8-34
Checking the front and rear brake
pads ....................................................... 8-35
Checking the brake fluid level .................. 8-36
Changing the brake fluid .......................... 8-37
Checking the front brake lever free
play ........................................................ 8-38
Checking the brake pedal height ............. 8-38
Adjusting the parking brake free play ...... 8-38
Brake light switches ................................. 8-41
Adjusting the clutch lever free play .......... 8-41
Drive chain slack ...................................... 8-43
Lubricating the drive chain ....................... 8-45
Checking and lubricating the cables ........ 8-45
Checking and lubricating the brake and
clutch levers ........................................... 8-46
Checking the shift pedal .......................... 8-46
Checking and lubricating the brake
pedal ...................................................... 8-46
Checking the wheel hub bearings ............ 8-47
Lubricating the rear suspension relay
arm and connecting arm pivoting
points ..................................................... 8-47
Lubricating the upper and lower arm
pivots ..................................................... 8-48

5-1
1
2
3
45
6
7
8
9
10
11

EBU19201
PRE-OPERATION CHECKS
EBU19224
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING

EWB00481
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
Fuel


Check fuel level in fuel tank, and add recommended fuel if neces-
sary.

Check fuel line for leakage. Correct if necessary.4-8, 5-3
Transmission oil

Check oil level in transmission case, and add recommended oil to
specified level if necessary.

Check ATV for oil leakage. Correct if necessary.5-3, 8-10
Coolant

Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.

Check cooling system for leakage. Correct if necessary.5-3, 8-13
Front brake

Check operation. If soft or spongy, have Yamaha dealer bleed
hydraulic system.

Check brake pads for wear, and replace if necessary.

Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.

Check hydraulic system for leakage. Correct if necessary.5-3, 8-35, 8-36, 8-38

5-3
1
2
3
45
6
7
8
9
10
11

EBU19550
Fuel and 2-stroke engine oil mixing
ratio
If Yamalube “R” oil is not available, select an oil
from the following list.
NOTICE

ECB00140
Never mix two types of 2-stroke engine oil in
the same batch. Always use the same type of
oil to ensure maximum engine performance.
EBU19580
Transmission oil
Make sure that the transmission oil is at the speci-
fied level. Add oil as necessary. (See page 8-10.)
EBU19631
Coolant
Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-13.)
TIP

The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.
EBU19711
Front and rear brakes
Brake lever and brake pedal

Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
check the brake system.

Check for correct brake pedal height. (See
page 8-38.) If the pedal height is incorrect, have
a Yamaha dealer adjust it.

Check the operation of the lever and pedal. They
should move smoothly and there should be a
firm feeling when the brakes are applied. If not,
have a Yamaha dealer check the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary. Recommended 2-stroke engine oil:
Yamalube “R” (Yamalube Racing 2-cycle oil)
Mixing ratio:
24:1
Recommended 2-stroke engine oil Mixing ratio

Castrol R30
20:1 Castrol A545
Castrol A747

8-7
1
2
3
4
5
6
78
9
10
11

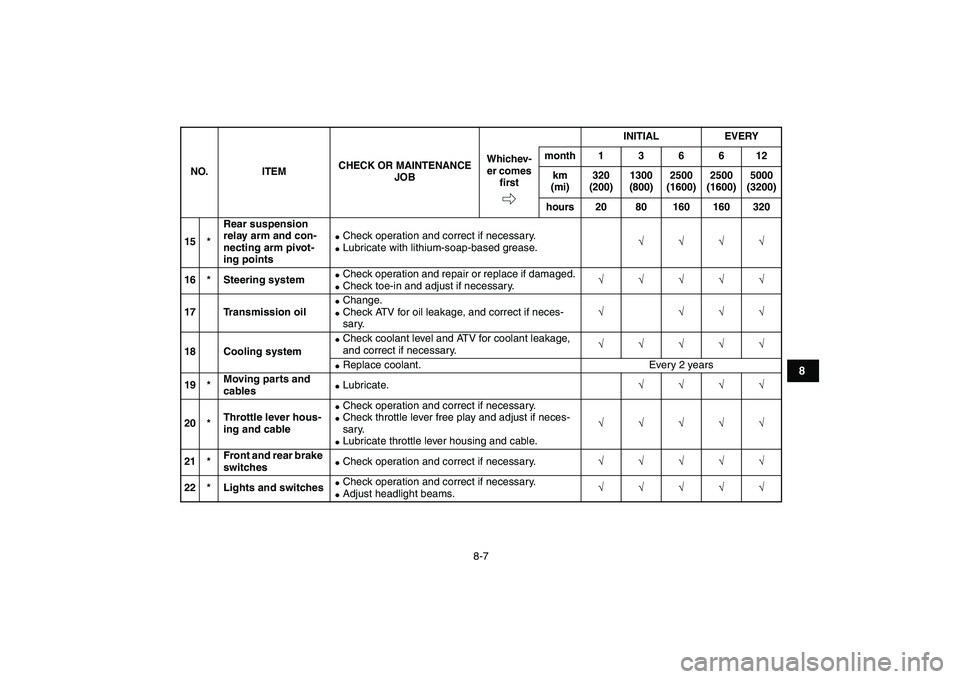

15 *Rear suspension
relay arm and con-
necting arm pivot-
ing points

Check operation and correct if necessary.

Lubricate with lithium-soap-based grease.
√√√√
16 * Steering system

Check operation and repair or replace if damaged.

Check toe-in and adjust if necessary.
√√√√√
17 Transmission oil

Change.

Check ATV for oil leakage, and correct if neces-
sary.
√ √√√
18 Cooling system

Check coolant level and ATV for coolant leakage,
and correct if necessary.
√√√√√

Replace coolant. Every 2 years
19 *Moving parts and
cables

Lubricate.
√√√√
20 *Throttle lever hous-
ing and cable

Check operation and correct if necessary.

Check throttle lever free play and adjust if neces-
sary.

Lubricate throttle lever housing and cable.
√√√√√
21 *Front and rear brake
switches

Check operation and correct if necessary.
√√√√√
22 * Lights and switches

Check operation and correct if necessary.

Adjust headlight beams.
√√√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320

8-10
1
2
3
4
5
6
78
9
10
11

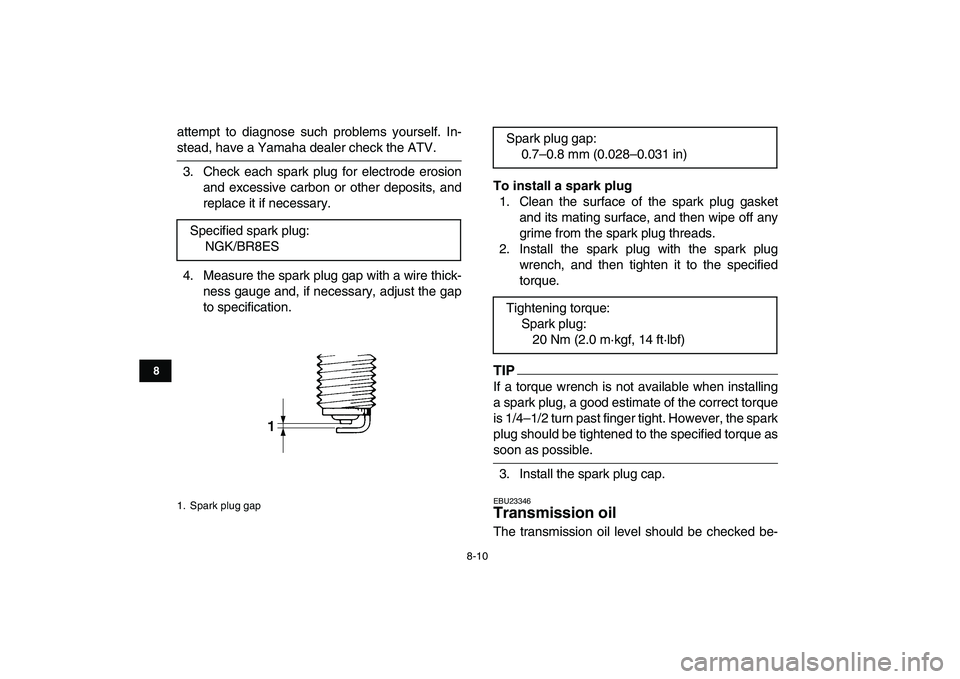

attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.
3. Check each spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
4. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
To install a spark plug
1. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.TIP

If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque as
soon as possible.
3. Install the spark plug cap.
EBU23346
Transmission oil
The transmission oil level should be checked be- Specified spark plug:
NGK/BR8ES
1. Spark plug gap
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf, 14 ft·lbf)

8-11
1
2
3
4
5
6
78
9
10
11

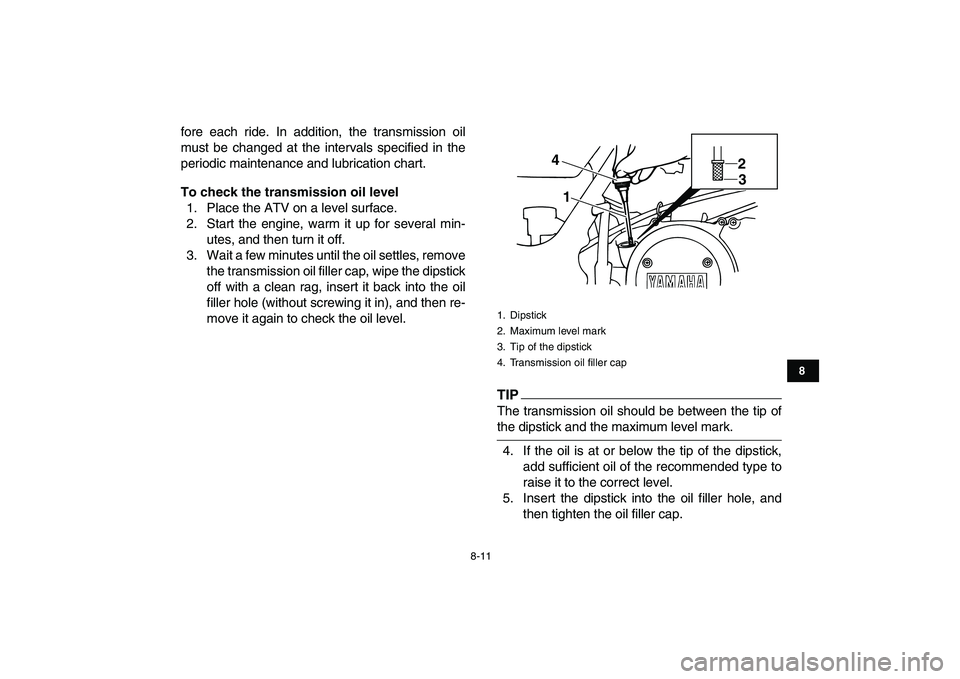

fore each ride. In addition, the transmission oil
must be changed at the intervals specified in the
periodic maintenance and lubrication chart.
To check the transmission oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few minutes until the oil settles, remove
the transmission oil filler cap, wipe the dipstick
off with a clean rag, insert it back into the oil
filler hole (without screwing it in), and then re-
move it again to check the oil level.TIP

The transmission oil should be between the tip of
the dipstick and the maximum level mark.
4. If the oil is at or below the tip of the dipstick,
add sufficient oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
1. Dipstick
2. Maximum level mark
3. Tip of the dipstick
4. Transmission oil filler cap
12
34

8-12
1
2
3
4
5
6
78
9
10
11

To change the transmission oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the transmission case
to collect the used oil.
4. Remove the oil filler cap, the transmission oil
drain bolt and its gasket to drain the oil from
the transmission case.
5. Install the transmission oil drain bolt and its
new gasket, and then tighten the bolt to the
specified torque.6. Refill with the specified amount of the recom-
mended transmission oil, and then install and
tighten the oil filler cap.TIP

Be sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICE

ECB00430

In order to prevent clutch slippage (since the
transmission oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD” or
oils of a higher quality than specified. In ad-
dition, do not use oils labeled “ENERGY
CONSERVING II” or higher.

Make sure that no foreign material enters the
1. Transmission oil drain bolt
2. Gasket
1
12

Tightening torque:
Transmission oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended transmission oil:
See page 10-1.
Oil quantity:
1.5 L (1.59 US qt, 1.32 Imp.qt)
