2011 VOLVO XC60 display

04 Comfort and driving pleasure
City Safety™
04
166
WARNING
Eye injury may occur if any of the following
points are not followed:
•It is essential that all pertinent instruc-
tions be followed when handling laser
instruments. Testing, repairing, remov-
ing, adjusting and/or replacing any
components in the laser sensor may
only be done by a trained and qualified
Volvo service technician.
•Do not remove the laser sensor (includ-
ing removal of the lenses). A laser sen-
sor that has been removed belongs to
laser class 3B according to standard
IEC 60825-1. Devices in laser class 3B
present a risk of injury to the eyes.
•The laser sensor’s connector must be
disconnected before the sensor is
removed from the windshield.
•The laser sensor must be mounted in
place on the windshield before con-
necting the sensor’s connector.
•Do not view the laser sensor (which
emits spreading, invisible laser beams)
with optical instruments from a distance
of less than 4 inches (100 mm).
Symbols and messages in the display
When City Safety™ automatically applies the
brakes, one or more of the symbols in the main
instrument panel may illuminate and its asso-
ciated message will be displayed.
A text message can be erased by pressing
briefly on the READ button on the turn signal
lever.

04 Comfort and driving pleasure
City Safety™
04
167
SymbolMessageMeaning/action required
Auto braking by City SafetyCity Safety™ is applying/has applied the brakes automatically.
Windscreen Sensors
blockedThe laser sensor is temporarily not functioning due to an obstruction.
•Remove the obstruction and/or clean the windshield in front of the sensor(s).
For more information on the sensor’s limitations, see page 164.
City Safety Service requiredCity Safety™ is not functioning.
•If this message remains in the display, have the system checked by a trained and qualified Volvo
service technician.

04 Comfort and driving pleasure
Collision warning with Full Auto-brake and Pedestrian Detection*
04

* Option/accessory, for more information, see Introduction.169 Function
Function overview
Visual warning signal, collision risk
Radar sensor
Camera
Collision WarningThe radar sensor and the camera work
together to detect a pedestrian, stationary
vehicles and vehicles that are moving in the
same direction as your vehicle. If there is a risk
of collision with a vehicle or a pedestrian, the
driver is alerted by a flashing red warning light
and an audible warning signal. Collision warn-
ing is active at speeds above 3 mph (4 km/h).
Brake SupportIf the risk of collision continues to increase after
the collision warning has been given, Brake
Support is activated. Brake Support prepares
the brake system to react quickly, and the
brakes are applied slightly. This may be expe-
rienced as a light tug.
If the brakes are applied quickly, full braking
effect will be provided. Brake Support also
increases brake force if the system determines
that the driver has not applied adequate pres-
sure on the brake pedal.
Auto-brakeIf a collision is imminent and the driver has not
applied the brakes or begun to steer around the
vehicle or pedestrian, the auto-brake function
is activated without the driver pressing the
brake pedal. Full brake force is applied to help
reduce the vehicle’s speed when the collision
occurs or limited brake force is applied if this
is sufficient to avoid the collision.
NOTE
The auto-brake and brake support functions
are always on and cannot be turned off.
Operation
Settings are made by pressing MY CAR on the
center console control panel and using the
menus displayed.
On and offTo switch Collision Warning on or off, press MY
CAR on the center console control panel and
go to Settings
Car settingsCollision
warning
On/Off. If Collision Warning is on,
the system will perform a self-test each time
the engine is started by briefly illuminating the
warning light. See page 129 for more informa-
tion about the menu system.
When the engine is switched on, the Collision
Warning setting that was being used when it
was switched off will be the default setting.
Activating/deactivating warning signalsThe collision warning system’s visual signals
are activated automatically when the engine is
started if the collision warning system is
switched on.
The audible warning signal can be activated/
deactivated by pressing MY CAR on the center
console control panel and going to Settings
Car settingsCollision warning
Warning soundOn/Off.

04 Comfort and driving pleasure
Collision warning with Full Auto-brake and Pedestrian Detection*
04

* Option/accessory, for more information, see Introduction.173 Fault tracing and actions
If the message Windscreen Sensors
blocked is displayed, this means that the cam-
era is obscured and cannot detect pedestrians,
vehicles or road marker lines in front of the
vehicle.This, in turn, means that Collision Warning with
Full Auto-brake and Pedestrian Detection,
Lane Departure Warning, and Driver Alert Con-
trol will not have full functionality.The table lists possible causes for this mes-
sage being displayed, and suitable actions.
CauseAction
The surface of the windshield in front of the camera is dirty or covered
with ice or snow.Clean or clear the section of the windshield in front of the camera.
Fog, heavy rain or snow is interfering with the function of the camera.No action possible. Heavy precipitation may affect the function of the
camera.
The surface of the windshield is clean but the message remains in the
display.Wait a short time. It may take several minutes for the camera to register
visibility.
The surface between the inside of the windshield and the camera is dirty.Contact an authorized Volvo retailer or service technician to have this
surface cleaned.
Symbols and messages in the display
SymbolMessageDescription
Collis'n warning OFFCollision Warning is switched off. This message is displayed when the engine is started and will dis-
appear after approx. 5 seconds. It can also be erased by pressing the READ button.
Collision warn. Unavaila-
bleCollision Warning cannot be activated. This message is displayed when the driver attempts to activate
the function. It will disappear after approx. 5 seconds or can be erased by pressing the READ button.

04 Comfort and driving pleasure
Collision warning with Full Auto-brake and Pedestrian Detection*
04
174* Option/accessory, for more information, see Introduction.
SymbolMessageDescription
Auto braking was acti-
vatedAuto-braking has been active. This message can be erased by pressing the READ button.
Windscreen Sensors
blockedThe camera is temporarily not functioning. This message is displayed if the camera is obstructed by
snow, ice, dirt, etc., on the windshield. Clean the area of the windshield in front of the camera, see
page 171 for more information on the camera’s limitations.
Radar blocked See man-
ualCollision Warning and Auto-brake are temporarily not functioning. The radar sensor is blocked, for
example by heavy rain or snow that has accumulated in front of the sensor, and cannot detect other
vehicles, see page 155 for more information on the radar sensor’s limitations.
Collision warn. Service
requiredCollision Warning and Auto-brake are partially or completely not functioning.
Contact a trained and qualified Volvo service technician if the message remains in the display.

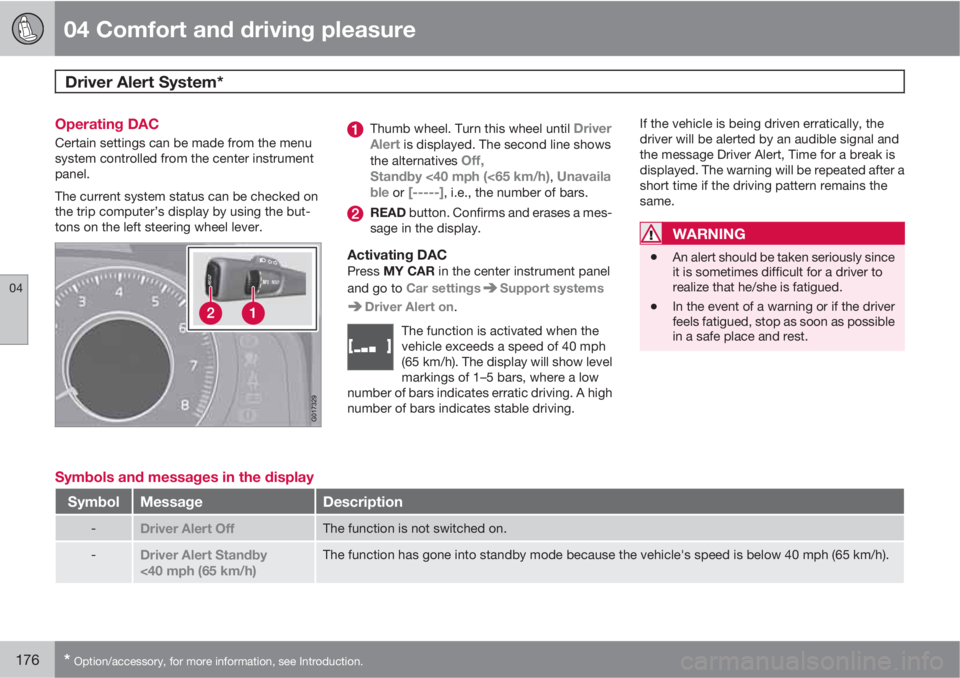

04 Comfort and driving pleasure
Driver Alert System*
04
176* Option/accessory, for more information, see Introduction.
Operating DAC
Certain settings can be made from the menu
system controlled from the center instrument
panel.
The current system status can be checked on
the trip computer’s display by using the but-
tons on the left steering wheel lever.Thumb wheel. Turn this wheel until Driver
Alert is displayed. The second line shows
the alternatives Off,
Standby <40 mph (<65 km/h), Unavaila
ble or [-----], i.e., the number of bars.
READ button. Confirms and erases a mes-
sage in the display.
Activating DACPress MY CAR in the center instrument panel
and go to Car settings
Support systems
Driver Alert on.
The function is activated when the
vehicle exceeds a speed of 40 mph
(65 km/h). The display will show level
markings of 1–5 bars, where a low
number of bars indicates erratic driving. A high
number of bars indicates stable driving.
If the vehicle is being driven erratically, the
driver will be alerted by an audible signal and
the message Driver Alert, Time for a break is
displayed. The warning will be repeated after a
short time if the driving pattern remains the
same.
WARNING
•An alert should be taken seriously since
it is sometimes difficult for a driver to
realize that he/she is fatigued.
•In the event of a warning or if the driver
feels fatigued, stop as soon as possible
in a safe place and rest.
Symbols and messages in the display
SymbolMessageDescription
-Driver Alert OffThe function is not switched on.
-Driver Alert Standby
<40 mph (65 km/h)The function has gone into standby mode because the vehicle's speed is below 40 mph (65 km/h).

04 Comfort and driving pleasure
Driver Alert System*
04

* Option/accessory, for more information, see Introduction.177
SymbolMessageDescription
-Driver Alert
UnavailableThe road lacks clear marker lines.
Driver AlertThe function is analyzing the driver’s driving pattern. The number of bars varies from 1–5, where a low
number of bars indicates erratic driving. A high number of bars indicates stable driving.
Driver Alert Time for a
breakThe vehicle has been driven erratically. The driver receives an audible signal and a text message.
Windscreen Sensors
blockedThe camera is temporarily not functioning, due to snow, ice, or dirt on the windshield. Clean the area
of the windshield in front of the camera. See page 171 for information on the camera’s limitations.
Driver Alert Sys Service
requiredThe system is not functioning. Contact a trained and qualified Volvo service technician if the message
remains in the display.

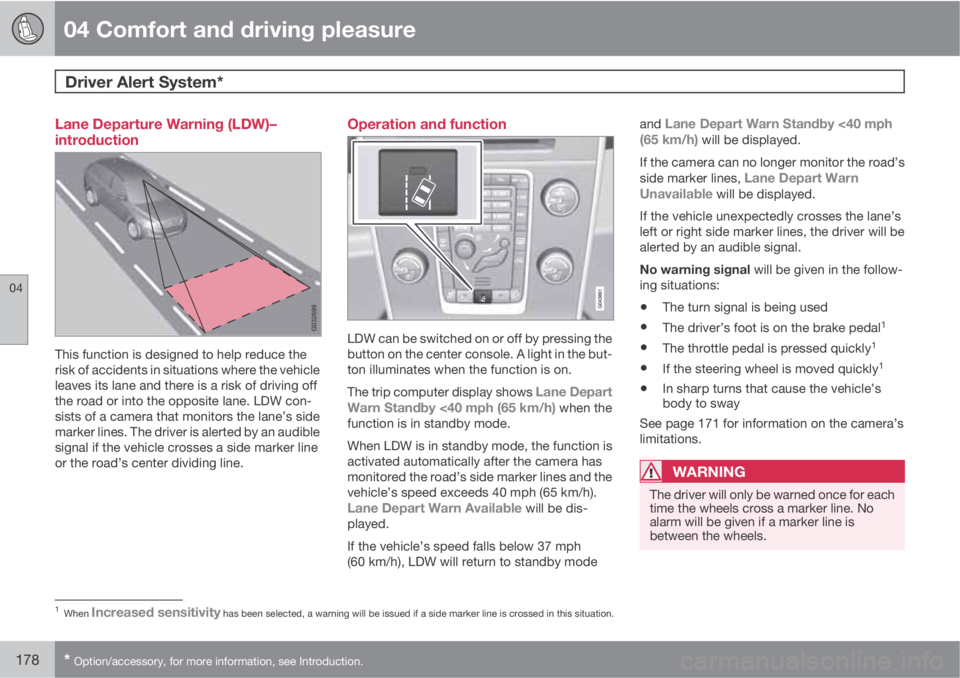

04 Comfort and driving pleasure
Driver Alert System*
04
178* Option/accessory, for more information, see Introduction.
Lane Departure Warning (LDW)–
introduction
This function is designed to help reduce the
risk of accidents in situations where the vehicle
leaves its lane and there is a risk of driving off
the road or into the opposite lane. LDW con-
sists of a camera that monitors the lane’s side
marker lines. The driver is alerted by an audible
signal if the vehicle crosses a side marker line
or the road’s center dividing line.
Operation and function
LDW can be switched on or off by pressing the
button on the center console. A light in the but-
ton illuminates when the function is on.
The trip computer display shows
Lane Depart
Warn Standby <40 mph (65 km/h) when the
function is in standby mode.
When LDW is in standby mode, the function is
activated automatically after the camera has
monitored the road’s side marker lines and the
vehicle’s speed exceeds 40 mph (65 km/h).
Lane Depart Warn Available will be dis-
played.
If the vehicle’s speed falls below 37 mph
(60 km/h), LDW will return to standby modeand
Lane Depart Warn Standby <40 mph
(65 km/h) will be displayed.
If the camera can no longer monitor the road’s
side marker lines,
Lane Depart Warn
Unavailable will be displayed.
If the vehicle unexpectedly crosses the lane’s
left or right side marker lines, the driver will be
alerted by an audible signal.
No warning signal will be given in the follow-
ing situations:
•The turn signal is being used
•The driver’s foot is on the brake pedal1
•The throttle pedal is pressed quickly1
•If the steering wheel is moved quickly1
•In sharp turns that cause the vehicle’s
body to sway
See page 171 for information on the camera’s
limitations.
WARNING
The driver will only be warned once for each
time the wheels cross a marker line. No
alarm will be given if a marker line is
between the wheels.
1When Increased sensitivity has been selected, a warning will be issued if a side marker line is crossed in this situation.
