04 Comfort and driving pleasure
Climate system
04

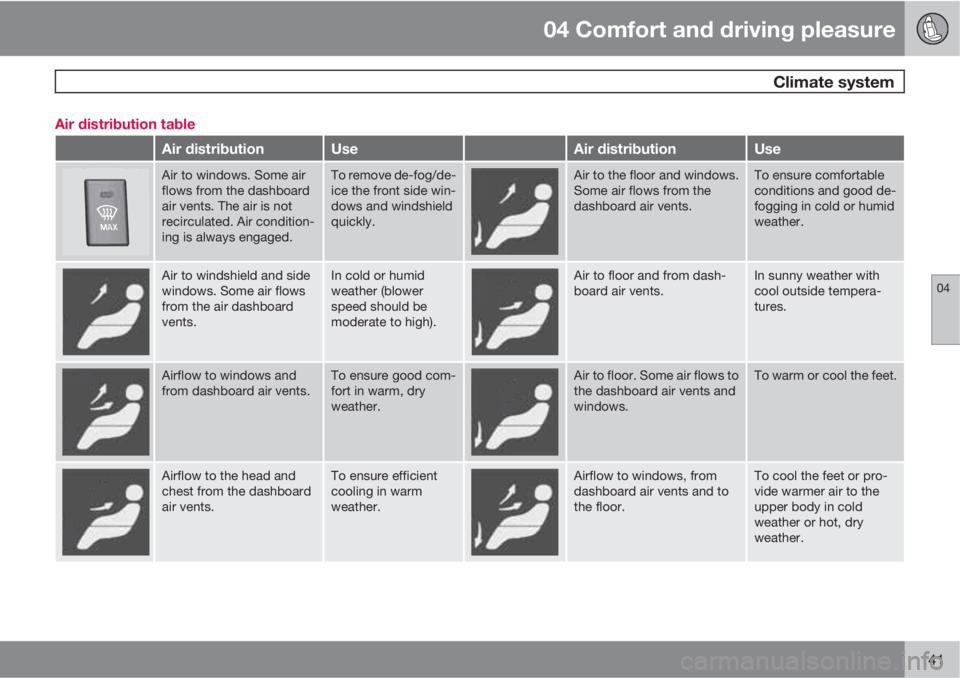

141 Air distribution table
Air distributionUseAir distributionUse
Air to windows. Some air
flows from the dashboard
air vents. The air is not
recirculated. Air condition-
ing is always engaged.To remove de-fog/de-
ice the front side win-
dows and windshield
quickly.Air to the floor and windows.
Some air flows from the
dashboard air vents.To ensure comfortable
conditions and good de-
fogging in cold or humid
weather.
Air to windshield and side
windows. Some air flows
from the air dashboard
vents.In cold or humid
weather (blower
speed should be
moderate to high).Air to floor and from dash-
board air vents.In sunny weather with
cool outside tempera-
tures.
Airflow to windows and
from dashboard air vents.To ensure good com-
fort in warm, dry
weather.Air to floor. Some air flows to
the dashboard air vents and
windows.To warm or cool the feet.
Airflow to the head and
chest from the dashboard
air vents.To ensure efficient
cooling in warm
weather.Airflow to windows, from
dashboard air vents and to
the floor.To cool the feet or pro-
vide warmer air to the
upper body in cold
weather or hot, dry
weather.
09 Specifications
Label information09

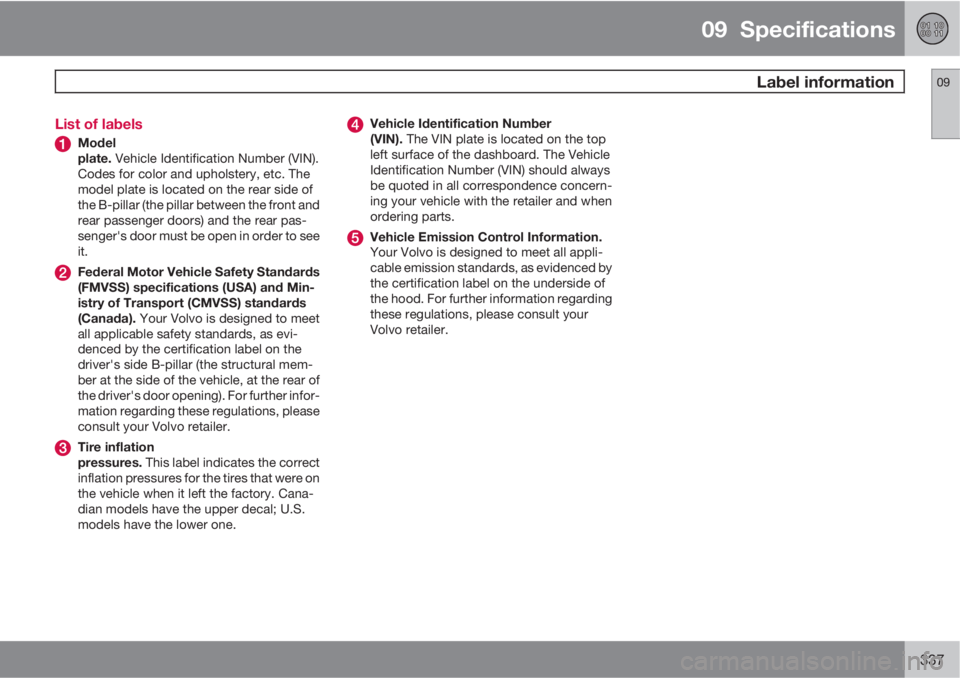

337 List of labels
Model
plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc. The
model plate is located on the rear side of
the B-pillar (the pillar between the front and
rear passenger doors) and the rear pas-
senger's door must be open in order to see
it.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Tire inflation
pressures. This label indicates the correct
inflation pressures for the tires that were on
the vehicle when it left the factory. Cana-
dian models have the upper decal; U.S.
models have the lower one.
Vehicle Identification Number
(VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle
Identification Number (VIN) should always
be quoted in all correspondence concern-
ing your vehicle with the retailer and when
ordering parts.
Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.
