01 Safety
Supplemental Restraint System (SRS)01
25
WARNING
•No objects or accessory equipment,
e.g. dashboard covers, may be placed
on, attached to, or installed near the air
bag hatch (the area above the glove
compartment) or the area affected by
airbag deployment (see the illustration
on page 22).
•There should be no loose articles, such
as coffee cups on the floor, seat, or
dashboard area.
•Never try to open the airbag cover on
the steering wheel or the passenger's
side dashboard. This should only be
done by a trained and qualified Volvo
service technician.
•Failure to follow these instructions can
result in injury to the vehicle occupants.

02 Locks and alarm
Remote key and key blade
02

* Option/accessory, for more information, see Introduction.59
alarm indicator light on the dashboard will go
out), and unlock only the tailgate. Pressing this
button for several seconds also opens the tail-
gate on models equipped with the optional
power tailgate.
NOTE
As an added safety precaution, the parking
lights will come on automatically for a short
period when the tailgate has been opened.
After closing, the tailgate will not automatically
relock. Press Lock to relock it and rearm the
alarm.
See also the section "Unlocking the tailgate
from the passenger compartment."
Panic alarm – This button can be used to
attract attention during emergency situations.
To activate the panic alarm, press and hold this
button for at least 3 seconds or press it twice
within 3 seconds. The turn signals and horn will
be activated. The panic alarm will stop auto-
matically after 2 minutes and 45 seconds.
To deactivate, wait approximately 5 seconds
and press the button again.
The Panic alarm button will not unlock the vehi-
cle.
RangeThe remote key has a range of approximately
60 ft. (20 m) from the vehicle.
NOTE
Buildings or other obstacles may interfere
with the function of the remote key. The
vehicle can also be locked or unlocked with
the key blade, see page 60.
Unique functions—PCC*
G021080
Information button
Indicator lights
Pressing the information button provides cer-
tain information about the vehicle with the help
of the indicator lights.
Using the information button1.
Press the information button .
2. All of the indicator lights will flash sequen-
tially for approximately 7 seconds to indi-
cate that the PCC is receiving information
from the vehicle. If any of the buttons are
pressed during this 7-second period,
transmission of information to the PCC will
be interrupted.
NOTE
If none of the indicator lights flash when the
information button has been pressed sev-
eral times from different places in relation to
the vehicle, contact an authorized Volvo
service technician.
The indicator lights provide information
according to the illustration:

02 Locks and alarm
Locks
02
68

Press the button on the lighting panel (1) to
unlock (but not open1) the tailgate.
NOTE
The taillights will illuminate automatically for
a short period when the tailgate has been
opened.
Locking the tailgate with the remote key
Press the lock button () on the remote.
See also page 58.
> The alarm indicator on the dashboard
will begin flashing to show that the alarm
has been armed.
Opening the tailgate manually
The tailgate is held closed by an electronic
locking mechanism. To open:
1. Press lightly on the rubberized plate under
the handle to release the lock.
2. Lift the handle to open the tailgate.
CAUTION
•When pressing the rubberized plate,
only light pressure is necessary to
release the tailgate's electronic locking
mechanism.
•When opening the tailgate, pull it up
using the handle. Too much pressure on
the rubberized plate can damage its
electrical connections.
1This button also opens, but does not close, the tailgate on models equipped with the optional power tailgate (see page 255).

02 Locks and alarm
Alarm
02

69 The alarm system
The alarm is automatically armed whenever the
vehicle is locked with the remote key or
optional Personal Car Communicator.
When armed, the alarm continuously monitors
a number of points on the vehicle. The follow-
ing conditions will trigger the alarm:
•The hood is forced open.
•The tailgate is forced open.
•A door is forced open.
•The ignition slot is tampered with.
•An attempt is made to start the vehicle with
a non-approved key (a key not coded to
the car's ignition).
•If there is movement in the passenger com-
partment (if the vehicle is equipped with
the accessory movement sensor).
•The vehicle is lifted or towed (if the vehicle
is equipped with the accessory inclination
sensor).
•The battery is disconnected (while the
alarm is armed).
•The siren is disconnected when the alarm
is disarmed.
A message will appear in the information dis-
play if a fault should occur in the alarm system.
Contact a trained and qualified Volvo service
technician.
NOTE
Do not attempt to repair any of the compo-
nents in the alarm system yourself. This
could affect the insurance policy on the
vehicle.
The alarm indicator light
The status of the alarm system is indicated by
the red indicator light on the dashboard (see
illustration):
•Indicator light off – the alarm is not armed
•The indicator light flashes at one-second
intervals – the alarm is armed
•The indicator light flashes rapidly before
the remote key is inserted in the ignition
slot and the ignition is put in mode I—the
alarm has been triggered.
Arming the alarm

Press the Lock button on the remote key.
One long flash of the turn signals will con-
firm that the alarm is armed.
Alarm confirmation settings can be changed in
MY CAR, under Car settings
Lock
settings
Keyless entry. See page 128 for
a description of the menu system.
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada IC: 4405A-DA 5823(3)
Movement sensor DA5823 by Dynex Operation
is subject to the following conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.

04 Comfort and driving pleasure
Climate system
04
134* Option/accessory, for more information, see Introduction.
Introduction
Air conditioningThe vehicle is equipped with Electronic Climate
Control (ECC). The climate control system
cools, heats or dehumidifies the air in the pas-
senger compartment.
NOTE
•The air conditioning can be switched
off, but to ensure the best possible cli-
mate comfort in the passenger com-
partment and to prevent the windows
from misting, it should always be on.
•In warm weather, a small amount of
water may accumulate under the car
when it has been parked. This water is
condensation from the A/C system and
is normal.
Sensor location
•The sunlight sensor is located on the top
side of the dashboard.
NOTE
The sunlight sensor monitors which side of
the car that is most exposed to sunlight.
This can mean that the temperature may
differ between the right and left-side air
vents, even if the temperatures set for both
sides of the passenger compartment are the
same.
•The temperature sensor for the passenger
compartment is located below the climate
control panel.
•The outside (ambient) temperature sensor
is located on the door mirror.
•The humidity sensor* is located in the inte-
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and laminated panoramic
roof
To ensure that the air conditioning works opti-
mally, the side windows, and the laminated
panoramic roof should be closed.
Fog on the inside of the windowsThe defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-mercially available window washing spray will
also help prevent fogging or misting.
Temporary shut-off of the air
conditioning
The air conditioning is momentarily disen-
gaged during full-throttle acceleration or when
driving uphill with a trailer. This may result in a
temporary increase in cabin temperature.
Ice and snowAlways keep the air intake grille at the base of
the windshield free of snow.
Climate system maintenanceSpecial tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.
RefrigerantVolvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The air condi-
tioning system contains 1.7 lbs (770 g) of
R134a. The systems uses PAG oil.
Passenger compartment filterReplace the cabin air filter with a new one at
the recommended intervals. Please refer to

04 Comfort and driving pleasure
Climate system
04
136

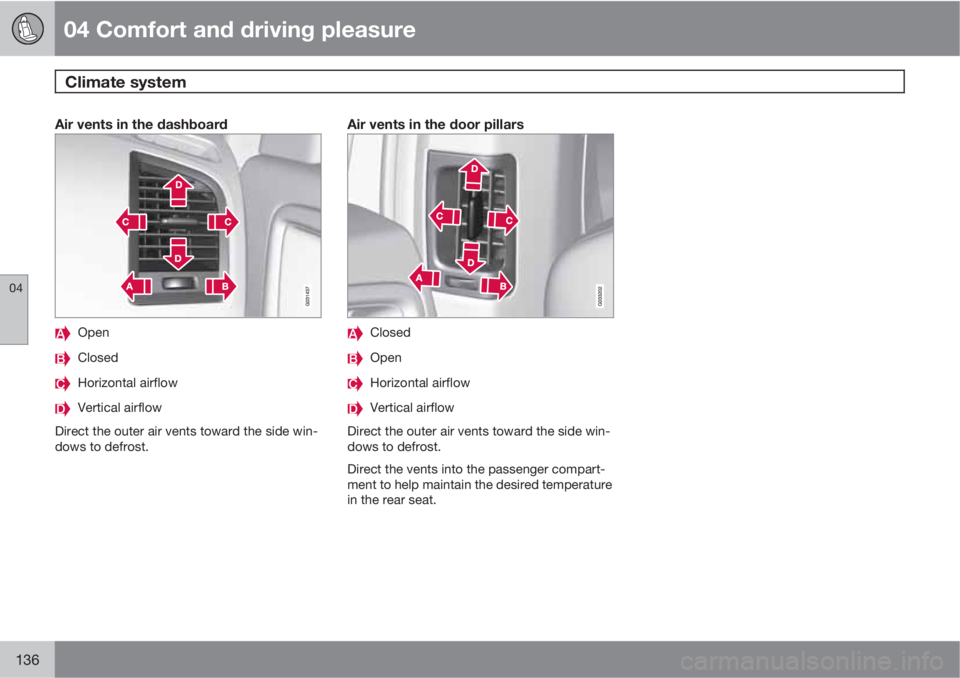

Air vents in the dashboard
Open
Closed
Horizontal airflow
Vertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
Air vents in the door pillars
Closed
Open
Horizontal airflow
Vertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
Direct the vents into the passenger compart-
ment to help maintain the desired temperature
in the rear seat.

04 Comfort and driving pleasure
Climate system
04

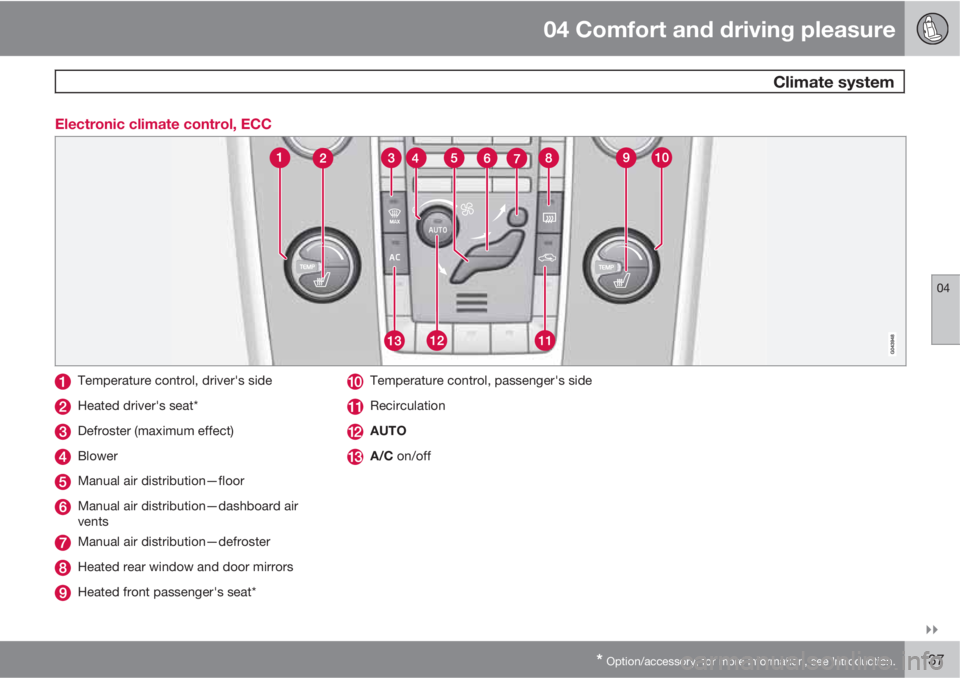

* Option/accessory, for more information, see Introduction.137 Electronic climate control, ECC
Temperature control, driver's side
Heated driver's seat*
Defroster (maximum effect)
Blower
Manual air distribution—floor
Manual air distribution—dashboard air
vents
Manual air distribution—defroster
Heated rear window and door mirrors
Heated front passenger's seat*
Temperature control, passenger's side
Recirculation
AUTO
A/C on/off

04 Comfort and driving pleasure
Climate system
04
138* Option/accessory, for more information, see Introduction.
Climate system controls
Heated front seats*
The current seat temperature is shown in the cen-
ter console display
Press the button once for the
highest heat level – three indi-
cator lights come on.
Press the button twice for a
lower heat level – two indica-
tor lights come on.
Press the button three times for the lowest heat
level – one indicator light comes on.
Press the button four times to switch off the
heat – no indicator lights come on.
Seat heating will automatically switch off when
the engine is switched off.
Heated rear seats*1
G021376
Heat control for the outboard seating positions
is done in the same way as for the front seats.
Blower controlTurn the control clockwise to
increase or counterclockwise
to decrease the blower
speed. If AUTO is selected,
blower speed will be regula-
ted automatically and this will
override manual adjustment.
NOTE
If the blower is turned off completely, the air
conditioning is disengaged, which may
result in fogging on the windows.
Air distribution
Manual air distribution—defroster
Manual air distribution—dashboard air
vents
Manual air distribution—floor
The figure consists of three buttons. When a
button is pressed, the corresponding figure will
appear in the display with an arrow indicating
which manual air flow has been selected (see
1Not available on models equipped with the optional integrated booster cushions
