2011 VOLVO S80 Owner´s Manual

08 Specifications
Label information
08
289 List of labels
Model
plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc. The
model plate is located on the rear side of
the B-pillar (the pillar between the front and
rear passenger doors) and the rear pas-
senger's door must be open in order to see
it.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Tire inflation
pressures. This label indicates the correct
inflation pressures for the tires that were on
the vehicle when it left the factory. Cana-
dian models have the upper decal; U.S.
models have the lower one.
Vehicle Identification Number
(VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle
Identification Number (VIN) should always
be quoted in all correspondence concern-
ing your vehicle with the retailer and when
ordering parts.
Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

08 Specifications
Specifications
08
290
Dimensions–S80/S80 Executive
PositionDimensionin (mm)
AWheelbase111.6 (2835)
BLength191 (4851)
CLoad length, floor, seatback down75.9 (1927)
DLoad length, floor43.1 (1094)
EHeight58.8 (1493)
FLoad height14.5 (368)
GTrack, front62.5 (1588)

08 Specifications
Specifications
08

291
PositionDimensionin (mm)
HTrack, rear62.4 (1585)
ILoad width, floor44.5 (1130)
JWidth73.3 (1861)
KWidth, incl. door mirrors82.9 (2106)
Weights
CategoryUSACanada
Gross vehicle weight6-cyl. FWDA: 4820 lbs
6-cyl. turbo AWD
B: 5020 lbs
8-cyl. AWD: 5110 lbs
S80 Executive 6 cyl. FWD: 4820 lbs
S80 Executive 6 cyl. turbo AWD: 5020 lbs
S80 Executive 8 cyl. AWD: 5110 lbs
6-cyl. FWDA: 2190 kg
6-cyl. turbo AWD
B: 2280 kg
8-cyl. AWD: 2320 kg
S80 Executive 6 cyl. FWD: 2190 kg
S80 Executive 6 cyl. turbo AWD: 2280 kg
S80 Executive 8 cyl. AWD: 2320 kg
Capacity weight6-cyl. FWD: 905 lbs
6-cyl. Turbo AWD: 890 lbs
8-cyl. AWD: 890 lbs
S80 Executive 6 cyl. FWD: 905 lbs
S80 Executive 6 cyl. turbo AWD: 890 lbs
S80 Executive 8 cyl. AWD: 890 lbs6-cyl. FWD: 410 kg
6-cyl. turbo AWD: 400 kg
8-cyl. AWD: 400 kg
S80 Executive 6 cyl. FWD: 410 kg
S80 Executive 6 cyl. turbo AWD: 400 kg
S80 Executive 8 cyl. AWD: 400 kg

08 Specifications
Specifications
08
292
CategoryUSACanada
Permissible axle weights, front6-cyl. FWD: 2690 lbs
6-cyl. turbo AWD: 2750 lbs
8-cyl. AWD: 2860 lbs
S80 Executive 6 cyl. FWD: 2690 lbs
S80 Executive 6 cyl. turbo AWD: 2750 lbs
S80 Executive 8 cyl. AWD: 2860 lbs6-cyl. FWD: 1220 kg
6-cyl. AWD turbo: 1250 kg
8-cyl. AWD: 1300 kg
S80 Executive 6 cyl. FWD: 1220 kg
S80 Executive 6 cyl. turbo AWD: 1250 kg
S80 Executive 8 cyl. AWD: 1300 kg
Permissible axle weights, rear6-cyl. FWD: 2270 lbs
6-cyl. turbo AWD: 2360 lbs
8-cyl. AWD: 2380 lbs
S80 Executive 6 cyl. FWD: 2270 lbs
S80 Executive 6 cyl. turbo AWD: 2360 lbs
S80 Executive 8 cyl. AWD: 2380 lbs6-cyl. FWD: 1030 kg
6-cyl. turbo AWD: 1070 kg
8-cyl. AWD: 1080 kg
S80 Executive 6 cyl. FWD: 1030 kg
S80 Executive 6 cyl. turbo AWD: 1070 kg
S80 Executive 8 cyl. AWD: 1080 kg
Curb weight3790–4040 lbs
S80 Executive: 3970–4040 lbs1655–1845 kg
S80 Executive: 1810–1850 kg
Max. roof load220 lbs100 kg

08 Specifications
Specifications
08

293
CategoryUSACanada

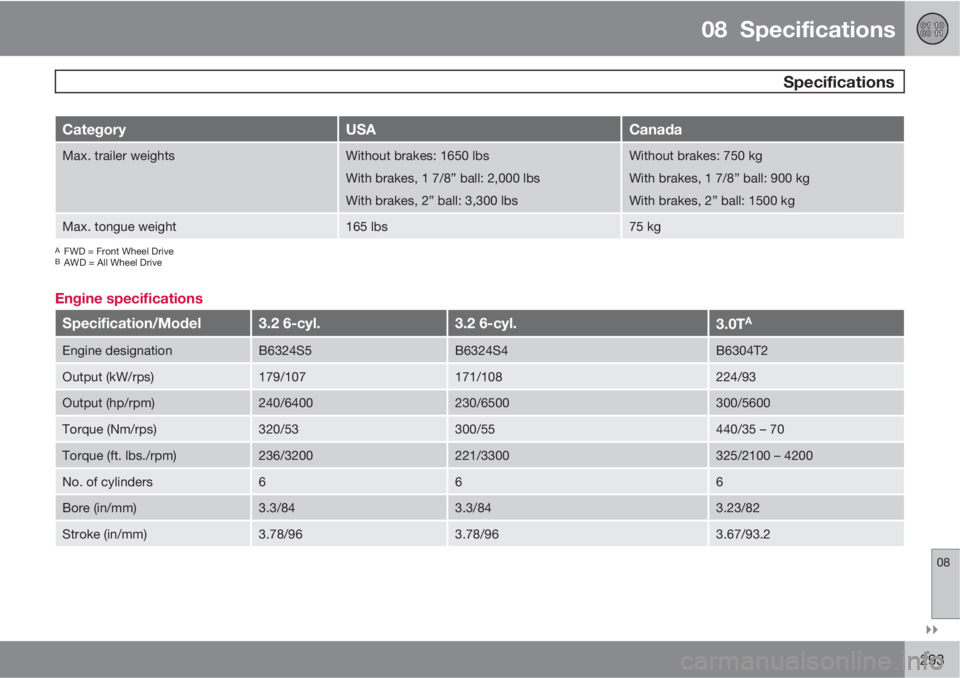

Max. trailer weightsWithout brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel DriveBAWD = All Wheel Drive
Engine specifications
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Engine designationB6324S5B6324S4B6304T2
Output (kW/rps)179/107171/108224/93
Output (hp/rpm)240/6400230/6500300/5600
Torque (Nm/rps)320/53300/55440/35 – 70
Torque (ft. lbs./rpm)236/3200221/3300325/2100 – 4200
No. of cylinders666
Bore (in/mm)3.3/843.3/843.23/82
Stroke (in/mm)3.78/963.78/963.67/93.2

08 Specifications
Specifications
08
294
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
AThis engine may not be available on all markets

08 Specifications
Specifications
08

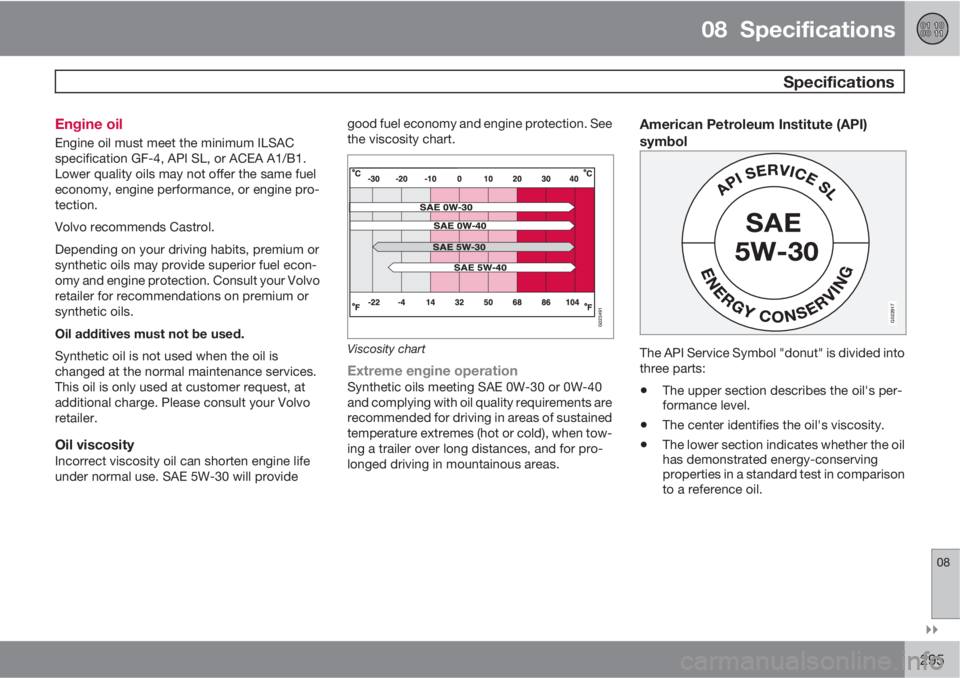

295 Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.
Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will providegood fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

08 Specifications
Specifications
08
296
Oil volume
Engine modelOil volume between MIN and
MAXVolume (incl. filter)
3.2 (6-cyl.)B6324S/S21.27 US qts (1.2 liters)7.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T21.27 US qts (1.2 liters)7.18 US qts (6.8 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)5.8 US qts (5.5 liters)Transmission fluid BOT 341
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4+
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS
M2C204-A2 or equivalent product.
