04 Interior
Storage compartments
04

113

04 Interior
Storage compartments
04
114

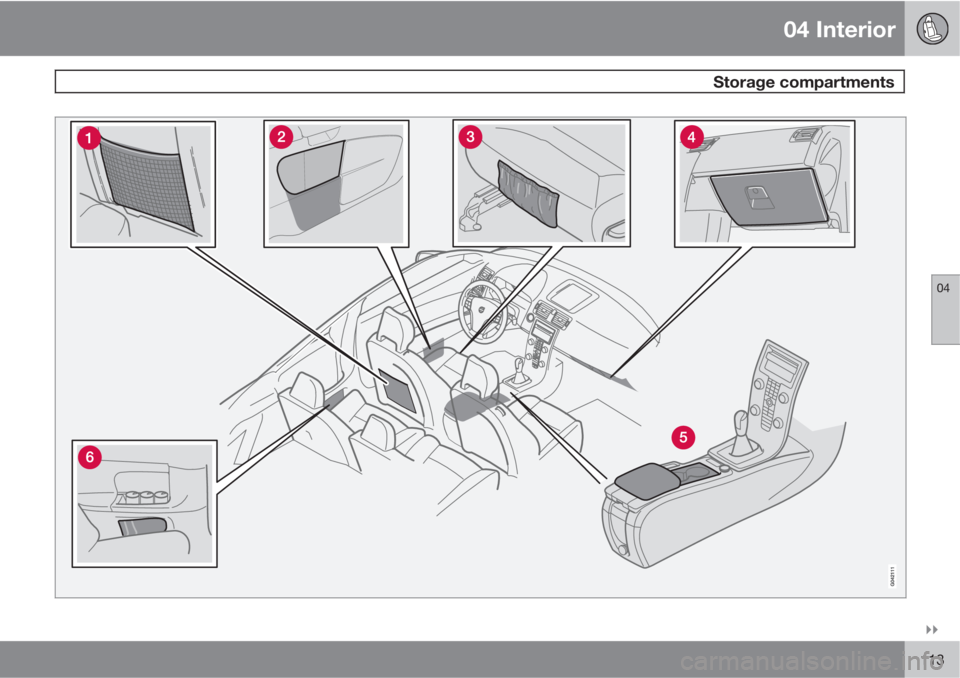

Compartment on rear side of front seat
backrests
Compartment in door panel
Storage pocket (on the front side of the
front seat cushion, depending on choice of
upholstery)
Glove compartment
Storage compartment for e.g., CDs and
cup holders
Compartment in rear side panels, with
space for up to three beverage cans
WARNING
•Anchor any heavy objects to prevent
them from moving during sudden stops.

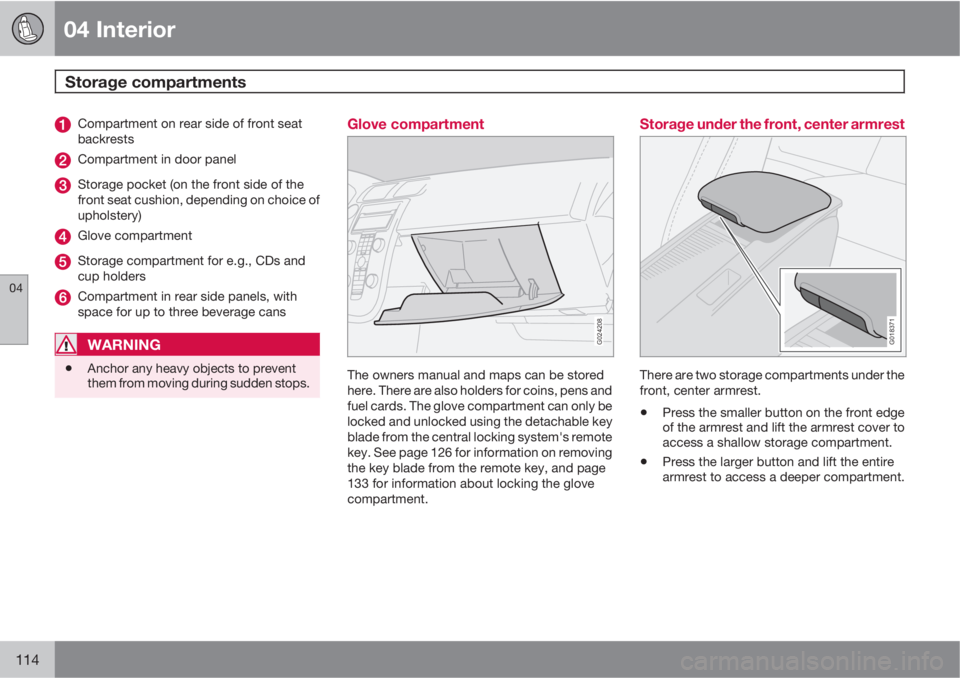

Glove compartment
G024208
The owners manual and maps can be stored
here. There are also holders for coins, pens and
fuel cards. The glove compartment can only be
locked and unlocked using the detachable key
blade from the central locking system's remote
key. See page 126 for information on removing
the key blade from the remote key, and page
133 for information about locking the glove
compartment.
Storage under the front, center armrest
G018371
There are two storage compartments under the
front, center armrest.
•Press the smaller button on the front edge
of the armrest and lift the armrest cover to
access a shallow storage compartment.
•Press the larger button and lift the entire
armrest to access a deeper compartment.

04 Interior
Storage compartments
04
115
CD storage
G026704
The deep storage compartment has room for
10 CD jewel cases. These cases must be
inserted with their spines upward in order to
allow space for 10 cases in the storage com-
partment
Cup holders in the center console
G018372
Two cup holders are located under the sliding
cover in the center console.
The cup holders can be lifted out if necessary.
To do so, grasp the indentation on the rear
edge of the cup holder and lift.
To put the cup holder back in place:
1. Slide the two locating tabs in the front side
of the cup holder into the two correspond-
ing recesses in the center console storage
space.
2. Press down the rear edge of the cup
holder.
To close the sliding cover, grasp the underside
of the front edge and pull.
Storage compartment behind the gear
lever
G019623
If the buttons for optional equipment are not
installed, the recess behind the gear lever can
be used as a storage compartment for coins,
etc.

04 Interior
Rear seat
04
116
Rear seat head restraints
Adjust the head restraint vertically
Both of the rear seating positions are equipped
with a head restraint that can be adjusted ver-
tically to two different positions to help suit the
height of the passenger. The upper edge of the
head restraint should be at least on a level with
the upper-most point of the seat occupant's
ear (see illustration).

To raise: Slide the head restraint up to the
desired height.

To lower: Press the catch at the base of the
right support and press the head restraint
down.

To remove: Pull the head restraint up far as
possible. Press the catch at the base of the
right support and pull the head restraint out
of the its holders.
WARNING
If a head restraint has been removed, it must
be put properly back in place and it must
lock (click) into one of the available adjust-
ment positions before the seat is occupied.
Folding down the rear seat backrests
G009109
CAUTION
•When the backrests are folded down,
the head restraints may be damaged if
they are not removed.
•To help prevent damage to the uphols-
tery when the backrest is folded down,
be sure that there are no objects on the
seat and that the seat belt is not buck-
led.
Both sections of the rear seat backrest can be
folded down, together or separately, to enable
you to transport long objects.

04 Interior
Rear seat
04
* Option/accessory, for more information, see Introduction.117

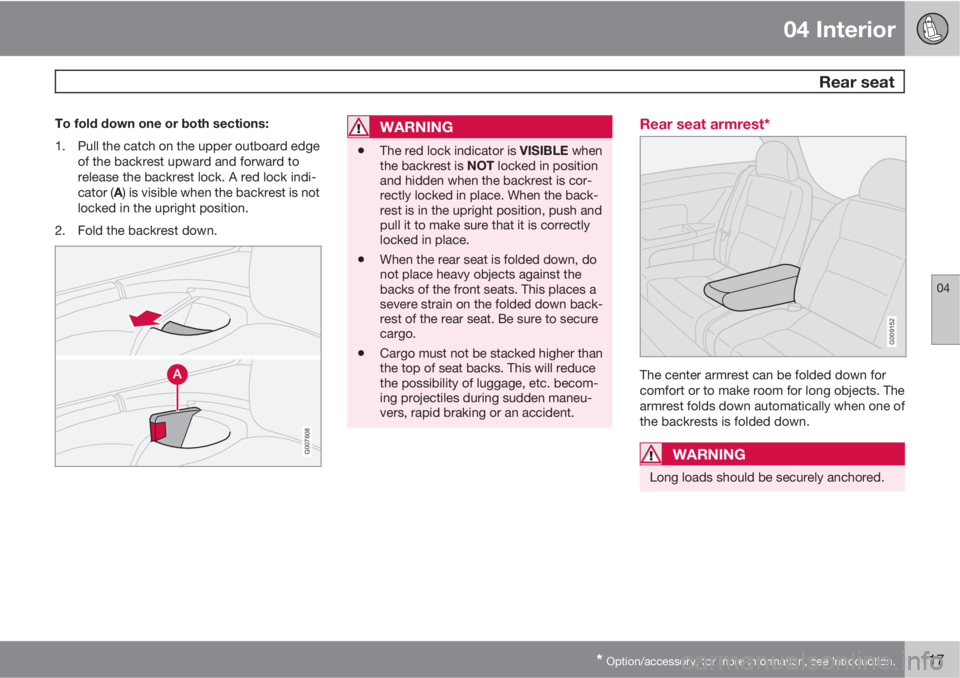

To fold down one or both sections:
1. Pull the catch on the upper outboard edge
of the backrest upward and forward to
release the backrest lock. A red lock indi-
cator (A) is visible when the backrest is not
locked in the upright position.
2. Fold the backrest down.
G007608
WARNING
•The red lock indicator is VISIBLE when
the backrest is NOT locked in position
and hidden when the backrest is cor-
rectly locked in place. When the back-
rest is in the upright position, push and
pull it to make sure that it is correctly
locked in place.
•When the rear seat is folded down, do
not place heavy objects against the
backs of the front seats. This places a
severe strain on the folded down back-
rest of the rear seat. Be sure to secure
cargo.
•Cargo must not be stacked higher than
the top of seat backs. This will reduce
the possibility of luggage, etc. becom-
ing projectiles during sudden maneu-
vers, rapid braking or an accident.
Rear seat armrest*
G009152
The center armrest can be folded down for
comfort or to make room for long objects. The
armrest folds down automatically when one of
the backrests is folded down.
WARNING
Long loads should be securely anchored.

04 Interior
Cargo area
04
118* Option/accessory, for more information, see Introduction.
Load anchoring eyelets
G007602
The eyelets in the cargo area can be used to
fasten accessory load nets and lashing straps,
load nets, and other load anchors.
Hard cargo area cover*
G009475
Installing the cargo area cover1. Before lifting cover into the vehicle, retract
all four lock pins by pulling back the lock
buttons as far as possible. The pins will
remain retracted.
2. Lift the cover into the vehicle at an angle,
turn it back and raise the front edge
slightly.
3. Place the front section of the cover on the
two support pins behind the locking points
(A) on both sides of the vehicle.
G007611
4.
Place one of the rear locks at (B) and slide
the lock pin into position by moving the
lock button forward.
5. Put the other rear lock into position in the
same way and slide the lock pin into posi-
tion by moving the lock button forward.
6. Slide the front lock buttons forward, one at
a time, so that the lock pins move into
position (A).
NOTE
The rear section of the cover can be folded
up when loading items into the cargo area.

04 Interior
Cargo area
04

* Option/accessory, for more information, see Introduction.119
WARNING
The cargo area cover does not have a load
anchoring function. No item should be place
on top of the cargo area cover. These items
could move forward and cause injury during
braking.
Removing the cover1.
Retract the front lock pins at (A) by pulling
back the lock buttons on both sides as far
as possible.
2.
Retract the rear lock pins at (B) by pulling
back the lock buttons on both sides as far
as possible.
3. Lift up and turn the cover before lifting it out
of the vehicle.
Soft cargo area cover*
G007614
The cargo area cover is pulled over the cargo
area and fastened to the eyelets with the hooks
on the corners of the cover.
Installing the cover1. Attach the front lower hooks on the cover
to the lower eyelets (A) on opposite sides
of the vehicle.
2.
Insert the front upper attachments (B) by
pressing together the spring-loaded rails
and pressing them into place on opposite
sides of the vehicle.
3.
Insert the upper rear rails (C) in the same
way.4. Attach the rear lower hooks on the cover to
the lower eyelets (D) on opposite sides of
the vehicle.
Hanging the cover when it is not in use1.
Remove the rear hooks (D) from the eye-
lets.
2.
Press together the rear rails (C) and remove
them from their attachments. Place them
at the front of the cargo area floor.
3. Attach the hooks in the rail next to the
attachments (B).
The cargo area cover is now hanging near the
rear seat backrests until it is needed again.
Removing the cargo area cover1. Remove the hooks and remove the rails
one at a time by pressing them together
and removing them from their attach-
ments.
2. When all attachments have been removed,
the cover can be rolled up and placed on
the rear part of the cargo area floor to make
room for cargo.

04 Interior
Cargo area
04
120* Option/accessory, for more information, see Introduction.
WARNING
The cargo area cover does not have a load
anchoring function. No item should be place
on top of the cargo area cover. These items
could move forward and cause injury during
braking.

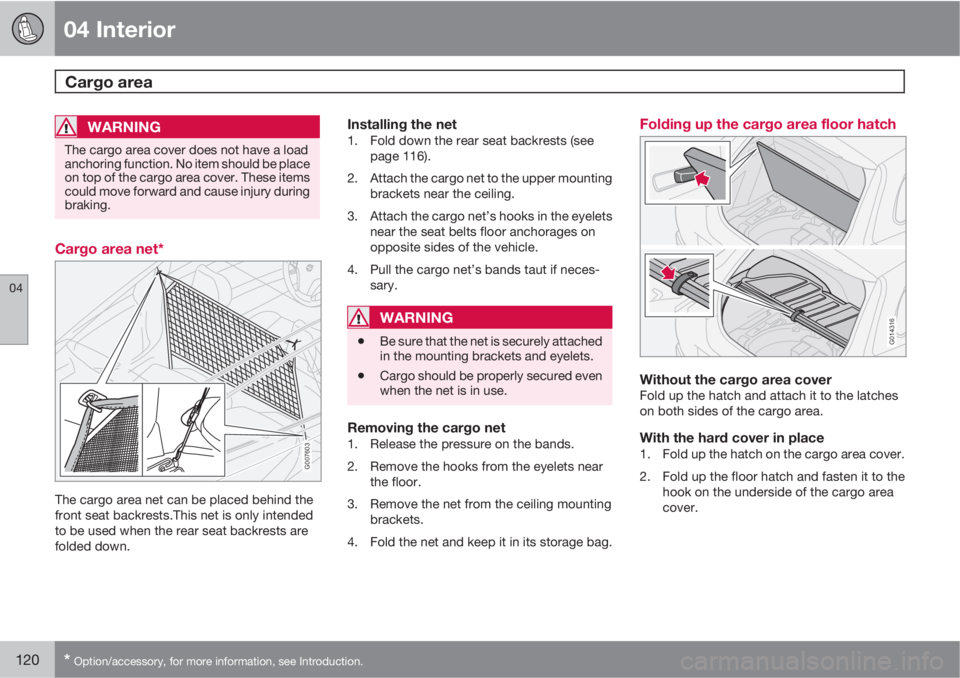

Cargo area net*
G007603
The cargo area net can be placed behind the
front seat backrests.This net is only intended
to be used when the rear seat backrests are
folded down.
Installing the net1. Fold down the rear seat backrests (see
page 116).
2. Attach the cargo net to the upper mounting
brackets near the ceiling.
3. Attach the cargo net’s hooks in the eyelets
near the seat belts floor anchorages on
opposite sides of the vehicle.
4. Pull the cargo net’s bands taut if neces-
sary.
WARNING
•Be sure that the net is securely attached
in the mounting brackets and eyelets.
•Cargo should be properly secured even
when the net is in use.
Removing the cargo net1. Release the pressure on the bands.
2. Remove the hooks from the eyelets near
the floor.
3. Remove the net from the ceiling mounting
brackets.
4. Fold the net and keep it in its storage bag.
Folding up the cargo area floor hatch
G014316
Without the cargo area coverFold up the hatch and attach it to the latches
on both sides of the cargo area.
With the hard cover in place1. Fold up the hatch on the cargo area cover.
2. Fold up the floor hatch and fasten it to the
hook on the underside of the cargo area
cover.
