117 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)
Canceling the system
Using the smart entry & start system (if equipped):
Hold the outside door handle on the driver side.
Using the wireless remote control:
Press the
button.
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

118
1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)

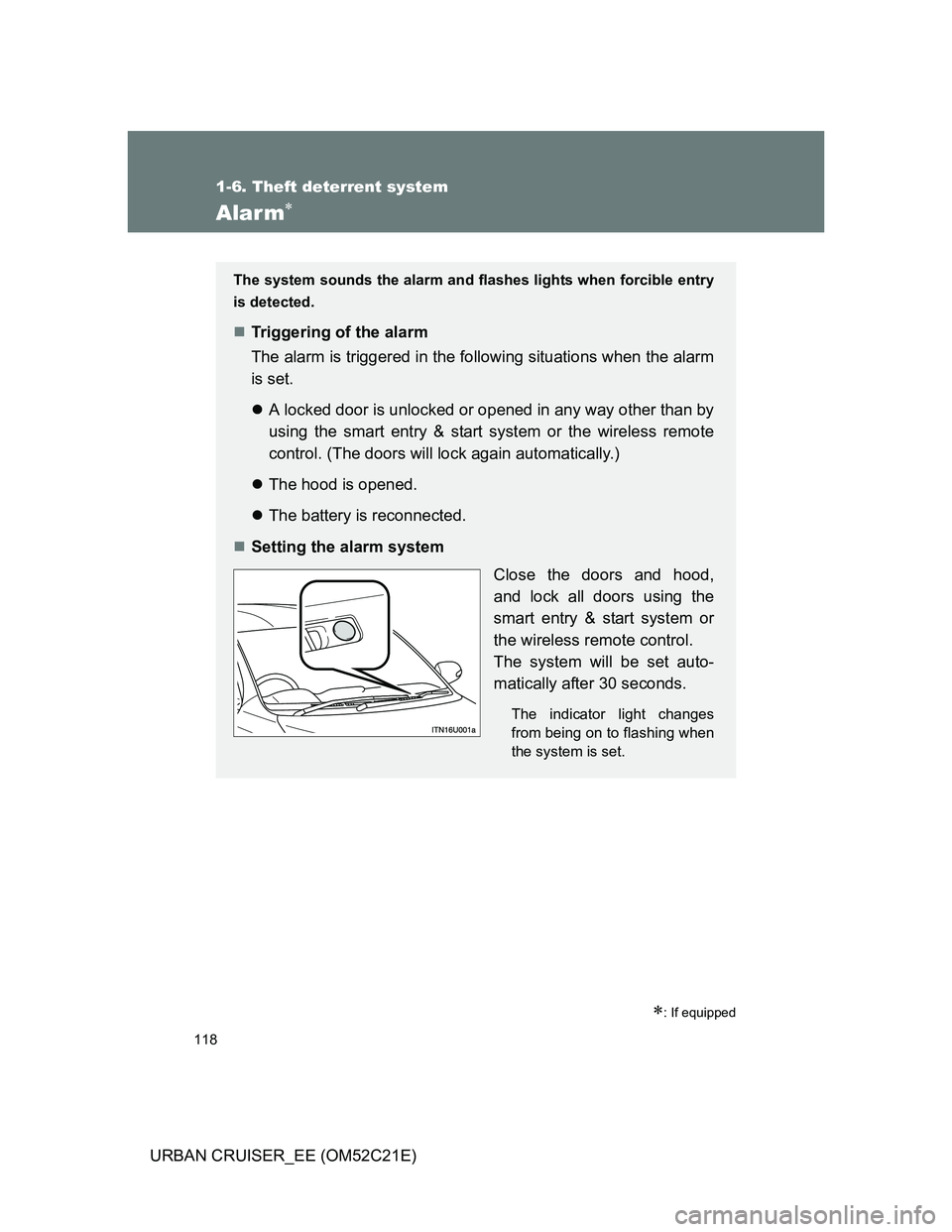

Alarm
: If equipped
The system sounds the alarm and flashes lights when forcible entry
is detected.
Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set.
A locked door is unlocked or opened in any way other than by
using the smart entry & start system or the wireless remote
control. (The doors will lock again automatically.)
The hood is opened.
The battery is reconnected.
Setting the alarm system
Close the doors and hood,
and lock all doors using the
smart entry & start system or
the wireless remote control.
The system will be set auto-
matically after 30 seconds.
The indicator light changes
from being on to flashing when
the system is set.

119 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
Unlock the doors using the smart entry & start system or the
wireless remote control.
Start the engine. (The alarm will be deactivated or stopped
after a few seconds.)

388 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)
Use the following types of lithium battery
Vehicles without smart entry & start system: CR2016
Vehicles with smart entry & start system: CR1632
Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Dispose of used batteries according to the local laws.
If the key battery is discharged
The following symptoms may occur.
The smart entry & start system and wireless remote control will not func-
tion properly.
The operational range is reduced.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

397 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)
FuseAmpereCircuit
9 ABS1/VSC1 50 A ABS, VSC
10 HTR 40 A Air conditioning system
11 RDI 30 A Electric cooling fan
12
HTR SUB1*3
30 A Air conditioning system
HTR SUB2*7
13H-LP CLN/PWR
HTR*530 A Air conditioning system
HTR SUB3
*7
14 FR DEF 20 A No circuit
15 ABS2/VSC2 30 A ABS, VSC
16 H-LP MAIN 30 A“H-LP HI LH”, “H-LP HI RH”, “H-LP
RH/H-LP LO RH”, “H-LP LH/H-LP
LO LH” fuses
17 ST 30 A Starting system
18 S-LOCK 20 A Smart entry & start system
19 DOME 15 AInterior light, personal lights, lug-
gage compartment light, smart
entry & start system, wireless
remote control, audio system
20 ECU-B 7.5 ADaytime running light system,
power windows, power door lock
system, smart entry & start system,
gauges and meters, air condition-
ing system, VSC, Active Torque
Control 4WD system, Stop & Start
system
21
ALT-S*1, 2, 3, 47.5 A
Charging system, fuel system
F/PMP*5, 6, 7, 830 A
22 ETCS 10 A Electronic throttle control system

472
5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Using the mechanical key (
P. 3 3 )
in order to perform the following
operations.
Locks all doors
Unlocks all doors
An alarm will sound if the alarm is
set. (P. 118)
For vehicles with smart entry & start system: If communication
between the electronic key and vehicle is interrupted (P. 39) or the
electronic key cannot be used because the battery is depleted, the
smart entry & start system and wireless remote control cannot be
used. In such cases, the doors can be opened or the engine can be
started by following the procedure below.

514
URBAN CRUISER_EE (OM52C21E)
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Smart entry
& start
system
(P. 35)Smart entry & start
systemON OFF
Operation signal
(Emergency flashers)ON OFF
Wireless
remote
control
(P. 56)Wireless remote control ON OFF
Operation signal
(Emergency flashers)ON OFF
Door lock buzzer (when
locking the vehicle)
(vehicles with smart
entry & start system)ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds60 seconds
120 seconds
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
