2011
Highlander Hybrid
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Highlander Hybrid.
This Quick Reference Guideis not a full description of
Highlander Hybrid operations. Every Highlander Hybrid owner
should review the Owner’s Manualthat accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the cover under the center deck board to find the spare tire
clamp bolt.
(2) Assemble the jack handle.
(3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt
by turning it counterclockwise with the jack handle.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Wrench
Spare tire
Jack handle
Towing eyeletSocket
adapter
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Jack
Jack handle
Doors-Child safety locks
(2)(3)(1)

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 9

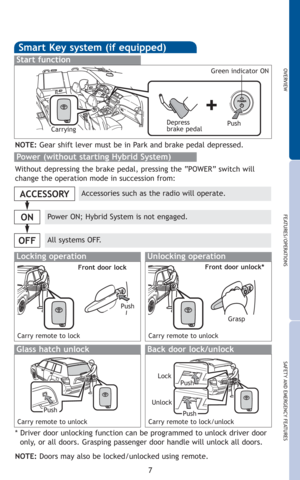

Smart Key system1,27

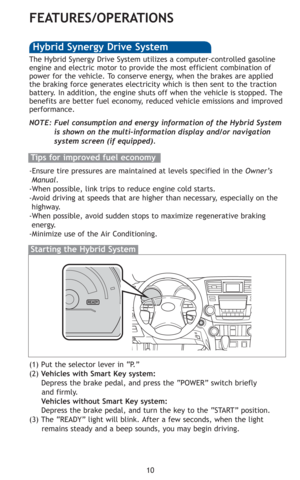

Air Conditioning/Heating 20-22Audio 24-25Auto lock functions111Bluetooth®audio 25Clock 19Cruise control 23Cup holders 27Door-Power back 18EV-Drive Mode 12Garage door opener (HomeLink®)323Hill-start Assist Control (HAC) 27Hybrid Synergy Drive System 10Lights1& turn signals 16Moonroof 22Multi-information display226Parking brake 12Power outlets-12V DC 19Power outlets-120V AC 19Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 22Seats-Folding down second row seats 15Seats-Head restraints 14

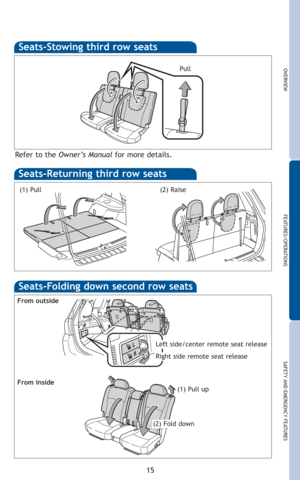

Seats-Returning third row seats 15Seats-Stowing third row seats 15Steering lock release 12Steering wheel controls 26Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel 12Transmission 11Windows-Power 17
Windshield wipers & washers 17
Doors-Child safety locks 29Door locks 28Seat belts 28Seat belts-Shoulder belt anchor 28Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Seats-Removing Center-Stow
second row seat14

2
OVERVIEW
Instrument panel
Steering wheel controlsAutomatic Air Conditioning
Steering wheel audio controls
Steering wheel climate controls1
Multi-information display button
Voice command button2
Telephone controls2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls
Wiper and washer controls
Multi-information display
Audio system or navigation system-integrated audio system
1,2
Theft deterrent system/Immobilizer indicator
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger
seat belt reminder lights
Power back door main switch
1
Power button (Smart Key)1
Cruise control

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Vehicles without navigation systemManual Air Conditioning
Vehicles with navigation system
Ignition (standard key)1
Tilt and telescopic steering lock release
Fuel filler door opener
Power back door button
1
Instrument panel light control
VSC/TRAC off switch
Windshield wiper de-ice switch
1
Power outside rearview mirror controls
Outside rearview mirror1/Back window defogger button
Air Conditioning controls
1If equipped2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”

4
OVERVIEW
Indicator symbols
Instrument cluster
Power meter
Engine coolant temperature
Service indicator and reminder
Fuel gauge
Speedometer
Odometer/trip meter switch and trip meter reset button
Odometer and two trip meters
Transmission shift position indicator
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning light (yellow indicator)1
1
If indicator does not turn off within a few seconds of starting hybrid system, there
aamay be a malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2,2011
Owner’s Manual.

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning Malfunction/Check Engine indicator
1
Low fuel level warning
Electric power steering system warning1
READY indicator
Front fog light indicator
Eco Driving Mode indicator
EV-Drive Mode indicator
Variable economy zone indicator
Vehicle Stability Control OFF indicator1
Traction control OFF indicator1

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
Glass hatch operation
(if equipped)Power back door operation
(if equipped)
Push and hold
Without Smart Key systemWith Smart Key system
Panic button
Push and hold
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
With power back door
Without power back door
With power back door
Without power back door
With power
back doorWithout power
back door
