19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Push up, or
squeeze lock
release to lower
Rear seat outside
position guides
provide added
comfort for children
who have outgrown
child restraints.
SAFETY AND EMERGENCY FEATURES
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 19
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

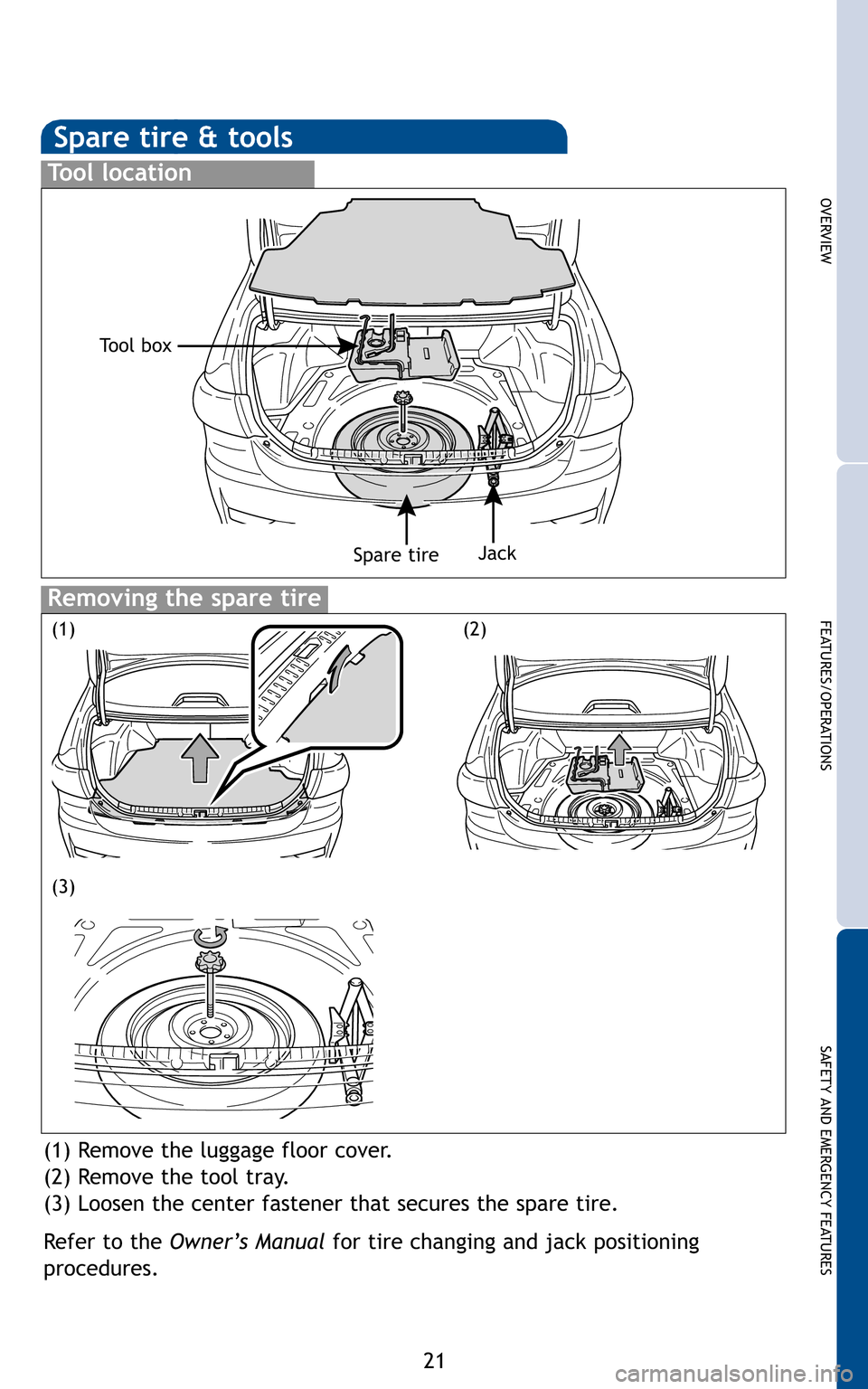

(1) Remove the luggage floor cover.
(2) Remove the tool tray.
(3) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Spare tireJack
Tool box
(1)(2)
(3)
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 21
