This Quick Reference Guide is not a full description of Corolla
operations. Every Corolla owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
414868M2.qxd:414868M2 11/18/10 9:35 AM Page B

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap6Hood release 7Indicator symbols 5Instrument cluster4Instrument panel2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock/unlock29Automatic Transmission 8Auxiliary storage 18Clock16Cruise control15Cup holders18Door locks-Power 17Light control-Instrument panel 18Lights & turn signals 11Moonroof 17Multi-information display 15Parking brake8Power outlet 11Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Seat belts19Seat belts-Shoulder belt adjustment 19Spare tire & tools21Tire Pressure Monitoring (warning) System20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
INDEX
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 1

2
OVERVIEW

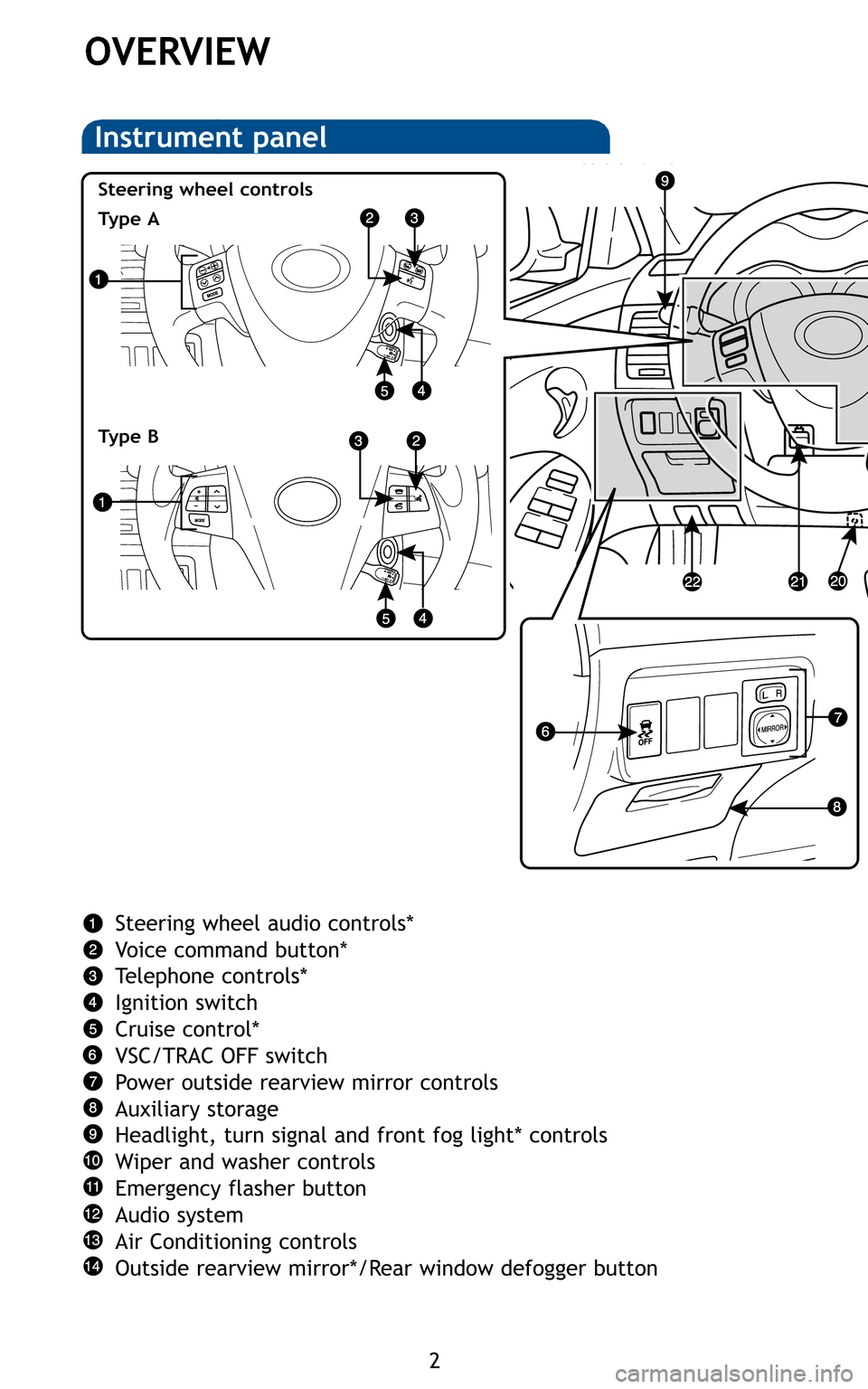

Steering wheel audio controls*
Voice command button*
Telephone controls*
Ignition switch
Cruise control*
VSC/TRAC OFF switch
Power outside rearview mirror controls
Auxiliary storage
Headlight, turn signal and front fog light* controls
Wiper and washer controls
Emergency flasher button
Audio system
Air Conditioning controls
Outside rearview mirror*/Rear window defogger button
Steering wheel controls
Type A
Type B
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 2

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Front passenger seat belt reminder light
“AIR BAG ON” and “AIR BAG OFF” indicator
Engine immobilizer indicator
Clock
USB*/AUX port
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
* If equipped
Automatic Air Conditioning system
Manual Air Conditioning system
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 3

4
OVERVIEW

Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Odometer and two trip meters
Automatic Transmission shift range display (if equipped)
Multi-information display
Display button
Engine coolant temperature
Type A
Type B
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Anti-lock Brake System warning1
Headlight high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control/Cruise control SET indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seat belt reminder (on the instrument cluster)
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder (on the center panel)
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2011
Owner’s Manual .
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Maintenance/Service required indicator1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Traction Control OFF indicator1
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 5

6
OVERVIEW

Push Push ONCE: Driver door
TWICE: All doors


Push and hold
NOTE:If a door is not opened within
60 seconds of unlocking, all doors
will relock for safety.

Push and hold

NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull Turn to open
Store
