2011 TOYOTA CAMRY HYBRID engine coolant

JOBNAME:280573-2011-cah-toyw PAGE:39SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
15,000 milesor18 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsClean cabinairfilterReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums andbrake pads/discs
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive shaftboots
__ Engine/Inverter coolant
3
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect engineairfilterTighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Referto“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog39

JOBNAME:280573-2011-cah-toyw PAGE:41SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
30,000 milesor36 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace cabinairfilterReplace engineairfilterReplace engineoiland oilfilter1
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
3
__ Drive shaftboots
__ Engine/Inverter coolant4
__Exhaust pipesandmountings __
Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Inspectthickness measurement anddisc runout.4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog41

JOBNAME:280573-2011-cah-toyw PAGE:43SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
45,000 milesor54 months
Check installation ofdriver’s floormatClean cabinairfilterInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums andbrake pads/discs
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive shaftboots
__ Engine/Inverter coolant
3
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect engineairfilterTighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Referto“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog43

JOBNAME:280573-2011-cah-toyw PAGE:45SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
60,000 milesor72 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace cabinairfilterReplace engineairfilterReplace engineoiland oilfilter1
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
3
__ Drive belts4
__Drive shaftboots
__ Engine valveclearance5
__Engine/Inverter coolant6
__Exhaust pipesandmountings
__ Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Inspectthickness measurement anddisc runout.4Initial inspection at60,000 miles/72 months.Inspectevery15,000 miles/18 monthsthereafter.5Checkfortappet noiseandengine vibration andadjust ifnecessary.6Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog45

JOBNAME:280573-2011-cah-toyw PAGE:47SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
75,000 milesor90 months
Check installation ofdriver’s floormatClean cabinairfilterInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums andbrake pads/discs
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
3
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect engineairfilterTighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Referto“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog47

JOBNAME:280573-2011-cah-toyw PAGE:49SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg

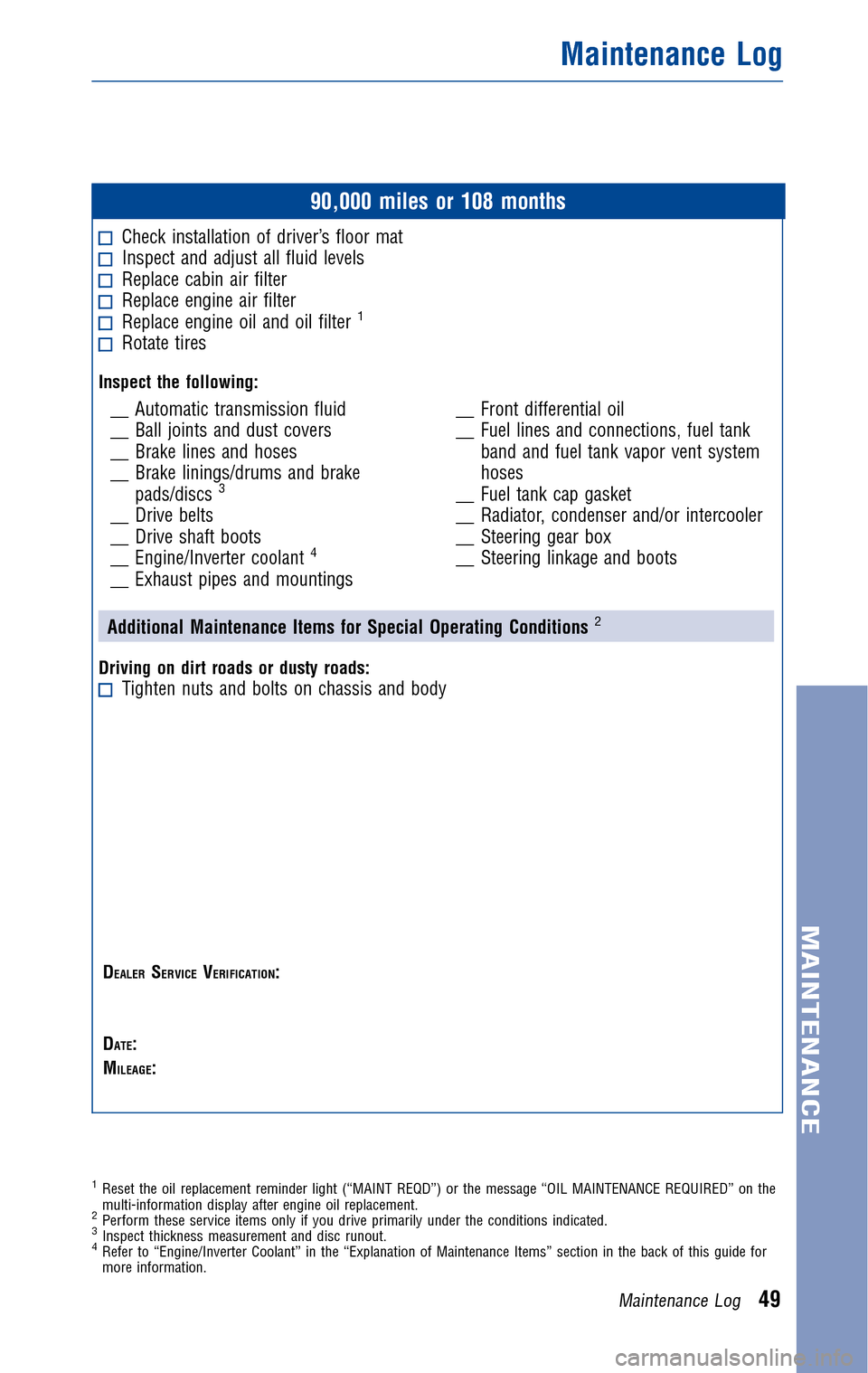

90,000 milesor108 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace cabinairfilterReplace engineairfilterReplace engineoiland oilfilter1
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
3
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
4
__Exhaust pipesandmountings __
Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Inspectthickness measurement anddisc runout.4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog49

JOBNAME:280573-2011-cah-toyw PAGE:50SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
95,000 milesor114 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect engineairfilterInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
100,000 milesor120 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Replace engine/inverter coolant3
RotatetiresVisually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect engineairfilterInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
Maintenance Log
MAINTENANCE
50MaintenanceLog

JOBNAME:280573-2011-cah-toyw PAGE:51SESS: 11OUTPUT: MonDec2117:22:48 2009
/tweddle/toyota/sched-maint/280573-en-cah/wg
105,000 milesor126 months
Check installation ofdriver’s floormatClean cabinairfilterInspect andadjust allfluid levelsReplace engineoiland oilfilter1
Rotate tiresVisually inspectbrakelinings/drums andbrake pads/discs
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
4
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Inspect engineairfilterTighten nutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayafterengine oilreplacement.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Initialreplacement at100,000 miles/120 months.Replaceevery50,000 miles/60 monthsthereafter. Referto
“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide formore
information.
4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
Maintenance Log
MAINTENANCE
MaintenanceLog51
