2011 TOYOTA AVALON Quick Reference Guide

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedal Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Power (without starting engine)
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
Trunk access
Opening trunk
Locking operationUnlocking operation
Carry remote to lock
Carry remote to unlock
Front door lockFront door unlock*
Push
Grasp
Push Carry remote
to lock/unlock

8
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
PushTu r n
Store
Light control-Instrument panel
Brightness
control-+
Trunk release
Push Trunk opener
OVERVIEW

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch and
raise hood
Pull
Engine coolant reservoir
Power steering fluid reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch/engine must be “ON” and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode“S”“D”
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
1. Doors lock: when shifting from Park.
Doors unlock: when shifting into Park.
2. Doors lock: when the vehicle speed goes above 12 mph.
Doors unlock: when the driver’s door is opened within 10 seconds after
turning the “ENGINE START STOP” switch or the engine switch OFF.
Refer to the Owner’s Manualfor more details.
Door locks
LockUnlock
+(“S” mode)
-(“S” mode)

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Steering lock release
Tu r n Tu r n With Smart Key system
Without Smart Key system
Push
Tu r n
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Angle
Length
Lock release leverLock release lever
Gently turn wheel while pressing the
“ENGINE START STOP” switch. If the
lock does not release, the switch will
flash green.
If steering lock does not disengage:

12
FEATURES/OPERATIONS
Seat adjustments-Rear
Refer to the Owner’s Manualfor more details.
Seat adjustments-Front
Leg support (if equipped)
Seat position, cushion angle (if equipped) and height (if equipped)
Seatback angle
Lumbar support (if equipped)
Seatback angle lever
Seats-Head restraints
Lock release button

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

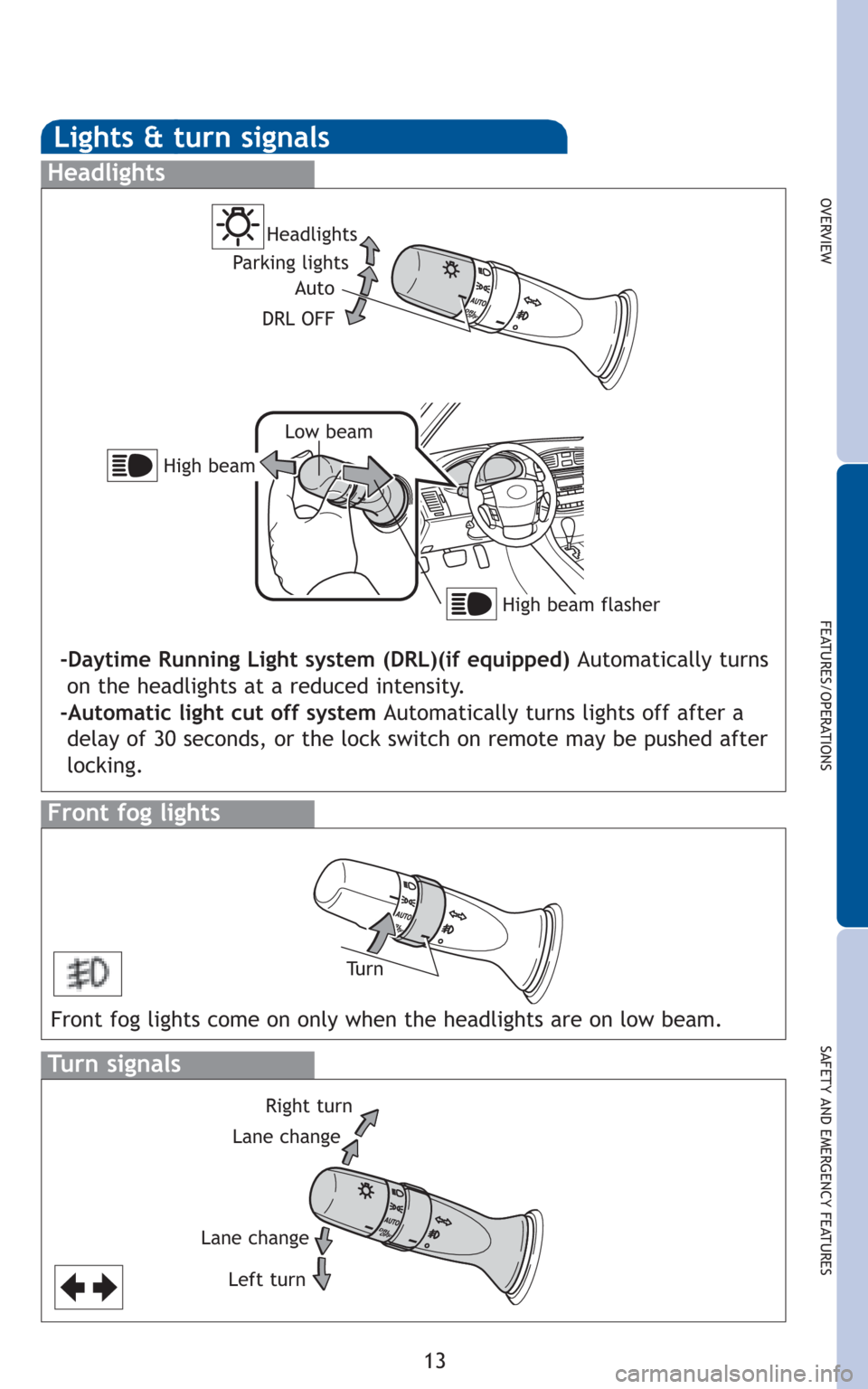

Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights
Headlights
-Daytime Running Light system (DRL)(if equipped) Automatically turns
on the headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Lane change
Lane change
Left turn
High beam
Auto
DRL OFF
Tu r n

14
FEATURES/OPERATIONS
Windows-Power
Window lock switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NOTE:If battery is disconnected, the window needs to be reinitialized.
Refer to the Owner’s Manualfor more details.
Up
Down
Driver side
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe Adjust frequency*
Pull to wash and wipeAuto wipe
Single wipe
Slow
Fast Adjust sensor
sensitivity With interval wiper (if equipped)With AUTO rain-sensing wiper
(if equipped)
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
