404 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)■Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, clean funnel (only for adding fluid)
CAUTION
■When checking the reservoir
Take care, as the reservoir may be hot.
NOTICE
■When adding fluid
Avoid overfilling, or the power steering may be damaged.
■After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or
damage.

436 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
FuseAmpereCircuit
21 EFI No.1 25 AMultiport fuel injection system/
sequential multiport fuel injection
system, fuel pump
22 HORN 10 A Horn
23 HEAD LH UPR 15 A Left-hand headlight (high beam)
24 HEAD RH UPR 15 A Right-hand headlight (high beam)
25 A/F 25 A Air fuel ratio sensor
26 WASHER 20 A Windshield washer
27 S-HORN 7.5 A Horn
28 DOME 7.5 AGauges and meters, clock, front
personal lights, door courtesy
lights, garage door opener, rear
personal lights, trunk light
29 ECU-B 10 ACenter display, multiplex
communication system
30 RAD No.1 15 AAudio system, center display,
navigation system
31 EFI No.2 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
32 STOP No.2 7.5 AStop lights, high mounted
stoplight, vehicle stability control
system, anti-lock brake system
33 HEAD RH LWR 15 A Right-hand headlight (low beam)
34 HEAD LH LWR 15 A Left-hand headlight (low beam)

444 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)

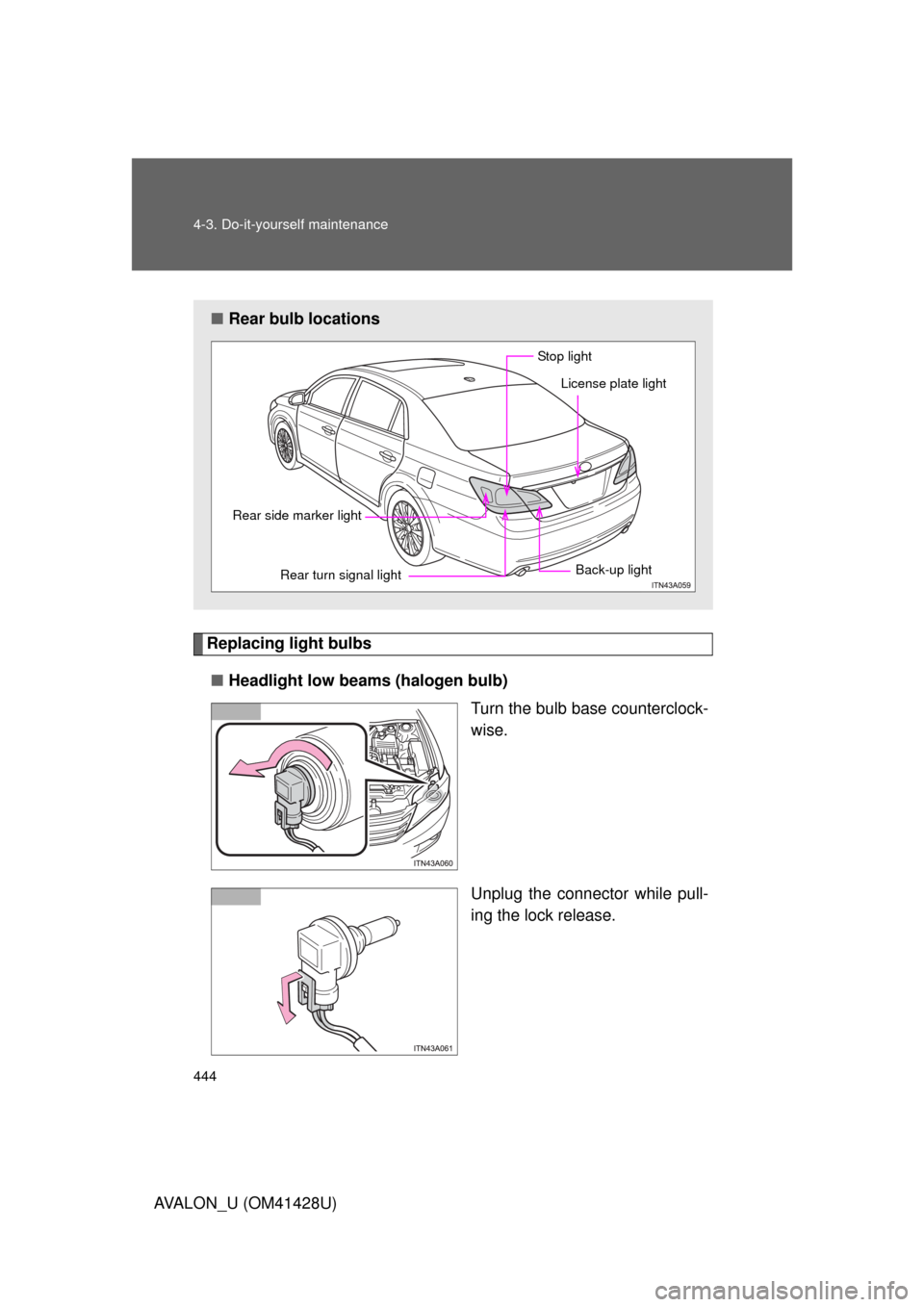

Replacing light bulbs
■Headlight low beams (halogen bulb)
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
■Rear bulb locations
Rear side marker light
Rear turn signal lightBack-up light License plate light
St o p li gh t

4
Maintenance and care
445 4-3. Do-it-yourself maintenance

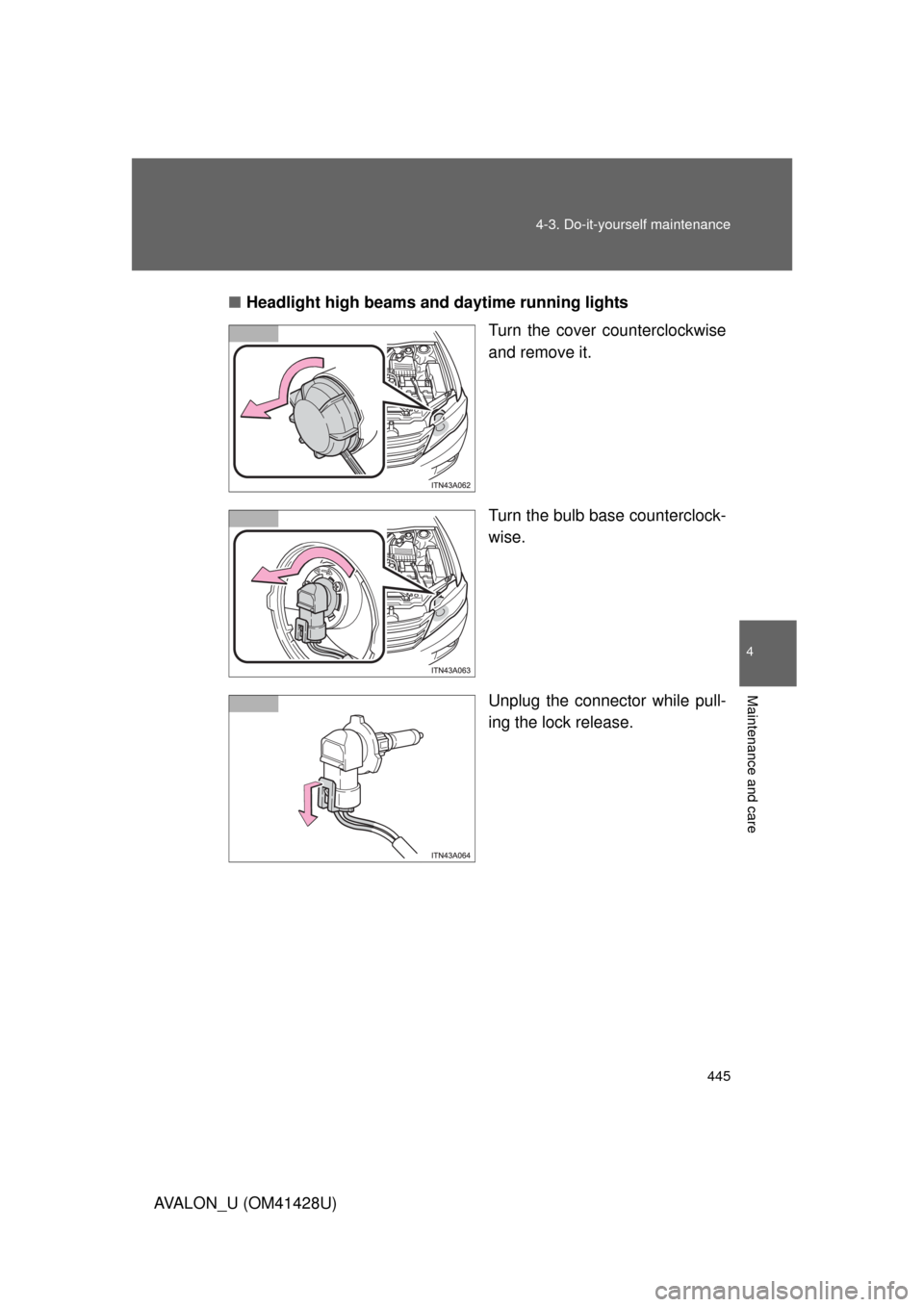

AVALON_U (OM41428U)■Headlight high beams and daytime running lights
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.

446 4-3. Do-it-yourself maintenance

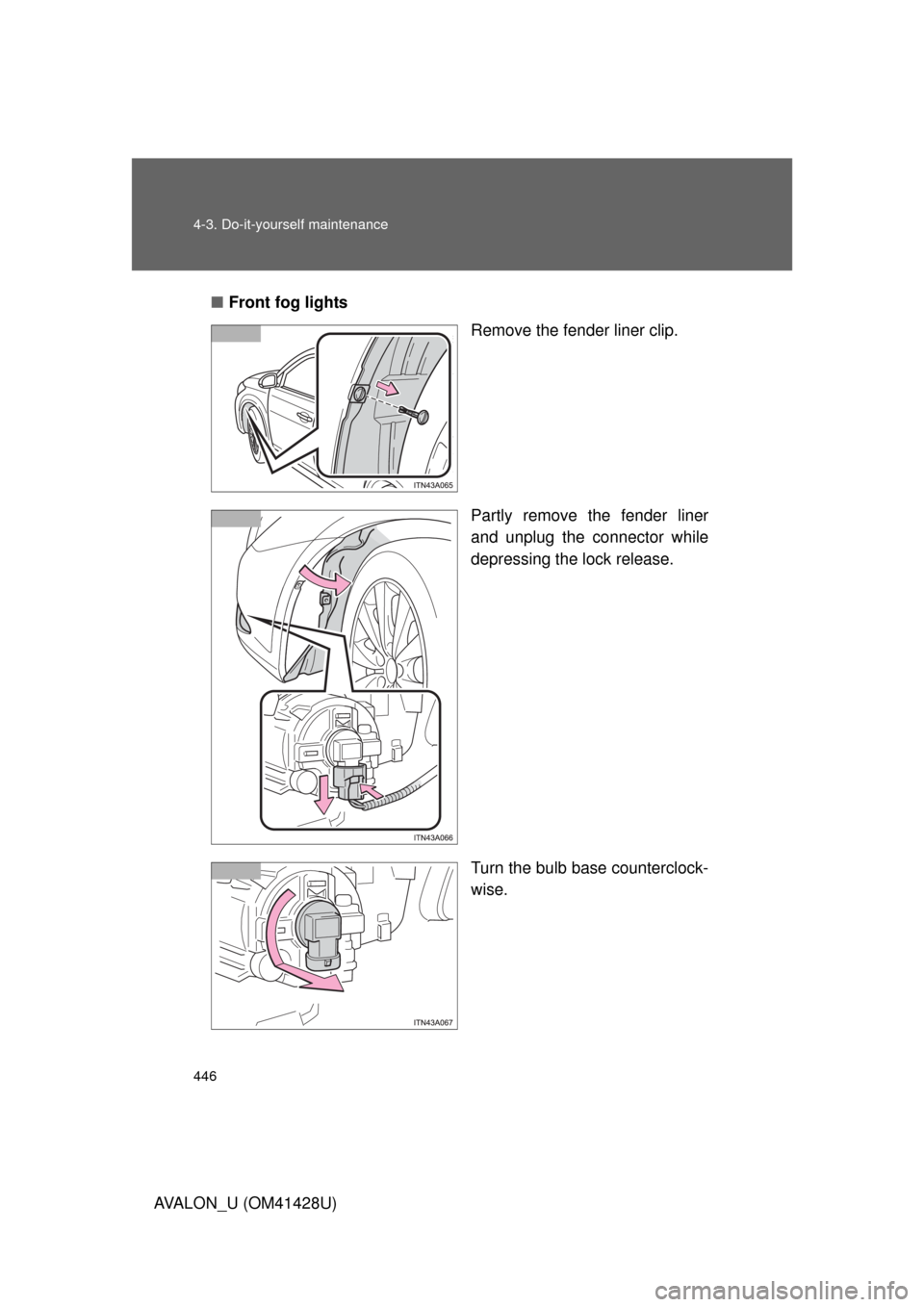

AVALON_U (OM41428U)■Front fog lights
Remove the fender liner clip.
Partly remove the fender liner
and unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

4
Maintenance and care
447 4-3. Do-it-yourself maintenance

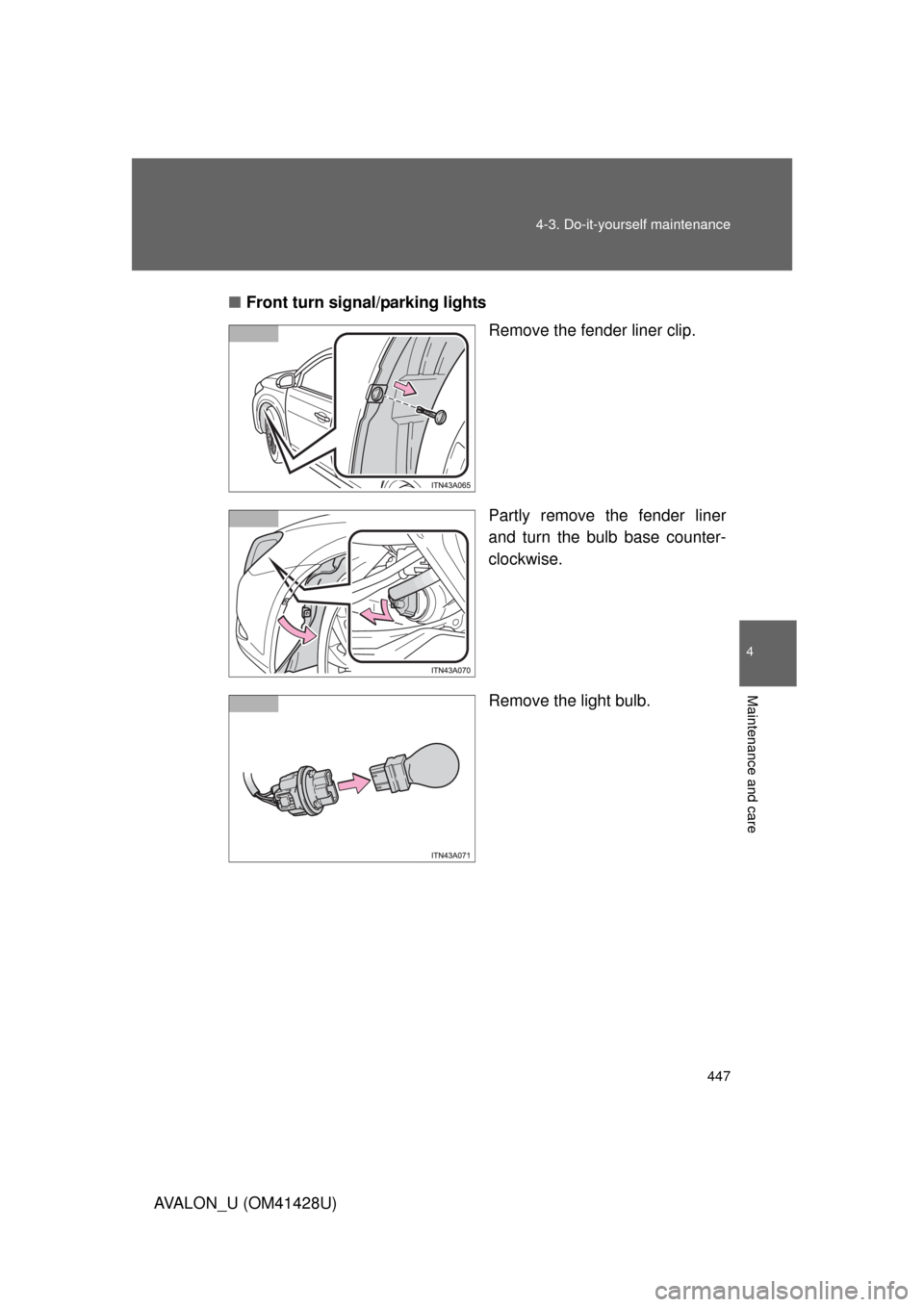

AVALON_U (OM41428U)■Front turn signal/parking lights
Remove the fender liner clip.
Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Remove the light bulb.

448 4-3. Do-it-yourself maintenance

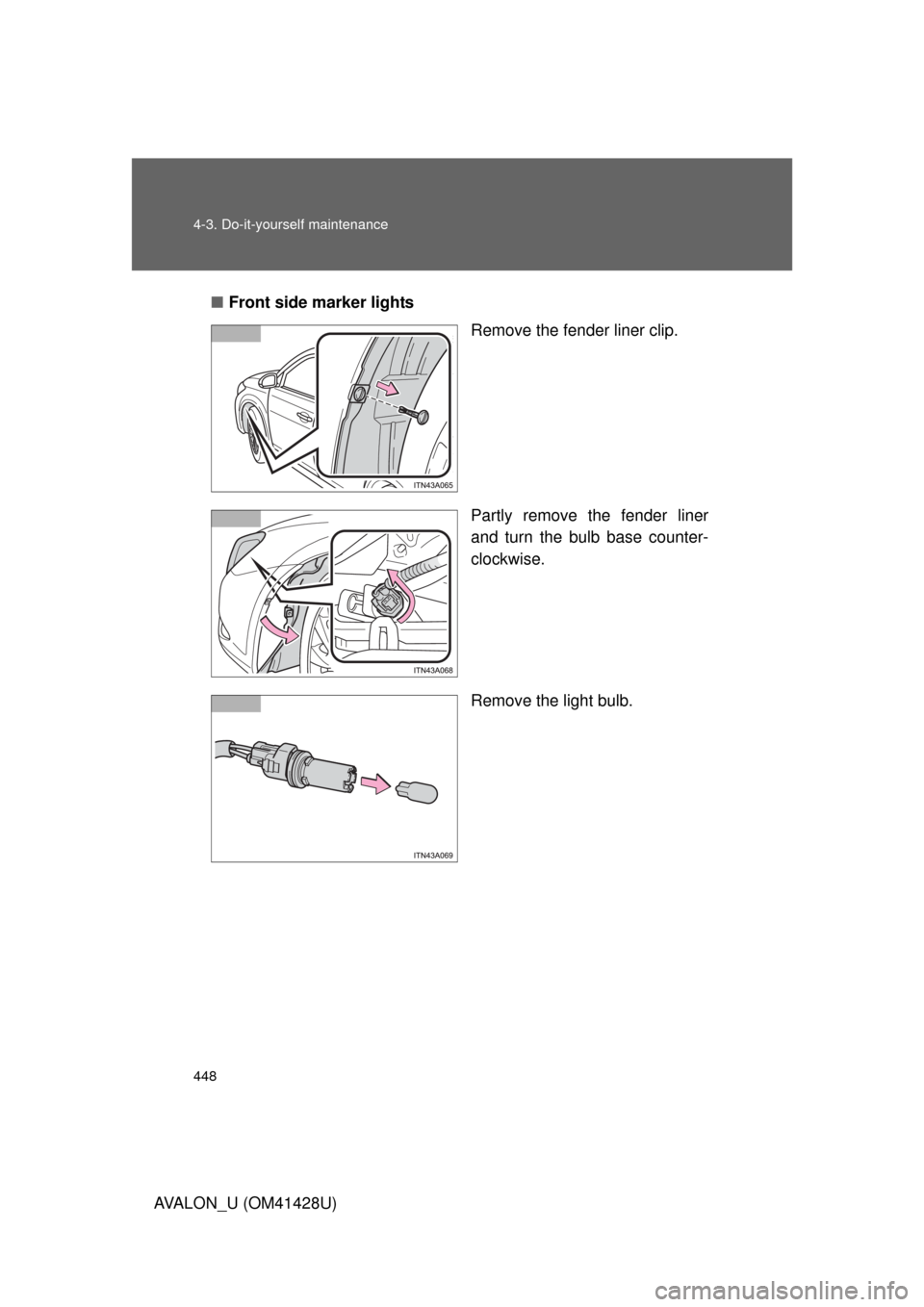

AVALON_U (OM41428U)■Front side marker lights
Remove the fender liner clip.
Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Remove the light bulb.

4
Maintenance and care
449 4-3. Do-it-yourself maintenance

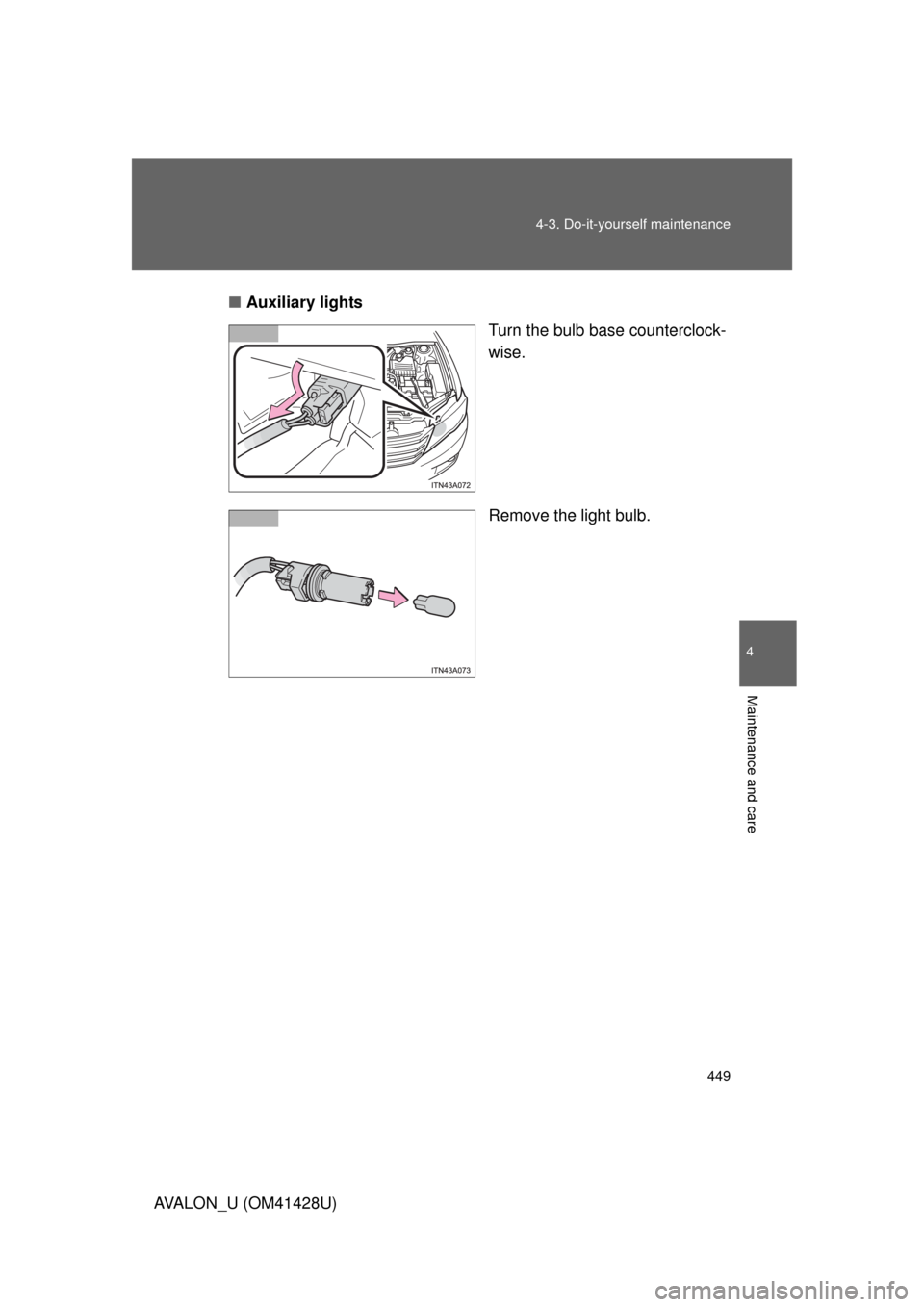

AVALON_U (OM41428U)■Auxiliary lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
