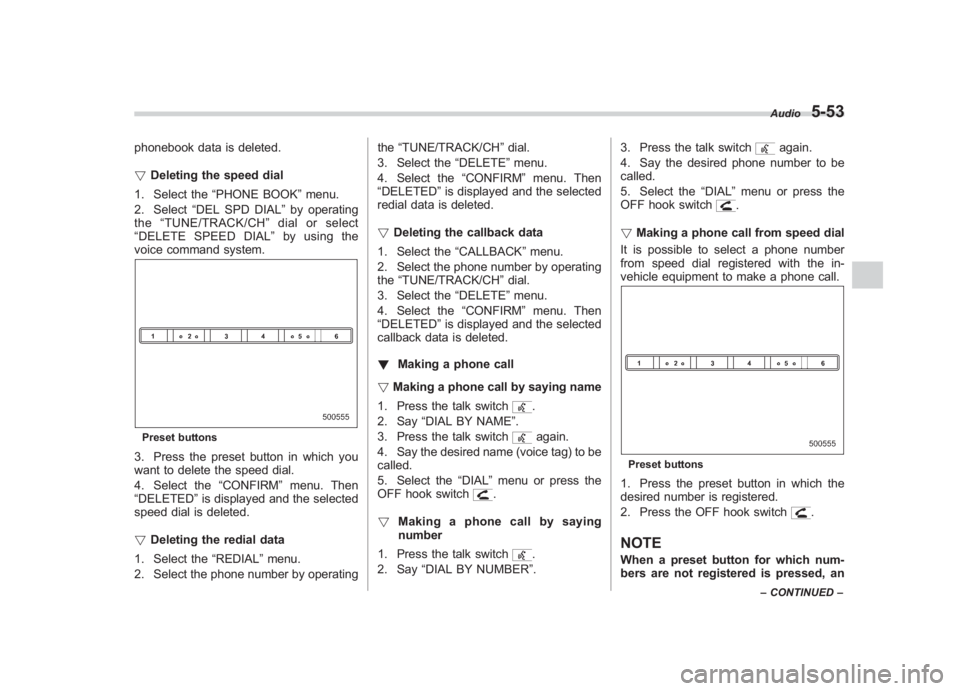

phonebook data is deleted.
! Deleting the speed dial
1. Select the “PHONE BOOK ”menu.
2. Select “DEL SPD DIAL ”by operating
the “TUNE/TRACK/CH” dial or select
“ DELETE SPEED DIAL ”by using the
voice command system.Preset buttons3. Press the preset button in which you
want to delete the speed dial.
4. Select the “CONFIRM”menu. Then
“DELETED” is displayed and the selected
speed dial is deleted.
! Deleting the redial data
1. Select the “REDIAL”menu.
2. Select the phone number by operating the
“TUNE/TRACK/CH ”dial.
3. Select the “DELETE”menu.
4. Select the “CONFIRM”menu. Then
“DELETED” is displayed and the selected
redial data is deleted.
! Deleting the callback data
1. Select the “CALLBACK”menu.
2. Select the phone number by operating
the “TUNE/TRACK/CH ”dial.
3. Select the “DELETE”menu.
4. Select the “CONFIRM”menu. Then
“DELETED” is displayed and the selected
callback data is deleted.
! Making a phone call
! Making a phone call by saying name
1. Press the talk switch
.
2. Say “DIAL BY NAME ”.
3. Press the talk switchagain.
4. Say the desired name (voice tag) to be
called.
5. Select the “DIAL”menu or press the
OFF hook switch
.
! Making a phone call by saying
number
1. Press the talk switch
.
2. Say “DIAL BY NUMBER ”.3. Press the talk switch
again.
4. Say the desired phone number to be
called.
5. Select the “DIAL”menu or press the
OFF hook switch
.
! Making a phone call from speed dial
It is possible to select a phone number
from speed dial registered with the in-
vehicle equipment to make a phone call.
Preset buttons1. Press the preset button in which the
desired number is registered.
2. Press the OFF hook switch
.
NOTEWhen a preset button for which num-
bers are not registered is pressed, an
Audio
5-53
– CONTINUED –
5

Black plate (249,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

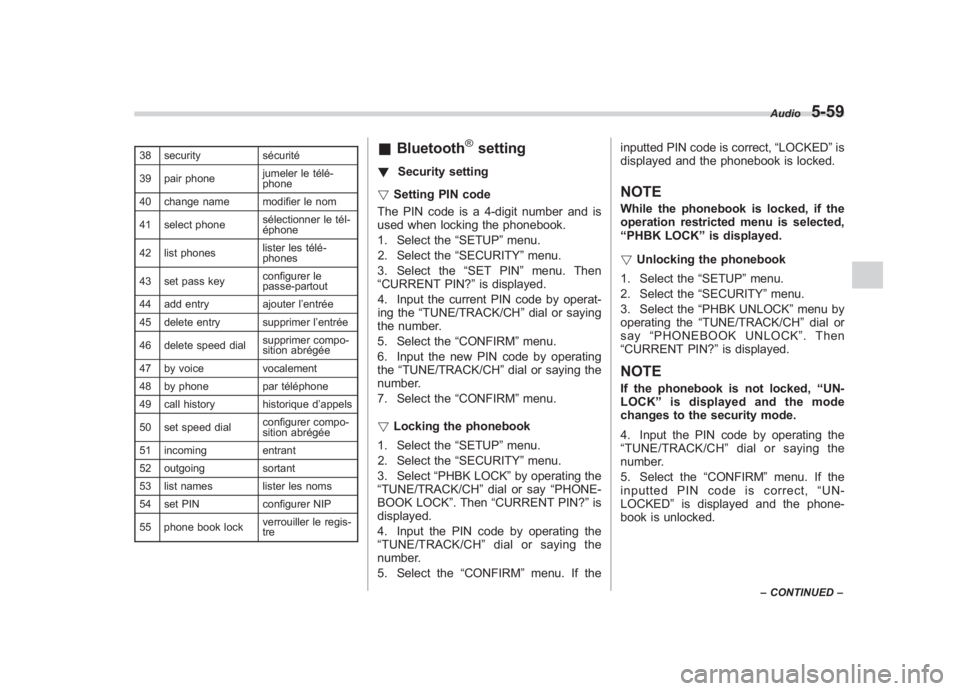

38 security sécurité
39 pair phone jumeler le télé-
phone
40 change name modifier le nom
41 select phone sélectionner le tél-
éphone
42 list phones lister les télé-
phones
43 set pass key configurer le
passe-partout
44 add entry ajouter l ’entrée
45 delete entry supprimer l ’entrée
46 delete speed dial supprimer compo-
sition abrégée
47 by voice vocalement
48 by phone par téléphone
49 call history historique d ’appels
50 set speed dial configurer compo-
sition abrégée
51 incoming entrant
52 outgoing sortant
53 list names lister les noms
54 set PIN configurer NIP
55 phone book lock verrouiller le regis-
tre
&
Bluetooth
®setting
! Security setting
! Setting PIN code
The PIN code is a 4-digit number and is
used when locking the phonebook.
1. Select the “SETUP”menu.
2. Select the “SECURITY”menu.
3. Select the “SET PIN ”menu. Then
“CURRENT PIN? ”is displayed.
4. Input the current PIN code by operat-
ing the “TUNE/TRACK/CH ”dial or saying
the number.
5. Select the “CONFIRM”menu.
6. Input the new PIN code by operating
the “TUNE/TRACK/CH ”dial or saying the
number.
7. Select the “CONFIRM”menu.
! Locking the phonebook
1. Select the “SETUP”menu.
2. Select the “SECURITY”menu.
3. Select “PHBK LOCK” by operating the
“TUNE/TRACK/CH ”dial or say “PHONE-
BOOK LOCK”. Then “CURRENT PIN?”is
displayed.
4. Input the PIN code by operating the
“ TUNE/TRACK/CH ”dial or saying the
number.
5. Select the “CONFIRM”menu. If the inputted PIN code is correct,
“LOCKED”is
displayed and the phonebook is locked.
NOTEWhile the phonebook is locked, if the
operation restricted menu is selected,
“ PHBK LOCK ”is displayed.
! Unlocking the phonebook
1. Select the “SETUP”menu.
2. Select the “SECURITY”menu.
3. Select the “PHBK UNLOCK ”menu by
operating the “TUNE/TRACK/CH ”dial or
say “PHONEBOOK UNLOCK ”. Then
“CURRENT PIN? ”is displayed.NOTEIf the phonebook is not locked, “UN-
LOCK ”is displayed and the mode
changes to the security mode.
4. Input the PIN code by operating the
“ TUNE/TRACK/CH ”dial or saying the
number.
5. Select the “CONFIRM”menu. If the
inputted PIN code is correct, “UN-
LOCKED ”is displayed and the phone-
book is unlocked.
Audio
5-59
– CONTINUED –
5

Black plate (250,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

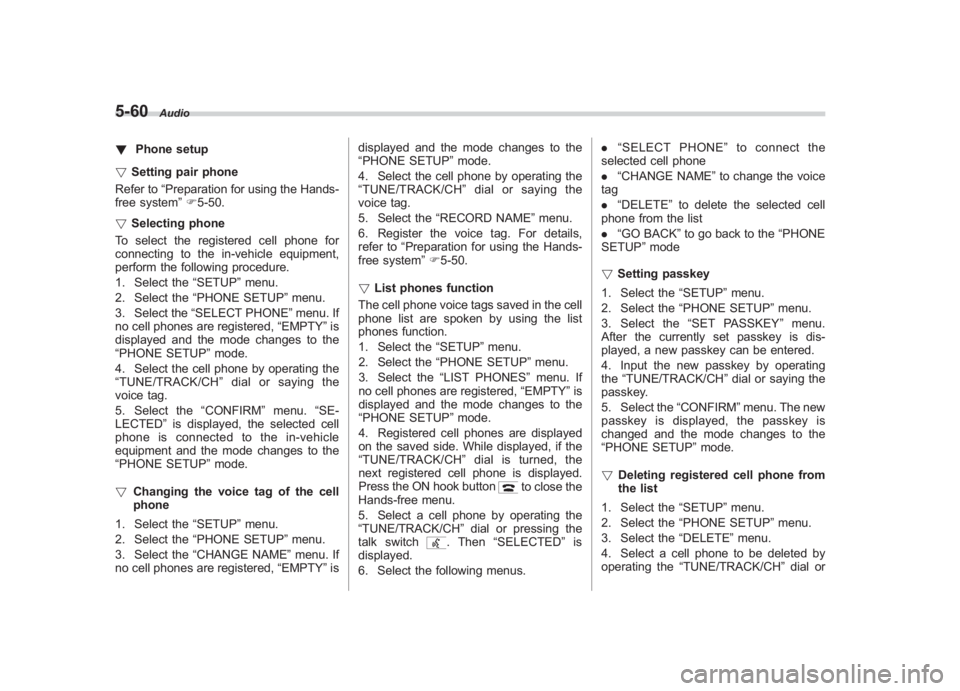

5-60
Audio
! Phone setup
! Setting pair phone
Refer to “Preparation for using the Hands-
free system ”F 5-50.
! Selecting phone
To select the registered cell phone for
connecting to the in-vehicle equipment,
perform the following procedure.
1. Select the “SETUP”menu.
2. Select the “PHONE SETUP ”menu.
3. Select the “SELECT PHONE ”menu. If
no cell phones are registered, “EMPTY”is
displayed and the mode changes to the
“PHONE SETUP ”mode.
4. Select the cell phone by operating the
“ TUNE/TRACK/CH” dial or saying the
voice tag.
5. Select the “CONFIRM ”menu. “SE-
LECTED ”is displayed, the selected cell
phone is connected to the in-vehicle
equipment and the mode changes to the
“PHONE SETUP ”mode.
! Changing the voice tag of the cell
phone
1. Select the “SETUP”menu.
2. Select the “PHONE SETUP ”menu.
3. Select the “CHANGE NAME ”menu. If
no cell phones are registered, “EMPTY”is displayed and the mode changes to the
“PHONE SETUP
”mode.
4. Select the cell phone by operating the
“ TUNE/TRACK/CH ”dial or saying the
voice tag.
5. Select the “RECORD NAME ”menu.
6. Register the voice tag. For details,
refer to “Preparation for using the Hands-
free system ”F 5-50.
! List phones function
The cell phone voice tags saved in the cell
phone list are spoken by using the list
phones function.
1. Select the “SETUP”menu.
2. Select the “PHONE SETUP ”menu.
3. Select the “LIST PHONES ”menu. If
no cell phones are registered, “EMPTY”is
displayed and the mode changes to the
“PHONE SETUP ”mode.
4. Registered cell phones are displayed
on the saved side. While displayed, if the
“ TUNE/TRACK/CH ”dial is turned, the
next registered cell phone is displayed.
Press the ON hook button
to close the
Hands-free menu.
5. Select a cell phone by operating the
“TUNE/TRACK/CH ”dial or pressing the
talk switch
. Then “SELECTED ”is
displayed.
6. Select the following menus. .
“SELECT PHONE ”to connect the
selected cell phone
. “CHANGE NAME ”to change the voice
tag
. “DELETE ”to delete the selected cell
phone from the list
. “GO BACK ”to go back to the “PHONE
SETUP ”mode
! Setting passkey
1. Select the “SETUP”menu.
2. Select the “PHONE SETUP ”menu.
3. Select the “SET PASSKEY ”menu.
After the currently set passkey is dis-
played, a new passkey can be entered.
4. Input the new passkey by operating
the “TUNE/TRACK/CH ”dial or saying the
passkey.
5. Select the “CONFIRM”menu. The new
passkey is displayed, the passkey is
changed and the mode changes to the
“PHONE SETUP ”mode.
! Deleting registered cell phone from
the list
1. Select the “SETUP”menu.
2. Select the “PHONE SETUP ”menu.
3. Select the “DELETE”menu.
4. Select a cell phone to be deleted by
operating the “TUNE/TRACK/CH ”dial or

Black plate (251,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

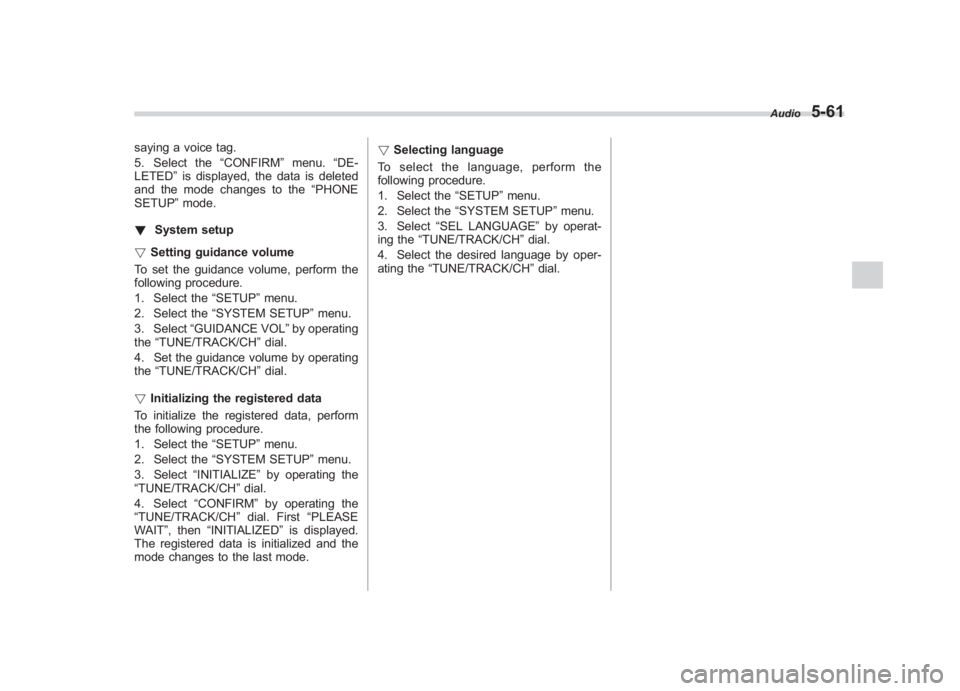

saying a voice tag.
5. Select the “CONFIRM”menu. “DE-
LETED” is displayed, the data is deleted
and the mode changes to the “PHONE
SETUP ”mode.
! System setup
! Setting guidance volume
To set the guidance volume, perform the
following procedure.
1. Select the “SETUP”menu.
2. Select the “SYSTEM SETUP ”menu.
3. Select “GUIDANCE VOL ”by operating
the “TUNE/TRACK/CH ”dial.
4. Set the guidance volume by operating
the “TUNE/TRACK/CH ”dial.
! Initializing the registered data
To initialize the registered data, perform
the following procedure.
1. Select the “SETUP”menu.
2. Select the “SYSTEM SETUP ”menu.
3. Select “INITIALIZE ”by operating the
“TUNE/TRACK/CH ”dial.
4. Select “CONFIRM ”by operating the
“TUNE/TRACK/CH ”dial. First “PLEASE
WAIT ”, then “INITIALIZED ”is displayed.
The registered data is initialized and the
mode changes to the last mode. !
Selecting language
To select the language, perform the
following procedure.
1. Select the “SETUP”menu.
2. Select the “SYSTEM SETUP ”menu.
3. Select “SEL LANGUAGE” by operat-
ing the “TUNE/TRACK/CH ”dial.
4. Select the desired language by oper-
ating the “TUNE/TRACK/CH ”dial.
Audio
5-61
5

Black plate (6,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

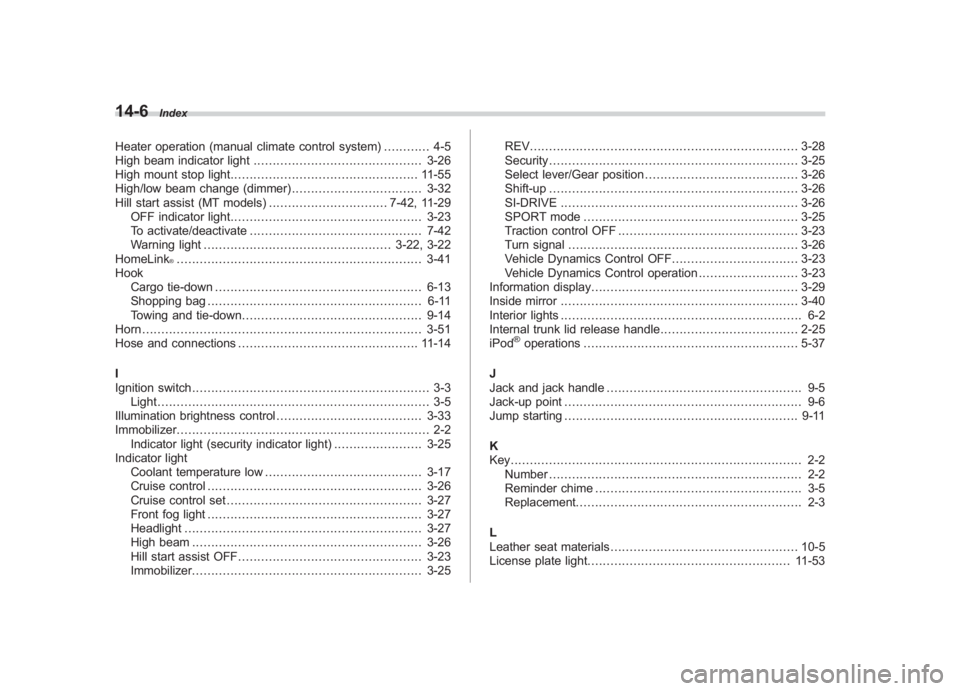

14-6
Index
Heater operation (manual climate control system) .. .......... 4-5
High beam indicator light ............................................ 3-26
High mount stop light ................................................. 11-55
High/low beam change (dimmer) .................................. 3-32
Hill start assist (MT models) ............................... 7-42, 11-29
OFF indicator light .................................................. 3-23
To activate/deactivate ............................................. 7-42
Warning light ................................................. 3-22, 3-22
HomeLink
®................................................................ 3-41
Hook Cargo tie-down ...................................................... 6-13
Shopping bag ........................................................ 6-11
Towing and tie-down ............................................... 9-14
Horn ........................................................................\
. 3-51
Hose and connections ............................................... 11-14
I
Ignition switch .............................................................. 3-3
Light ....................................................................... 3-5
Illumination brightness control ...................................... 3-33
Immobilizer. ................................................................. 2-2
Indicator light (security indicator light) ....................... 3-25
Indicator light Coolant temperature low ......................................... 3-17
Cruise control ........................................................ 3-26
Cruise control set ................................................... 3-27
Front fog light ........................................................ 3-27
Headlight .............................................................. 3-27
High beam ............................................................ 3-26
Hill start assist OFF ................................................ 3-23
Immobilizer. ........................................................... 3-25 REV.
..................................................................... 3-28
Security ................................................................. 3-25
Select lever/Gear position ........................................ 3-26
Shift-up ................................................................. 3-26
SI-DRIVE .............................................................. 3-26
SPORT mode ........................................................ 3-25
Traction control OFF ............................................... 3-23
Turn signal ............................................................ 3-26
Vehicle Dynamics Control OFF ................................. 3-23
Vehicle Dynamics Control operation .. ........................ 3-23
Information display ...................................................... 3-29
Inside mirror .............................................................. 3-40
Interior lights ............................................................... 6-2
Internal trunk lid release handle .................................... 2-25
iPod
®operations ........................................................ 5-37
J
Jack and jack handle ................................................... 9-5
Jack-up point .............................................................. 9-6
Jump starting ............................................................. 9-11
K
Key........................................................................\
.... 2-2 Number .................................................................. 2-2
Reminder chime ...................................................... 3-5
Replacement. .......................................................... 2-3
L
Leather seat materials ................................................. 10-5
License plate light ..................................................... 11-53
