Headlamp range adjustment 
Once the low beam is switched on you can then adapt the range of
the headlights to the load of the vehicle. Fig. 28 Dash panel: Lights and Visibility
– Turn the control dial ⇒  fig. 28 until you have adjusted the low beam so that
oncoming traffic is not dazzled.
Settings
The positions correspond approximately to the following vehicle loads: Front seats occupied, luggage compartment empty.
All seats occupied, luggage compartment empty.
All seats occupied, luggage compartment laden.
Driver seat occupied, luggage compartment laden. CAUTION
Headlamp range adjustment should always be adjusted in a way that:
● it does not dazzle other road users, especially oncoming traffic,
● and the range is sufficient for safe driving. Note
Headlights fitted with Xenon bulbs adapt automatically to the load and driving
state of the vehicle (e.g. accelerating, braking) when the ignition is switched on
and when driving. Vehicles which are equipped with Xenon bulbs do not have a
manual headlight range adjustment control. 
- 1
2
3 Switch for hazard warning lights
 Fig. 29 Dash panel: Switch for hazard
warning lights
– Press switch  ⇒  fig. 29 to switch the hazard warning light system on or off.
All the turn signal lights on the vehicle flash at the same time when the hazard
warning light system is switched on. The indicator light for the turn signals and
the indicator light in the switch also flash at the same time. You can also switch
on the hazard warning light system if the ignition is switched off.
The hazard warning light system is switched on automatically if an airbag is de-
ployed in the event of an accident.
Please comply with any legal requirements when using the hazard warning light
system. Note
Switch on the hazard warning light system if, for example:
● you encounter traffic congestion,
● your vehicle breaks down or an emergency situation occurs. 50
Lights and Visibility

The turn signal
  and main beam lever The parking lights and headlight flasher are also switched on and
off using the turn signal and main beam lever.
Fig. 30 Turn signal and main beam lever
The turn signal and main beam lever perform the following functions:
Right  and left  turn signal light
– Push the lever upwards A or downwards
⇒  fig. 30 B .
– If you only wish to flash three times (the so-called convenience turn signal),
push the lever briefly up to the upper or lower pressure point and release it.
This function can be activated/deactivated in the Information display
⇒  page 18.
– Turn signal for changing lanes - in order to only flash briefly, move the lever up
or down to the pressure point and hold it in this position.
Main beam 
– Switch on the low beam.
– Push the lever forwards in direction of arrow C (spring-tensioned position).
– If you push the lever towards the steering wheel in direction of arrow D(spring-tensioned position) the main beam is switched off.
Headlight flasher 
– Pull the lever towards the steering wheel (spring-tensioned position) in direc-
tion of arrow D - the main beam and warning light
 in the instrument clus-
ter come on.
Parking light
For a description of the operation, see ⇒ page 47, Parking light

.Information concerning the function of the lights.
● The turn signal system only operates when the ignition is switched on. The
corresponding warning light  or  in the instrument cluster also flashes.
● The turn signal is automatically cancelled after negotiating a curve.
● The indicator light flashes at twice its normal rate if a bulb of the turn signal
light fails. CAUTION
Use main beam or the headlight flasher only if this does not risk dazzling other
road users. Note
Use only in accordance with the legal requirements the described lighting and sig-
nal systems.  51
Lights and Visibility Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

On some vehicles, the battery cover must be removed before removing the fuse
cover ⇒ page 197.
Removing fuse cover
–
Move the circlips A ⇒ 
fig. 178 as far as the stop, the symbol  appears behind
the circlip and remove the cover.
Installing fuse cover
– Position the fuse cover on the fuse box and push the circlips A as far as the
stop - the symbol  is visible behind the circlip.CAUTION
● When unlocking and locking the fuse cover, it must be pressed on the sides to
the box, otherwise damage can occur to the locking mechanism.
● Carefully position the fuse cover in the engine compartment. If the cover was
not correctly positioned, water can get into the fuses and this results in a damage
to the vehicle! 
Fuse assignment in engine compartment Fig. 179 Schematic representation of
fuse box in engine compartment - ver-
sion 2
Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models. No. Power consumer
F1 Not assigned
F2 Control unit for automatic gearbox DQ 200
F3 Measuring circuit
F4 ABS control unit No. Power consumer
F5 Control unit for automatic gearbox
F6 Instrument cluster, windshield wiper lever and turn signal light lever
F7 Power suppy terminal 15, Starter
F8 Radio
F9 Phone
F10 Engine control unit, Main relay
F11 Control unit for auxiliary heating
F12 Control unit for CAN databus
F13 Engine control unit
F14 Ignition
F15 Lambda probe, fuel pump relay
glow plug system relay
F16 Central control unit, right main headlight, right rear light unit
F17 Horn
F18 Amplifier for digital sound processor
F19 Front window wiper
F20 Control valve for fuel pressure
F21 Lambda probe
F22 Clutch pedal switch, brake pedal switch
F23 Coolant pump
Charge pressure control solenoid valve, changeover valve for radiator
Fuel high pressure pump
F24 Activated charcoal filter, exhaust gas recirculation valve
F25 ABS control unit
F26 Central control unit, left main headlight, left rear light unit
F27 Glow Plug System
F28 Windscreen heater
F29 Power supply of the interior
F30 Terminal X
a) a)
In order not to drain the battery unnecessarily when starting the engine, the electrical components
of this terminal are automatically switched off.  221
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Fuse assignment in the dash panel
Fig. 180 Schematic representation of
the fuse carrier in the dash panel
Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models. No. Power consumer
1 Heating of the gearbox ventilation (diesel engine)
Control unit for automatic gearbox DQ200 2 Towing device
3 Towing device
4 Instrument cluster, windshield wiper lever, turn signal light lever
5 Air blower for heating, radiator fan, air conditioning system, Climatron-
ic 6 Rear window wiper
7 Phone
8 Towing device
9 Central control unit - Interior lighting
Rear fog light
10 Rain sensor, light switch, diagnostic socket
11 Left side cornering lights
12 Right side cornering lights
13 Radio, changer for mobile navigation
14 Towing device
15 Light switch
16 Heated windscreen washer nozzles
17 Control unit for headlamp beam adjustment and headlight swivel No. Power consumer
18 Diagnostic socket, engine control unit, brake sensor
19 Control unit for ABS, ESP, switch for tyre air pressure control, control
unit for parking aid, switch for Offroad mode, start/stop button 20 Switch and control unit for airbag
21 WIV, parking light, dimming mirrors, pressure sensor, telephone prein-
stallation, air mass meter
22 Instrument cluster, control unit for electromechanical power steering,
Haldex 23 Central locking system and bonnet lid
24 Rear power window
25 Rear window heater
Rear window heater, Auxiliary heating (auxiliary heating and ventila-
tion)
26 Power socket in the luggage compartment
27 Electric sliding/tilting roof, electric sun screen
28 Fuel pump relay, control unit for fuel pump, injection valves
29 Front power window
30 front and rear lighter
31 Headlight cleaning system
32 Front seat heating, regulator for seat heating
33 Heating, Air conditioning, Climatronic
34 Alarm, spare horn
35 Control unit for automatic gearbox DQ200
36 DVD player
For power consumers, e.g. the car stereo, which can be operated with the ignition
switched off as long as the ignition key is not withdrawn.
Electrically adjustable seats are protected by
automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated. 222
Fuses and light bulbs

Bulbs
Changing bulbs The relevant lamp must always be switched off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The
designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but requires
to be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be
reached from the engine compartment.
We therefore recommend that you have any bulbs changed by an authorised
ŠKODA Service Partner or, in exceptional cases, by calling on other professional
assistance.
Please note that the engine compartment is a hazardous area ⇒
 page 190, Work-
ing in the engine compartment.
We recommend that you always have a small box of replacement bulbs in your ve-
hicle. You can purchase replacement bulbs from the range of the ŠKODA Original
Accessories 1)
.
The set of light bulbs can be stowed in the box in the luggage compartment.
Fitted with a xenon headlight
Change of bulbs on vehicles with Xenon lights (low beam lights, parking lights and
main beam lights) should be undertaken by a specialist garage.
Bulb - Overview Front headlight Halogen headlight Xenon headlight
Low beam H4 D1S
Main beam H4 D1S
Parking lights W5W W5W BL
Daylight driving lights P13W
Turn signals HPC24WY
Fog lights H7 Rear light unit Bulb
Reversing lights, brake lights and rear fog light P21W
Turn signals PY21W
Parking lights W5W
Others Bulb
Licence plate light C5W
3. Brake light LED
Entry lighting W5W
front interior lighting W5W
Reading lights W5W
Rear interior lighting C5W
Luggage compartment light W5W
Door warning light W5W
Lighting in storage compartment on front passenger
side C3W
WARNING
● Bulbs H7 and H4 are pressurised and may burst when changing the bulb -
risk of injury!
● It is recommended to wear gloves and safety glasses when changing a
bulb.
● Gas discharge bulbs (xenon bulbs) operate with a high voltage, professio-
nal knowledge is required - danger to life! CAUTION
Do not take hold of the glass bulb with naked fingers (even the smallest amount
of dirt reduces the working life of the light bulb). Use a clean cloth, serviette or
something similar. Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be changed by your
specialist garage. 1)
The small box with replacement bulbs is part of the basic equipping of the vehicle in some countries. 223
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Front headlight
Fig. 181 Front headlight: Fitting position
of the bulbs
Positions of the light bulbs in the front headlight ⇒ fig. 181 .
A - Fog lights and daylight driving lights
B - Parking lights (Xenon headlight)
C - Parking lights (halogen headlight), low beam lights and main beam lights

Parking light at the front Fig. 182 Remove cap/removing the fixture for the parking light (halogen headlight) Fig. 183 Removing the fixture for the
parking light (Xenon headlight)
Removing the light bulb for the parking light (halogen headlight)
– Switch the ignition and all lights off.
– Turn the protective cap in direction of arrow 1 OPEN
and remove it ⇒  fig. 182 .
– Pull out the fixture in direction of arrow 2
⇒  fig. 182 .
– Take the faulty bulb out of the fixture and insert a new one.
– Insert the protective cap.
Removing the light bulb for the parking light (Xenon headlight)
– Switch the ignition and all lights off.
– Remove the rubber protective cap B
⇒  fig. 181 .
– Pull out the fixture in direction of arrow 3
⇒  fig. 183 .
– Take the faulty bulb out of the fixture and insert a new one.
– Insert the protective cap. Note
● In order to facilitate the removal of the fixture with the bulb for the parking
light (halogen headlight), we recommend to remove first of all the connector of
the bulb for the low beam light.
● We recommend that you have the headlight setting checked by a Skoda Serv-
ice Partner after replacing the light bulb. 224
Fuses and light bulbs

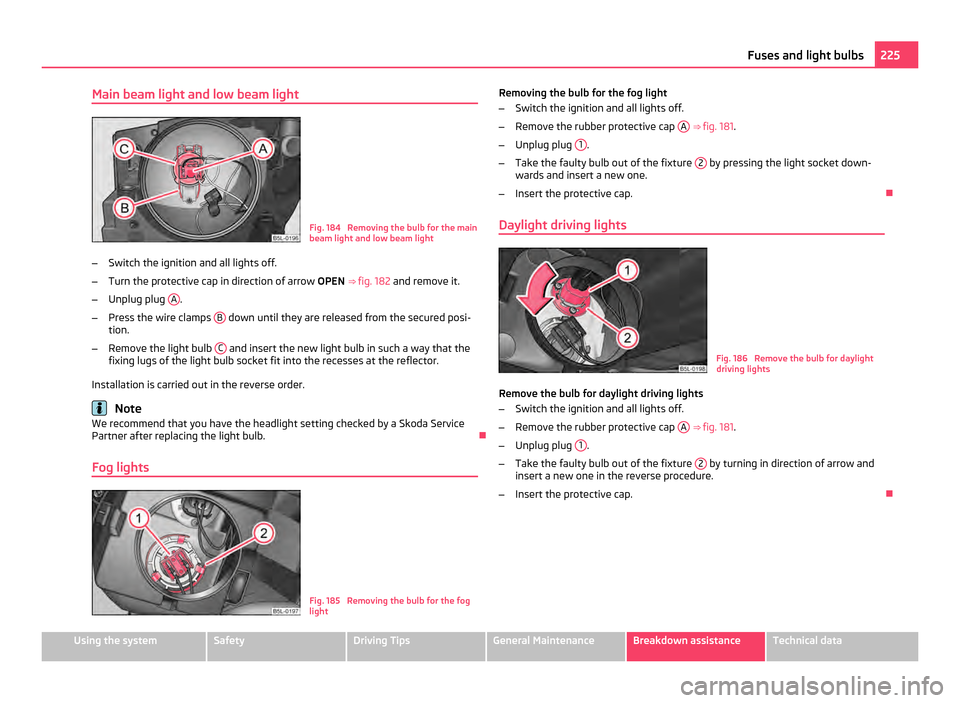

Main beam light and low beam light
Fig. 184 Removing the bulb for the main
beam light and low beam light
– Switch the ignition and all lights off.
– Turn the protective cap in direction of arrow OPEN ⇒  fig. 182 and remove it.
– Unplug plug A .
– Press the wire clamps B down until they are released from the secured posi-
tion.
– Remove the light bulb C and insert the new light bulb in such a way that the
fixing lugs of the light bulb socket fit into the recesses at the reflector.
Installation is carried out in the reverse order. Note
We recommend that you have the headlight setting checked by a Skoda Service
Partner after replacing the light bulb. 
Fog lights Fig. 185 Removing the bulb for the fog
light Removing the bulb for the fog light
–
Switch the ignition and all lights off.
– Remove the rubber protective cap A ⇒ fig. 181
.
– Unplug plug 1 .
– Take the faulty bulb out of the fixture 2 by pressing the light socket down-
wards and insert a new one.
– Insert the protective cap. 
Daylight driving lights Fig. 186 Remove the bulb for daylight
driving lights
Remove the bulb for daylight driving lights
– Switch the ignition and all lights off.
– Remove the rubber protective cap A
⇒  fig. 181 .
– Unplug plug 1 .
– Take the faulty bulb out of the fixture 2 by turning in direction of arrow and
insert a new one in the reverse procedure.
– Insert the protective cap.  225
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

General view
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Hazard warning light system . . . . . . . . . . . . . . . . . . . 50 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 56
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Headlight cleaning system . . . . . . . . . . . . . . . . . . . 56
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Heated windscreen washer nozzles . . . . . . . . . . . . 54
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Auxiliary heating (auxiliary heating) . . . . . . . . . . 95
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . . . 88
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . 89
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . . . 53
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Interior monitor
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
K Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
L Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Light automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Lights converting/masking over . . . . . . . . . . . . . . . . . . . . 167
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 50
switching on and off . . . . . . . . . . . . . . . . . . . . . . . . 45
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Liquid in windshield washer fluid reservoir Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Lock Central locking system . . . . . . . . . . . . . . . . . . . . . . 34
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 33 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Locking and unlocking from inside . . . . . . . . . . . . . . 35
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Luggage compartment . . . . . . . . . . . . . . . . . . . . . 36, 70
Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Luggage compartment - variable loading floor 74, 75
M
Main beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 51 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . 102
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Memory for the on-board computer . . . . . . . . . . . . . 14
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118, 119 Connection with the hands-free system . . . . . . 120
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . . 14
Multifunction steering wheel . . . . . . . . . . . . . . . . . . 117
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
N
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
O Off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Off-road driving . . . . . . . . . . . . . . . . . . . . . . 160, 168, 171
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Opening and closing of the sun screen . . . . . . . . . . 42
Opening and tilting of the panoramic sliding roof 42
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . . 33 242
Index
