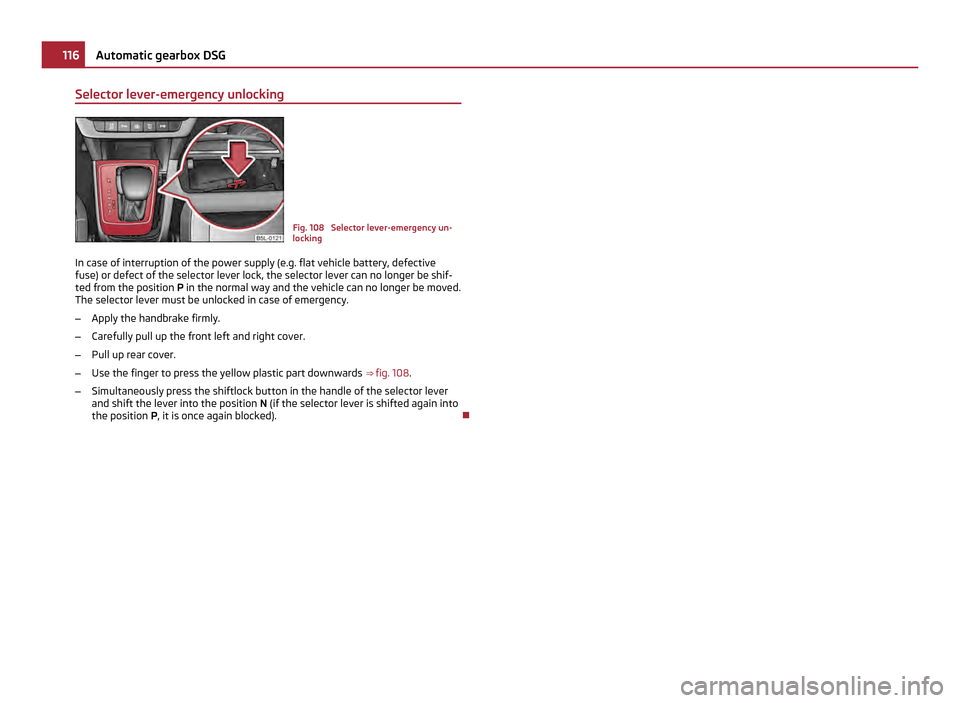

Selector lever-emergency unlocking
Fig. 108 Selector lever-emergency un-
locking
In case of interruption of the power supply (e.g. flat vehicle battery, defective
fuse) or defect of the selector lever lock, the selector lever can no longer be shif-
ted from the position P in the normal way and the vehicle can no longer be moved.
The selector lever must be unlocked in case of emergency.
– Apply the handbrake firmly.
– Carefully pull up the front left and right cover.
– Pull up rear cover.
– Use the finger to press the yellow plastic part downwards ⇒ fig. 108 .
– Simultaneously press the shiftlock button in the handle of the selector lever
and shift the lever into the position N (if the selector lever is shifted again into
the position P , it is once again blocked). 116
Automatic gearbox DSG

Fuses and light bulbs
Electric fuses Replacing fuses Defect fuses must be replaced.
Fig. 177 Fuse cover: left side of the dash
panel
Individual electrical circuits are protected by fuses. The fuses are located on the
left side of the dash panel behind the safety cover and under the cover in the en-
gine compartment on the left.
– Switch the ignition off and also the electrical component affected.
– Insert the wrench into the opening on the bottom side of the dash pan-
el⇒
 fig. 177 and remove the side cover or the cover in the engine compartment
⇒  page 220.
– Find out which fuse belongs to the component which is not operating
⇒ page 222, Fuse assignment in the dash panel

, ⇒  page 221, Fuse assignment
in engine compartment.
– Take the plastic clip out of its fixture in the fuse cover, insert it onto the re-
spective fuse and pull out this fuse.
– Defect fuses can be detected by their melted metal strips. Replace the defect
fuse by a new fuse of the same ampere number.
– Fit on the fuse cover again.
We recommend that you always have the small box of replacement fuses in your
vehicle. You can obtain replacement fuses from the range of

ŠKODA Original Parts
or from a specialist garage. Colour coding of fuses Colour Maximum amperage
light brown 5
brown 7.5
red 10
blue 15
yellow 20
white 25
green 30
orange 40
red 50
CAUTION
● Never attempt to
“repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
● Have the electrical system checked as quickly as possible by a specialist ga-
rage if a newly inserted fuse blows again after a short time. 
Fuse cover in engine compartment The fuse box in the engine compartment exists in two different
versions. You can determine which version your vehicle is fitted
with after removing the fuse cover at the location of the fuses. Fig. 178 Fuse cover in engine compart-
ment
£220
Fuses and light bulbs

On some vehicles, the battery cover must be removed before removing the fuse
cover ⇒ page 197.
Removing fuse cover
–
Move the circlips A ⇒ 
fig. 178 as far as the stop, the symbol  appears behind
the circlip and remove the cover.
Installing fuse cover
– Position the fuse cover on the fuse box and push the circlips A as far as the
stop - the symbol  is visible behind the circlip.CAUTION
● When unlocking and locking the fuse cover, it must be pressed on the sides to
the box, otherwise damage can occur to the locking mechanism.
● Carefully position the fuse cover in the engine compartment. If the cover was
not correctly positioned, water can get into the fuses and this results in a damage
to the vehicle! 
Fuse assignment in engine compartment Fig. 179 Schematic representation of
fuse box in engine compartment - ver-
sion 2
Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models. No. Power consumer
F1 Not assigned
F2 Control unit for automatic gearbox DQ 200
F3 Measuring circuit
F4 ABS control unit No. Power consumer
F5 Control unit for automatic gearbox
F6 Instrument cluster, windshield wiper lever and turn signal light lever
F7 Power suppy terminal 15, Starter
F8 Radio
F9 Phone
F10 Engine control unit, Main relay
F11 Control unit for auxiliary heating
F12 Control unit for CAN databus
F13 Engine control unit
F14 Ignition
F15 Lambda probe, fuel pump relay
glow plug system relay
F16 Central control unit, right main headlight, right rear light unit
F17 Horn
F18 Amplifier for digital sound processor
F19 Front window wiper
F20 Control valve for fuel pressure
F21 Lambda probe
F22 Clutch pedal switch, brake pedal switch
F23 Coolant pump
Charge pressure control solenoid valve, changeover valve for radiator
Fuel high pressure pump
F24 Activated charcoal filter, exhaust gas recirculation valve
F25 ABS control unit
F26 Central control unit, left main headlight, left rear light unit
F27 Glow Plug System
F28 Windscreen heater
F29 Power supply of the interior
F30 Terminal X
a) a)
In order not to drain the battery unnecessarily when starting the engine, the electrical components
of this terminal are automatically switched off.  221
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Fuse assignment in the dash panel
Fig. 180 Schematic representation of
the fuse carrier in the dash panel
Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models. No. Power consumer
1 Heating of the gearbox ventilation (diesel engine)
Control unit for automatic gearbox DQ200 2 Towing device
3 Towing device
4 Instrument cluster, windshield wiper lever, turn signal light lever
5 Air blower for heating, radiator fan, air conditioning system, Climatron-
ic 6 Rear window wiper
7 Phone
8 Towing device
9 Central control unit - Interior lighting
Rear fog light
10 Rain sensor, light switch, diagnostic socket
11 Left side cornering lights
12 Right side cornering lights
13 Radio, changer for mobile navigation
14 Towing device
15 Light switch
16 Heated windscreen washer nozzles
17 Control unit for headlamp beam adjustment and headlight swivel No. Power consumer
18 Diagnostic socket, engine control unit, brake sensor
19 Control unit for ABS, ESP, switch for tyre air pressure control, control
unit for parking aid, switch for Offroad mode, start/stop button 20 Switch and control unit for airbag
21 WIV, parking light, dimming mirrors, pressure sensor, telephone prein-
stallation, air mass meter
22 Instrument cluster, control unit for electromechanical power steering,
Haldex 23 Central locking system and bonnet lid
24 Rear power window
25 Rear window heater
Rear window heater, Auxiliary heating (auxiliary heating and ventila-
tion)
26 Power socket in the luggage compartment
27 Electric sliding/tilting roof, electric sun screen
28 Fuel pump relay, control unit for fuel pump, injection valves
29 Front power window
30 front and rear lighter
31 Headlight cleaning system
32 Front seat heating, regulator for seat heating
33 Heating, Air conditioning, Climatronic
34 Alarm, spare horn
35 Control unit for automatic gearbox DQ200
36 DVD player
For power consumers, e.g. the car stereo, which can be operated with the ignition
switched off as long as the ignition key is not withdrawn.
Electrically adjustable seats are protected by
automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated. 222
Fuses and light bulbs

Bulbs
Changing bulbs The relevant lamp must always be switched off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The
designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but requires
to be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be
reached from the engine compartment.
We therefore recommend that you have any bulbs changed by an authorised
ŠKODA Service Partner or, in exceptional cases, by calling on other professional
assistance.
Please note that the engine compartment is a hazardous area ⇒
 page 190, Work-
ing in the engine compartment.
We recommend that you always have a small box of replacement bulbs in your ve-
hicle. You can purchase replacement bulbs from the range of the ŠKODA Original
Accessories 1)
.
The set of light bulbs can be stowed in the box in the luggage compartment.
Fitted with a xenon headlight
Change of bulbs on vehicles with Xenon lights (low beam lights, parking lights and
main beam lights) should be undertaken by a specialist garage.
Bulb - Overview Front headlight Halogen headlight Xenon headlight
Low beam H4 D1S
Main beam H4 D1S
Parking lights W5W W5W BL
Daylight driving lights P13W
Turn signals HPC24WY
Fog lights H7 Rear light unit Bulb
Reversing lights, brake lights and rear fog light P21W
Turn signals PY21W
Parking lights W5W
Others Bulb
Licence plate light C5W
3. Brake light LED
Entry lighting W5W
front interior lighting W5W
Reading lights W5W
Rear interior lighting C5W
Luggage compartment light W5W
Door warning light W5W
Lighting in storage compartment on front passenger
side C3W
WARNING
● Bulbs H7 and H4 are pressurised and may burst when changing the bulb -
risk of injury!
● It is recommended to wear gloves and safety glasses when changing a
bulb.
● Gas discharge bulbs (xenon bulbs) operate with a high voltage, professio-
nal knowledge is required - danger to life! CAUTION
Do not take hold of the glass bulb with naked fingers (even the smallest amount
of dirt reduces the working life of the light bulb). Use a clean cloth, serviette or
something similar. Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be changed by your
specialist garage. 1)
The small box with replacement bulbs is part of the basic equipping of the vehicle in some countries. 223
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Closing the panoramic sliding roof . . . . . . . . . . . . . . 42
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 41
Converting/masking over headlights . . . . . . . . . . 167
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . . 11
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . 129
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 12
Cruise control Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 108
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
D
Dash panel insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Daylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . 45
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 182
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 144
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 53
Defrosting windscreen . . . . . . . . . . . . . . . . . . . . . . . . 53
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . 101
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 159 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . . 163
DVD-preinstallation . . . . . . . . . . . . . . . . . . . . . . . . . . 126
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Electrically adjustable exterior mirror . . . . . . . . . . . 58
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 154
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electronic stability programme . . . . . . . . . . . . . . . . 153
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Emergency wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . . 11
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Environmental compatibility . . . . . . . . . . . . . . 163, 166 ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 58
F
Fastening elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Fixing net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fog lights with the function CORNER . . . . . . . . . . . 49
Folding seat backrest of the front passenger seat . .62
Folding seats forwards . . . . . . . . . . . . . . . . . . . . . . . . 67
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
G
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 241
Index Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
