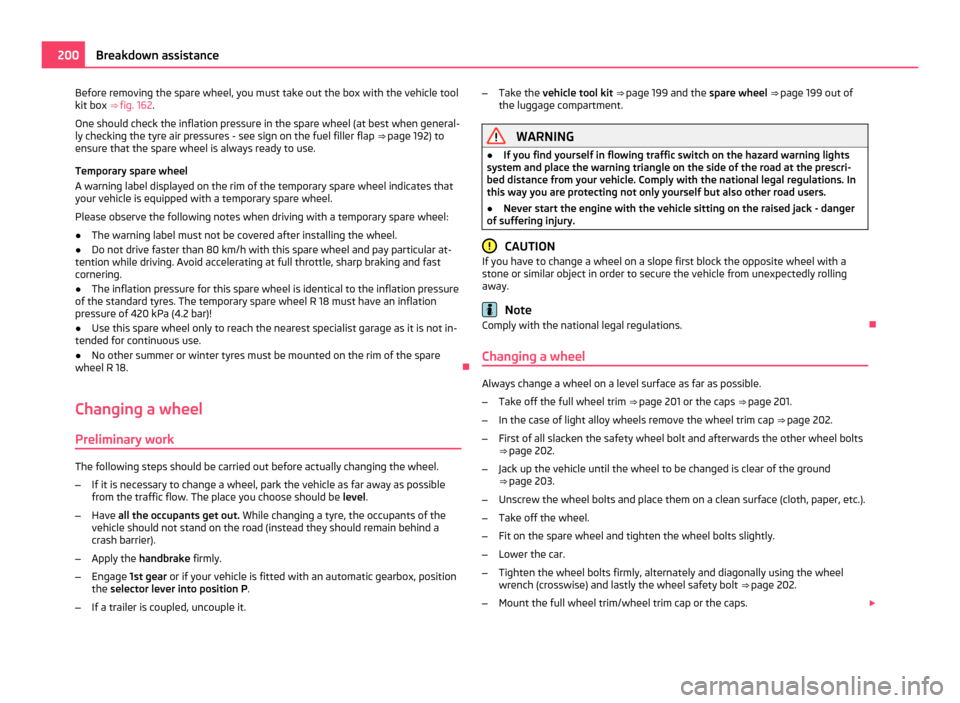

Before removing the spare wheel, you must take out the box with the vehicle tool
kit box ⇒ fig. 162 .
One should check the inflation pressure in the spare wheel (at best when general-
ly checking the tyre air pressures - see sign on the fuel filler flap ⇒ page 192) to
ensure that the spare wheel is always ready to use.
Temporary spare wheel
A warning label displayed on the rim of the temporary spare wheel indicates that
your vehicle is equipped with a temporary spare wheel.
Please observe the following notes when driving with a temporary spare wheel:
● The warning label must not be covered after installing the wheel.
● Do not drive faster than 80 km/h with this spare wheel and pay particular at-
tention while driving. Avoid accelerating at full throttle, sharp braking and fast
cornering.
● The inflation pressure for this spare wheel is identical to the inflation pressure
of the standard tyres. The temporary spare wheel R 18 must have an inflation
pressure of 420
kPa (4.2 bar)!
● Use this spare wheel only to reach the nearest specialist garage as it is not in-
tended for continuous use.
● No other summer or winter tyres must be mounted on the rim of the spare
wheel R 18. 
Changing a wheel Preliminary work The following steps should be carried out before actually changing the wheel.
– If it is necessary to change a wheel, park the vehicle as far away as possible
from the traffic flow. The place you choose should be level.
– Have all the occupants get out. While changing a tyre, the occupants of the
vehicle should not stand on the road (instead they should remain behind a
crash barrier).
– Apply the handbrake firmly.
– Engage 1st gear or if your vehicle is fitted with an automatic gearbox, position
the selector lever into position P .
– If a trailer is coupled, uncouple it. –
Take the vehicle tool kit ⇒ page 199
and the spare wheel ⇒ page 199 out of
the luggage compartment. WARNING
● If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle on the side of the road at the prescri-
bed distance from your vehicle. Comply with the national legal regulations. In
this way you are protecting not only yourself but also other road users.
● Never start the engine with the vehicle sitting on the raised jack - danger
of suffering injury. CAUTION
If you have to change a wheel on a slope first block the opposite wheel with a
stone or similar object in order to secure the vehicle from unexpectedly rolling
away. Note
Comply with the national legal regulations. 
Changing a wheel Always change a wheel on a level surface as far as possible.
–
Take off the full wheel trim ⇒ page 201
or the caps ⇒ page 201.
– In the case of light alloy wheels remove the wheel trim cap ⇒
 page 202.
– First of all slacken the safety wheel bolt and afterwards the other wheel bolts
⇒  page 202.
– Jack up the vehicle until the wheel to be changed is clear of the ground
⇒ page 203.
– Unscrew the wheel bolts and place them on a clean surface (cloth, paper, etc.).
– Take off the wheel.
– Fit on the spare wheel and tighten the wheel bolts slightly.
– Lower the car.
– Tighten the wheel bolts firmly, alternately and diagonally using the wheel
wrench (crosswise) and lastly the wheel safety bolt ⇒

 page 202.
– Mount the full wheel trim/wheel trim cap or the caps. £200
Breakdown assistance

Components of the tyre repair kit
Fig. 170 Components of the tyre repair kit
The tyre repair kit is made up of the following parts:
Valve remover
Sticker with speed designation
“max. 80 km/h”/“max. 50 mph”
Inflation hose with plug
Compressor
Tyre inflation hose
Tyre inflation pressure indicator
Air release valve
ON and OFF switch
12 volt cable connector
Tyre inflator bottle with sealing agent
Replacement valve core
The valve remover 1 has a slot at its lower end which fits into the valve core.
This is the only way in which you can remove and re-install the valve core from the
tyre valve. The same also applies to the replacement valve core 11 .

Preparing to use the tyre repair kit Before using the tyre repair kit, carry out the following preparatory work:
–
Park the vehicle as far away as possible from the traffic flow. Park on as flat
and firm a surface as possible.
1 2
3
4
5
6
7
8
9
10
11 –
Have all the occupants get out. While changing a tyre, the occupants of the
vehicle should not stand on the road (instead they should remain behind a
crash barrier).
– Switch off the engine and engage 1st gear or if your vehicle is fitted with an
automatic gearbox, position the selector lever into position P .
– Apply the handbrake firmly.
– Check whether you can carry out the repairs with the tyre repair kit
⇒ page 204, General information
.
– If a trailer is coupled, uncouple it.
– Remove the tyre repair kit from the luggage compartment.
– Stick the sticker 2
⇒
 fig. 170 on the dash panel in view of the driver.
– Do not remove the foreign body, e.g. screw or nail, from the tyre.
– Unscrew the valve cap.
– Use the valve remover 1 to remove the valve core and place it down on a
clean surface. 
Seal and inflate tyres Sealing tyres
–
Forcefully shake the tyre inflator bottle 10
⇒  fig. 170 several times.
– Firmly screw inflation hose 3 onto the tyre inflator bottle in a clockwise direc-
tion 10 . The film on the cap is pierced automatically.
– Remove the plug from the inflation hose 3 and plug the open end fully into
the tyre valve.
– Hold the bottle 10 with the floor facing upwards and fill the whole sealing
agent in the tyre inflator bottle into the tyres.
– Remove the empty tyre inflator bottle from the valve.
– Screw the valve core back into the tyre valve using the valve remover 1 .
Pumping up the tyres
– Screw the tyre inflation hose 5
⇒
 fig. 170 of the air compressor firmly onto the
tyre valve.
– Check whether the air release valve 7 is closed.
£ 205
Breakdown assistance Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

–
On vehicles fitted with a manual gearbox, move the gearshift lever into Neu-
tral.
– Start the engine and run it in idle.
– Plug the connector 9 into 12 Volt socket ⇒
 page 76.
– Switch on the air compressor with the ON and OFF switch 8 .
– Allow the air compressor to run until reaching a pressure of 2.0 - 2.5 bar. Maxi-
mum run time of 8 minutes ⇒  !
– Switch off the air compressor with the ON and OFF switch.
– If you cannot reach an air pressure of 2.0 – 2.5 bar, unscrew the tyre inflation
hose 5 from the tyre valve.
– Drive the vehicle approx. 10 metres forwards or backwards to allow the sealing
agent to distribute in the tyre.
– Screw the tyre inflation hose of the air compressor 5 firmly back onto the
tyre valve and repeat the inflation procedure.
– If you cannot reach the required tyre inflation pressure here either, this means
the tyre has sustained too much damage. You cannot seal with tyre with the
breakdown kit ⇒  .
– Switch off the air compressor with the ON and OFF switch.
– Remove the tyre inflation hose 5 from the tyre valve.
After reaching a tyre inflation pressure of 2.0 – 2.5 bar, drive at a maximum speed
of 80 km/h (50

mph).
Check the tyre inflation pressure after driving 10 minutes ⇒ page 206, Check after
driving for 10 minutes. WARNING
● During inflation, the tyre inflation hose and air compressor may get hot-
risk of injury!
● Do not place hot tyre inflation hoses or hot air compressors on flammable
materials - risk of fire!
● If you cannot inflate the tyre to at least 2.0 bar, this means the damage
sustained was too serious. The sealing agent cannot be used to seal the tyre.
Do not drive the vehicle. Get professional assistance. CAUTION
Switch off the air compressor after running 8 minutes at the latest - danger of
overheating! Allow the air compressor to cool a few moments before switching it
on again. 
Check after driving for 10 minutes Check the tyre inflation pressure after driving 10 minutes.
If the tyre inflation pressure is 1.3 bar or less:
–
Do not drive the vehicle! You cannot properly seal with tyre with the break-
down kit.
– Contact a Škoda dealer to obtain professional assistance.
If the tyre inflation pressure is 1.3 bar or more:
– Adjust the tyre inflation pressure to the correct value (see inside of fuel filler
cap).
– Continue driving carefully to the nearest specialist garage at a maximum
speed of 80 km/h (50 mph). 
Jump-starting Initial steps You can use the battery of another vehicle for jump-starting yours if the engine
does not start because the battery on your vehicle is flat. You will require jump-
start cables for this purpose.
Both batteries must have a rated voltage of 12 V. The capacity
(Ah) of the battery
supplying the power must not be significantly less than the capacity of the dis-
charged battery in your vehicle.
Jump-start cables
Only use jump-start cables which have an adequately large cross-section and in-
sulated terminal clamps. Please pay attention to the manufacturer's instructions.
Positive cable - colour coding in the majority of cases red.
Negative cable -

colour coding in the majority of cases black. £206
Breakdown assistance

Fuses and light bulbs
Electric fuses Replacing fuses in the dash panel Defect fuses must be replaced.
Fig. 176 Fuse cover: left side of the dash
panel
Individual electrical circuits are protected by fuses. The fuses are located on the
left side of the dash panel behind the safety cover and under the cover in the en-
gine compartment on the left.
– Switch the ignition off and also the electrical component affected.
– Use a screwdriver to take off the fuse cover on the side of the dash panel
⇒  fig. 176 or the fuse cover in the engine compartment ⇒ page 211.
– Find out which fuse belongs to the relevant component ⇒ page 213, Fuse as-
signment in the dash panel or ⇒ page 212, Fuse assignment in engine compart-
ment.
– Take the plastic clip out of its fixture in the fuse cover, insert it onto the re-
spective fuse and pull out this fuse.
– Defect fuses can be detected by their melted metal strips. Replace the defect
fuse by a new fuse of the same ampere number.
– Fit on the fuse cover again.
We recommend that you always have the small box of replacement fuses in your
vehicle. You can obtain replacement fuses from the range of

ŠKODA Original Parts
or from a specialist garage. Colour coding of fuses Colour Maximum amperage
light brown 5
brown 7,5
red 10
blue 15
yellow 20
white 25
green 30
orange 40
red 50
CAUTION
● Never attempt to
“repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
● Have the electrical system checked as quickly as possible by a specialist ga-
rage if a newly inserted fuse blows again after a short time. 
Fuse cover in engine compartment Fig. 177 Fuse cover in engine compart-
ment
On some vehicles, the battery cover must be removed before removing the fuse
cover ⇒ page 188

. £ 211
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Active driver-steering recommendation . . . . . . . . 156
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 132 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 98
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . 88 Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . 90
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 37
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 158
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Assigning the remote control key to the memory buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic driving lamp control . . . . . . . . . . . . . . . . . 45
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Emergency programme . . . . . . . . . . . . . . . . . . . . . . 113
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Selector lever-emergency unlocking . . . . . . . . . . 113
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 62
Automatic vehicle wash systems . . . . . . . . . . . . . . 170
Automatic wiper/washer system . . . . . . . . . . . . . . . 53
Avoiding damage to your vehicle . . . . . . . . . . . . . . 166
B Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 187 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . . . 189
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Button for the central locking system . . . . . . . . . . . 34
Button in the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199, 203
Car state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . 32 lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Changing wheels around . . . . . . . . . . . . . . . . . . . . . 194
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 189 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 182
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . . . 148
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 Classification into groups . . . . . . . . . . . . . . . . . . . . 149
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Climatronic Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . . . 93
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . 93
Climatronic (automatic air conditioning) . . . . . . . . . 91
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 239
Index Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 40
Converting/masking over headlights
. . . . . . . . . . 166
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . . 11
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . 132
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 12
Cruise control Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 104
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
D Dash panel insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Daylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . 44
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 172
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 145
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 52
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Diesel engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 100
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . . 162
E EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Electrically adjustable exterior mirror . . . . . . . . . . . 57
Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . 41
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 155
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electronic stability programme . . . . . . . . . . . . . . . . 154
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Emergency wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine oil level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . . 11
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Environmental compatibility . . . . . . . . . . . . . . 162, 165
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 57
F
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Fixing net Estate car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fog lights with the function CORNER . . . . . . . . . . . 48
Foldable luggage compartment cover . . . . . . . . . . . 70
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
G
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116, 122 240
Index
