Vehicle data
1.
2.
3.
4.
1. Vehicle identification number
(chassis number)
2. Vehicle type / engine power / gearbox type
3. Engine and gearbox code / paint number /
interior equipment
4. Optional extras / PR numbers
Note
• We recommend that you visit an Authorised SEAT Service Centre
whenever you require any work done on your vehicle.
• SEAT regularly communicates to its Authorised Service Centres new
product developments. They have tools and highly specialized per-
sonnel who can guarantee the safety and performance of your vehicle.
• Scrupulously following the General Programme for Inspection
Services in Authorised SEAT Service Centres will ensure you maintain
greater value for your vehicle.
SEAT recommends Castrol
Portada Prog Manto Alhambra_int_Interior PIM 02.05 04/04/11 9:57 Página 3

9
General Service Programme
● The headlight adjustment is checked
● The date of the next service is entered on the service sticker which is at-
t

ached to the driver side door pillar
● The service interval display is reset Ð
Inspection service Operations to be performed on your vehicle:
● The exhaust system is checked for leaks, damage and secure fitting
● ATF in the automatic gearbox: Check and, where necessary, top up with
fluid (e
xcept Exeo, Exeo ST and 09G gearbox in hot climates).
● Power steering hydraulic system: Check the seal and the fluid level, and
if

it is part of the equipment, if required, top up with hydraulic oil (only Exeo
and Exeo ST).
● Check the battery.
● Check the depth of the tyre tread (incl. the spare wheel, if applicable),
the ev
enness of the tread wear, the age and pressure of the tyres. Where
applicable, adjust the tyre pressure monitor.
● Check brake system and dampers for leaks and damage.
● Check the sunroof (where applicable) operates correctly and if necessary
c

lean and lubricate guides.
● Check the thickness of brake pads and the condition of front and rear
br

ake discs. ●
Chec
k the correct operation of the front and rear lighting, the turn sig-
nals, the hazard warning lights, the daytime driving lights, the static corner-
ing lights and the automatic dipped beam control (where applicable) and
the horn.
● Check if the windscreen is damaged.
● Check that the interior and glove box lighting, the cigarette lighter/pow-
er soc
ket, horn and warning lamps work correctly.
● Body: check for visible rust.
● Check the condition and, if required, the tension of the Poly V-belt.
● Check the coolant and anti-freeze liquid and top up as required.
● Inspect the engine and components of the engine compartment (from
abo
ve) for leaks and damage.
● Visually inspect (from below) the engine and components of the engine
c

ompartment, the gearbox, the end drive and the track rod boots for leaks
and damage.
● Check the engine oil level.
● Check the expiry date of the puncture kit tyre sealant (where applicable)
and r
ecord; check whether the bottle is damaged and the level of the seal-
ant.
● Take a test drive and check that the brakes, handbrake, steering, and air
c

onditioning operate correctly, and perform a kickdown.
● Check the windscreen wipers and headlight washers (where applicable)
oper
ate correctly; check the blades, the rest position, the final position and
for possible damage, and top up the washer fluid as required.
● The headlight adjustment is checked
● Coil spring (suspension) and bump stop, front and rear: visual check for
d

amage £

11
General Service Programme
Every 60 000 km (40 000 miles) ●
Change oil and oil filter for DSG ®
aut omatic gearboxes (only 6-speed
DSG ®
gearboxes).
● Change the automatic gearbox oil (only Exeo, Exeo ST and 09G gearbox
in hot
climates).
● Dust and pollen filter for the passenger compartment: Replace (only Al-
t

ea, Altea XL, Altea Freetrack, Leon and Alhambra).
● Spark plugs: Replace (except 1.8 and 2.0 TFSI engines up to 147 kW).
● Air filter: Clean casing and replace filter element (only engines codes
CDLA and CDLD and Die
sel engines in Exeo and Exeo ST).
● Fuel filter: Replace (only Exeo and Exeo ST, engine codes CAGA, CAGC,
CAHA).
● LPG evaporator: Check for traces of oil or other dirt (only engines with
L

GP) 1)
. Ð
Every 90 000 km (60 000 miles) ●
Air filter: Clean casing and replace filter element (except engines codes
CDLA and CDLD and Die
sel engines in Exeo and Exeo ST).
● Fuel filter: Replace (only Diesel engines which use fuel that complies
w

ith the EN 590 standard. In Exeo and Exeo ST, except engine codes CAGA,
CAGC, CAHA).
● Spark plugs: Replace (only 1.8 and 2.0 TFSI engines up to 147 kW). ●
LPG ev
aporator paper filter: Replace (only engines with LPG) 1)
. Ð
At 90 000 km (60 000 miles) the first time,
then ev
ery 30 000 km (20 000 miles) ●
Timing belt for camshaft: Check condition and replace if necessary (only
petr
ol engines, except 2.0 TFSI). Ð
Every 180 000 km (120 000 miles) ●
Timing belt for camshaft: Replace (only 2.0 TFSI engines in Exeo and Ex-
eo

ST). Ð
At 180 000 km (120 000 miles) the first time,
then ev
ery 30 000 km (20 000 miles) ●
Particulate filter: Check (TDI Common Rail engines). Ð
Every 210 000 km (130 000 miles) ●
Timing belt for camshaft: Replace (TDI Common Rail engines). £1)
LPG: Liquefied petroleum gas.

13
Other services available
Other services available Legal Inspection Service The legal inspections must be carried out at the intervals
pr
escribed.
Many countries have legal requirements obliging owners to have their vehi-
cle tested at specified intervals for safety for the user and for other traffic,
as well as ensuring that vehicle exhaust emissions meet the countries' reg-
ulations. These revisions must be overseen by officially certified centres.
Your Technical Service can advise of the inspections required by law, and
can check your vehicle in the course of an Inspection Service. This will save
you both time and money.
The Technical Service can also carry out the inspections required by law at
the client's request.
Even if you do not wish to take advantage of this service and decide to take
your car to an officially certified centre for this check, we recommend that
you speak to the manager of your Technical Service first.
This person will be able to inform you of any points that require attention so
that your car does not fail the test and have to be re-tested. Ð
Approved spare parts All parts of your vehicle have been approved by SEAT, especially those parts
on whic

h your safety depends. For this reason, the parts used in the Pro- grammed Inspection Services or in any vehicle repair must correspond ex-
actly
to the manufacturer-defined requirements. The approved SEAT spare
parts have been designed especially for your vehicle. For this reason, we
recommend that Genuine approved SEAT spares are always used.
In the Authorised SEAT Service Centres you will find the most important ap-
proved spare parts. If in an exceptional case, the necessary parts are not in
stock, they can, in general, be obtained swiftly.
The SEAT Service Centres in the EU provide a 24 month warranty 1)
for Ap-
proved Spare parts from the date they are fitted or sold. It is therefore advis-
able to retain the original invoice from the Technical Service as proof of the
existing warranty.
More information about this may be obtained from your Technical Service. Ð
Approved SEAT exchange parts The approved SEAT exchange parts, conforming to the manufacturer's re-
quir
ements, constitute an additional service at your disposal, offering you
the possibility to replace entire assemblies, the most common being: the
lightened engine, gearboxes, cylinder heads, control units, electrical ele-
ments, etc.
These are Approved parts and as such, share the same approved spare
parts warranty as the manufacturer parts. £1)
The warranty is not available for all export markets. For more information, please ask your
Authori
sed SEAT Technical Service.

16

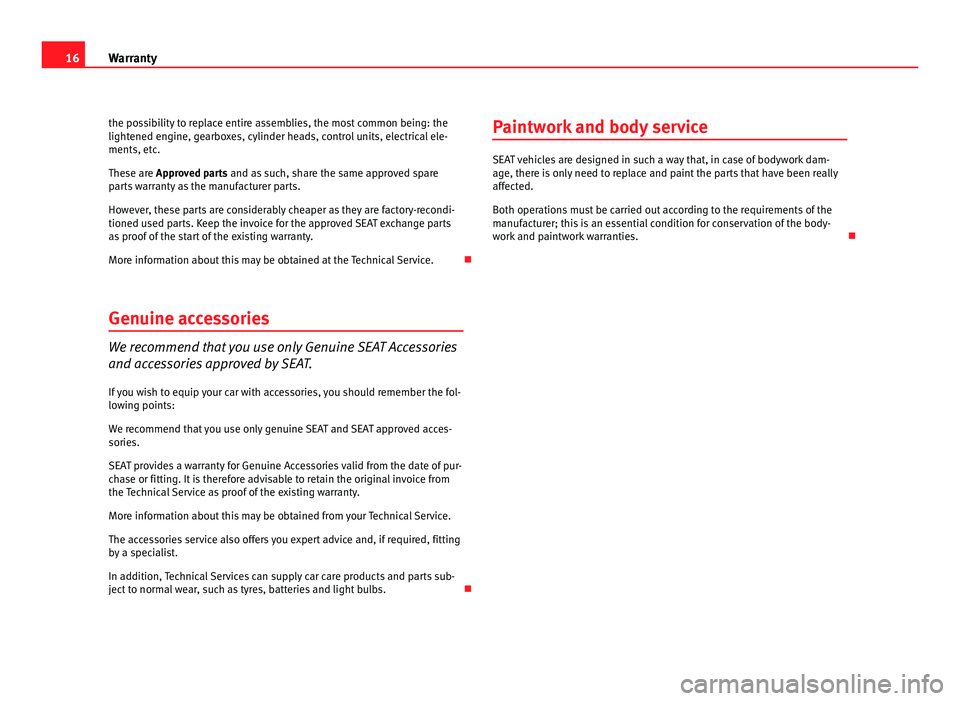

Warranty
the possibility to replace entire assemblies, the most common being: the
light ened engine, gearboxes, cylinder heads, control units, electrical ele-
ments, etc.
These are Approved parts and as such, share the same approved spare
parts warranty as the manufacturer parts.
However, these parts are considerably cheaper as they are factory-recondi-
tioned used parts. Keep the invoice for the approved SEAT exchange parts
as proof of the start of the existing warranty.
More information about this may be obtained at the Technical Service. Ð
Genuine accessories We recommend that you use only Genuine SEAT Accessories
an

d accessories approved by SEAT.
If you wish to equip your car with accessories, you should remember the fol-
lowing points:
We recommend that you use only genuine SEAT and SEAT approved acces-
sories.
SEAT provides a warranty for Genuine Accessories valid from the date of pur-
chase or fitting. It is therefore advisable to retain the original invoice from
the Technical Service as proof of the existing warranty.
More information about this may be obtained from your Technical Service.
The accessories service also offers you expert advice and, if required, fitting
by a specialist.
In addition, Technical Services can supply car care products and parts sub-
ject to normal wear, such as tyres, batteries and light bulbs. ÐPaintwork and body service SEAT vehicles are designed in such a way that, in case of bodywork dam-
ag
e, there is only need to replace and paint the parts that have been really
affected.
Both operations must be carried out according to the requirements of the
manufacturer; this is an essential condition for conservation of the body-
work and paintwork warranties. Ð
