2011 Seat Altea XL technical specifications

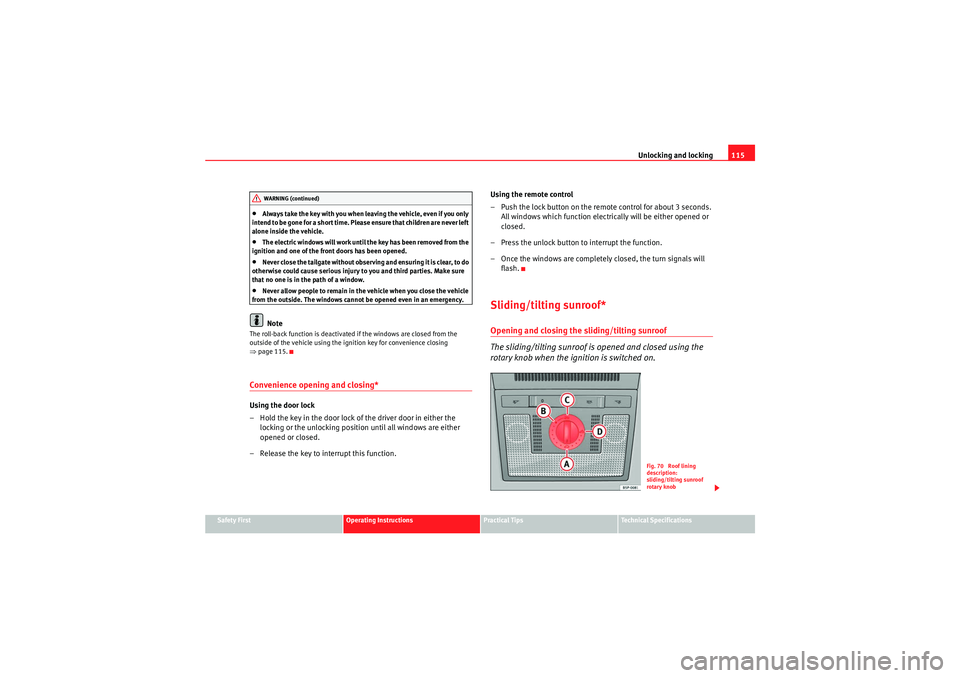

Unlocking and locking115
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•Always take the key with you when leaving the vehicle, even if you only
intend to be gone for a short time. Please ensure that children are never left
alone inside the vehicle.•The electric windows will work until the key has been removed from the
ignition and one of the front doors has been opened.•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and third parties. Make sure
that no one is in the path of a window.•Never allow people to remain in the vehicle when you close the vehicle
from the outside. The windows cannot be opened even in an emergency.Note
The roll-back function is deactivated if the windows are closed from the
outside of the vehicle using the ignition key for convenience closing
⇒ page 115.Convenience opening and closing* Using the door lock
– Hold the key in the door lock of the driver door in either the
locking or the unlocking position until all windows are either
opened or closed.
– Release the key to interrupt this function. Using the remote control
– Push the lock button on the remote control for about 3 seconds.
All windows which function electrically will be either opened or
closed.
– Press the unlock button to interrupt the function.
– Once the windows are completely closed, the turn signals will flash.
Sliding/tilting sunroof*Opening and closing the sliding/tilting sunroof
The sliding/tilting sunroof is opened and closed using the
rotary knob when the ignition is switched on.
WARNING (continued)
Fig. 70 Roof lining
description:
sliding/tilting sunroof
rotary knob
AlteaXL_EN.book Seite 115 Donnerstag, 9. September 2010 12:13 12

Unlocking and locking117
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
The sliding/tilting sunroof rotary knob remains in the last position selected if
the roof is closed using convenience closing from outside the vehicle and will
have to be re-positioned the next time you drive.Roll-back function of the sliding/tilting sunroof*
The sliding/tilting sunroof has a roll-back function which prevents larger
objects getting trapped when the roof is closed. The roll-back function does
not prevent fingers getting pinched against the roof opening. The
sliding/tilting sunroof stops and opens again immediately if it is obstructed
when closing.
If the sliding/tilting sunroof has been opened again by the roll-back function,
it can be closed only by pressing the rotary button at the front in position
⇒ fig. 71 until the sliding/tilting sunroof has closed fully. Please note that
the sunroof will now close without the roll-back function.
Operation in the event of a breakdown
In case of a breakdown, the sunroof may be closed manually.•Remove the plastic cover by inserting a screwdriver in the rear section.•Remove the lever from the cover fastening, insert it in the opening as far
as possible (pushing against the spring) and close the sliding roof.•Fit the lever back into position.
Fig. 71 Roof lining
description:
sliding/tilting sunroof
rotary knob
Fig. 72 Emergency
closing handle
AA
AlteaXL_EN.book Seite 117 Donnerstag, 9. September 2010 12:13 12

Lights and visibility119
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•The rear fog light is so bright that it can dazzle drivers behind you. You
should use the rear fog light only when visibility is very poor.•If you are towing a trailer equipped with a rear fog light on a vehicle with
a factory-fitted towing bracket, the rear fog light on the vehicle will automati-
cally be switched off.•The use of the lighting described here is subject to the relevant statutory
requirements.•Depending on weather conditions (very cold or wet), the front and tail
lights and the turn signals may be temporarily misted. This has no influence
on the useful life of the lighting system. The lights will soon demist when they
are switched on.Automatic lighting*Activation
– Rotate the switch to the position “Auto”, this indication will light up. Deactivation
– Turn the light switch to 0.
Automatic lighting
If automatic headlight control is switched on, dipped beam headlights are
automatically switched on by a photosensor if you drive into a tunnel, for
example.
The rain sensor switches on the dipped beam headlights when the wind-
screen wipers have been operating continuously for a few seconds and it
switches the lights off when the continuous or intermittent wipe is switched
off for some minutes ⇒
page 132.
When the automatic dipped light control is connected but the dipped lights
are off, the warning lamp
!54/
lights up on the light control ⇒fig. 74. If the
automatic control switches on the dipped lights, the instrument and control
lighting is also switched on.
WARNING
•Even if the automatic headlight control is switched on, the dipped
headlights will not be switched on with fog. Therefore, the dipped beam
must be switched on manually.Note
•For those vehicles with the automatic headlight system, when the key is
removed from the ignition, the acoustic signal will only sound if the light
control is in the position
 or  if the vehicle is not fitted with the coming
home function.
•If the daylight driving automatic light function is switched on, the fog
lights or rear fog light cannot be switched on in addition.•The use of the lighting described here is subject to the relevant statutory
requirements.
Fig. 74 Automatic
lighting
AlteaXL_EN.book Seite 119 Donnerstag, 9. September 2010 12:13 12

Lights and visibility121
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Insert the key and switch the ignition on, holding it in this position for 3
seconds. Then, switch off the ignition. The daytime lights are deactivated and
cannot be switched on.
Note
Please observe any relevant legal requirements which may apply in your
country.Coming/leaving home function*
The Coming Home function is controlled manually. The
Leaving Home function is controlled with a photosensor.If the Coming Home or Leaving Home function is connected, the front side
and dipped lights, the tail lights and the number plate light will light up to
provide assistance.
Coming home function
The Coming Home function is activated by switching off the ignition and
briefly flashing the lights. When the driver door is opened, the Coming Home
lighting comes on. If the driver door is already open when the lights are
flashed briefly, the Coming Home lighting comes on
immediately.
When the last door of the vehicle or the tailgate is closed, the Coming Home
function starts and the switching off the headlights is delayed.
The Coming Home lighting switches off in the following cases:•On completion of the time period established for the delay in switching off
the lights after all the vehicle doors and the tailgate have been closed.•If, 30 seconds after being connected, any doors or the tailgate remain
open.•If the light switch is turned to position
/.
•If the ignition is switched on.
Leaving home function
The Leaving Home function is activated when the vehicle is unlocked if:•the light control is in position
!54/
and
•the photosensor detects “darkness”.
The Leaving Home lighting switches off in the following cases:•If the time period for the delay in switching off the headlamps has ended•If the vehicle is locked again.•If the light switch is turned to position
/.
•If the ignition is switched on.Note
The setting for the delay in switching off the headlamps in the Coming Home
and Leaving Home function can be changed or the function can be connected
or disconnected in the menu Lights and visibility ⇒ page 76.•If the ignition key is removed while the lights are on, and the lights are
flashed briefly and the driver door opened, no acoustic signal is heard, as
when the Coming Home function is on, the lights are automatically switched
off after a period of time (except when the light switch is in position
 or
.
AlteaXL_EN.book Seite 121 Donnerstag, 9. September 2010 12:13 12

Lights and visibility123
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Dynamic cornering lights (AFS)
The
dynamic cornering lights only operate if the vehicle is travelling at more
than 10 km/h and the dipped headlights are on. When taking a bend, the
road is illuminated better with directional gas discharge bulbs than with
conventional fixed headlights.
A fault in the system is indicated via the flashing of the control lamp
 on the
instrument panel. At the same time, a text message with information or
instructions to perform necessary operations may appear on the instrument
panel display. Take the vehicle to a specialised workshop and have the fault
repaired.
If the warning lamp
 lights up on the instrument panel but all the bulbs are
operating correctly ⇒ page 273, there may still be a fault in the dynamic
cornering light system (AFS). Take the vehicle to a specialised workshop and
have the fault repaired.
WARNING
If the “automatic dipped beam control” is switched on, the dipped beam
headlights will not be switched on in fog. They should be switched on
manually using the light switch. The driver is personally responsible for the
correct use of lights in all situations. “Automatic headlight control” is
merely a system to support the driver. Where necessary, switch on the
lights manually using the light switch.Fog lights with cornering function* When the turn signal is switched on to turn or on very tight bends, the right
or left fog lamp automatically comes on to function as a cornering light. The
cornering light only operates if the dipped lights are on.
WARNING
If the “automatic dipped beam control” is switched on, the dipped beam
headlights will not be switched on in fog. They should be switched on
manually using the light switch. The driver is personally responsible for the
correct use of lights in all situations. “Automatic headlight control” is
merely a system to support the driver. Where necessary, switch on the
lights manually using the light switch.Hazard warning lights

The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
If your vehicle breaks down:
1. Park your vehicle at a safe distance from moving traffic.
Fig. 77 Dash panel:
switch for hazard warning
lights
AlteaXL_EN.book Seite 123 Donnerstag, 9. September 2010 12:13 12

Lights and visibility125
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Turn signal and main beam headlight lever
The turn signal and main beam lever also operates the
parking lights and the headlight flasher.The turn signal and main beam headlight lever has the following
functions:
Switching on the turn signals
– Move the lever all the way up ⇒fig. 78 to indicate right, and
all the way down to indicate left.
Signalling a lane change
– Push the lever up or down to the point where you incur resistance and then release it. The turn signal will flash several
times. The corresponding indicator lamp will also flash. Switching main beam on and off
– If the dipped lights are on, push the lever forward
⇒fig. 78
to switch on the main beam.
– Push the lever towards the steering wheel ⇒ fig. 78 to switch
off the main beam.
Headlight flashers
– Pull the lever towards the steering wheel to operate the flasher.
Switching on parking lights
– Switch the ignition off and remove the key from the lock.
– Move the lever up or down to turn the right or left-hand parking lights on, respectively.
WARNING
The main beam can dazzle other drivers. Risk of accident! Never use the
main beam headlights or the headligh t flasher if they could dazzle other
drivers.
Note
• The turn signals only work when the ignition is switched on. The corre-
sponding warning lamp
 or
flashes in the instrument panel. The warning
lamp
 flashes when the turn signals are operated, provided a trailer is
correctly attached and connected to the vehicle. If a turn signal bulb is defec-
tive, the warning lamp flashes at double speed. If the trailer turn signal bulbs
are damaged, warning lamp
 does not light up. Change the bulb.
Fig. 78 Turn signal and
main beam headlight
lever
A1
A2A1
A2
A3
A4
A4
AlteaXL_EN.book Seite 125 Donnerstag, 9. September 2010 12:13 12

Lights and visibility127
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
If not all the vehicle doors are closed, the interior lights will be switched off
after approx. 10 minutes, providing the key has been removed and the cour-
tesy light position selected. This prevents the battery from discharging.Front interior light type 2The switch ⇒fig. 80 is used to select the following positions:
Courtesy light position
o
Rocker switch in flat position (not activated). The interior lights are automat-
ically switched on when the vehicle is unlocked or the key removed from the
ignition. And turn off approx. 20 seconds after closing the doors. The interior
lights are switched off when the vehicle is locked or when the ignition is
switched on. Interior light switched on

Push the switch to position
.
Interior light switched off O
Push the switch to position O ⇒fig. 80.
Note
If not all the vehicle doors are closed, the interior lights will be switched off
after approx. 10 minutes, providing the key has been removed and the cour-
tesy light position selected. This prevents the battery from discharging.
Fig. 80 Interior roof trim:
front interior lights
AA
AlteaXL_EN.book Seite 127 Donnerstag, 9. September 2010 12:13 12

Lights and visibility129
Safety First
Operating Instructions
Practical Tips
Technical Specifications
light turns off about 20 seconds after closing the doors. The interior lights are
switched off when the vehicle is locked or when the ignition is switched on.
Interior lights or both reading lights switched on

Turn the control to position .
Note
If not all the vehicle doors are closed, the interior lights will be switched off
after approx. 10 minutes, providing the key has been removed and the cour-
tesy light position selected. This prevents the battery from discharging.VisibilitySun visors
The sun visors for the driver and the front passenger can be pulled out of their
mountings in the centre of the vehicle and turned towards the doors
⇒fig. 84
The vanity mirrors in the sun visors have covers. When you open the cover ,
a lamp in the roof lights up.
The light* in the roof lining will go out when the vanity mirror cover is pushed
back or the sun visor is pushed back up.
Note
The roof lamp will turn off about 10 minutes following the removal of the igni-
tion key. This prevents the battery from discharging.Sun blind*
The windows on the rear doors are fitted with a sun blind
A5
Fig. 84 Sun visor on the
driver side
A1
A2
Fig. 85 Rear door sun
visor
AlteaXL_EN.book Seite 129 Donnerstag, 9. September 2010 12:13 12
