2011 Seat Altea XL technical specifications

Technical Specifications299
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil capacity

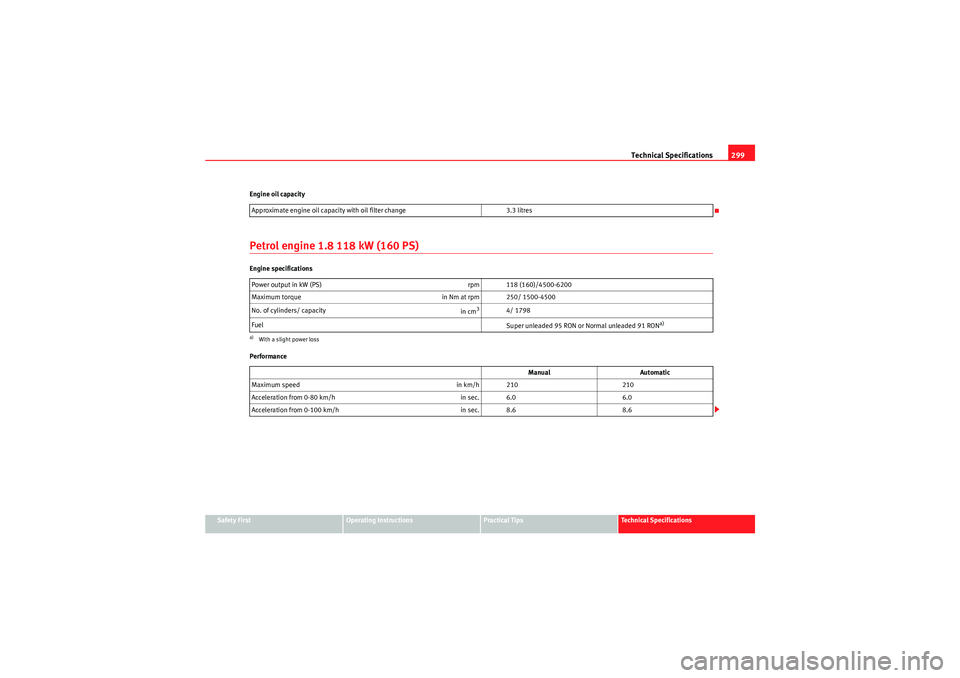

Petrol engine 1.8 118 kW (160 PS)Engine specifications
Performance
Approximate engine oil capacity with oil filter change
3.3 litres
Power output in kW (PS) rpm 118 (160)/4500-6200
Maximum torque in Nm at rpm 250/ 1500-4500
No. of cylinders/ capacity in cm
3
4/ 1798
Fuel Super unleaded 95 RON or Normal unleaded 91 RON
a)
a)With a slight power loss
ManualAutomatic
Maximum speed in km/h 210210
Acceleration from 0-80 km/h in sec. 6.06.0
Acceleration from 0-100 km/h in sec. 8.68.6
AlteaXL_EN.book Seite 299 Donnerstag, 9. September 2010 12:13 12

Technical Specifications
300Weights
Trailer weight
Engine oil capacityDiesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPFEngine specifications Manual
Automatic
Gross vehicle weight in kg 20492069
Weight in running order (with driver) in kg 15051525
Gross front axle weight in kg 10681068
Gross rear axle weight in kg 10431043
Permitted roof load in kg 7575
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change 4.6 litres
Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/ capacity in cm
3
4/1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel
AlteaXL_EN.book Seite 300 Donnerstag, 9. September 2010 12:13 12

Technical Specifications301
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Performance
Weights
Trailer weight
Engine oil capacity
Manual
Automatic
Maximum speed in km/h 183183
Acceleration from 0-80 km/h in sec. 8.28.1
Acceleration from 0-100 km/h in sec. 12.412.6
Manual Automatic
Gross vehicle weight in kg 20292049
Weight in running order (with driver) in kg 14851505
Gross front axle weight in kg 10401060
Gross rear axle weight in kg 10101010
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 740750
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.5 litres
AlteaXL_EN.book Seite 301 Donnerstag, 9. September 2010 12:13 12

Technical Specifications
302Diesel engine 1.6 TDI CR 77 kW (105 PS) with Start&StopEngine specifications
Performance
Weights
Trailer weight Power output in kW (PS)
rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/ capacity in cm
3
4/1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8.2
Acceleration from 0-100 km/h in sec. 12.4
Gross vehicle weight in kg 2024
Weight in running order (with driver) in kg 1480
Gross front axle weight in kg 1040
Gross rear axle weight in kg 1010
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
AlteaXL_EN.book Seite 302 Donnerstag, 9. September 2010 12:13 12

Technical Specifications303
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil capacity
Diesel engine 2.0 TDI CR 103 kW (140 PS) DPFEngine specifications
Performance
Weights
Approximate engine oil capacity with oil filter change
4.5 litres
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
Manual Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in sec. 7.06.7
Acceleration from 0-100 km/h in sec. 10.010.0
Manual Automatic
Gross vehicle weight in kg 20342049
Weight in running order (with driver) in kg 14901505
Gross front axle weight in kg 10701085
Gross rear axle weight in kg 10201020
Permitted roof load in kg 75
AlteaXL_EN.book Seite 303 Donnerstag, 9. September 2010 12:13 12

Technical Specifications
304Trailer weight
Engine oil capacityDiesel engine 2.0 TDI PD 103 kW (140 PS) without DPFEngine specifications
Performance Manual
Automatic
Trailer without brakes in kg 740750
Trailer with brakes, gradients up to 8% in kg 15001500
Trailer with brakes, gradients up to 12% in kg 14001400
Approximate engine oil capacity with oil filter change 4.5 litres
Power output in kW (PS) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
Manual Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in sec. 7.06.7
Acceleration from 0-100 km/h in sec. 10.010.0
AlteaXL_EN.book Seite 304 Donnerstag, 9. September 2010 12:13 12

Technical Specifications305
Safety First
Operating Instructions
Practical Tips
Technical Specifications

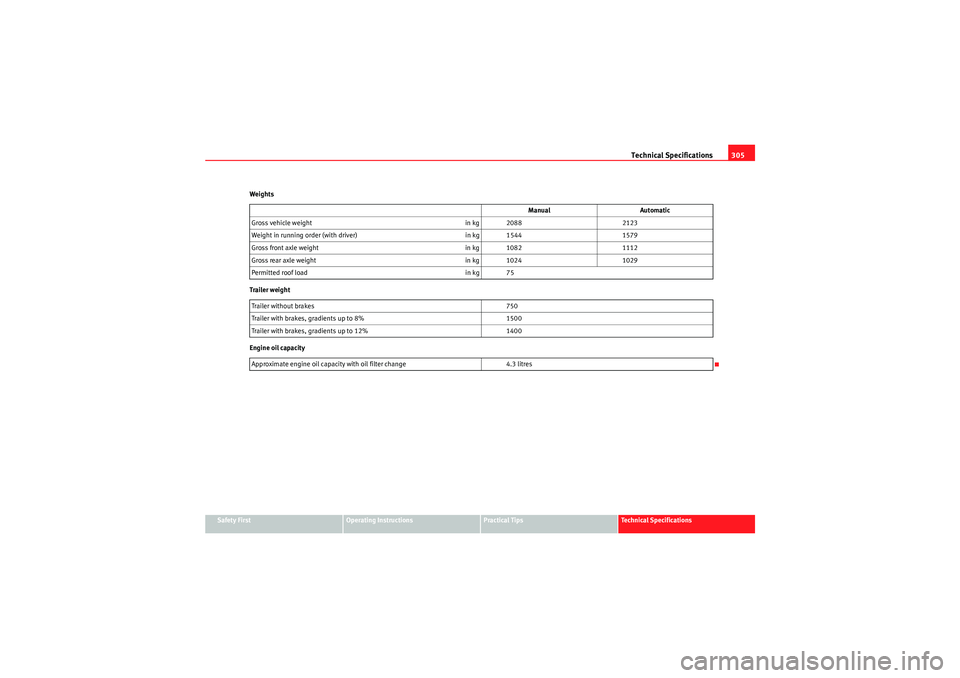

Weights
Trailer weight
Engine oil capacity
Manual
Automatic
Gross vehicle weight in kg 20882123
Weight in running order (with driver) in kg 15441579
Gross front axle weight in kg 10821112
Gross rear axle weight in kg 10241029
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
AlteaXL_EN.book Seite 305 Donnerstag, 9. September 2010 12:13 12

Technical Specifications
306Dimensions and capacities
Dimensions
Length, width 4467 mm/ 1768 mm
Height at kerb weight 1575 mm
Front and rear projection 913 mm/ 976 mm
Wheelbase 2578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1527 mm 1506 mm
1541 mm 1520 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Ty re p re ss u re
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
AlteaXL_EN.book Seite 306 Donnerstag, 9. September 2010 12:13 12
