Seats and storage compartments WARNING (Continued)
● Mats or other objects can be caught in the hinges of the backrests or
r e
ar seat. This could prevent the seat or backrest from locking securely in
the vertical position.
● All backrests must engage correctly for the seat belts on the rear
seats
to work properly. When the backrest of an occupied seat is not cor-
rectly locked in place, the passenger can be thrust forward with the back-
rest in case of sudden braking, sudden manoeuvres or an accident.
● No seat must be occupied if the backrest or seat is folded or not cor-
rectly en
gaged. CAUTION
● Before folding the backrest of the rear seat, adjust the front seats so
th at

the head restraint or backrest do not hit them when it is folded.
● Objects placed in the footrest area in front of and behind the rear seats
can be dam
aged when seats are folded down or put back into position. Re-
move any objects in the way before folding seats down or repositioning
them. ●
Objects placed in the moulding on the back of the third row of seats can
be dam
aged when folding down the seats or putting them back into posi-
tion. Remove any objects in the way before folding seats down or reposi-
tioning them.
● The attachment elements and supports for the net partition placed on
the rail
system can be damaged when folding down seats from the third row
or putting them back into position and these can also damage the seats
themselves. Before folding down or repositioning the seats, remove the at-
tachment elements and supports for the net from the rail system. Safety First Operating instructions Practical tips Technical Data

131
Seats and storage compartments
Closing the shelf
● Pull the unfolded shelf evenly on the guide backwards.
● Secure the shelf using the left and right side supports.
Ins t
alling the shelf behind the second row of seats
● Place the shelf in its position in the side lining, left-hand side first.
● Release the shelf in the direction of the arrow B .
● Insert the shelf into the right-hand support, pressing down.
Ins t

alling the shelf behind the third row of seats
● Remove the shelf from the support in the side lining ⇒ fig. 92 A . To do
this, pr e

ss the shelf upwards (arrow) and remove it.
● Open the compartment in the left-hand side rear lining ⇒ page 141 and
hook
the shelf to the rear of the luggage compartment cover B .
● Close the rear left-hand side lining compartment.
● Place the shelf in its position in the side lining, left-hand side first.
● Lift the shelf off in direction of the arrow ⇒ fig. 91 B .
● Insert the shelf into the right-hand support, pressing down.
Remo v

ing the shelf
● Release the shelf in the direction of the arrow B and lift it in the direc-
tion of the arr o

w C .
● Remove the shelf from the right-hand side support. ●
Also, when removing from behind the third row of seats: Co
ver the side-
lining supports with their covers.
● Only with 5 places: Suppor
t the released shelf by placing it on the front
section of the luggage compartment floor ⇒ page 141. WARNING
If the shelf is placed on one of the rear seats, this could cause serious
injury in c

ase of sudden braking or an accident.
● Whenever it the third row seats are occupied, the shelf should be put
behind this r
ow. WARNING
Unsecured or incorrectly secured objects or animals on the rear shelf
cou l

d cause serious injuries in case of a sudden manoeuvre or braking or
even an accident.
● Do not leave hard, heavy or sharp objects (loose or in bags) on the
rear shelf
.
● Never transport animals on the rear shelf. 
Safety First Operating instructions Practical tips Technical Data

133
Seats and storage compartments
Installing the net partition behind the front seats
● Hook in the net partition on the left-hand side roof support C . To do
this, guide the r od fr
om up to down.
● Hook in the net partition on the rear right-hand side roof support by
pres
sing on the rod.
● Secure the hooks of the net partition to the attachment rings in the left
and right hand s
ide foot rests on the second row of seats then tighten the
straps.
Removing the net partition
● Loosen the net partition straps.
● Release the net partition hooks from the rings B .
● Release the net partition from the right and left roof supports A or
C by pressing on the rod.
●
Unhook the net partition from the left-hand side roof support.
Fo l

ding in the net partition
● Press on the release button ⇒ fig. 93 2 and bend the rod
A in the di-
rection of the arr

ow with the release o button pressed.
● Press on the release button 3 and bend the rod
B in the direction of
the arro w w

ith the release button pressed.
● Store the net partition securely in the vehicle. WARNING
Loose objects in the passenger compartment can be violently thrown in
ca se of

a sudden manoeuvre or braking and especially in accidents caus-
ing serious injury.
● Ensure that the rods are correctly locked in place.
● Even when net partition is correctly fitted, objects must be secured.
● When driving with the net partition, no passengers should be behind
it. Fastening rings*
Fig. 95 In the luggage
comp
ar

tment: fastening
rings
To the front and rear of the luggage compartment, there are fastening rings
for securin
g objects ⇒ fig. 95 (arrows). On some models, the fastening rings
are all the way to the back on the lock carrier plate.
There are other fastening rings located to the left and right hand side of the
second row footrests.
Some models of fastening rings must be lifted to use them. WARNING
Unsuitable or damaged ropes or straps may be released in case of sud-
den brak in

g or an accident. As a result, objects may be fired through the
passenger compartment causing serious injury or death.
● Always use suitable ropes and straps in good condition.
● Secure the ropes and straps to the fastening rings. Safety First Operating instructions Practical tips Technical Data

135
Seats and storage compartments WARNING
Unsuitable or damaged ropes or straps may be released in case of sud-
den brak in
g or an accident. As a result, objects may be fired through the
passenger compartment causing serious injury or death.
● Always use the attachment straps of the rail and attachment system.
● Secure the attachment straps firmly to the attachment elements.
● Loose objects in the luggage compartment can suddenly slide and
chan
ge the way the vehicle handles. WARNING (Continued)
● Sec ure all objects, little and large.
● Nev
er sec

ure a child seat to the attachment elements. CAUTION
● The attachment elements placed on the rail system can be damaged
when f o

lding down seats from the third row or putting them back into posi-
tion and these can also damage the seats themselves. Before folding down
or repositioning the seats, remove the attachment elements and supports
for the net from the rail system. 
Baggage net* Fig. 97 Hook the baggage net
A and use it as a bag
B .
Safety First Operating instructions Practical tips Technical Data

137
Seats and storage compartments WARNING
Baggage net supports that are not secured correctly can be released from
the guide in ca se of
the sudden braking or accident. As a result, objects
may be fired through the passenger compartment causing serious injury
or death.
● Always ensure that the baggage net supports are correctly inserted
into the rai
ls; the red mark should not be visible.
● Never secure a child seat to the baggage net supports. CAUTION
● The baggage net supports placed on the rail system can be damaged
when f o

lding down seats from the third row or putting them back into posi-
tion and these can also damage the seats themselves. Before folding down
or repositioning the seats, remove the baggage net supports from the rail

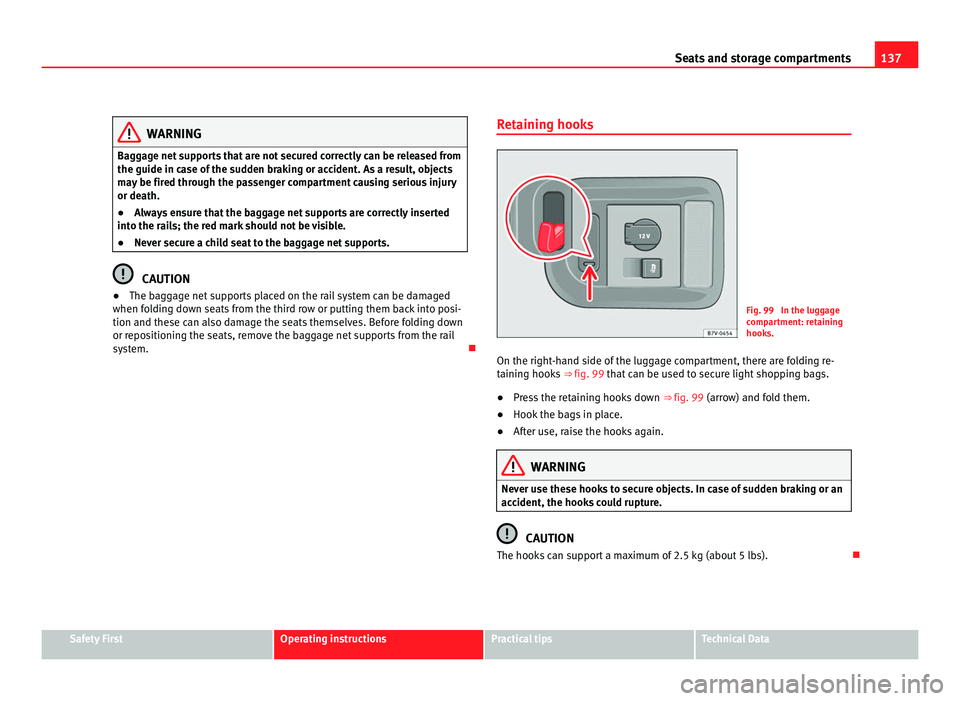

system. Retaining hooks Fig. 99 In the luggage
comp
ar
tment: retaining
hooks.
On the right-hand side of the luggage compartment, there are folding re-
taining hook
s ⇒ fig. 99 that can be used to secure light shopping bags.
● Press the retaining hooks down ⇒ fig. 99 (arrow) and f
old them.
● Hook the bags in place.
● After use, raise the hooks again. WARNING
Never use these hooks to secure objects. In case of sudden braking or an
acc ident, the hook

s could rupture. CAUTION
The hooks can support a maximum of 2.5 kg (about 5 lbs). Safety First Operating instructions Practical tips Technical Data

139
Seats and storage compartments
Additional information and warnings:
● Light ⇒ page 95
● Tr
ansporting ⇒ page 13
● E

cological driving ⇒ page 225
● Wheel

s and tyres ⇒ page 293
● A

ccessories, parts replacement, repairs and modifications ⇒ page 257WARNING
The risk of an accident is increased by transporting heavy or bulky loads
on the roof , whic

h affects the car's handling by shifting the centre of
gravity and increasing susceptibility to cross winds.
● Always secure loads correctly with suitable and undamaged attach-
ment rope or s
traps.
● Large, heavy, wide and flat loads negatively affect the vehicle aerody-
namics, c
entre of gravity and handling.
● Avoid brusque manoeuvres and sudden braking.
● Adjust your speed and driving style to visibility, road, traffic and
weather c
onditions. CAUTION
● Always remove the roof carrier system from the roof before entering a car
w a

sh.
● The height of your vehicle is changed by the installation of the roof carri-
er and the load sec
ured on it. Compare the vehicle height with the passage
height, for example in underground car parks or entering garage doors.
● The roof antenna, the range of the panoramic sliding roof and the tail-
gate shou
ld not be affected by the roof carrier system and the load being
transported.
● Take extra care not to let the tailgate strike the roof load when opening. For the sake of the environment
The vehicle uses more fuel when the roof carrier system is fitted. 
Securing the base supports and roof carrier system Fig. 101 Attachment
points
f

or the basic sup-
port and the roof carrier
system.
The mounts are the basis of a complete roof carrier system. Special fixtures
mus t

then be added in order to safely transport luggage, bicycles, skis, surf
boards or boats on the roof. All these system components are available
from an Authorised Service Centre.
It will only be possible to install a basic support or roof carrier system if the
vehicle has a roof rail.
Securing the base supports and roof carrier system
Always secure the base supports and roof carrier system correctly.
The roof carrier system must always be installed exactly according to the in-
structions provided. Safety First Operating instructions Practical tips Technical Data

141
Seats and storage compartments
Storage compartments
Introduction Storage compartments must only be used to store light or small objects.
The front
c
entral armrest compartment houses the factory-fitted AUX-IN or
multimedia (MEDIA-IN) connection sockets.
The factory-fitted CD changer is located in the left-hand storage compart-
ment of the luggage compartment.
Additional information and warnings:
● Child seats (accessories) ⇒ page 39
● L

uggage compartment ⇒ page 125
● C

are and cleaning of the vehicle interior ⇒ page 249
● ⇒ 

Bookl et Radio or ⇒ Booklet navigation system WARNING
In the event of sudden braking movements or turns, loose objects may be
thro wn ar

ound the vehicle interior. This could cause serious injuries to
passengers and cause the driver to lose control of the vehicle.
● Do not transport animals or place hard, heavy or sharp objects inside
the vehic
le in: open storage compartments, instrument panel, storage
tray, items of clothing or bags.
● While driving, always keep object compartments closed. WARNING
Objects falling into the driver's footwell could prevent use of the pedals.
This c

ould lead the driver to lose control of the vehicle, increasing the
risk of a serious accident.
● Make sure the pedals can be used at all times, with no objects rolling
underneath them.
● The floor m

at should always be secured to the floor.
● Never place other mats or rugs on top of the original mat supplied by
the factor
y.
● Make sure that no objects can fall into the driver's footwell while the
vehicl
e is in motion. CAUTION
● Objects on the shelf could chafe against the wires of the heating ele-
ment in the r

ear window and cause damage.
● Do not keep heat-sensitive objects, food or medicines inside the vehi-
cle. He
at and cold could damage them or render them useless.
● Light-transparent objects placed inside the vehicle, such as lenses,
magnify
ing glasses or transparent suction caps on the windows, could con-
centrate the sun's rays and cause damage to the vehicle. Note
The ventilating slits between the heated rear window and the shelf must not
be co v

ered so that used air can escape from the vehicle. Safety First Operating instructions Practical tips Technical Data

143
Seats and storage compartments
Compartment on the centre console Fig. 104 Compartment
in the front
c
entre con-
sole.
There is an open compartment on the centre console ⇒ fig. 104 in which
there m
ay be a 12 volt socket ⇒ page 151. Compartment in the front central armrest Fig. 105 Storage com-
par
tment

in the front cen-
tral armrest.
To open, fully lift the central armrest in the direction of the arrow ⇒ fig. 105.
T
o close, lower the central armrest. WARNING
The centre armrest may limit the freedom of movement of the driver's
arm and cau se a seriou

s accident.
● Keep the centre armrest compartments closed while the vehicle is in
motion. WARNING
The centre armrest is not designed for children to sit on! 
Safety First Operating instructions Practical tips Technical Data
