2011 Ram 1500 seat memory

▫Power Lumbar — If Equipped ........... 104
▫ Heated Seats — If Equipped ............ 104
▫ Ventilated Seats — If Equipped .......... 107
▫ Manual Seat Adjuster — If Equipped ...... 108
▫ Manual Reclining Seats — If Equipped ..... 109
▫ 40-20-40 Front Bench Seat — If Equipped . . . 110
▫ Mega Cab Rear Seat Features ........... 110
▫ Head Restraints ..................... 114
 Driver Memory Seat — If Equipped ........ 116
▫ Setting Memory Positions And Linking RKE
Transmitter To Memory ................ 117
▫ Memory Position Recall ................ 118
▫ To Disable A RKE Transmitter Linked To
Memory ........................... 119 ▫
Self-Limiting Control .................. 119
▫ Driver Easy Exit And Easy Entry Control . . . 120
 To Open And Close The Hood ............ 120
 Lights ............................. 121
▫ Headlights ......................... 123
▫ Automatic Headlights — If Equipped ...... 123
▫ Headlight Delay ..................... 124
▫ Parking Lights And Panel Lights ......... 124
▫ Fog Lights — If Equipped .............. 124
▫ Interior Lights ...................... 125
▫ Cargo Light ........................ 126
▫ Lights-On Reminder .................. 127
▫ Battery Saver ....................... 127
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•The head restraints should only be removed by quali-
fied technicians, for service purposes only. If either of
the head restraints require removal, see your autho-
rized dealer.
DRIVER MEMORY SEAT — IF EQUIPPED
Driver memory seats allow the driver to recall settings
for the adjustable pedals, mirrors, seats and the radio
presets using the key fob.
The memory seat buttons are located on the outboard
side of the drivers seat cushion.The memory buttons 1 and 2 can be programmed to
recall the driver’s seat position, driver’s outside mirror
position, adjustable brake, accelerator pedals position,
Automatic Temperature Control (ATC) temperature set-
ting and radio station preset settings. Your Remote
Memory Seat Buttons
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
NOTE:The power lumbar option is not programmable
with driver memory seats.
Your vehicle was delivered with two RKE transmitters.
One or both RKE transmitters can be linked to either
memory position. The memory system can accommodate
up to two RKE transmitters, each RKE transmitter linked
to either of the two memory positions.
Setting Memory Positions And Linking RKE
Transmitter To Memory
NOTE: Each time the S (SET) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Turn the vehicle key to the ON/RUN position. 2. Adjust the driver’s seat, recliner, and both sideview
mirrors to the desired positions.
NOTE:
Not all motors may be moved at one time. Refer
to “Power Seats — If Equipped” in this section for further
information.
3. Adjust the brake and accelerator pedals to the desired
positions.
4. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
5. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.
6. Press and release the SET button located on the
driver’s seat.
7. Within five seconds, press and release MEMORY
button 1 or 2 on the driver’s seat. The next steps must be
performed within 10 seconds if you desire to also use a
RKE transmitter to recall memory positions.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

8. Turn the ignition OFF and remove the key.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another RKE transmitter to memory.
Memory Position Recall
NOTE:
•The vehicle must be in PARK to recall the memory
positions.
•Not all motors may be moved at one time. Refer to the
“Seats/Eight-Way Power Seat” in this section for fur-
ther information.
To recall the memory settings for driver one, press
MEMORY button number 1 on the driver’s seat or the
UNLOCK button on the RKE transmitter linked to
memory position 1. To recall the memory setting for driver two, press
MEMORY button number 2 on the driver’s seat or the
UNLOCK button on the RKE transmitter linked to
memory position 2.
A recall can be cancelled by pressing any of the
MEMORY buttons on the driver’s seat during a recall (S,
1, or 2), or pressing any one of the power seat buttons,
pressing the adjustable pedals button, or pressing either
the LOCK or UNLOCK button on the RKE transmitter
when not in the ignition switch. When a recall is can-
celled, the driver’s seat and the pedals stop moving. A
delay of one second will occur before another recall can
be selected.
NOTE:
A chime sound may be heard if setting memory
was inhibited for any reason.
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Disable A RKE Transmitter Linked To Memory
1. Turn the ignition switch to the OFF position and
remove the key.
2. Press and release the memory SET button located on
the driver’s seat.
3. Within 10 seconds, press and release the UNLOCK
button on the RKE transmitter.
To disable another RKE transmitter linked to either
memory position, repeat Steps 1-3 for each RKE trans-
mitter.
NOTE:The capability to link RKE transmitters to
memory is enabled when delivered from the factory. The
capability to link RKE transmitters to memory can be
disabled (or later re-enabled) by an authorized dealer. For vehicles equipped with the Electronic vehicle Informa-
tion Center (EVIC), refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Customer-Programmable Features”
in “Understanding Your Instrument Panel” for further
information.
Self-Limiting Control
The memory system includes a self-limiting control for
full travel positioning of power seat and adjustable pedal
movement (all directions). This self-limiting control may,
however, develop an unintended movement limitation if
an obstruction is encountered sometime during usage.
One example of such an occurrence may include a box or
package obstructing the full rearward movement of the
driver’s seat. Once the obstruction is removed, the self-
limiting control may store a new maximum position. the
self-limiting control may be reset by reaching the new
stored position, then press and release MEMORY button 1
or 2. Continued seat travel beyond the new stored posi-
tion will indicate the self-limiting control has been reset.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119

Driver Easy Exit And Easy Entry Control
This additional feature provides automatic driver’s seat
positioning which will enhance driver mobility into and
out of the vehicle. The seat cushion will move rearward
approximately 2.5 in (60 mm) when the key is removed
from the ignition switch. The seat will move forward
approximately 2.5 in (60 mm) when the key is placed into
the ignition and turned out of the LOCK position. Each
stored memory setting will have an associated Easy Exit
and Easy Entry position. The Easy Exit and Easy Entry
feature may be automatically disabled if the seat is
positioned rearward enough and there is no benefit in
moving the seat any farther rearward.
NOTE:The Easy Entry/Easy Exit feature can be en-
abled or disabled through the programmable features in
the Electronic Vehicle Information Center (EVIC). Refer
to “Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.

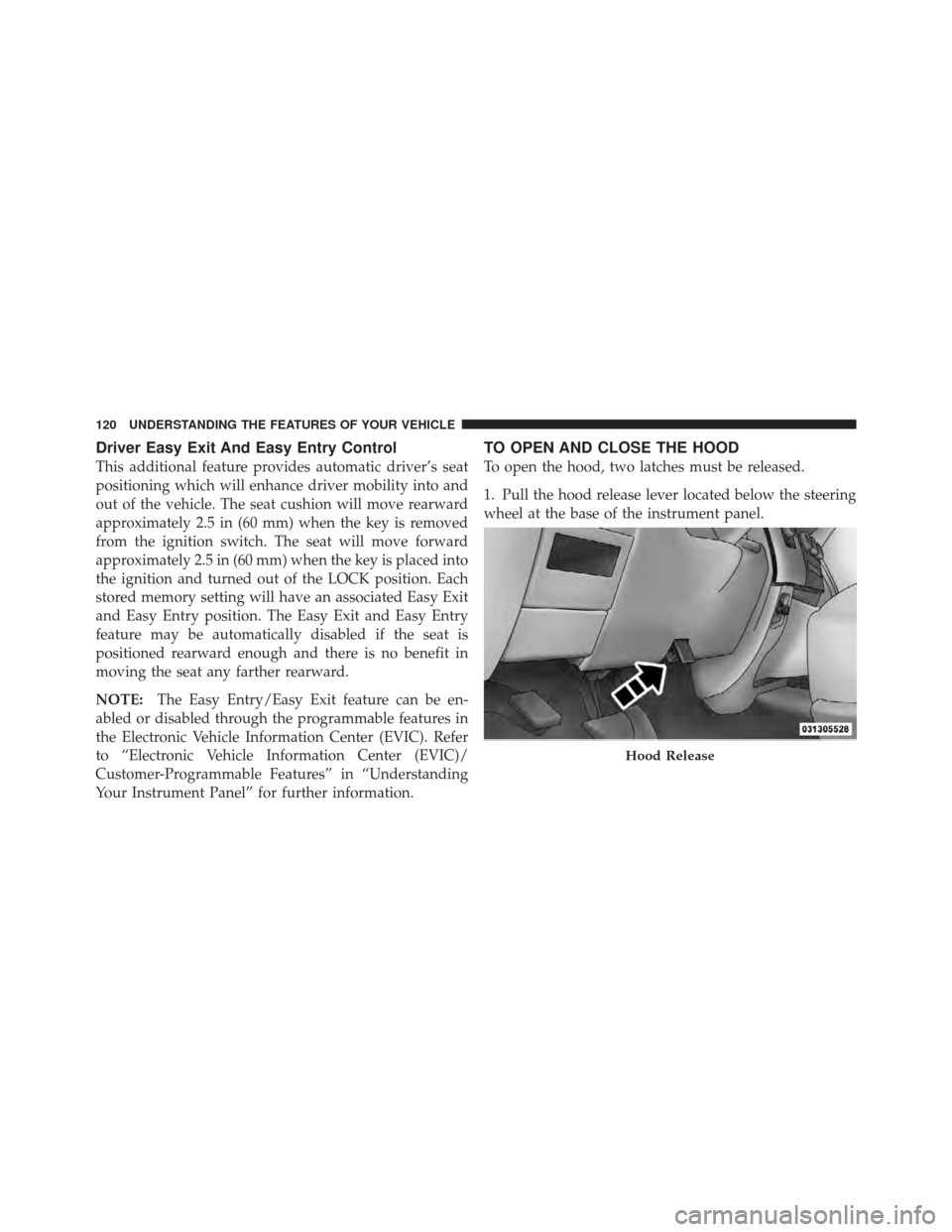

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located below the steering
wheel at the base of the instrument panel.
Hood Release
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•Remote start aborted — Fuel low
•Remote start disabled — System fault
•Remote start disabled — Turn key
•Remote start active — Key to Run
•Remote Start Disabled — Start Vehicle to Reset
•Remote Start Active — Insert Key and Turn to RUN
•Memory 1 Profile Set
•Memory 2 Profile Set
•Memory System Unavailable — Not in Park
•Memory System Unavailable — Seatbelt Buckled
•Memory 1 Profile Recall
•Memory 2 Profile Recall
•Adjustable Pedals Unavailable — Vehicle in Reverse
•Adjustable Pedals Unavailable — Cruise Engaged
•To Tow Vehicle Safely, Read Neutral Shift Procedure in
Owners Manual
EVIC Warning Lights
•
Door AjarThis light will turn on to indicate that one or
more doors may be ajar.
•Oil Pressure Warning LightThis light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound for four minutes when this light turns
on.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 231

Auto Lock Doors
When this feature is selected, all doors will lock auto-
matically when the vehicle reaches a speed of 15 mph
(24 km/h). To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated, or the
check-mark is removed showing the system has been
deactivated.
Auto Unlock Doors
When this feature is selected, all doors will unlock when
the vehicle is stopped and the transmission is in the
PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated, or the
check-mark is removed showing the system has been
deactivated.
Remote Unlock Sequence
WhenUnlock Driver Door Only On 1st Press is selected,
only the driver’s door will unlock on the first press of the
RKE transmitter UNLOCK button. When Driver Door 1st
Press is selected, you must press the RKE transmitter
UNLOCK button twice to unlock the passenger’s doors.
When Unlock All Doors On 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
scroll up or down until the preferred setting is high-
lighted, then press and release the SELECT button until a
check-mark appears next to the setting, showing that the
setting has been selected.
RKE Linked To Memory
When this feature is selected the memory seat, mirror,
and radio settings will return to the memory set position
when the RKE transmitter UNLOCK button is pressed. If
this feature is not selected then the memory seat, mirror,
and radio settings can only return to the memory set
244 UNDERSTANDING YOUR INSTRUMENT PANEL
