2011 PORSCHE CAYMAN Tequipment Manual

· 16 ·· 17 ·
18-inch Cayman S II wheels with summer or winter tyres19 - inch Carrera Classic wheels with summer t yres
19 - inch Carrera S II wheels with summer t yres
19-inch Carrera S II wheels
with summer tyres
The design of the 19 -inch Carrera S
II wheel is as sport y as it is power-
ful. It speaks a language which
suits your Porsche completely.
18-inch Cayman S II wheels
with summer or winter tyres
One-piece five-spoke alloy wheels.
When fitted with winter tyres, they
ensure excellent traction even in
wintry weather conditions.
19-inch Carrera Classic wheels
with summer tyres
Elegantly sculpted alloy wheel with
classic Porsche five-spoke design.
The large wheel openings provide
a clear view of the Porsche brake
system.

· 18 ·· 19 ·

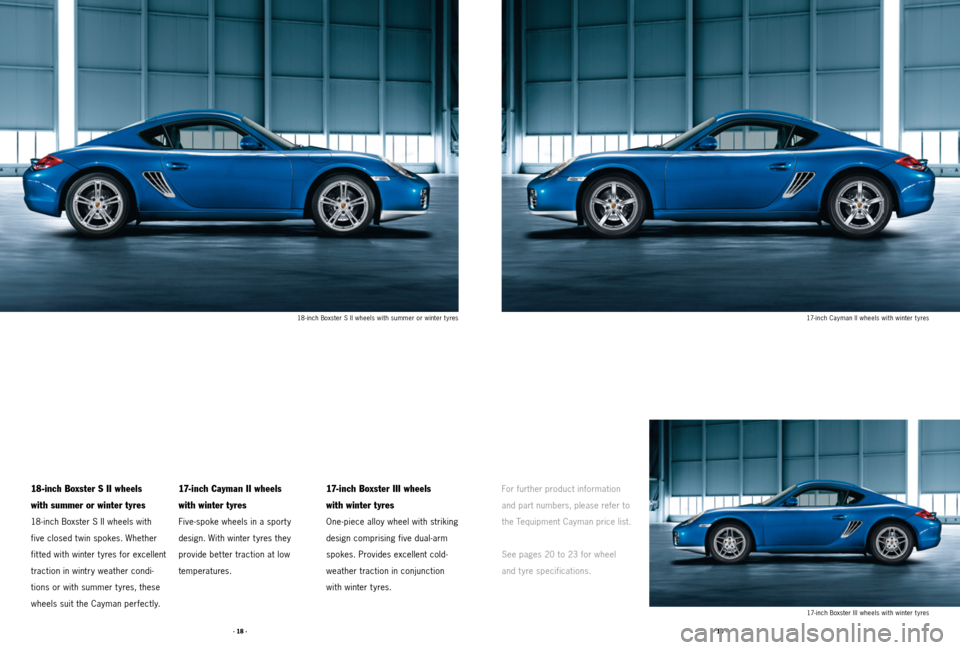

18-inch Boxster S II wheels with summer or winter tyres17- inch Cayman II wheels with winter t yres
17- inch Boxster III wheels with winter t yres
18-inch Boxster S II wheels
with summer or winter tyres
18-inch Boxster S II wheels with
five closed t win spokes. Whether
fit ted with winter t yres for excellent
traction in wintry weather condi-
tions or with summer t yres, these
wheels suit the Cayman perfectly.
17-inch Boxster III wheels
with winter tyres
One-piece alloy wheel with striking
design comprising five dual-arm
spokes. Provides excellent cold -
weather traction in conjunction
with winter tyres. For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
See pages 20 to 23 for wheel
and t yre specifications.
17-inch Cayman II wheels
with winter tyres
Five-spoke wheels in a sport y
design. With winter t yres they
provide bet ter traction at low
t emperatures.

· 20 ·· 21 ·

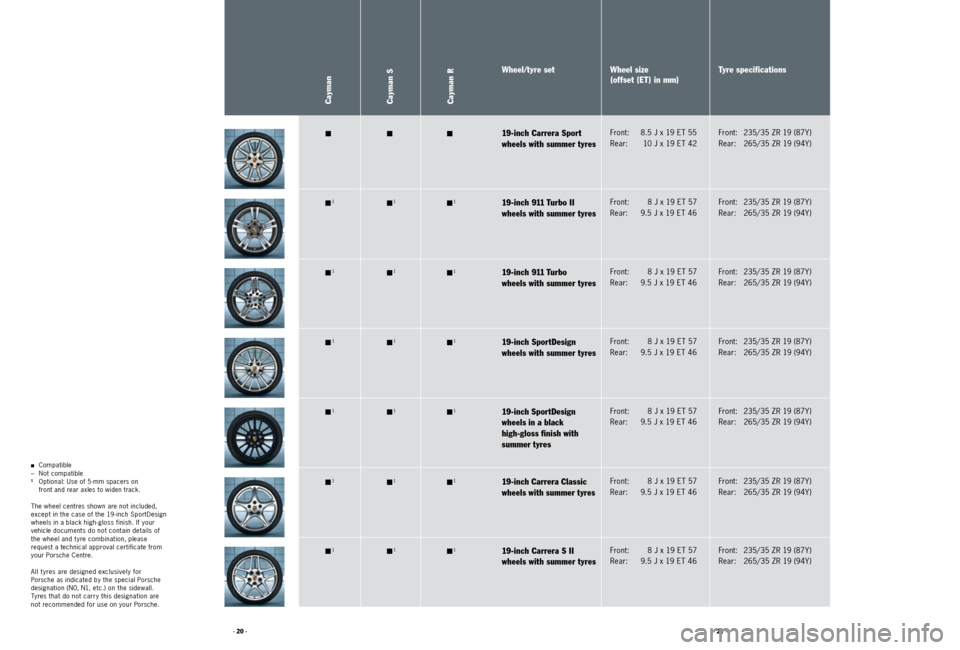

Front: 8.5 J x 19 ET 55Rear: 10 J x 19 ET 4219-inch Carrera Sport wheels with summer tyres
Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch Carrera Classicwheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch Carrera S II wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch 911 Turbo wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch 911 Turbo II wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
■ Compatible
– Not compatible
1 Optional: Use of 5-mm spacers on
front and rear axles to widen track.
The wheel centres shown are not included,
except in the case of the 19-inch SportDesign
wheels in a black high-gloss finish. If your
vehicle documents do not contain details of
the wheel and tyre combination, please
request a technical approval certificate from
your Porsche Centre.
All tyres are designed exclusively for
Porsche as indicated by the special Porsche
desig nation (N0, N1, etc.) on the sidewall.
Tyres that do not carry this designation are
not recommended for use on your Porsche.
19-inch SportDesign wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch SportDesignwheels in a black high-gloss finish with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
Wheel/tyre set Tyre specifications
Wheel size
(offset (ET) in mm)
■ 1
■ 1
■
■ 1
■ 1
Cayman
■ 1
■ 1
■ 1
■ 1
■
■ 1
■ 1
Cayman S
■ 1
■ 1
■ 1
■ 1
■
■ 1
■ 1
Cayman R
■ 1
■ 1

· 22 ·· 23 ·
Note on the use of winter tyres
Summer t yres provide optimum
performance at ambient tempera-
tures above +7 °C. Below this
point, the t yre compound begins to
harden and braking distances are
increased. We therefore recom -
mend that you fit winter tyres dur-
ing the colder months of the year.
Only then can you enjoy the highest
standards of active safet y from
your Cayman. All winter tyres
approved by Porsche are identified
by an ‘N’ designation on the
sidewall.

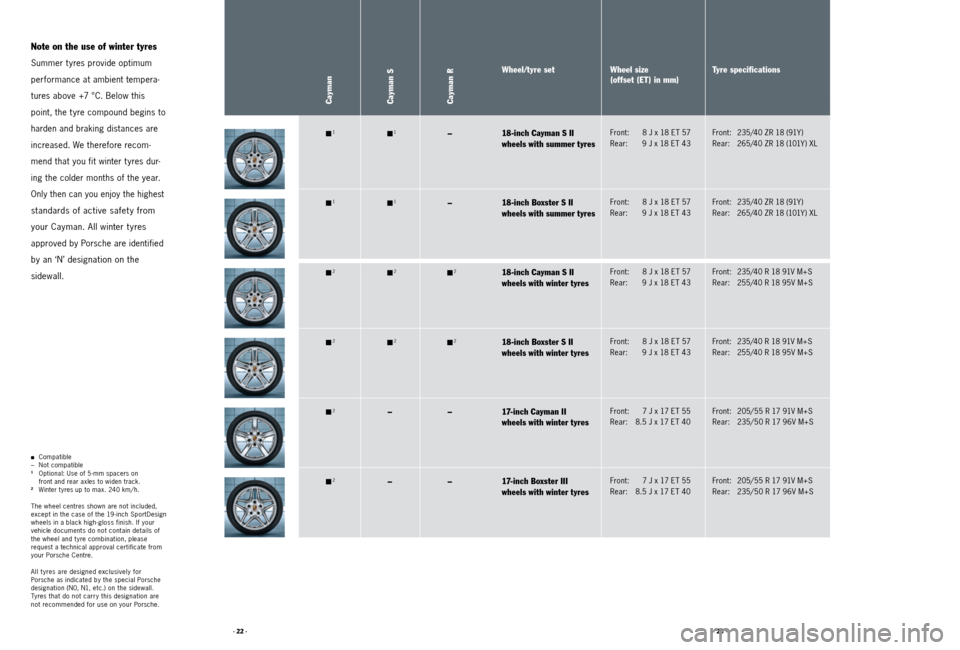

18-inch Cayman S IIwheels with winter tyres
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 43Front: 235/40 R 18 91V M+SRear: 255/40 R 18 95V M+S
18-inch Boxster S IIwheels with winter tyres
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 43Front: 235/40 R 18 91V M+SRear: 255/40 R 18 95V M+S
18-inch Cayman S IIwheels with summer tyres
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 43Front: 235/40 ZR 18 (91Y)Rear: 265/40 ZR 18 (101Y) XL
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 4318-inch Boxster S IIwheels with summer tyres
Front: 235/40 ZR 18 (91Y)Rear: 265/40 ZR 18 (101Y) XL
17-inch Cayman IIwheels with winter tyres
Front: 7 J x 17 ET 55Rear: 8.5 J x 17 ET 40Front: 205/55 R 17 91V M+SRear: 235/50 R 17 96V M+S
17-inch Boxster IIIwheels with winter tyres
Front: 7 J x 17 ET 55Rear: 8.5 J x 17 ET 40Front: 205/55 R 17 91V M+SRear: 235/50 R 17 96V M+S
Wheel/tyre setTyre specifications
Wheel size
(offset (ET) in mm)
■ Compatible
– Not compatible
1 Optional: Use of 5-mm spacers on
front and rear axles to widen track.
2 Winter tyres up to max. 240 km/h.
The wheel centres shown are not included,
except in the case of the 19-inch SportDesign
wheels in a black high-gloss finish. If your
vehicle documents do not contain details of
the wheel and tyre combination, please
request a technical approval certificate from
your Porsche Centre.
All tyres are designed exclusively for
Porsche as indicated by the special Porsche
desig nation (N0, N1, etc.) on the sidewall.
Tyres that do not carry this designation are
not recommended for use on your Porsche.
■ 1
■ 1
■ 2
■ 2
■ 2
■ 2
Cayman
■ 1
■ 1
■ 2
■ 2
–
–
Cayman S
■ 2
■ 2
–
–
–
–
Cayman R

· 24 ·· 25 ·

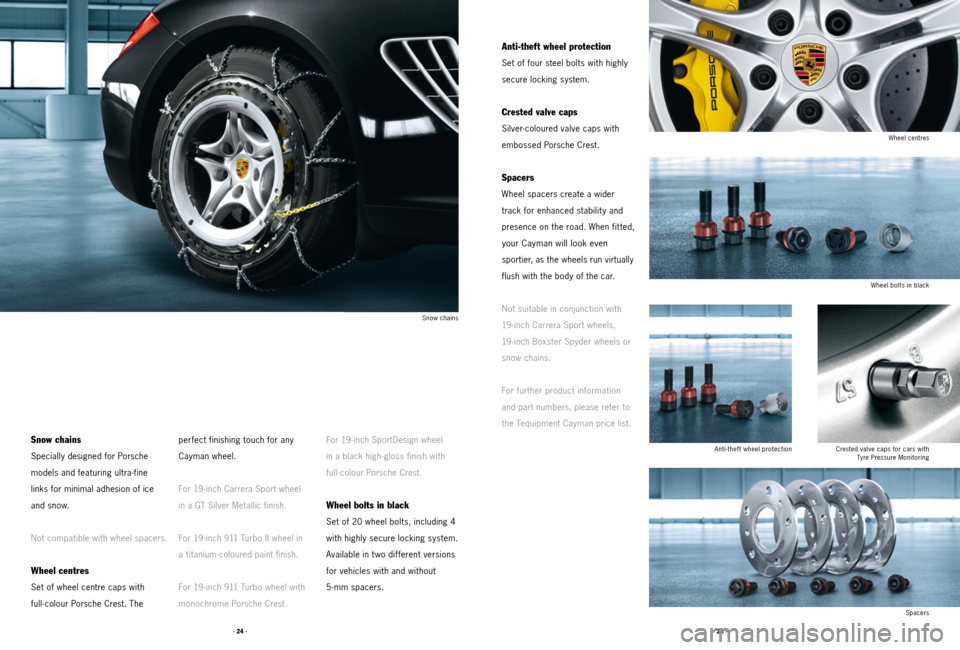

Anti-theft wheel protection
Set of four steel bolts with highly
secure locking system.
Crested valve caps
Silver- coloured valve caps with
embossed Porsche Crest.
Spacers
Wheel spacers create a wider
track for enhanced stabilit y and
presence on the road. When fit ted,
your Cayman will look even
sportier, as the wheels run virtually
flush with the body of the car.
Not suitable in conjunction with
19 -inch Carrera Sport wheels,
19 -inch Boxster Spyder wheels or
snow chains.
For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
W heel centres
Wheel bolts in black
Crested valve caps for cars with Ty re Pressure Moni toring
Spacers
Snow chains
Specially designed for Porsche
models and featuring ultra-fine
links for minimal adhesion of ice
and snow.
Not compatible with wheel spacers.
Wheel centres
Set of wheel centre caps with
full- colour Porsche Crest. The perfect finishing touch for any
Cayman wheel.
For 19 -inch Carrera Sport wheel
in a GT Silver Metallic finish.
For 19 -inch 911 Turbo II wheel in
a titanium-coloured paint finish.
For 19 -inch 911 Turbo wheel with
monochrome Porsche Crest.For 19 -inch SportDesign wheel
in a black high -gloss finish with
full - colour Porsche Crest.
Wheel bolts in black
Set of 20 wheel bolts, including 4
with highly secure locking system.
Available in t wo dif ferent versions
for vehicles with and without
5-mm spacers.
Snow chains
Anti-theft wheel protection

· 26 ·· 27 ·
An athletic build, a low centre of
gravit y, excellent weight distribu -
tion. And this athlete’s heart beats
in just the right place: in the middle.
In short, the Cayman was designed

to accomplish extraordinary feats of strength and endurance. Yet
there’s still plent y of scope
for improvement – in appearance,
performance and sound. In other
words, its potential is just waiting
to be unleashed.Conform? Never.
Especially regarding sportiness, design, engine sound…

· 28 ·· 29 ·
Sports bucket seat
With integral thorax airbag, manual
fore/aft adjustment and folding
backrest. The backrest shell is
made from plastic reinforced with
glass fibre and carbon fibre with a
stylish carbon-weave finish. Availa-
ble in black leather with embossed
Porsche Crest on the headrest,
or in black flame - resistant material.
Child seats must not be used
with the sports bucket seats.
Sports exhaust system
(not shown)
The t ypical Porsche sound –
powerful, robust, sporty. Better
still,
it can be further enhanced
using this sports exhaust system.
The package also includes the
sports tailpipe.
Some models may require additional

components. (Please see fit ting
and conversion instructions.)

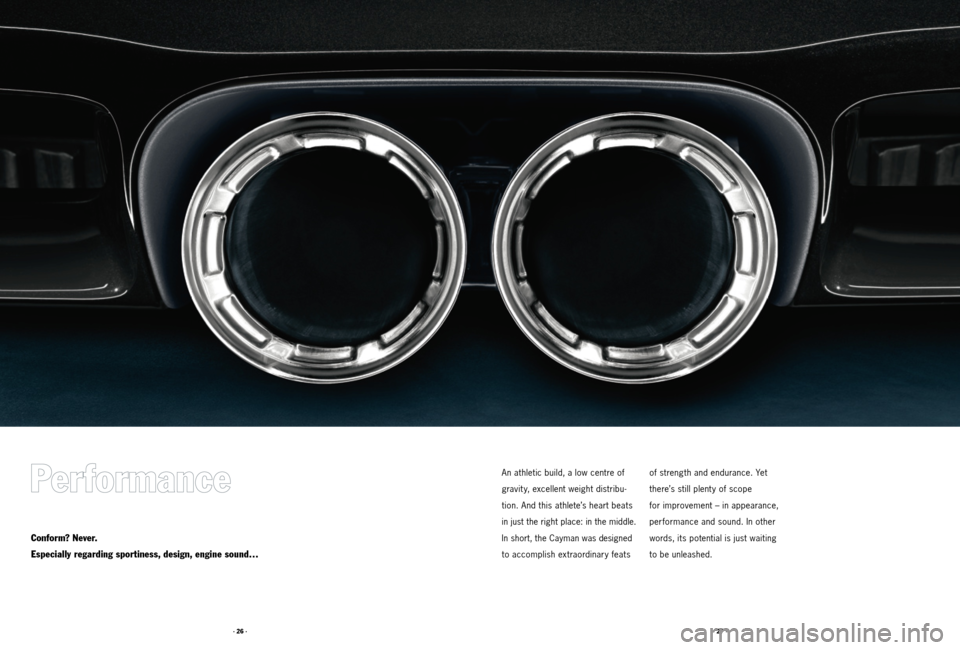

Sports tailpipe
Distinctive, stainless-steel t win
tailpipe with polished, nanocoat
finish. Gives a sport y look to the
rear of your Cayman.
Short shifter
This short-throw mechanism pro-
vides a faster, more accurate gear-
shif t action and a more dynamic
sportscar experience. Compatible
with all gear lever options.
Sports bucket seat
Fuel filler cap with Aluminium
Look finish
This elegant accessory is a st ylish
addition inspired by our racing
heritage. Modelled on filler caps
from historic race vehicles, it has
an engraved ‘PORSCHE’ logo and
securing tether.
Sport mode retrofit package
(not shown)
Can be activated at any time to
provide an even sportier set-up
for the engine and (in conjunction
with PASM) for the chassis. If
com
bined with PCM, the package
in
cludes memory functions for
lights, wipers, air conditioning and
door
locks. If combined with PDK,
it features the Launch Control
(racing start) function and the
motorsport-derived gearshift
s t ra t eg y.
For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
Gear lever with short shifter
Gear lever without short shifter Sports tailpipe
Fuel filler cap with Aluminium Look finish

· 30 ·· 31 ·

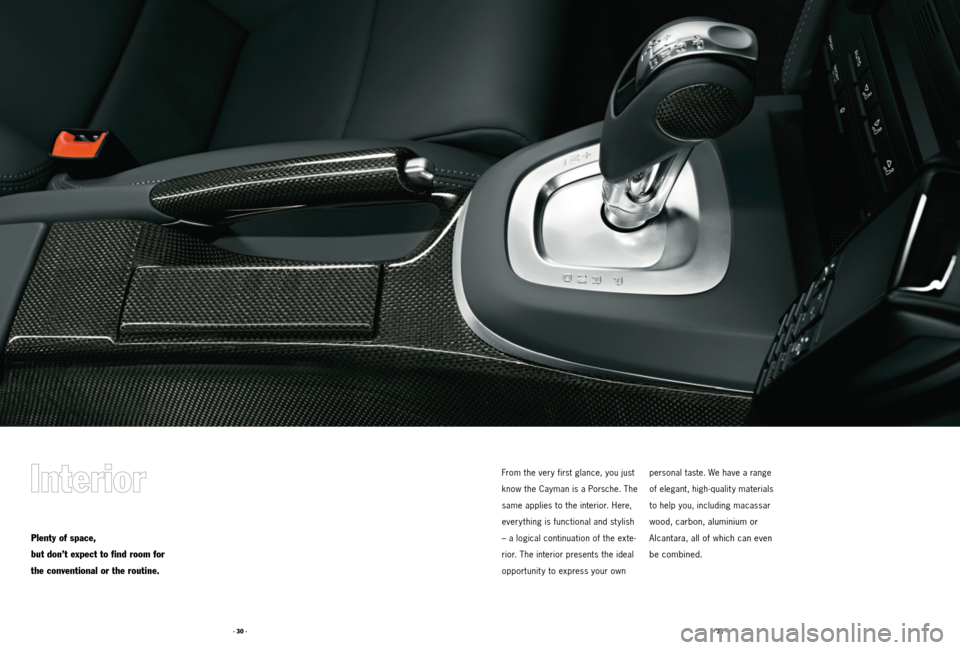

From the very first glance, you just
know the Cayman is a Porsche. The
same applies to the interior. Here,
every thing is functional and st ylish
– a logical continuation of the exte-
rior. The interior presents the ideal
opportunit y to express your own personal taste. We have a range
of elegant, high - qualit y materials
to help you, including macassar
wood, carbon, aluminium or
Alcantara, all of which can even
be combined.
Plenty of space,
but don’t expect to find room for
the conventional or the routine.
