2011 PORSCHE CAYENNE PORSCHE CAYNNE 2011 2.G Tequipment Manual

· 17 ·
· 16 ·
20-inch Cayenne SportDesign II
wheels with summer or winter
tyres
These one-piece alloy wheels
with 10 -spoke design look good
at any time of year and, in combi -
nation with winter t yres, they pro -
vide excellent traction even in the
cold season.
19-inch Cayenne Design II
wheels with summer tyres
These lightweight, one-piece alloy
wheels with five dual arm spokes
are as unmistakable as your
Cayenne.
Also available with all-season tyres
with low rolling resistance.
19-inch Cayenne Turbo wheels
with summer or winter tyres
Highlight the sporty appearance
of your Porsche with these one-
piece alloy wheels with double-spoke
design. When fit ted with winter
t yres, not only will they make your
Porsche even more at tractive as
temperatures begin to fall, they
will also make an important
contribution to safet y.
18-inch Cayenne S III wheels
with winter tyres
These one-piece alloy wheels with
five-spoke design are the essence
of st yle. Thanks to their winter
t yres, they offer increased
traction and added safet y in the
colder months.
Not compatible with the
Cayenne Turbo.
18-inch Cayenne wheels with
winter tyres
These one-piece multi-spoke alloy
wheels make an important contri -
bution to safet y in cold weather
and are characterised by their
strong grip and appealing design.
Not compatible with the
Cayenne Turbo.
See pages 18 to 23 for wheel and
tyre specifications.
20 - inch Cayenne Spor tDesign II wheels with summer or winter t yres 19 - inch Cayenne Design II wheels with summer t yres
18 - inch Cayenne S III wheels with winter t yres18 - inch Cayenne wheels with winter t yres
19 - inch Cayenne Turbo wheels with summer or winter t yres

· 19 ·
· 18 ·

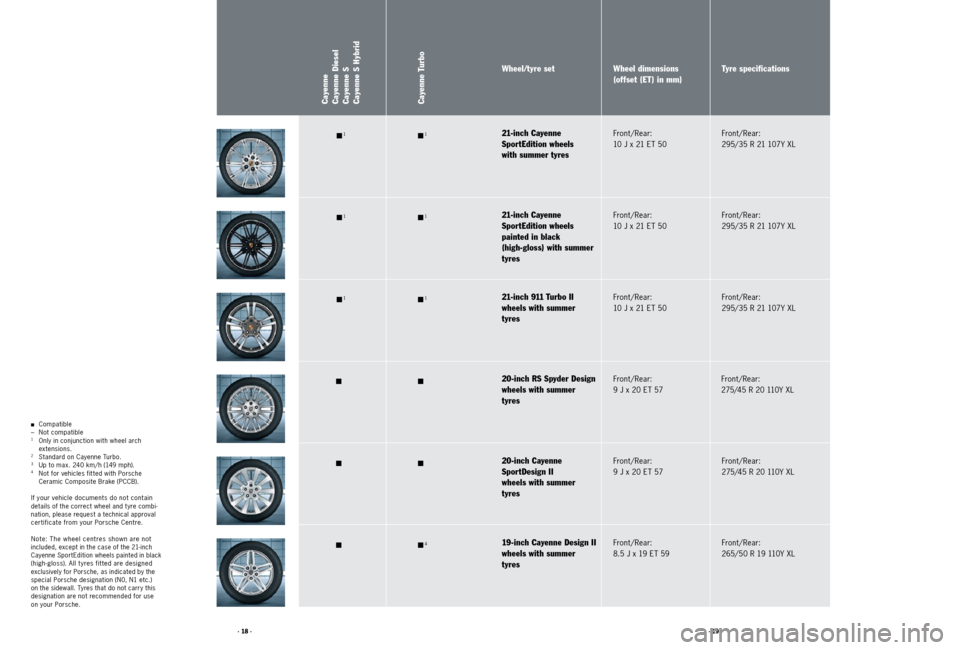

Front/Rear:
10 J x 21 ET 5021-inch 911 Turbo II
wheels with summer
tyres Front/Rear:
295/35 R 21 107 Y XL
21-inch Cayenne
SportEdition wheels
painted in black
(high-gloss) with summer
tyres Front/Rear:
10 J x 21 ET 50 Front/Rear:
295/35 R 21 107 Y
XL
n 
1n 1
n Compatible

– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 240 km/ h (149 mph).4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use
on your Porsche.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Tyre specifications
Cayenne Turbo
Front/Rear:
10 J x 21 ET 5021-inch Cayenne
SportEdition wheels
with summer tyresFront/Rear:
295/35 R 21 107Y XL
20-inch RS Spyder Design
wheels with summer
tyres Front/Rear:
9 J x 20 ET 57 Front/Rear:
275/45 R 20 110Y XL
20-inch Cayenne

SportDesign II
wheels with summer
tyres Front/Rear:
9 J x 20 ET 57 Front/Rear:
275/45 R 20 110 Y
XL
19-inch Cayenne Design II
wheels with summer
tyres Front/Rear:
8.5 J x 19 ET 59 Front/Rear:
265/50 R 19 110 Y
XL
n 
1n 1
n 1n 1
n 
n
n n
n n 
4

· 21 ·
· 20 ·

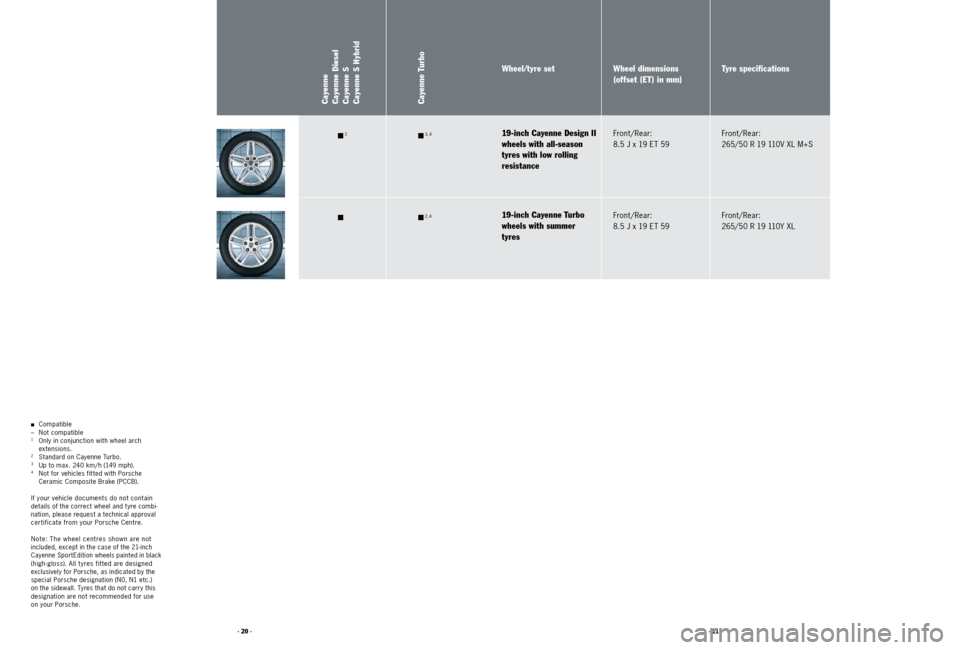

R: HalleFront/Rear:
8.5 J x 19 ET 5919-inch Cayenne Design II
wheels with all-season
tyres with low rolling
resistanceFront/Rear:
265/50 R 19 110V XL M+Sn 3
Cayenne Turbo
n 3, 4
n n 2, 4Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Turbo
wheels with summer
tyres Front/Rear:
265/50 R 19 110Y XL
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
n Compatible
– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 240 km/ h (149 mph).4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use
on your Porsche.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications

· 23 ·
· 22 ·
Note on the use of winter tyres
Summer t yres provide optimum
performance at ambient temperatu -
res
above approximately +7 °C.
Below this point, the t yre com -
pound begins to harden and
braking distances are increased.
We therefore recommend that
you fit winter t yres during the

colder months of the year. Only
then can you enjoy the highest
standards of driving safet y from
your Cayenne. All winter t yres
approved by Porsche are identified
by an ‘N’ designation on the
sidewall.

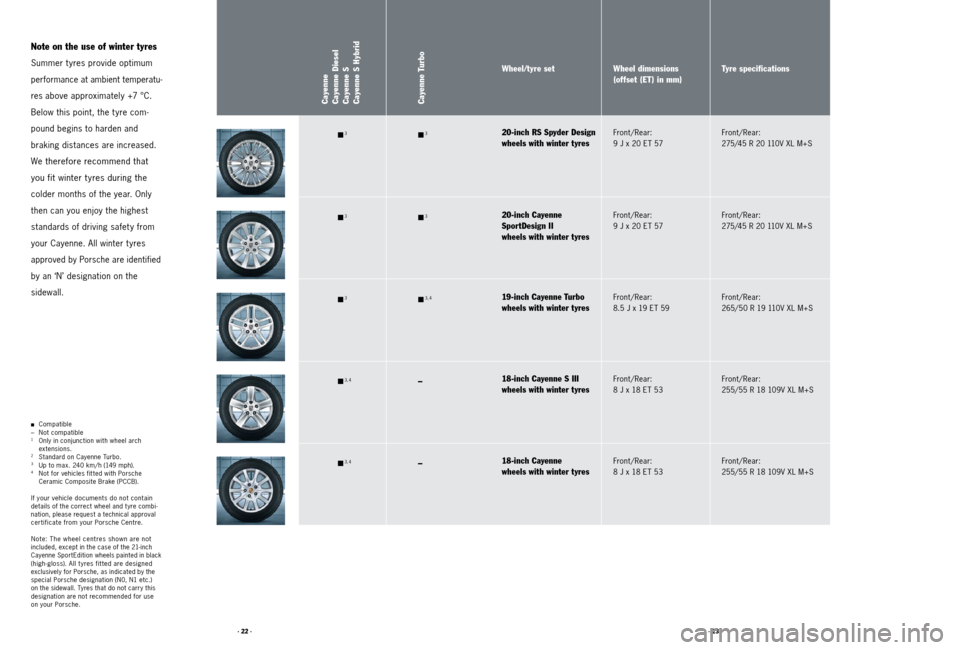

Front/Rear:
8 J x 18 ET 53
Front/Rear:
8 J x 18 ET 5318-inch Cayenne S III
wheels with winter tyres
18-inch Cayenne
wheels with winter tyresFront/Rear:
255/55 R 18 109V XL M+S
Front/Rear:
255/55 R 18 109V XL M+S
Cayenne Turbo
n 3n 3
n 3n 3
n 3n 3, 4
n 3, 4
n 3, 4
–
–
Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Turbo
wheels with winter tyresFront/Rear:
265/50 R 19 110V XL M+S
Front/Rear:
9 J x 20 ET 57
20-inch Cayenne

SportDesign II
wheels with winter tyresFront/Rear:
275/45 R 20 110 V XL M+S
Front/Rear:
9 J x 20 ET 57
20-inch RS Spyder Design

wheels with winter tyresFront/Rear:
275/45 R 20 110V XL M+S
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
n Compatible
– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 240 km/ h (149 mph).4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use
on your Porsche.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications

· 25 ·
· 24 ·
Snow chains
Specially designed for Porsche
models and featuring ultra-fine
links for minimal adhesion of ice
and snow.
Not compatible with wheel
spacers.
Wheel centres
Set of wheel centre caps with a
full-colour Porsche Crest. The
perfect finishing touch for any
Cayenne wheel.
For 21-inch Cayenne SportEdition
wheel in a GT Silver Metallic finish.
For 21-inch Cayenne SportEdition
wheel painted in black (high-gloss). For 21-inch 911 Turbo II wheel in a
titanium-grey paint finish.
For 20 -inch RS Spyder Design
wheel in a decorative silver and
titanium paint finish.
Crested valve caps
Silver-coloured valve caps with
embossed Porsche Crest.
Wheel spacers, 17 mm (rear)
Set of t wo wheel spacers (17 mm)
for the rear axle to create a wider
track for enhanced stability and
presence on the road. When fit ted,
your Cayenne will look even spor
-
tier, as the wheels run virtually
flush with the body of the car.
Not compatible with snow chains.
Not compatible with 21-inch
wheels. Not compatible with
20-inch wheels without wheel
arch extensions.
Anti-theft wheel protection
(not shown)
Set of four wheel bolts with
anti-theft protection. For wheels
without wheel spacers.
Wheel bolts in black including
anti-theft protection (not shown)
Set of 20 black wheel bolts, four
of which are anti-theft wheel bolts.
Not compatible with wheel spacers.
For further product information
and part numbers, please refer to
the Tequipment Cayenne price list.
Wheel centre
Snow chains Crested valve caps for vehicles with TPM
Crested valve caps for vehicles without TPM
Wheel spacers

· 27 ·
· 26 ·

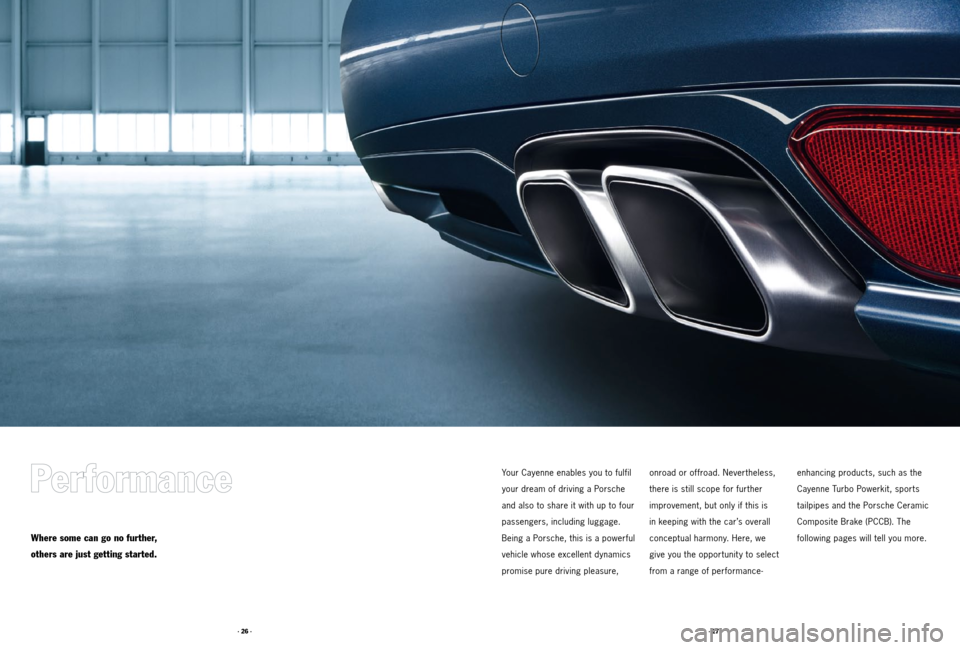

Your Cayenne enables you to fulfil
your dream of driving a Porsche
and also to share it with up to four
passengers, including luggage.
Being a Porsche, this is a powerful
vehicle whose excellent dynamics
promise pure driving pleasure, onroad or offroad. Nevertheless,
there is still scope for further

improvement, but only if this is
in keeping with the car’s overall
conceptual harmony. Here, we
give you the opportunit y to select
from a range of performance- enhancing products, such as the
Cayenne Turbo Powerkit, sports
tailpipes and the Porsche Ceramic
Composite Brake (PCCB). The
following pages will tell you more.
Where some can go no further,
others are just getting started.

· 29 ·
· 28 ·
Cayenne Turbo Powerkit
The only alternative to power?
Even more power. The Cayenne
Turbo Powerkit raises the maxi -
mum power output of your
Cayenne Turbo by 40 hp to
540 hp, while maximum torque
is increased to 750 Nm.
This power upgrade was achieved
through a series of measures,
including a modification to the engi -
ne electronics and turbochargers
with turbine wheels in titanium/
aluminium. Other modifications
include an optimised brake cooling
system and a sophisticated
restyling of the engine compartment.
The throt tle valve cover features
a plaque in carbon and the intake
manifold is titanium-coloured with
inlays in carbon and featuring a
silver-coloured logo.
Cayenne Turbo Powerkit
For you, the combined effect of
these refinements means increa -
sed vehicle performance and even
more driving pleasure. You can
also rest assured that your warran -
ty
covers all these modifications
in full.
Some models may require additio -
nal components (please see fitting
and conversion instructions).
Only available for Cayenne Turbo.
Performance Cayenne Turbo with PowerkitTop Speed 281 km/ h (174 mph)
Acceleration
0 –100 km/ h (0 – 62 mph) 4.6 secs
Flexibility
80 –120 km/ h (50 –75mph) 3.0 secs
Cayenne Turbo with Powerkit
Cayenne Turbo with standard engine
260
240
220
200
180280 300 320 340 360 380 400
1500
200025003000 3500400045005000 5500600065001000
420
Power (kW)
Engine speed (rpm)
360
520 560 600 640 680 720 760 800
400440
480
840
T
orque (Nm)
Cayenne T urbo mit Leistungssteigerung
Cayenne T urbo Serie
7000
Cayenne Turbo Powerkit
Cayenne Turbo with Powerkit:
Fuel consumption in l/100 km (mpg) · urban 15.8 (17.9) · extra urban 8.4 (33.6) · combined 11.5 (24.6);
CO
2 emissions 270 g / km

· 31 ·
· 30 ·
Porsche Ceramic Composite
Brake (PCCB)
PCCB is a high-tech brake system.
Its carbon-fibre-reinforced, inter -
nally vented and cross-drilled
ceramic brake discs have a dia -
meter of 410 mm at the front and
370 mm at the rear. Six-piston
aluminium monobloc brake
calipers at the front and four-
piston units at the rear – all with
a yellow finish – provide extremely
high and consistent levels of
friction.
Available for t yre sizes of 20 -inch
upwards and only for Cayenne
Tu r b o. Sports tailpipes
Give the rear of your Cayenne
an even sportier look with these
aluminium twin dual-tube tailpipes
in a distinctive design. Nanocoated
to make them easier to clean and
provide a striking effect.
Not compatible with sports
exhaust system.
Sports exhaust system
Features modified main silencers
and two twin-tube trims with
Cayenne Turbo design in polished,
high-gloss aluminium with a nano -
coat finish. The sport y sound is se -
lected using the existing SPORT
button.
Only for Cayenne and Cayenne S.
Spor ts exhaust system Sports tailpipes
Porsche Ceramic Composite Brake (PCCB)
