FAMILIARISATION


Exterior

23
25
Rear roof fl ap

The rear roof fl ap is only
compatible with side hinged doors.

Changing bulbs
148
142,
143


Spare wheel and temporary
puncture repair kit

Side-hinged rear doors

Tailgate and rear screen
Use the strap to close the rear
tailgate.
Close by pressing fi rmly
without slowing the movement
of the tailgate.
22 Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control allow the doors to
be opened approximately 180°.

Parking sensors
106

22


Access


TAILGATE

From inside

Tailgate screen

The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl oor. To unlock the lock, move the
catch to the left then push the tailgate.



From outside

Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply a
fi nal press on the tailgate to close it fully.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.

Closing
Close the rear screen by pressing the
centre of the glass until it is fully closed.

The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and the
screen itself.

100


Practical information


INTERIOR RACK

The interior rack consists of two bars
to be installed at the top of the
space leaving the lower area of the
passenger compartment free.
It permits the transportation of long
loads (2 metres maximum) with the
doors or tailgate closed. The long load
must rest on the overhead storage
compartment and the two bars. Maximum load: 10 kilogrammes
per bar. The two interior bars are covered
with rubber and incorporate a strap
passage to secure the loaded objects.
However, be sure to comply with the
loads and weights permitted.

Equipment


129
ACCESSORIE
S
5


A further range is also available,
structured around comfort, leisure and
maintenance:

Anti-theft alarm, window
etching, fi rst aid kit, high
visibility vest, front and rear
parking sensors, warning
triangle, security bolts for alloy
wheels, ...

Seat covers compatible with
airbags for the front seats,
bench seat, rubber mats, carpet
mats, snow chains, blinds,
tailgate bicycle carrier, ...
Audio equipment, hands-free
kit, speakers, CD changer,
satellite navigation system, USB
box, Video kit, ...
Regardless of the audio and
telematic equipment offered on the
market, the technical constraints
associated with the fi tting of equipment
of these product groups mean that the
special features of the equipment and
its compatibility with the capacities of
your vehicle's standard equipment must
be taken into account. Please ask a
PEUGEOT dealer for more information
before fi tting such equipment.
To prevent the mat from becoming
caught under the pedals:


- ensure that the mat and its fi xings
are positioned correctly,

- never fi t one mat on top of another.

Maximum weights on bars


- Transverse bars on longitudinal
bars: 75 Kg (these bars are not
compatible with the Zénith roof).


OTHER ACCESSORIES

These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of recommended accessories
and genuine parts is available.

Installing radiocommunication
transmitters
You are advised to contact a
PEUGEOT dealer before installing
accessory radiocommunication
transmitters with external aerial on
your vehicle.
The PEUGEOT dealer network
will inform you of the specifi cation
(frequency band, maximum output
power, aerial position, specifi c
conditions of installation) of the
transmitters which can be fi tted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

151
QUICK HELP
7



Changing a bulb



REAR LAMPS




- Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Access" section of chapter 2.

- Remove the two fi xing bolts using
the screwdriver stored in the tool kit
under the right-hand seat.

- Pull the lamp unit from the outside.

- Holding the lamp, disconnect the
electrical connector.

When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes.

- Move aside the 4 tabs then extract
the bulb holder.

- Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.

- Change the bulb.


When removing the lamp unit:


- with tailgate, pull the lamp unit
towards the centre of the vehicle,

- with hinged doors, pull the lamp
unit towards you.
For more information concerning the
bulbs, refer to the "Types of bulb".


1.
Brake lamps/sidelamps


Type B
, P21/5W - 21/5W

2.
Direction indicators


Type B
, PY21W - 21W (amber)

3.
Reversing lamps


Type B
, P21W - 21W

4.
Foglamps


Type B
, P21W - 21W

High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals.

152


Changing a bulb


NUMBER PLATE LAMPS




- Unscrew the two nuts.

- Push the pins.

- If necessary, disconnect the
connector to remove the light.

- Change the bulb.


With tailgate


- Move aside the plastic lens using a
screwdriver.

- Change the bulb.

- Replace the plastic lens and press
on it.


THIRD BRAKE LIGHT


Type A, W16W - 16W

With hinged doors


- Unclip the interior trim.

- Disconnect the connector by
moving aside its tab.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.

- Put the bulb holder back in place
and reconnect the connector.

- Put the trim back in place.



Type A
, W5W - 5W

162

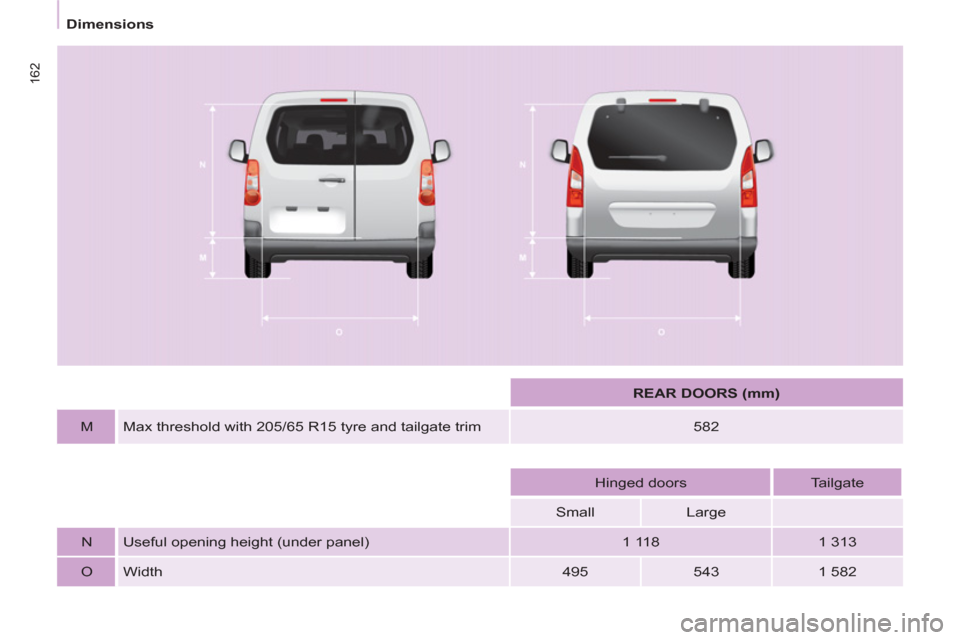

Dimensions






REAR DOORS (mm)


M
Max threshold with 205/65 R15 tyre and tailgate trim
582






Hinged doors
Tailgate

Small
Large




N Useful opening height (under panel)
1 118
1 313

O Width
495
543
1 582
