INSTRUMENTS AND CONTROLS



1.
Lights and direction indicator stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip
computer controls.

4.
Ignition.

5.
Audio controls.

6.
Driver's airbag, horn.

7.
Steering wheel height and reach
adjustment.

8.
Cruise control, speed limiter
switches.

9.
Control panel, parking sensors,
headlamp beam adjustment,
ESP, Stop & Start.

10.
Bonnet release.

11 .
Electric door mirror adjustment.

Interior

3
3
3
3
9
3
11
FAMILIARISATION


Interior

Lighting off.
Sidelamps.

Main beam headlamps (blue).

Dipped beam headlamps (green).
2 fast.
1 normal.
I intermittent.
0 off.
È
single wipe.
AUTO, press the stalk down.
AUTO, automatic
illumination of headlamps.
46 49 In cruise control mode, the vehicle speed
must be higher than 25 mph (40 km/h)
with at least 4th gear engaged.
51,
54
45


SEEING CLEARLY DRIVING SAFELY


Motorway function:
press up or down
once, without passing the point of
resistance; the corresponding direction
indicators will fl ash three times.
Lighting stalk
Wiper stalk
Cruise control, Speed limiter

Hill start assist

Peugeot Connect Sound

50,
126


Special position of the windscreen
wipers
In the minute after switching off the
ignition, any action on the wiper stalk
positions the wipers vertically at the
sides of the windscreen.

16
Access

Good practice

Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.

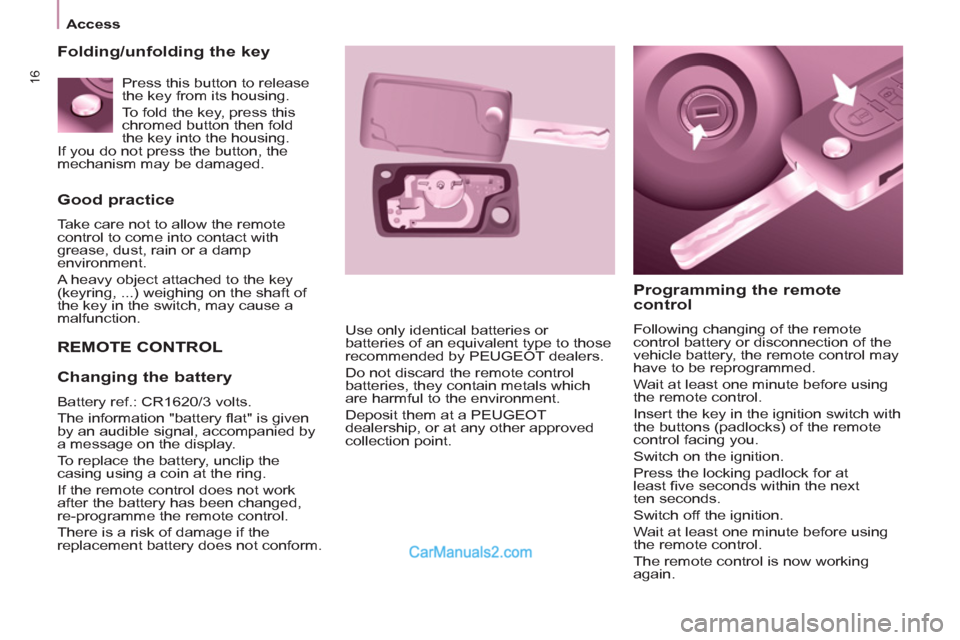

REMOTE CONTROL
Programming the remote
control
Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have to be reprogrammed.
Wait at least one minute before using
the remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at
least fi ve seconds within the next
ten seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again. Use only identical batteries or
batteries of an equivalent type to those
recommended by PEUGEOT dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a PEUGEOT
dealership, or at any other approved
collection point.


Folding/unfolding the key

Changing the battery

Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
There is a risk of damage if the
replacement battery does not conform. Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.

17


Access

READY TO SET OFF
2


When purchasing a second-hand
vehicle:



- have the keys memorised by a
PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.



Good practice

Do not make any modifi cations to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC
IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the key
and the electronic immobiliser system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.

If you lose your keys
Visit a PEUGEOT dealer with the
vehicle's V5 registration document and
your identifi cation document.
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered.
The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time. ALARM
If fi tted on your vehicle, this provides
two types of protection:


- exterior protection: it sounds if a
front/rear door or the bonnet is
opened.

-
interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).

If your vehicle is fi tted with a separation
partition, the interior protection is not
active in the load space.

Locking the vehicle with
complete alarm

Setting the alarm



- Switch off the ignition and get out of
the vehicle.

- Set the alarm within fi ve minutes of
getting out of the vehicle, by locking
or deadlocking using the remote
control. The red diode, located
on the button, fl ashes once per
second.

18
Access

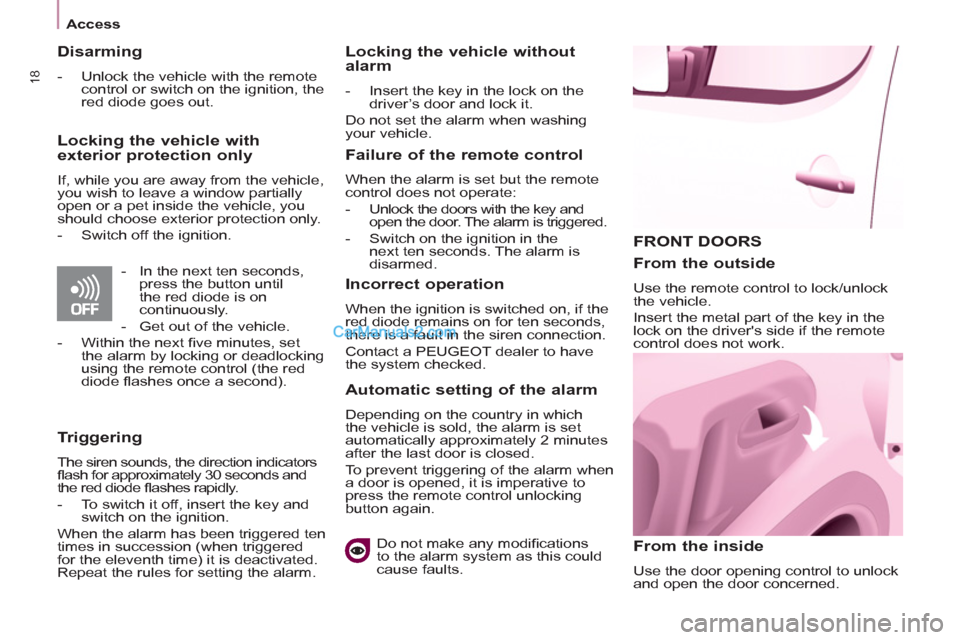

FRONT DOORS

From the inside

Use the door opening control to unlock
and open the door concerned.


From the outside

Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.


Triggering

The siren sounds, the direction indicators
fl ash for approximately 30 seconds and
the red diode fl ashes rapidly.


- To switch it off, insert the key and
switch on the ignition.
When the alarm has been triggered ten
times in succession (when triggered
for the eleventh time) it is deactivated.
Repeat the rules for setting the alarm.


Locking the vehicle without
alarm


- Insert the key in the lock on the
driver’s door and lock it.
Do not set the alarm when washing
your vehicle.


Failure of the remote control

When the alarm is set but the remote
control does not operate:


- Unlock the doors with the key and
open the door. The alarm is triggered.

- Switch on the ignition in the
next ten seconds. The alarm is
disarmed.



Incorrect operation

When the ignition is switched on, if the
red diode remains on for ten seconds,
there is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.


Automatic setting of the alarm

Depending on the country in which
the vehicle is sold, the alarm is set
automatically approximately 2 minutes
after the last door is closed.
To prevent triggering of the alarm when
a door is opened, it is imperative to
press the remote control unlocking
button again.
Do not make any modifi cations
to the alarm system as this could
cause faults.


Locking the vehicle with
exterior protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
should choose exterior protection only.


- Switch off the ignition.

- In the next ten seconds,
press the button until
the red diode is on
continuously.

- Get out of the vehicle.

- Within the next fi ve minutes, set
the alarm by locking or deadlocking
using the remote control (the red
diode fl ashes once a second).



Disarming



- Unlock the vehicle with the remote
control or switch on the ignition, the
red diode goes out.

24
Access

The control diode:


-
fl ashes when the doors are locked with
the vehicle stationary and the engine off,

- comes on when the doors are
locked and from the time the
ignition is switched on.

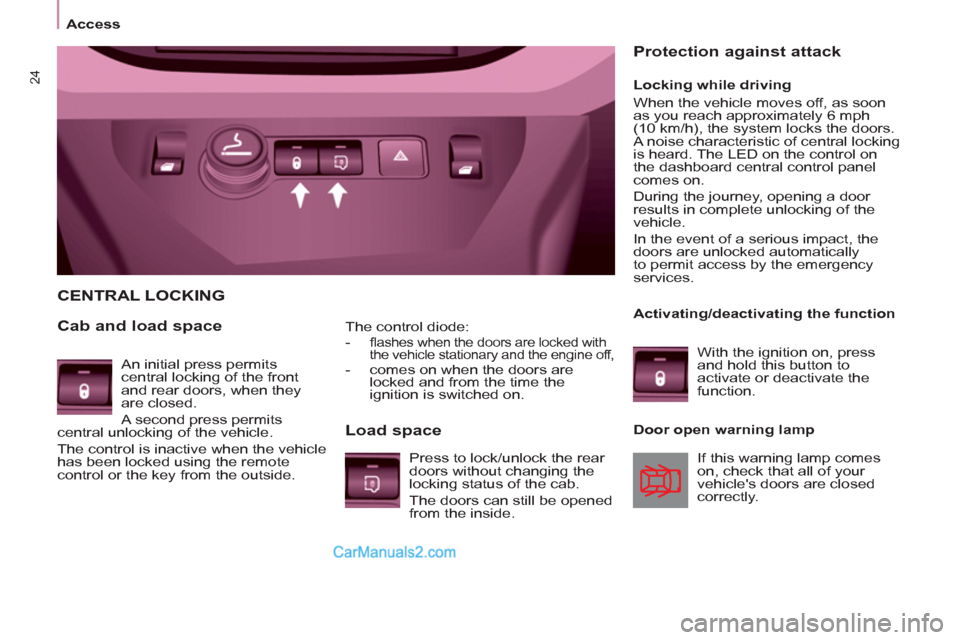

CENTRAL LOCKING

Cab and load space

Load space


Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
A noise characteristic of central locking
is heard. The LED on the control on
the dashboard central control panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.


Protection against attack

An initial press permits
central locking of the front
and rear doors, when they
are closed.
A second press permits
central unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
Activating/deactivating the function
With the ignition on, press
and hold this button to
activate or deactivate the
function.

Door open warning lamp

If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.
Press to lock/unlock the rear
doors without changing the
locking status of the cab.
The doors can still be opened
from the inside.

27
READY TO SET OFF
22


Instruments and controls

Warning lamps

Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They go off almost
immediately. When the engine is running: the warning lamp becomes a warning if it remains on continuously or fl ashes.
This initial warning may be accompanied by an audible signal and a message which appears in the screen.
Do not ignore these warnings.

Warning lamp

is

indicates

Solution - action



STOP

on, associated
with another
warning
lamp and
accompanied
by a message
in the screen. major faults linked with
the "Brake fl uid level",
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution" and
"Power steering" warning
lamps.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.


Handbrake/
Brake fl uid
level/EBFD
on.

that the parking brake is applied
or has not been released fully. Releasing the parking brake switches off the
warning lamp.
on. low brake fl uid level. Top up using a fl uid recommended by PEUGEOT.
remaining on
even though the
level is correct
and associated
with the ABS
warning lamp. a fault with the electronic
brake force distribution.
You must stop, park and switch off
the ignition. Have the fault checked
by a PEUGEOT dealer.


Engine oil
pressure and
temperature
on while
driving. low pressure or a high
temperature. Park and switch off the ignition then allow to
cool. Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. a major fault. Have the fault checked by a PEUGEOT dealer.

28
Instruments and controls

Warning lamp

is

indicates

Solution - action




Coolant
temperature
and level
on with needle
in the red
zone. an abnormal increase
in temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
fl ashing. a drop in the coolant level. Chapter 6, "Levels" section. Consult a PEUGEOT
dealer.


Service
on temporarily. minor faults or warnings. Consult the alert log in the display or screen. If
your vehicle is equipped with a trip computer or
a screen: refer to the "Audio equipment - Trip
computer" section of chapter 9. Consult
a PEUGEOT dealer. remaining on. major faults.



Driver's
seat belt not
fastened
on then
fl ashing. the driver has not fastened
their seat belt. Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's seat belt not
fastened. Check that the seat belt is fastened by pulling
the strap. Chapter 4, "Seat belts" section.


ECO
on. The Stop & Start system
has put the engine in STOP
mode following a vehicle
stop (red light, traffi c jam,
etc...). As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.
fl ashes for a
few seconds,
then goes off. The STOP is temporarily
unavailable.
or
The START mode has been
invoked automatically. Section 2, under "Stop & Start".
