2011 Peugeot Expert VU AUX

Interior


8



INSTRUMENTS AND CONTROLS


1.
Lighting and direction indicator stalk.

2.
Instrument panel with screen.

3.
Wiper, screenwash, trip computer
controls.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket
(120 W max), cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

9.4
01
2
8
16
18 17
71114 3
59
4 1512 13
61
10

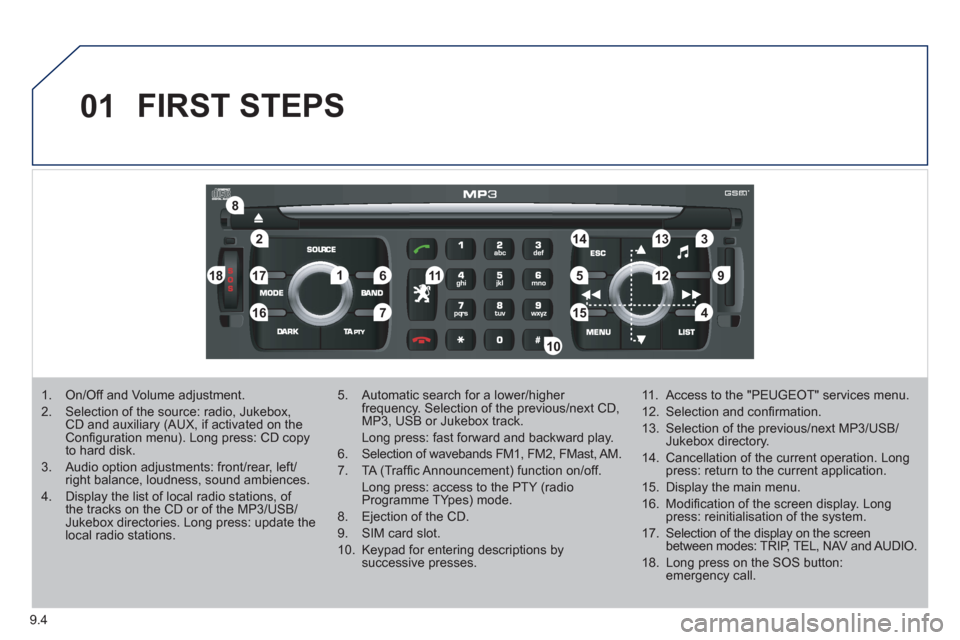

FIRST STEPS
1. On/Off and Volume adjustment.
2. Selection of the source: radio, Jukebox, CD and auxiliary (AUX, if activated on the Confi guration menu). Long press: CD copyto hard disk.
3. Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
4. Display the list of local radio stations, of the tracks on the CD or of the MP3/USB/Jukebox directories. Long press: update the local radio stations.


5. Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3, USB or Jukebox track.
Long press: fast forward and backward play.


6. Selection of wavebands FM1, FM2, FMast, AM.


7. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (radioProgramme TYpes) mode.


8. Ejection of the CD.


9. SIM card slot.


10. Keypad for entering descriptions by successive presses.


11. Access to the "PEUGEOT" services menu.


12. Selection and confi rmation.


13. Selection of the previous/next MP3/USB/Jukebox directory.


14. Cancellation of the current operation. Longpress: return to the current application.


15. Display the main menu.


16. Modifi cation of the screen display. Longpress: reinitialisation of the system.


17. Selection of the display on the screenbetween modes: TRIP, TEL, NAV and AUDIO.


18. Long press on the SOS button:emergency call.

9.8
03SCREEN AND MAIN MENU








For maintenance of the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TRAFFIC INFORMATION:TMC information, messages.
MAP: orientation, details,display.


NAVIGAT ION GUIDANCE:GPS, stages, options.


VEHICLE DIAGNOSTICS:alert log, status of the functions.


VIDEO: activation,parameters.


CONFIGURATION: vehicle, display,time, languages, voice, auxiliarysocket (AUX) parameters.


TELEMATIC: telephone,directory, SMS.


AUDIO FUNCTIONS: radio,CD, Jukebox, options.


Long press on MENU:help.

9.30
06
1
2
AUDIO/VIDEO
Connect the portable device (MP3 player…) to the audio
sockets (white and red, RCA
type) located in the glovebox using a suitable audio cable (JACK or RCA). Press the MENU button then select the "
Confi guration" function,
then "Sounds", then "Activate auxiliary source" to activatethe Peugeot Connect Com audio/telephone auxiliary input.
It is not possible to cop
y the fi les onto the hard disk via the auxiliary input.Pr
ess the SOURCE button several
times in succession and select AUX.









USING THE AUXILIARY INPUT (AUX)
AUDIO (JACK/RCA) CABLE NOT SUPPLIED
Displa
y and control is on the portable device.

9.43
10
automatic mode
manual mode
5
5
length of calls n
etworks available
3
4
reset 4
manage PIN code3
activate/deactivate
save PIN code 4
4
modify PIN code 4
call options3
confi gure calls

display my number
automatic repl
y after x ring(s)
5
5
4
ring options

for voice calls
for text messa
ges (SMS)
5
5
4
calls diversion to mailbox n°

text message ring 6
3
delete calls log3
activation mode3


BLUETOOTH FUNCTIONS2
deactivated
activated and visible
activated and not visible
4
4
4
list of matched peripheral equipment3
change the name of the audio/telephone3
authentication code3
phone book synchronisation mode3
no synchronisation
view telephone phone book
view
SIM card phone book
4
4
4
view all phone books 4


CONFIGURATION
choose colour


DISPLAY CONFIGURATION
1
2
3
adjust luminosity3
set date and time3
select units3
voice commands setting


SOUND2
3
speech synthesis setting3
guidance instructions volume
ot
her message volume
4
4

select female/male voice 4
activate/deactivate auxiliary source3


SELECT LANGUAGE2


DEFINE VEHICLE PARAMETERS *
2
SCREEN MENU MAP
* The parameters vary according to vehicle.

9.68
07
43 1
2
MUSIC MEDIA PLAYERS

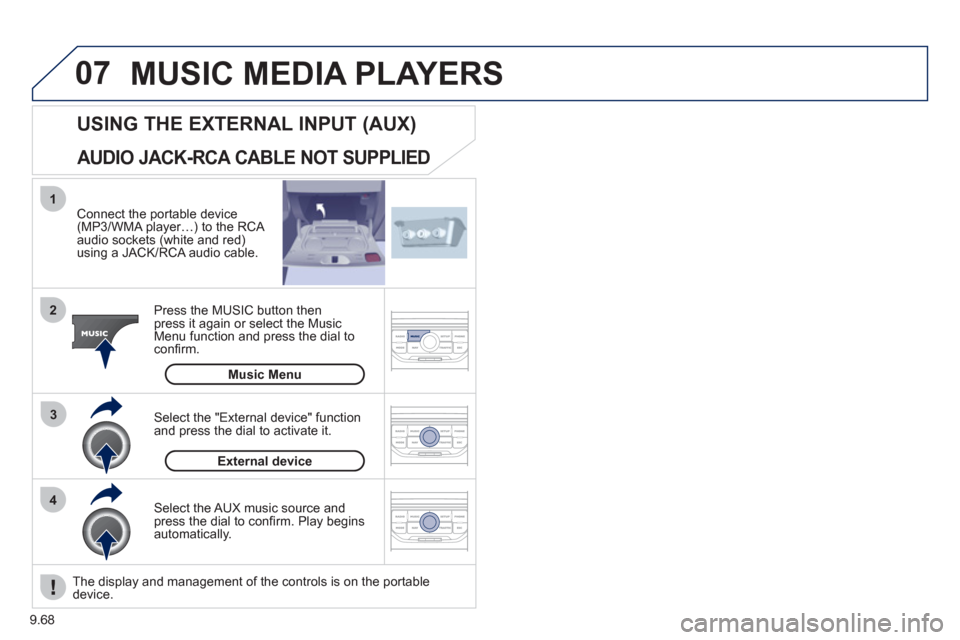

Connect the portable device(MP3/WMA player…) to the RCA
audio sockets (white and red)using a JACK/RCA audio cable.
Press the M
USIC button then
press it again or select the Music Menu function and press the dial to confi rm.
Select the AUX music source and
press the dial to confi rm. Play beginsautomatically.
Select the "External device" functionand press the dial to activate it.
External device













USING THE EXTERNAL INPUT (AUX)
Music Menu
AUDIO JACK-RCA CABLE NOT SUPPLIED
The display and management of the controls is on the portable device.

9.90
05
1
1
2
3
PEUGEOT CONNECT USB


The system puts together playlists (temporary memory) createdover a period which depends on the capacity of the USB device.
The other sources are available durin
g this time.
The pla
ylists are updated each time the ignition is switched off or each time a USB memory stick is connected.
When connectin
g for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB memory stick.
The fi le formats reco
gnised are .mp3 (mpeg1 layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.
The playlists types accepted are m
3u, .pls, .wpl.
This unit consists of a USB port and an auxiliar
yJack socket *
. The audio fi les are transmittedfrom portable equipment such as a digitalplayer or a USB memory stick to your PeugeotConnect Sound to be listened to via the vehicle'sspeakers.

U
SB memory stick (1.1, 1.2 and 2.0) or iPod Æof generation 5 or later:


- USB memor
y sticks should be formattedFAT or FAT 32 (NTFS not supported),

- t
he iPodÆ
lead is essential, Æ


- navigation through the fi le database is bymeans of the steering mounted controls,

- th
e iPodÆ
software should be regularlyÆ
updated for the best connection.The list o
f compatible equipment and the compression rates supported are available from PEUGEOT dealers.
















USING THE PEUGEOT CONNECT USB

CONNECTING A USB MEMORY STICK

Other iPod®
players of earlier generations and®
players using the MTP protocol * :


- pla
y via Jack-Jack lead only (not supplied),

- navi
gation through the fi le database is from
the portable device.

*
Accordin
g to vehicle.

9.92
05
1
21
2
First adjust the volume of your portable device.
Then ad
just the volume of your audio system.

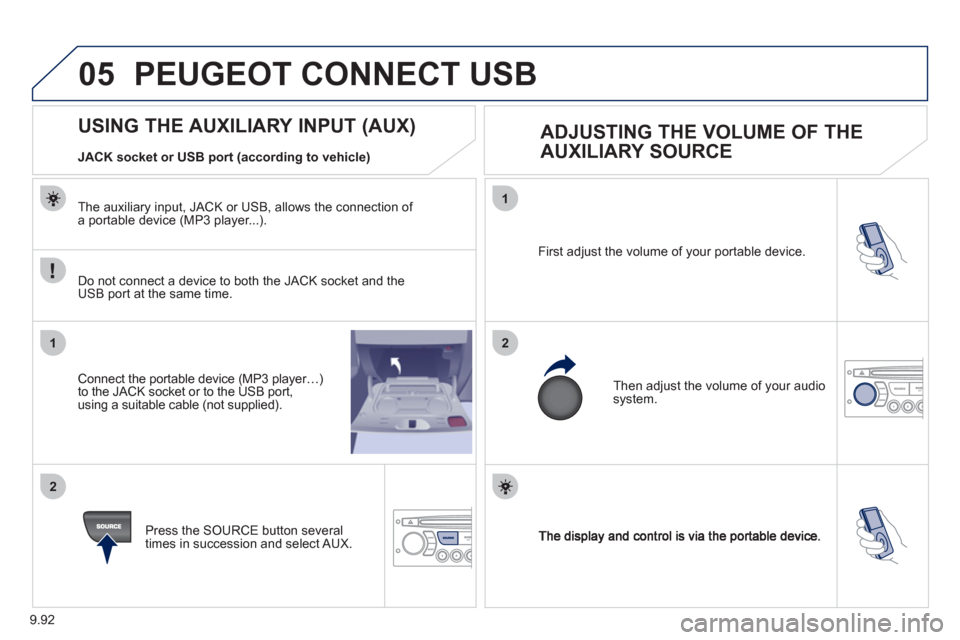

USING THE AUXILIARY INPUT (AUX)

ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE
PEUGEOT CONNECT USB


JACK socket or USB port (according to vehicle)

Do not connect a device to both the
JACK socket and the USB port at the same time.

Connect the portable device
(MP3 player…)to the JACK socket or to the USB port,
using a suitable cable (not supplied).

Pr
ess the SOURCE button several
times in succession and select AUX.
The auxiliar
y input, JACK or USB, allows the connection of
a portable device (MP3 player...).
