2011 Peugeot Expert Tepee fuse box

11 3


Under the bonnet

CHECK
S
6

DIESEL ENGINES


8 -
Power steering reservoir.

9 -
Removable towing eye.

10 -

Repriming pump
( a
: 1.6 litre HDi; b
: 2 litre HDi).

11 -
Engine oil filling funnel (2 litre HDi).

UNDER THE BONNET


1 -
Windscreen/headlamp wash reservoir.

2 -
Fuse box.

3 -
Coolant reservoir.

4 -
Brake and clutch fluid reservoir.

5 -
Air filter.

6 -
Dipstick.

7 -
Engine oil filler cap.
7.1 -
Engine oil filler cap.
If your vehicle is fitted with this oil filler
tube, proceed as follows:

A -
Remove the oil filler cap.

B -
Remove the filler tube from its location.

C -
Place the filler tube in the filler opening
as shown on the illustration.

D -
Turn it a 1/4 of a turn to the left to
lock it then top up the oil.
To refit, proceed in the reverse order
without forgetting to retighten the cap A
correctly.

11 4


Under the bonnet

PETROL ENGINE


4.
Brake and clutch fluid reservoir.

5.
Air filter.

6.
Dipstick.

1.
Windscreen/headlamp wash reservoir.

2.
Fuse box.

3.
Coolant reservoir.
7.
Engine oil filler cap.

8.
Power steering reservoir.

9.
Removable towing eye.

136


Changing a fuse

CHANGING A FUSE

The three fuseboxes are placed:


-
in the dashboard on the right-hand side
(behind the storage compartment, retractable),

- in the passenger compartment (battery compartment),


- under the bonnet.
Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.

Always replace a faulty fuse with a fuse
of the same rating. PEUGEOT will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting from
the installation of auxiliary accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade: for complete fuse
and relay information, consult the
"Procedures" wiring diagrams via the dealer
network.

137
Changing a fuse
QUICK HELP
7
RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)


9


10
Row 2 accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Rear ventilation, Automatic air conditioning,
Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors

138


Changing a fuse
PASSENGER COMPARTMENT FUSES



- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


20
Row 3 12 V socket


3


40/50
Trailer fusebox (accessory)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


10
Rear ventilation


40


5
Folding mirrors

139
Changing a fuse
QUICK HELP
7

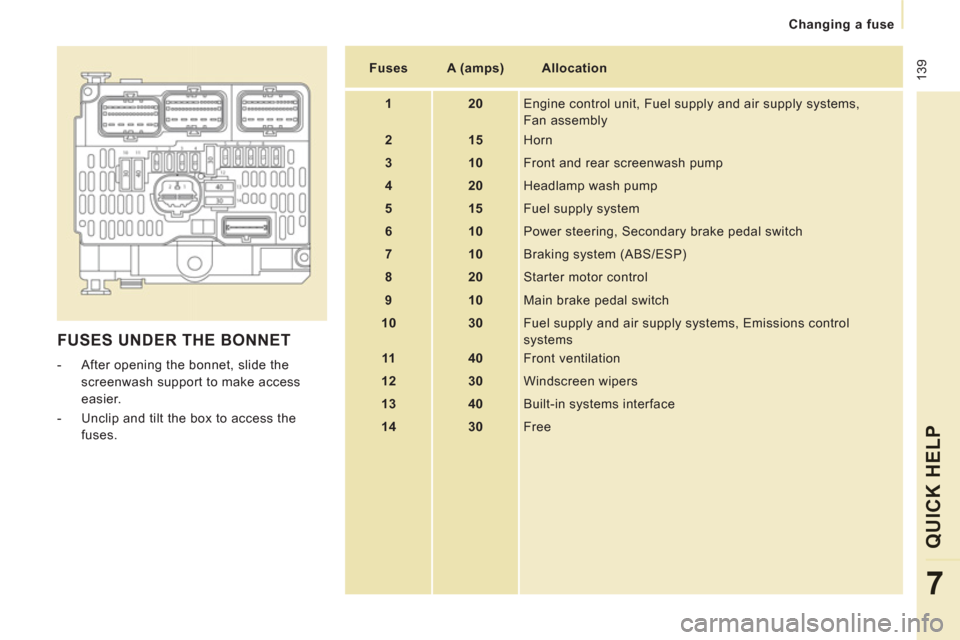

FUSES UNDER THE BONNET



- After opening the bonnet, slide the
screenwash support to make access
easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control
systems

11


40
Front ventilation


12


30
Windscreen wipers


13


40
Built-in systems interface


14


30
Free

15
3


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time
in the screen Section 9
Rear view mirror 88
Toll cards, car park tickets 81
Child surveillance mirror 88
Courtesy lamps 80, 133
Warning lamp in overhead storage unit 26
Heated seats 66
Rear ventilation 61, 62-63

Dashboard fuses,
right-hand side 137
Passenger's airbag deactivation 100
Controls


- central locking 23

- alarm 21-22

- electric child lock 24

- parking sensors 91

- ASR, ESP 93


Technology on board Section 9


- Emergency or assistance call

-
Peugeot Connect Media Navigation (RT5)


- Peugeot Connect Navigation (RNEG)

- Peugeot Connect Sound (RD5)


Gearbox 37
Hazard warning lamps 90

Heating, ventilation


- manual ventilation 53-54

- air conditioning A/C 53

- air recirculation 54
Air conditioning with separate
adjustments 55-57
Demisting/defrosting 59-60
Additional heating 62-63

Cab fittings 77-79


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.

155


Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE


Identification markings,
serial number, paint code, tyres 150

Engine fuses 139

Windscreen/headlamp wash, levels 116

Bulbs, lighting,
changing bulbs 131-135
Checks 117-118


- battery,

- gearbox,

-
carbon fi lter, passenger compartment fi lter,

- oil filter,

- particle emission filter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls (EOBD) 35
Water bleeding, Diesel filter 118

Under the bonnet


- Diesel 113

- petrol 114
Fuel cut-off,
Diesel priming 121-122
Engine technical data 149
Dimensions 144-147
Weights 148
Model code 156
Opening the bonnet, stay 112
Levels 115-116


- Diesel additive,

- dipstick,

- power steering fluid,

- brake fluid,

- coolant.

- screen and headlamp wash fluid.


Towing, lifting 141
Towed loads 148

Warning lamps 28-33

Changing a wiper blade 140
