2011 PEUGEOT BOXER Owners Manual

17
5

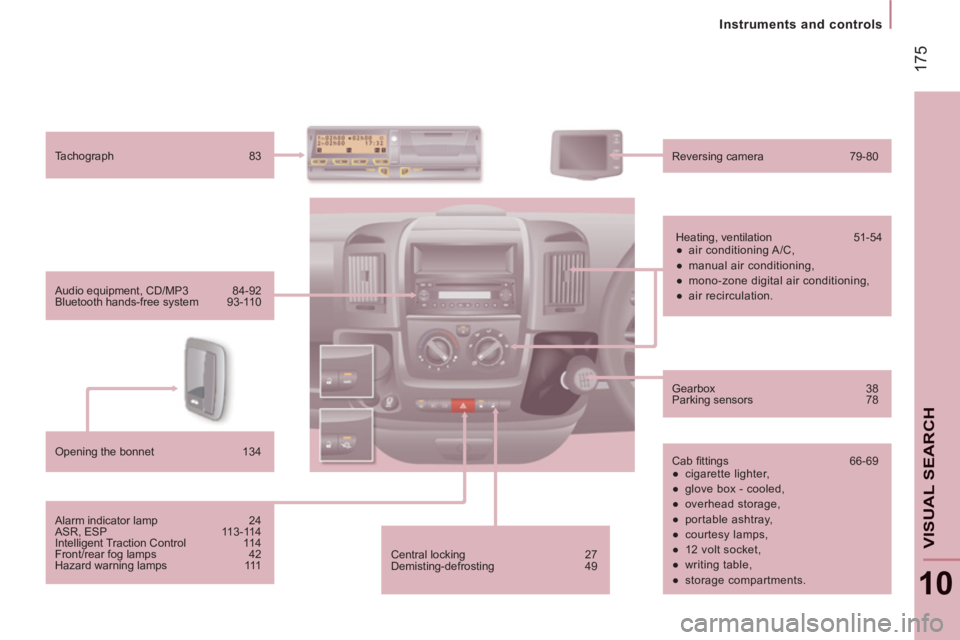

Instruments and controls
10
VISUAL SEARC
H
Central locking 27
Demisting-defrosting 49 Audio equipment, CD/MP3 84-92
Bluetooth hands-free system 93-110 Tachograph 83
Reversing camera 79-80
Heating, ventilation 51-54


●
air conditioning A/C,

●
manual air conditioning,

●
mono-zone digital air conditioning,

●
air recirculation.
Cab fi ttings 66-69


●
cigarette lighter,

●
glove box - cooled,

●
overhead storage,

●
portable ashtray,

●
courtesy lamps,

●
12 volt socket,

●
writing table,

●
storage compartments.

Gearbox 38
Parking sensors 78
Alarm indicator lamp 24
ASR, ESP 113-114
Intelligent Traction Control 114
Front/rear fog lamps 42
Hazard warning lamps 111 Opening the bonnet 134

17
6

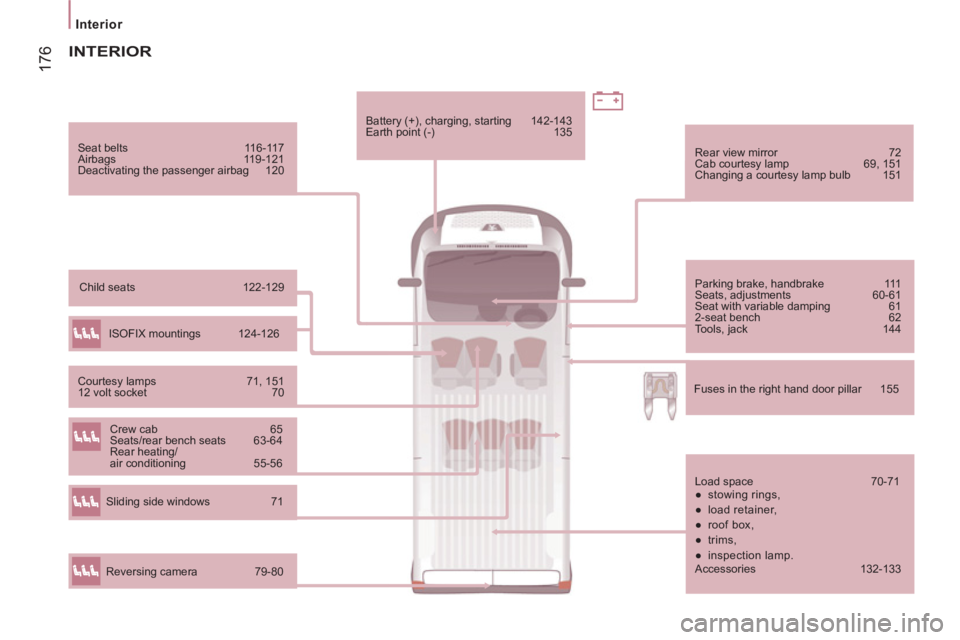

Interior








Seat belts 116-117
Airbags 119-121
Deactivating the passenger airbag 120
Parking brake, handbrake 111
Seats, adjustments 60-61
Seat with variable damping 61
2-seat bench 62
Tools, jack 144
ISOFIX mountings 124-126 Child seats 122-129
Courtesy lamps 71, 151
12 volt socket 70 Rear view mirror 72
Cab courtesy lamp 69, 151
Changing a courtesy lamp bulb 151
Load space 70-71


●
stowing rings,

●
load retainer,

●
roof box,

●
trims,

●
inspection lamp.
Accessories 132-133


INTERIOR

Sliding side windows 71 Battery (+), charging, starting 142-143
Earth point (-) 135
Reversing camera 79-80 Fuses in the right hand door pillar 155
Crew cab 65
Seats/rear bench seats 63-64
Rear heating/
air conditioning 55-56

17
7


Technical data - Maintenance
10
VISUAL SEARC
H

Screenwash/headlamp wash, level 137
Bulbs, lighting,
changing bulbs 149-151
Opening the bonnet, stay 134
Under the bonnet 135
Identifi cation markings,
serial number, paint, tyres 172 Changing a wiper blade 157 Levels 136-137


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant.
Water bleed, Diesel fi lter 138
Checks 138


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
parking brake,

●
particle filter,

●
brake pads.
Emission control 36
Engine fuses 153, 156
TECHNICAL DATA - MAINTENANCE

Engine technical data 167
Dimensions 160-166
Weights 168-171

04.11
This handbook describes all of the
equipment available in the whole range.
Automobiles PEUGEOT declares, by
application of the provisions of the European
regulation (Directive 2000/53) relating
to End of Life Vehicles, that it achieves
the objectives set by this regulation and
that recycled materials are used in the
manufacture of the products that it sells.
Printed in the EU
Anglais Your vehicle will be fi tted with some of this
equipment described in this document,
depending on its trim level, version and the
specifi cation for the country in which it is sold.
The descriptions and illustrations are
given without any obligation. Automobiles
PEUGEOT reserves the right to modify the
technical specifications, equipment and
accessories without having to update the
current handbook. This document is an integral part of your
vehicle. It should be passed on to the new
user in the event of sale or transfer. Reproduction or translation of all or part of
this handbook is prohibited without written
authorisation from Automobiles PEUGEOT.

Anglais
AN. 11BOX.0031www.peugeot.com
