Familiarisation
INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment control.

2.
Lighting and direction indicator control
stalk.

3.
Instrument panel.

4.
Audio system steering mounted controls.
Bluetooth hands-free system.

5.
Driver's airbag.
Horn.

6.
Cruise control switches.

7.
Gear lever.

8.
Parking brake.

9.
Bonnet release.

10.
Door mirror controls.

11 .
Fusebox.

12.
Manual headlamp height adjustment.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Electric window controls.

16.
Windscreen demisting vent.

17.
Wipers/screenwash/trip computer control
stalk.

18.
Steering lock and ignition.

19.
Central adjustable air vents.

20.
Passenger's airbag.

21.
MENU button.

22.
Glove box.

23.
12 V accessory socket.

24.
Cigar lighter.

25.
Ashtray.

26.
Heating/air conditioning controls.

27.
Audio system.

12
Familiarisation

SEEING CLEARLY


Ring
Lighting off.
Sidelamps.
Dipped/main beam headlamps.

Foglamps
Rear foglamp.
or
Front and rear foglamps.



41




Direction indicators


"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will fl ash
three times.



41




Wipers


Ring A: windscreen wipers



43


Ring B: rear wiper



43

Single wipe.
Intermittent wipe.
Screenwash. Screenwash.
Park.


Lighting

Park.
Intermittent.
Slow continuous.
Rapid continuous. Raise or lower the lighting stalk passing the
point of resistance; the corresponding direction
indicators will fl ash until the lighting stalk is
moved out of this position.

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites you
to change up; it is displayed in the instrument
panel, follow its instructions.

With an automatic or electronic gearbox, stay
in Drive "D"
or Auto "A"
, according to the
type of gear selector, without pressing the
accelerator pedal heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These attitudes contribute
towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the
background traffi c noise.

When the traffi c is fl owing well, and if you
have cruise control, make use of the system
at speeds above 25 mph (40 km/h).



Control the use of your electrical
equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sun roof and
window blinds...).
Switch off the air conditioning, unless it has
automatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
19


Switch off the headlamps and front foglamps
when the level of light does not require their
use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.

21
1
READY TO SET OFF


Instruments and controls
INSTRUMENT PANELS



1.
Distance recorder in miles/kilometres.

2.
Screen.

3.
Fuel gauge.

4.
Coolant temperature.

5.
Rev counter.


Instrument panel with level 1 screen
Instrument panel with level 2 screen

Instrument panel level 1 screen



- Time.

- Miles/Kilometres travelled.

- Trip computer/range, fuel consumption,
average speed.

- Headlamp beam height.

- Programmable overspeed warning.

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's
airbag.



Instrument panel level 2 screen



- Time.

- Date.

- Radio.
- Miles/Kilometres travelled.

- Ambient temperature.

- Modes and gear engaged on the
electronic gear control gearbox,

- Trip computer/range, fuel consumption,
average speed

- Headlamp beam height,

- Programmable overspeed warning,

- Selection of the display language,

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's
airbag,

- Activation or deactivation of automatic
door locking on moving off.

26


Instruments and controls

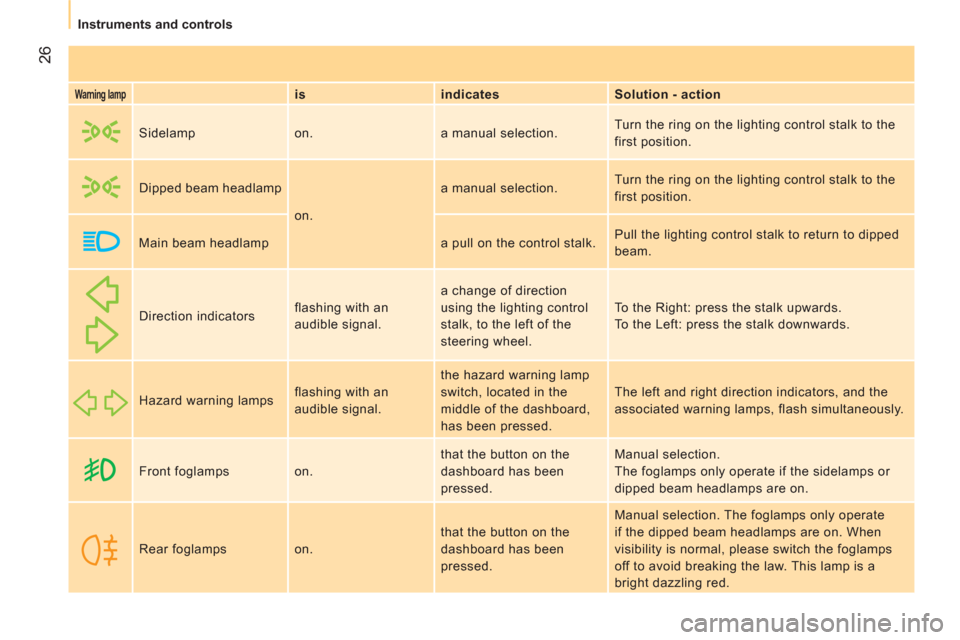

Warning lamp


is
indicates
Solution - action
Sidelamp on. a manual selection. Turn the ring on the lighting control stalk to the
first position.
Dipped beam headlamp
on. a manual selection. Turn the ring on the lighting control stalk to the
first position.
Main beam headlamp a pull on the control stalk. Pull the lighting control stalk to return to dipped
beam.
Direction indicators flashing with an
audible signal. a change of direction
using the lighting control
stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Hazard warning lamps flashing with an
audible signal. the hazard warning lamp
switch, located in the
middle of the dashboard,
has been pressed. The left and right direction indicators, and the
associated warning lamps, flash simultaneously.
Front foglamps on. that the button on the
dashboard has been
pressed. Manual selection.
The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
Rear foglamps on. that the button on the
dashboard has been
pressed. Manual selection. The foglamps only operate
if the dipped beam headlamps are on. When
visibility is normal, please switch the foglamps
off to avoid breaking the law. This lamp is a
bright dazzling red.

Instruments and controls

Display
displays
indicates
Solution - action
Stop & Start on. engine STOP mode
invoked following a stop of
the vehicle. As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in START mode.
flashes for a few
seconds then goes
off. temporary unavailability
of STOP mode or
START mode invoked
automatically. particular cases with STOP mode and START
mode. Chapter 1, "Steering mounted controls".
Gear shift indicator the arrow pointing up. the possibility to change
up.
Chapter 1, "Gear shift indicator".
the arrow pointing
down. the possibility to change
down.
Ambient temperature
(°C/°F) the temperature which
flashes accompanied
by a message in the
screen. weather conditions
which could result in the
presence of ice on the
road. Be especially vigilant and do not brake sharply.
Chapter 5, "Driving safety".
Date (YYYY/MM/DD)
Time (HH:MM) a setting:
of the Date.
of the Time. a configuration via the
MENU menu. Chapter 3, "Menu".
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the dashboard.
Chapter 1, "Steering mounted controls".

41
1
READY TO SET OFF
Steering mounted controls
LIGHTING STALK
Selection is by rotation of the white mark
on the ring, when the ignition key is in the
RUNNING position.


All lamps off

Sidelamps on

This is indicated on the instrument
panel by lighting of the warning lamp.


Dipped headlamps/main beam
headlamps on

Dipped headlamps/main beam
headlamps change
Pull the lighting stalk fully towards you.


Headlamp flash

Direction indicators
"Motorway" function

System which indicates a change of lane on
high-speed roads.
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will flash
three times.
Pull the lighting stalk towards you
gently, regardless of the position
of the ring.
Left:
push downwards. The green
direction arrow warning lamp
flashes on the instrument panel.

Right: push upwards. The green
direction arrow warning lamp flashes on the
instrument panel. Turn the ring into position.



















Parking lamps

Side markers for the vehicle by illumination
of the sidelamps on the traffic side only.
Ignition key in the STOP
position or removed
from the ignition switch:


)
turn the ring to the "Lighting off" position,
then to the "Sidelamps" position,

)
operate the lighting control stalk up
or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
This is confirmed by illumination of the
sidelamps warning lamp in the instrument
panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position
and the ring to the "Lighting off" position.

42


Steering mounted controls



Headlamp beam

You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position.
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.

Fog lamps

The controls are located on the fascia panel
control pad.


Front and rear fog lamps

The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.


Guide-me-home lighting

The temporary maintaining of the dipped
headlamps, after switching off the vehicle's
ignition, makes the driver's exit easier when
the light is poor and lights the space in front
of the vehicle.

Activation
With the ignition key in the STOP position
or removed, pull the lighting stalk towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lamps will remain
on is extended by 30 seconds, up to a
maximum of 210 seconds. Once this period
of time has elapsed, the lamps switch off
automatically.

Deactivation
Pull the lighting stalk towards the steering
wheel for more than 2 seconds. The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning lamp comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).
