2011 Peugeot Bipper headlamp

14
3
7
QUICK HELP


Changing a bulb



Front lamps

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.
CHANGING A BULB

Types of bulb

Various types of bulb are fitted on your
vehicle.
To remove them:


1.
Type A
Entirely glass bulb: pull gently as it is
fitted by pressure.

2.
Type B
Bayonet bulb: press on the bulb then turn
it anticlockwise.

3.
Type C
Cylindrical bulb: move aside the contacts.

4.
Type D - E
Halogen bulb: release the retaining
spring from its housing.

High pressure washing
When using this type of washing on
stubborn dirt, do not persist very long on
the headlamps, or on other lamps and their
edges to avoid damaging their coating and
seals.

Changing a bulb


1 - Dipped beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.


2 - Sidelamps

Type A
, W 5 W - 5 W


- Remove the cover by turning it
anticlockwise.

- Pull the bulb holder to gain access to the
bulb.

- Change the bulb.

3 - Main beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Remove the bulb holder.

- Change the bulb taking care to align the
metal part with the groove on the lamp.

4 - Direction indicators

Type B
, PY 21 W - 21 W amber


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer or a qualified workshop.

When each operation has been
completed, check the operation of the
lamps.

5 - Foglamps

Type E
, H1 - 55 W
Contact a PEUGEOT dealer or a qualified
workshop.

14
9
7
QUICK HELP


Changing a fuse

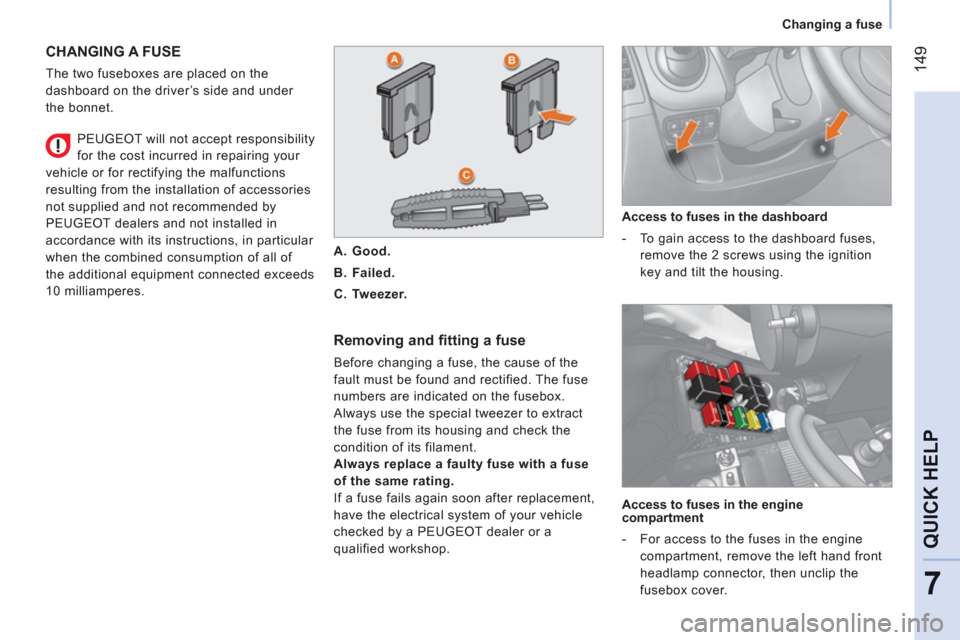

CHANGING A FUSE

The two fuseboxes are placed on the
dashboard on the driver’s side and under
the bonnet.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a PEUGEOT dealer or a
qualified workshop.
Access to fuses in the dashboard


- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

A.
Good.

B.
Failed.

C.
Tweezer.


Access to fuses in the engine
compartment


- For access to the fuses in the engine
compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

150


Changing a fuse



Table of dashboard fuses, driver’s
side

Mark
ing


Rating


Functions


F12
7.5 A Right-hand dipped beam headlamp supply

F13
7.5 A Left-hand dipped beam headlamp supply - headlamp height
adjuster

F31
5 A Engine control unit supply switch

F32
7.5 A Front lamp - front courtesy lamp - rear courtesy light lamp

F36
10 A Audio system - mobile telephone pre-equipment -
air conditioning control panel - EODB diagnostic socket

F37
5 A Brake lamp - instrument panel

F38
20 A Door locking

F43
15 A Screenwash pump

F47
20 A Driver’s electric window motor supply

F48
20 A Passenger’s electric window motor supply

F49
5 A Parking sensors control unit - rear lighting switch - electric
door mirrors - volumetric alarm control unit

F50
7.5 A Airbags control unit

F51
7.5 A Switch on brake pedal - switch on clutch pedal - door mirror
controls - central Bluetooth system

F53
5 A Instrument panel - rear foglamps

152


Changing a fuse



Mark
ing


Rating


Functions


F01
60 A Control unit

F02
40 A Passenger compartment fan.

F03
20 A Starter motor supply

F04
40 A ABS hydraulic block pump supply

F06
30 A Single speed cooling fan control

F07
40 A High speed cooling fan control

F08
30 A Air conditioning compressor

F09
15 A Towbar harness.

F10
10 A Horn

F11
10 A Engine management secondary load supply

F14
15 A Main beam headlamps

F15
15 A 12 V accessory socket.


Table of fuses in the engine
compartment

167
8
VISUAL SEARCH


Exterior



EXTERIOR (LIGHT VAN)


Rear lamp, direction indicators,
3rd brake lamp ........ 41-42, 146-147
Right-hand side:
fuel fi ller cap, fuel tank .................. 156
fuel cut-off ..............................156-157

Load space ............................108-109
Rear doors .....................31, 33, 36-40
Opening/Closing to 180° .......... 37, 39

Number plate lamps ..................... 146

Rear parking sensors ..................... 72

Spare wheel, changing a wheel,
tools ....................................138-140

Towing, lifting ................................ 154
Towbar ...................................131-132
Dimensions ................................58-59

Accessories ...........................133-134
Roof rack ...................................... 133

Key, remote control, battery .......31-33
Central locking .................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card ............................. 34
Alarm .............................................. 35

Wiper blades ................................. 148
Door mirrors .................................... 46
Side repeater ................................ 145

Front lamps, foglamps, direction
indicators ................. 41-42,143-145
Headlamp beam height adjustment .... 42
Changing bulbs ......................143-147

Opening/
Closing doors ..............31, 33, 36-40
Opening the bonnet ...................... 159
Menu - autoclose ................ 37, 39, 70

Brakes, pads ......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................ 114-115
Trajectory control .................... 115-117
Tyres, pressures ........................... 155

168





Exterior






EXTERIOR (COMBI)


Brakes, pads ......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................. 114-115
Trajectory control .................... 115-117
Tyres, pressures ................... 142, 155
Dimensions ................................60-63

Accessories ...........................133-134
Roof bars ...................................... 133

Key, remote control, battery .......31-33
Central locking .................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card ............................. 34
Alarm .............................................. 35

Wiper blades ................................. 148
Door mirrors .................................... 46
Side repeater ................................ 145

Front lamps, foglamps, direction
indicators ................ 41-42, 143-145
Headlamp beam height adjustment .... 42
Changing bulbs ......................143-147

Opening/Closing doors ... 31, 33, 36-40
Child lock ........................................ 40
Rear windows ................................. 47
Opening the bonnet ...................... 159
Menu - autoclose ................ 37, 39, 70
Right-hand side:
fuel fi ller cap, fuel tank .................. 156
fuel cut-off ..............................156-157

Rear fi ttings ........................... 110-111
Rear doors .....................31, 33, 36-40
Opening/Closing to 180° .......... 37, 39

Number plate lamps ..................... 146

Rear parking sensors ..................... 72

Spare wheel, changing a wheel,
tools, temporary puncture
repair kit .............. 138-140, 141-142

Towing, lifting ................................ 154
Towbar ...................................131-132


Rear lamps, direction indicators,
3 rd brake lamp ........ 41-42, 146-147

INSTRUMENTS AND CONTROLS


Instrument panels, screens, dials ... 21
Warning lamps, indicator lamps ....22-28
Indicators, gauge ....................... 29-30

Lighting controls ........................41-42
Guide-me-home lighting ................. 42
Parking lamps .................................. 41

Opening the bonnet ...................... 159
Fuses .....................................149-151
Front/rear wipers ............................ 43
Screenwash .................................... 43
Trip computer ................................. 68
Steering wheel, adjustments .......... 48
Horn .............................................. 114
Instruments and controls .................. 7

Electric windows ............................. 47
Door mirrors .................................... 46
Confi guration -
vehicle personalisation ...........68-71
Setting the time ............................... 70
Headlamp beam height adjustment ... 42
Front/rear foglamps ........................ 42
Lighting dimmer .............................. 30
Cruise control ............................44-45

Starting, ignition switch .............. 18, 34
172



Instruments and controls
