2011 Peugeot Bipper stop start

24


Instruments and controls


Warning lamp


is
indicates
Solution - action
Front airbag
Side airbag flashing or
continuously on. the failure of an airbag. Have the system checked by a PEUGEOT
dealer or a qualified workshop without delay.
Refer to the "Airbags" section of chapter 5.
Deactivation of the
passenger's front
airbag on.

that this airbag has been
deactivated intentionally in the
presence of a rear facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer or a qualifi ed workshop.
continuously on,
coupled with the parking
brake warning lamp. a fault with the electronic
brake force distributor.
Stop as soon as it is safe to do so, park,
switch off and contact a deale
r PEUGEOT or
a qualified workshop.
Trajectory control
system flashes for a few
seconds. the ESP system has been
invoked. Intervention by the system to correct the
trajectory of the vehicle.
on, coupled with the
warning lamp in the
"ASR OFF"
button
and accompanied by a
message in the screen. a fault with the ESP
system. Contact a PEUGEOT dealer or a qualified
workshop.
on, accompanied by
a message in the
screen. a fault with the ASR/MSR
system. Contact a PEUGEOT dealer or a qualified
workshop.
on. a fault with the Intelligent
Traction Control. Contact a PEUGEOT dealer or a qualified
workshop.
Hill start assist on. a fault with the hill start
assist system. Contact a PEUGEOT dealer or a qualified
workshop.
Front brake pads on. brake pad wear. Have the pads replaced by a PEUGEOT dealer
or a qualified workshop.

Instruments and controls

Display
displays
indicates
Solution - action
Stop & Start on. engine STOP mode
invoked following a stop of
the vehicle. As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in START mode.
flashes for a few
seconds then goes
off. temporary unavailability
of STOP mode or
START mode invoked
automatically. particular cases with STOP mode and START
mode. Chapter 1, "Steering mounted controls".
Gear shift indicator the arrow pointing up. the possibility to change
up.
Chapter 1, "Gear shift indicator".
the arrow pointing
down. the possibility to change
down.
Ambient temperature
(°C/°F) the temperature which
flashes accompanied
by a message in the
screen. weather conditions
which could result in the
presence of ice on the
road. Be especially vigilant and do not brake sharply.
Chapter 5, "Driving safety".
Date (YYYY/MM/DD)
Time (HH:MM) a setting:
of the Date.
of the Time. a configuration via the
MENU menu. Chapter 3, "Menu".
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the dashboard.
Chapter 1, "Steering mounted controls".

32


Access



Opening the windows with the remote
control

Closing the windows using the remote
control
When closing the windows using the
remote control you must ensure that
nothing prevents their correct closing. The
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.
Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.
This closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel. This opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.

33
1
READY TO SET OFF
Access
KEY
This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.
REMOTE CONTROL BATTERY

Reference: CR 2032/3 volts.
-
use the screwdriver as a lever to extract
t
he battery holder housing 2 ,

- remove the housin
g and change the
batter
y3 observing the polarities,

- put the battery holder housin
g 2back
inside the ke
y and secure it by turning the
screw 1 .


Changing the remote control battery

There is a risk of damage if the
replacement battery does not conform.
Only use batteries which are identical or of
an equivalent type to those recommended
by a PEUGEOT dealer. Take used batteries
to an approved collection point.

- press the button to eject the
key,

- turn the screw 1 from the
closed padlock to the open
padlock using a screwdriver
with a thin tip,

43
1
READY TO SET OFF
Steering mounted controls
WIPERS STALK

Windscreen wipers

Wiping is only active when the ignition key is
in the RUNNING position.
The stalk may have four different positions.
Three speeds can be selected by turning the
ring.

To change the blades, refer to the
"Changing a wiper blade" section of
chapter 7.


Good practice

Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather. Intermittent.
Slow continuous.
Fast continuous.
Single wipe: by pushing up.


Windscreen wash

Push the stalk down, the windscreen wash
alone is activated.
Hold the stalk down, the windscreen wash
is accompanied by a timed sweep of the
wipers.
To top up the levels, refer to the
"Levels" section of chapter 7.


Rear wiper

This is positioned on the window
of the large rear door.
Turn the ring.


Rear screen wash

The rear screen wash is incorporated next to
the third brake light.
Push the stalk up, the rear screen wash
alone is activated.
Hold the stalk up, the rear screen wash is
accompanied by a timed sweep of the wiper.







With Stop & Start, when the wiper
control stalk is in the fast wipe position,
the STOP mode is not available.

47
1
READY TO SET OFF


Mirrors and windows
ELECTRIC WINDOWS

Electric controls

The electric windows have a safety anti-
pinch function and are associated with one-
touch controls for lowering and raising.
From the driver's seat, the controls placed
on the door operate the vehicle's front
windows.
On the passenger's side, the control
operates the passenger's front window.


One-touch controls

An extended press on the control raises or
lowers the window completely.
Press the control again to stop the window.
Press the control briefly to start the
movement of the window.


Manual controls

Turn the window winder located on the door
trim panel.


Good practice

Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric window meets an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, they must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passenger
uses the electric window correctly.

Be aware of children when operating the
windows.

REAR WINDOWS (COMBI)

To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.

51
1
READY TO SET OFF

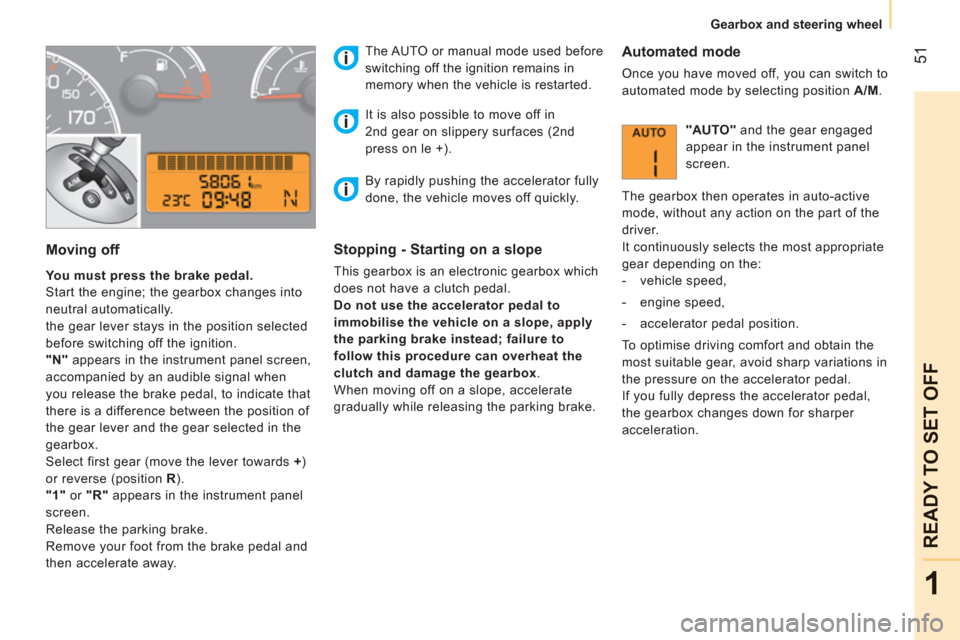

Gearbox and steering wheel



Moving off



You must press the brake pedal.
Start the engine; the gearbox changes into
neutral automatically.
the gear lever stays in the position selected
before switching off the ignition.

"N"
appears in the instrument panel screen,
accompanied by an audible signal when
you release the brake pedal, to indicate that
there is a difference between the position of
the gear lever and the gear selected in the
gearbox.
Select first gear (move the lever towards +
)
or reverse (position R
).

"1"
or "R"
appears in the instrument panel
screen.
Release the parking brake.
Remove your foot from the brake pedal and
then accelerate away.

The AUTO or manual mode used before
switching off the ignition remains in
memory when the vehicle is restarted.

Stopping - Starting on a slope

This gearbox is an electronic gearbox which
does not have a clutch pedal.

Do not use the accelerator pedal to
immobilise the vehicle on a slope, apply
the parking brake instead; failure to
follow this procedure can overheat the
clutch and damage the gearbox
.
When moving off on a slope, accelerate
gradually while releasing the parking brake.
It is also possible to move off in
2 nd gear on slippery surfaces (2 nd
press on le +).

Automated mode

Once you have moved off, you can switch to
automated mode by selecting position A/M
.

"AUTO"
and the gear engaged
appear in the instrument panel
screen.
The gearbox then operates in auto-active
mode, without any action on the part of the
driver.
It continuously selects the most appropriate
gear depending on the:


- vehicle speed,

- engine speed,

- accelerator pedal position.
To optimise driving comfort and obtain the
most suitable gear, avoid sharp variations in
the pressure on the accelerator pedal.
If you fully depress the accelerator pedal,
the gearbox changes down for sharper
acceleration. By rapidly pushing the accelerator fully
done, the vehicle moves off quickly.

53
1
READY TO SET OFF


Gearbox and steering wheel



Reinitialisation

Turn the ignition key to the MAR
position.
Within ten seconds, the gear engaged should
appear in the instrument panel screen.
Otherwise, turn the ignition key to the
STOP
position and wait until the instrument
panel screen goes off.
Turn the ignition key to the MAR
position
again.
The illumination of this warning
lamp, accompanied by a message
in the instrument panel screen,
indicates incorrect use of the
gearbox by the driver.
With the ignition on, the flashing this warning
lamp, accompanied by an audible signal and
a message in the instrument panel screen,
indicates a fault with the gearbox.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
If the problem persist, have the system
checked by a PEUGEOT dealer or a
qualified workshop.
Never select neutral N
while the vehicle
is moving.
Only engage reverse gear R
with the vehicle
immobilised and the brake pedal pressed.
You risk damaging the gearbox if you
press the accelerator and brake pedals
simultaneously.

Back-up mode - Slow move off

This procedure should be applied if pressing
the brake pedal is not recognised by the
system, or if the gearbox has fault on
starting the engine.
Press the brake pedal firmly.
Turn the ignition key to the AV V
position for
at least seven seconds.
The engine starts.
The system is in back-up mode; the gearbox
will not go beyond the 3 rd gear engaged and
automated mode is not available.
If the engine does not start, have the
system checked by a PEUGEOT dealer
or a qualified workshop.




Operating fault

In the event of a prolonged stop with
the engine running, it is recommended
that the gearbox be put into neutral
(position N
).
With the vehicle stationary, the engine
running and first, second or reverse
gear engaged, the gearbox changes to
neutral automatically, accompanied by
an audible signal, in the following
circumstances:


- no action on the accelerator or brake
pedals for at least 3 minutes,

- brake pedal applied for more than
10 minutes,

- driver's door opened and no action on the
accelerator or brake pedals for at least
1.5 seconds,

- a gearbox fault.


When towing your vehicle, ensure that
the gearbox is in neutral (position N
).
