READY TO SET OFF


Instruments and controls


Warning lamp


is
indicates
Solution - action
Engine oil on while driving, with
a message in the
screen. that the engine oil
pressure is too low. Park and switch off the ignition and contact a
PEUGEOT dealer or a qualified workshop.
fl ashing, with a
message in the screen
(1.3 HDi 75 only). degraded engine oil. Have the vehicle services as soon as possible to
avoid damage to the engine.
Battery charge on. a fault in the charging
circuit. Check the battery terminals…
Refer to the "Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection fault. Contact a PEUGEOT dealer or a qualified
workshop.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed. accompanied by a
message in the screen.
Seat belt not fastened on then flashes. that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.
flashing,
accompanied by an
audible signal the front passenger has
not fastened their seat
belt. Pull on the strap and insert the tongue in the
buckle.

12
3
5
SAFETY


Airbags



For the airbags to be fully effective,
observe the following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation
of the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag systems must be
carried out by a PEUGEOT or a qualified
workshop.
Even if all of the precautions mentioned are
observed, a risk of injury or of slight burns
to the head, chest or arms when an airbag
is deployed cannot be ruled out. In fact,
the bag inflates almost instantly (within a
few milliseconds) then deflates within the
same time, discharging the hot gas through
openings provided for this purpose.
Front airbags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
dashboard.
Smoke as little as possible as deployment
of the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.

Lateral airbags
Only put approved covers on the seats,
compatible with the deployment of lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a PEUGEOT dealer. Refer to the
"Accessories" section.
Do not fix or attach anything to the seat
backs. This could cause injury to the chest
or arms when the lateral airbag inflates.
Do not sit with the upper part of the body
any nearer to the door than necessary.

135
7
QUICK HELP


Battery

BATTERY

Models without Stop & Start



A.
Metallic positive point of your vehicle.

B.
Slave battery.

C.
Earth of your vehicle.

D.
Metallic positive point on your vehicle.
Charging the battery using a battery charger
Starting using another battery


- Connect the red cable to the metallic
point A
then to the positive (+) terminal of
the slave battery B
.

- Connect one end of the green or black
cable to the negative (-) terminal of the
slave battery B
.

- Connect the other end of the green or
black cable to the earth point C
on your
vehicle (never to the metallic point D
of
your vehicle).

- Operate the starter, let the engine run.

- Wait for the engine to return to idle, then
disconnect the cables.


Never charge a battery without first
disconnecting the terminals.


- Disconnect the two quick-fi t battery terminals.


- Follow the instructions for use given by
the battery charger manufacturer.

- Check that the battery posts and
terminals are clean. If they are covered
with sulphate (white or greenish deposit),
disconnect them and clean them.

- Reconnect the two quick-fit terminals,
starting with the negative (-) terminal.

136


Battery



Models with Stop & Start



A.
Protective cover.

B.
Positive metallic point on your vehicle.

C.
Slave battery.

D.
Earth on your vehicle.

E.
Terminal release button.

F.
Check sensor button.

G.
State of charge sensor.

H.
Metal negative point of your vehicle.
Charging the battery using a battery charger
- Follow the instructions for use given by
the battery charger manufacturer.

- Check that the battery posts and
terminals are clean. If they are covered
with sulphate (white or greenish deposit),
disconnect them and clean them.

- Reconnect connector F
of the check
sensor G
.

- Refit the protective cover A
to the
metallic point B
.

Starting using another battery


- Remove the protective cover A
from the
metallic point B
.

- Connect the red cable to metallic point B
,
then the (+) terminal to the slave battery C
.

- Connect one end of the green or black
cable to the (-) terminal of the slave
battery C
.

- Connect the other end of the green or
black cable to the earth point D
of your
vehicle (never to the metallic point H
of
your vehicle).

- Operate the starter, let the engine run.

- Wait for the engine to return to idle, then
disconnect the cables.

- Refit the protective cover A
to the
metallic point B
.



Do not disconnect the battery to charge
it.


- Press the release button E
to disconnect
the terminal F
.

- Disconnect the connector F
of the check
sensor G
.

- Remove the protective cover A
from the
metallic point B
.

- Connect the charger cables: (+) on
the metallic point B
; (-) on the metallic
point H
. Never remove the check sensor G
from the metallic point H
, except
when replacing the battery.

137
7
QUICK HELP


Battery


Batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance with the
law and must not, in any circumstances be
discarded with household waste.
Take used batteries to an authorised waste
disposal site.

It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month. To do
this on models with Stop & Start:


- press the release button E
to disconnect
connector F
,

- disconnect connector F
of check sensor G
.
Never remove the check sensor G
from the
metallic point H
, except when replacing the
battery.




The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification; the
involvement of a PEUGEOT dealer or
a qualified workshop is essential when
replacing or disconnecting the battery.
Failure to observe this recommendation may
cause premature wear of the battery.

After refitting the battery by a
PEUGEOT dealer or a qualified
workshop, the Stop & Start system will
only be active after a continuous period of
immobilisation of the vehicle, a period which
depends on the climatic conditions and the
state of charge of the battery (up to about
8 hours).
Before charging
The charging operation must be carried out in
a ventilated area away from naked fl ames or
any possible sources of sparks to eliminate the
risks of explosion and fi re.
Do not attempt to charge a frozen battery: it
must fi rst be thawed to eliminate the risks of
explosion. If the battery has frozen, before
charging it have it checked by a specialist who
will check that the internal components have
not been damaged and that the container is
not cracked, which could mean that there is a
risk of a leak of toxic and corrosive acid.

Before disconnecting
Never disconnect a terminal when the
engine is running.
Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Close the windows and doors before
disconnecting the battery.
After reconnecting
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If difficulties are
experienced after this, contact a PEUGEOT
dealer or a qualified workshop.
If the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:


- the display parameters (date, time,
language, distance and temperature
units),

- the radio stations,

- the central locking.
Some settings are cleared and must be
reprogrammed. Contact a PEUGEOT dealer
or a qualified workshop.

156


Fuel


FILLING WITH FUEL

Capacity of the fuel tank: approximately
45 litres.


Low fuel level

When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately
6 litres
of fuel remaining. Refuel without delay to
avoid running out of fuel. Refuelling must be done with the engine
off.


- Open the fuel filler flap.

- Hold the filler cap with one hand.

- With the other hand, insert the key, then
turn it a third of a turn.

- Remove the filler cap and hang it on the
hook, located on the inside of the filler
flap. FUEL CIRCUIT DEACTIVATED
In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It also triggers the automatic unlocking of
the doors and switching on of the courtesy
lights. A message appears on the instrument
panel display according to version.
Turn the key to the STOP position to prevent
discharging of the battery.
Check that there is no smell or leak of fuel
outside the vehicle.





With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.
When the fuel filler flap is open,
a safety system prevents sliding
of the side door (Combi).
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
Opening the filler cap may cause a noise
resulting from the inrush of air. This vacuum
is quite normal and results from the sealing
of the fuel system.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
After filling the fuel tank, lock the filler cap
and close the flap.

169
8

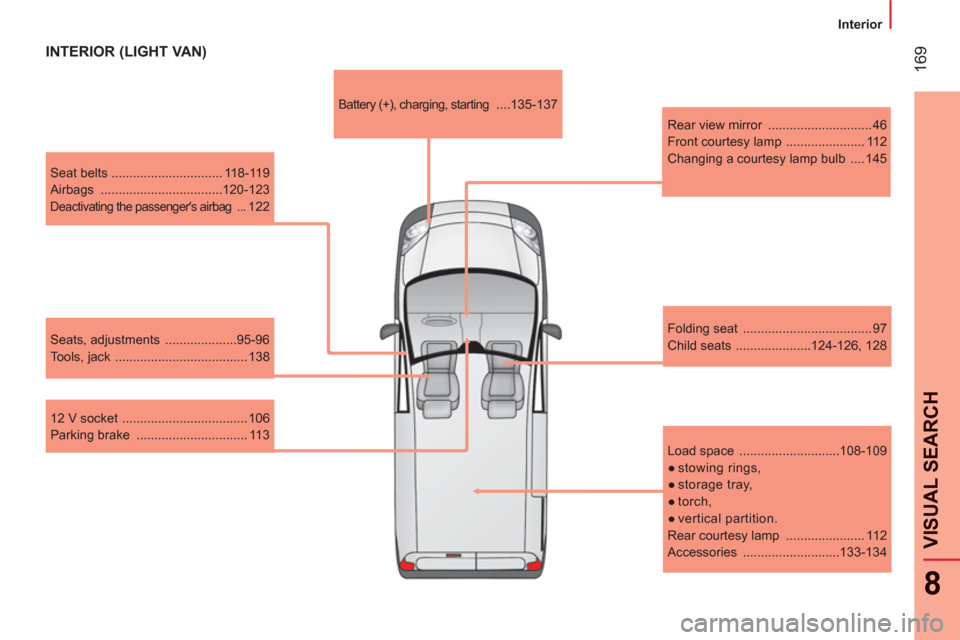

VISUAL SEARCH


Interior



Seat belts ............................... 118-119
Airbags ..................................120-123

Deactivating the passenger's airbag ...122

Seats, adjustments ....................95-96
Tools, jack ..................................... 138
Folding seat .................................... 97
Child seats .....................124-126, 128

12 V socket ................................... 106
Parking brake ............................... 113
Battery (+), charging, starting ....135-137

INTERIOR (LIGHT VAN)


Load space ............................108-109


●
stowing rings,

●
storage tray,

●
torch,

●
vertical partition.
Rear courtesy lamp ...................... 112
Accessories ...........................133-134

Rear view mirror ............................. 46
Front courtesy lamp ...................... 112
Changing a courtesy lamp bulb .... 145

17
0


Interior



Front seat belts ...................... 118-119
Airbags ..................................120-123

Deactivating the passenger's airbag .... 122

Front seats, adjustments ...........95-96

12 V socket ................................... 106
Parking brake ............................... 113
Battery (+), charging, starting ...135-137

Rear view mirror ............................. 46
Front courtesy lamp ...................... 112
Changing a courtesy lamp bulb .... 145

Bench rear seat .........................98-99
Rear seat belts ...................... 118-119
Child seats ............. 124-125, 127-128
ISOFIX mountings .................129-130

Rear fi ttings .................................. 110


●
stowing rings,

●
luggage retaining net,

●
rear parcel shelf.
Rear courtesy lamp ...................... 112
Tools, jack, temporary puncture
repair kit ......................138, 141-142
Accessories ...........................133-134



INTERIOR (COMBI)


Folding seat .................................... 97
