PRACTICAL INFORMATION
191

Tyre under-infl ation
detection
The spare wheel is not fi tted
with a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer or a qualifi ed workshop.

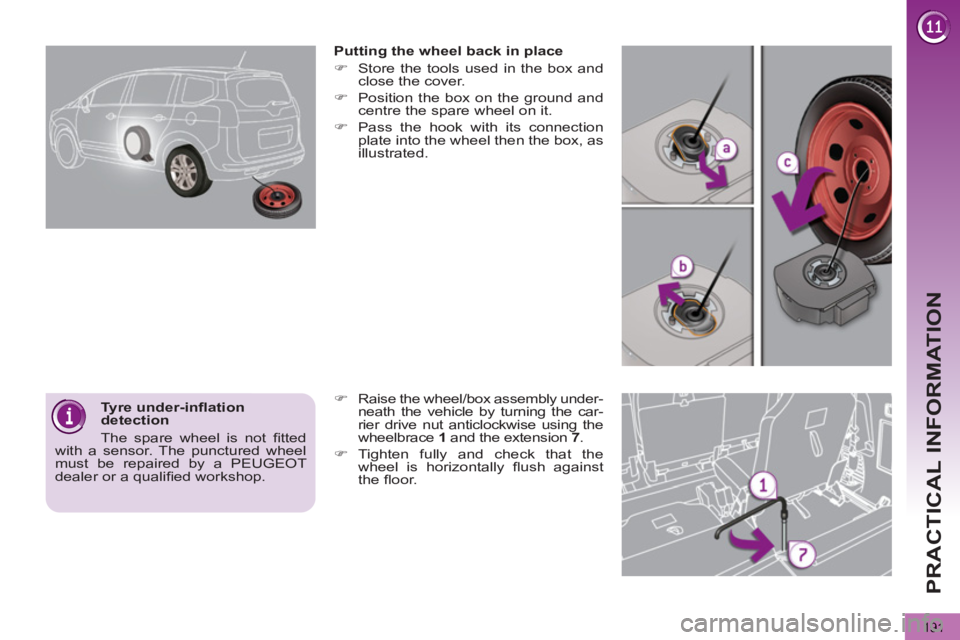

Putting the wheel back in place


)
Store the tools used in the box and
close the cover.

)
Position the box on the ground and
centre the spare wheel on it.

)
Pass the hook with its connection
plate into the wheel then the box, as
illustrated.

)
Raise the wheel/box assembly under-
neath the vehicle by turning the car-
rier drive nut anticlockwise using the
wheelbrace 1
and the extension 7
.

)
Tighten fully and check that the
wheel is horizontally fl ush against
the fl oor.

PRACTICAL INFORMATION
201

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse
N°

Rating
(A)

Functions



F8



20

Audio system, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit, service
module (with Peugeot Connect Media Navigation
(NG4 3D)).


F9



30

Front 12 V socket, cigarette lighter, rear 12 V socket.


F10



15

Steering mounted controls.


F11



15

Low current ignition switch.


F12



15

Trailer presence, rain/brightness sensor, supply
for fuses F32, F34, F35.


F13



5

Engine fusebox, airbag control unit.


F14



15

Instrument panel, instrument panel screen,
supply for fuse F33.


F15



30

Locking and deadlocking.


F17



40

Rear screen demist/defrost, supply for fuse F30.


SH



-

PARC shunt.

PRACTICAL INFORMATION
202


Fuse
N°



Rating
(A)



Functions




F29



-

Not used


F30



5

Heated door mirrors.


F31



30

Boot 12 V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air conditioning.


F34



5

Seat belt warning lamps display.


F35



10

Parking sensors, Hi-Fi amplifi er authorisation.


F36



10

Trailer fusebox control unit, driver's door control pad.


F37



20

Hi-Fi amplifi er.


F38



30

Driver's electric seat.


F39



20

Panoramic sunroof blind.


F40



-

Not used.

PRACTICAL INFORMATION
203

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)


Functions



F1



20

Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI), injectors
(2 litre HDI).


F2



15

Horn.


F3



10

Front/rear screenwash.


F4



10

Daytime running lamps.


F5



15

Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 l THP 16V), oil vapour heater (1.6 l THP 16V),
diesel heater (1.6 l HDI 16V).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.


F7



10

Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.


F10



30

Engine management unit actuators (petrol: ignition
coils, electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40

Air conditioning blower.

PRACTICAL INFORMATION
204

Fuse
N°

Rating
(A)

Functions



F12


30

Windscreen wipers slow/fast speed.


F13


40

Built-in systems interface supply (ignition positive).


F14


30

Air pump.


F15


10

Right-hand main beam headlamp.


F16


10

Left-hand main beam headlamp.


F17


15

Left-hand dipped headlamp.


F18


15

Right-hand dipped headlamp.


F19


15
Oil vapour heater (1.6 litre VTi), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F20


10
Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).


F21


5
Fan assembly relay supply, Valvetronic relay
control (1.6 litre VTi), Turbo cooling (1.6 litre THP),
air fl ow sensor (1.6 litre HDI).

PRACTICAL INFORMATION
211
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.

Tyres


)
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.


Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
is used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
FITTING ROOF BARS

Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65
kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging the
roof bars and the fi xings on the roof.
Be sure to refer to national legislation
in order to comply with the regula-
tions for transporting objects that are
longer than the vehicle.


When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:


)
lift the concealing fl aps,

)
open the fi xing covers on each bar
using the key,

)
put each fi xing in place and lock
them on the roof one by one,

)
ensure that roof bars are correctly
fi tted (by shaking them),

)
close the fi xing covers on each bar
using the key.

If your vehicle is fi tted with
roof fi nishers, do not use them
for carrying loads.

PRACTICAL INFORMATION
213

"Multimedia":

audio systems, amplifi ers, satellite navigation
systems, Bluetooth hands-free system, CD
changer, speakers, DVD player, USB Box,
front and rear parking sensors, additional
Bluetooth wireless headphones, Bluetooth
audio headphones mains charger.


Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).




"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.

*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.

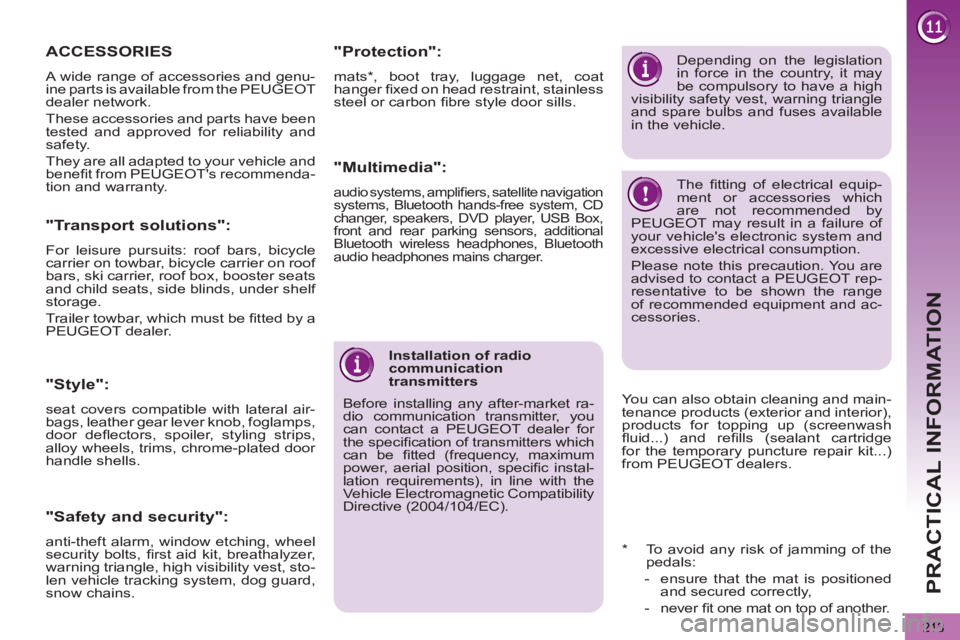

ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.


"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.
Depending on the legislation
in force in the country, it may
be compulsory to have a high
visibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.








"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.

You can also obtain cleaning and main-
tenance products (exterior and interior),
products for topping up (screenwash
fl uid...) and refi lls (sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.

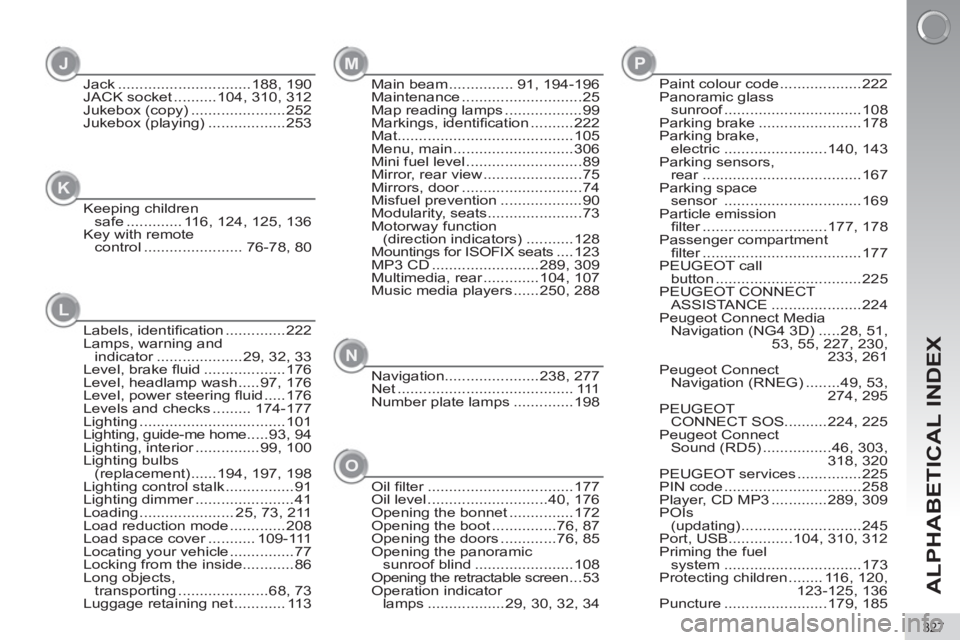

ALPHABETICAL INDEX
327
Main beam ............... 91, 194-196
Maintenance ............................25
Map reading lamps ..................99
Markings, identifi cation ..........222
Mat.........................................105
Menu, main ............................306
Mini fuel level ...........................89
Mirror, rear view .......................75
Mirrors, door ............................74
Misfuel prevention ...................90
Modularity, seats ......................73
Motorway function
(direction indicators) ...........128
Mountings for ISOFIX seats ....123
MP3 CD .........................289, 309
Multimedia, rear .............104, 107
Music media players ......250, 288
M
Navigation......................238, 277
Net ......................................... 111
Number plate lamps ..............198
N
Paint colour code ...................222
Panoramic glass
sunroof ................................108
Parking brake ........................178
Parking brake,
electric ........................140, 143
Parking sensors,
rear .....................................167
Parking space
sensor ................................169
Particle emission
fi lter .............................177, 178
Passenger compartment
fi lter .....................................177
PEUGEOT call
button ..................................225
PEUGEOT CONNECT
ASSISTANCE .....................224
Peugeot Connect Media
Navigation (NG4 3D) .....28, 51,
53, 55, 227, 230,
233, 261
Peugeot Connect
Navigation (RNEG) ........49, 53,
274, 295
PEUGEOT
CONNECT SOS ..........224, 225
Peugeot Connect
Sound (RD5) ................46, 303,
318, 320
PEUGEOT services ...............225
PIN code ................................258
Player, CD MP3 .............289, 309
POIs
(updating) ............................245
Port, USB...............104, 310, 312
Priming the fuel
system ................................173
Protecting children ........ 116, 120,
123-125, 136
Puncture ........................179, 185
P
Jack ...............................188, 190
JACK socket ..........104, 310, 312
Jukebox (copy) ......................252
Jukebox (playing) ..................253
J
Keeping children
safe ............. 116, 124, 125, 136
Key with remote
control ....................... 76-78, 80
K
Labels, identifi cation ..............222
Lamps, warning and
indicator ....................29, 32, 33
Level, brake fl uid ...................176
Level, headlamp wash .....97, 176
Level, power steering fl uid .....176
Levels and checks ......... 174-177
Lighting ..................................101
Lighting, guide-me home .....93, 94
Lighting, interior ...............99, 100
Lighting bulbs
(replacement) ......194, 197, 198
Lighting control stalk ................91
Lighting dimmer .......................41
Loading ...................... 25, 73, 211
Load reduction mode .............208
Load space cover ........... 109-111
Locating your vehicle ...............77
Locking from the inside............86
Long objects,
transporting .....................68, 73
Luggage retaining net ............ 113
L
Oil fi lter ..................................177
Oil level ............................40, 176
Opening the bonnet ...............172
Opening the boot ...............76, 87
Opening the doors .............76, 85
Opening the panoramic
sunroof blind .......................108
Opening the retractable screen ...53
Operation indicator
lamps ..................29, 30, 32, 34
O
