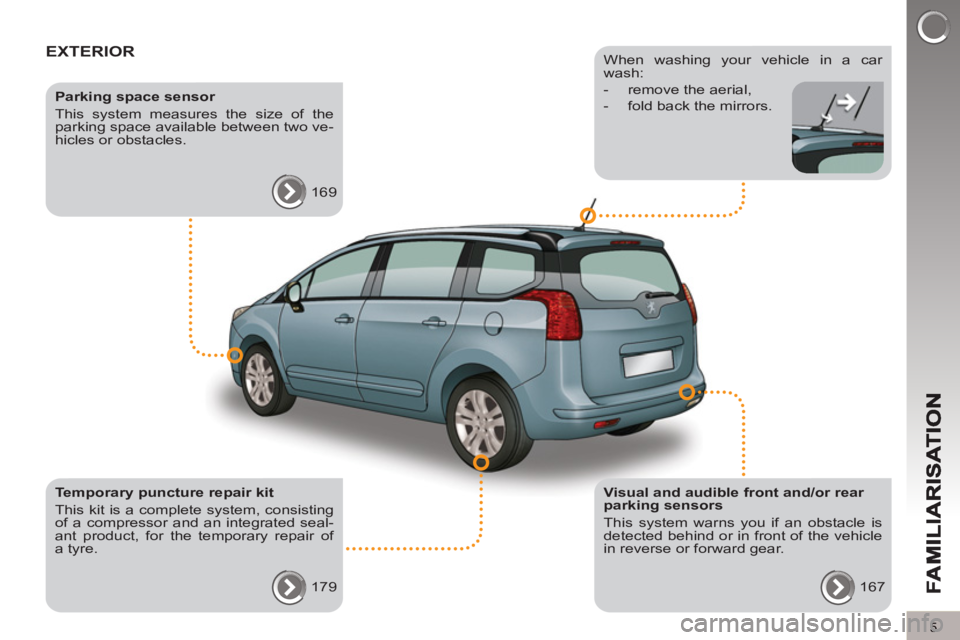

EXTERIOR


Visual and audible front and/or rear
parking sensors
This system warns you if an obstacle is
detected behind or in front of the vehicle
in reverse or forward gear.
167

Parking space sensor
This system measures the size of the
parking space available between two ve-
hicles or obstacles.
169

Temporary puncture repair kit
This kit is a complete system, consisting
of a compressor and an integrated seal-
ant product, for the temporary repair of
a tyre.
179
When washing your vehicle in a car
wash:


- remove the aerial,

- fold back the mirrors.

FA
M
9

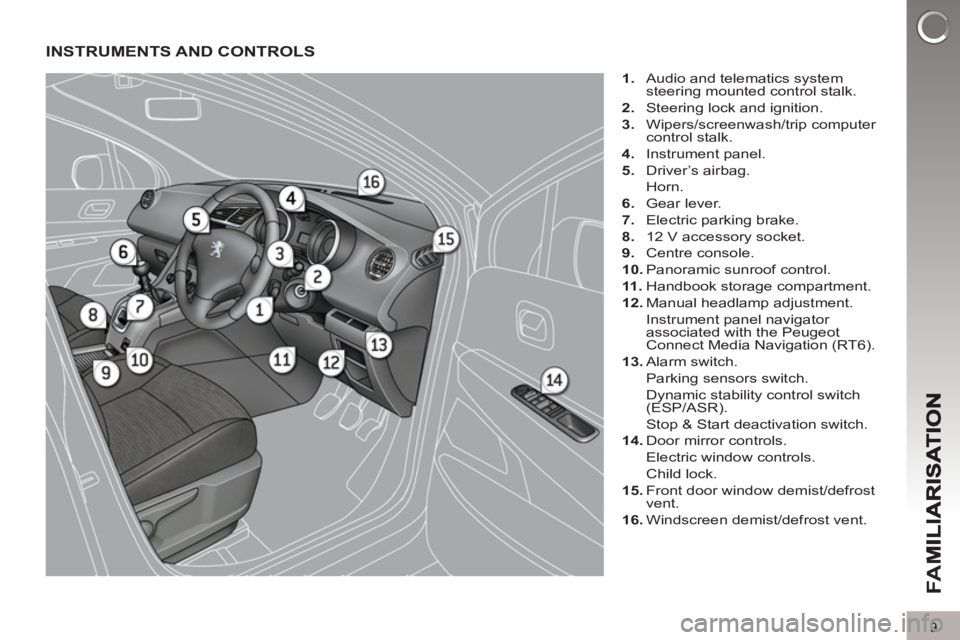

INSTRUMENTS AND CONTROLS


1.
Audio and telematics system
steering mounted control stalk.

2.
Steering lock and ignition.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
12 V accessory socket.

9.
Centre console.

10.
Panoramic sunroof control.

11 .
Handbook storage compartment.

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation (RT6).

13.
Alarm switch.
Parking sensors switch.
Dynamic stability control switch
(ESP/ASR).
Stop & Start deactivation switch.

14.
Door mirror controls.
Electric window controls.
Child lock.

15.
Front door window demist/defrost
vent.

16.
Windscreen demist/defrost vent.

FA
M
16
MONITORING

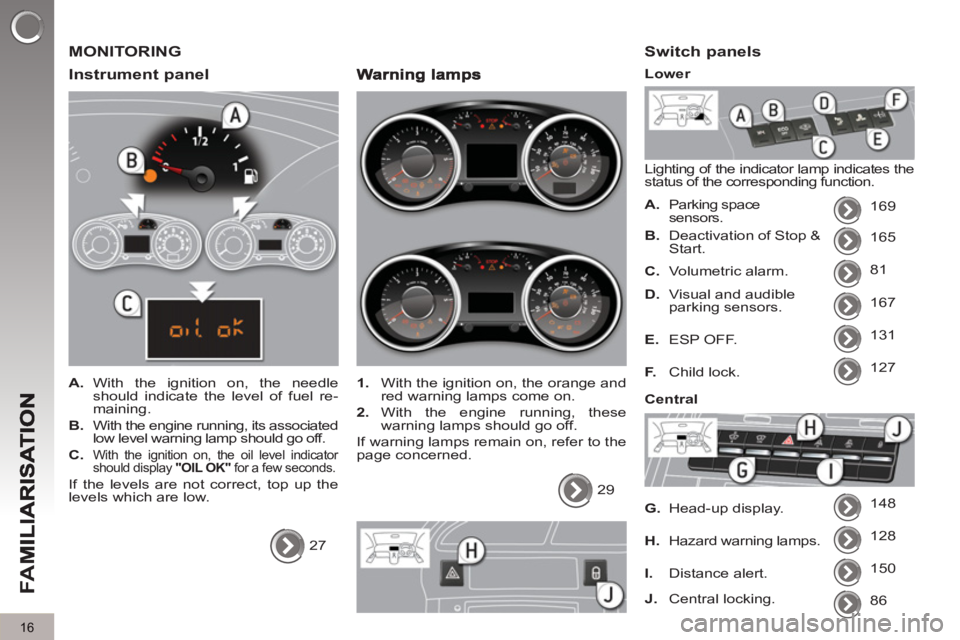

Instrument
panel



A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.

With the ignition on, the oil level indicator
should display "OIL OK"
for a few seconds.

If the levels are not correct, top up the
levels which are low.
27



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29


Switch panels

Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Parking space
sensors. 169
165
81
167
131
127
148
128
B.
Deactivation of Stop &
Start.

C.
Volumetric alarm.

D.
Visual and audible
parking sensors.

E.
ESP OFF.

F.
Child lock.

G.
Head-up display.

H.
Hazard warning lamps.
Lower


Central

150

I.
Distance alert.
86

J.
Central locking.

31
IN
S


Warning lamp



is on



Cause



Action/Observations




Deactivation
of the
automatic
functions of
the electric
parking brake


fi xed. The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via
the vehicle confi guration menu or contact a
PEUGEOT dealer or a qualifi ed workshop.


Foot on the
brake pedal


fi xed. The brake pedal must be
pressed. Press the brake pedal to start the engine with
the 6-speed electronic gear control gearbox
(lever in position N
) or automatic gearbox
(lever in position P
).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

fl ashing. In the case of an electronic
gear control gearbox, if you
hold the vehicle on an incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.


Parking space
sensors


fi xed. The parking space sensors
function is active. Press the corresponding button to deactivate it.

fl ashing. The system is measuring the
space. Once the measurement has been done, the
warning lamp comes on fi xed again.




Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.

fl ashes
for a few
seconds,
then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.

CO
59

The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer.

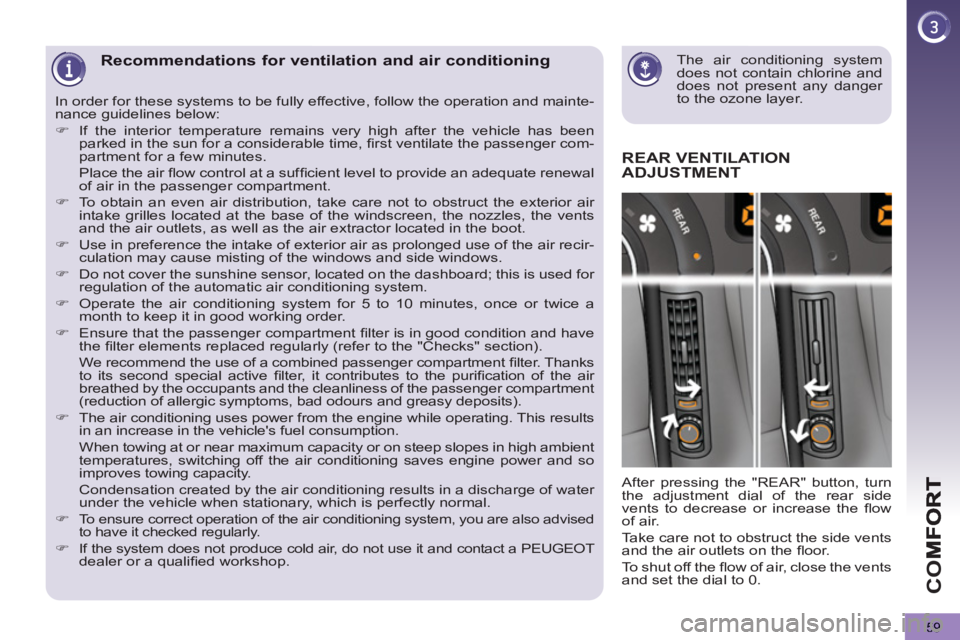

Recommendations for ventilation and air conditioning
REAR VENTILATION
ADJUSTMENT
After pressing the "REAR" button, turn
the adjustment dial of the rear side
vents to decrease or increase the fl ow
of air.
Take care not to obstruct the side vents
and the air outlets on the fl oor.
To shut off the fl ow of air, close the vents
and set the dial to 0. In order for these systems to be fully effective, follow the operation and mainte-
nance guidelines below:


)
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, fi rst ventilate the passenger com-
partment for a few minutes.
Place the air fl ow control at a suffi cient level to provide an adequate renewal
of air in the passenger compartment.

)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

)
Use in preference the intake of exterior air as prolonged use of the air recir-
culation may cause misting of the windows and side windows.

)
Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.

)
Operate the air conditioning system for 5 to 10 minutes, once or twice a
month to keep it in good working order.

)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter. Thanks
to its second special active fi lter, it contributes to the purifi cation of the air
breathed by the occupants and the cleanliness of the passenger compartment
(reduction of allergic symptoms, bad odours and greasy deposits).

)
The air conditioning uses power from the engine while operating. This results
in an increase in the vehicle's fuel consumption.
When towing at or near maximum capacity or on steep slopes in high ambient
temperatures, switching off the air conditioning saves engine power and so
improves towing capacity.
Condensation created by the air conditioning results in a discharge of water
under the vehicle when stationary, which is perfectly normal.

)

To ensure correct operation of the air conditioning system, you are also advised
to have it checked regularly.

)
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer or a qualifi ed workshop.

CO
75

Adjustment



)

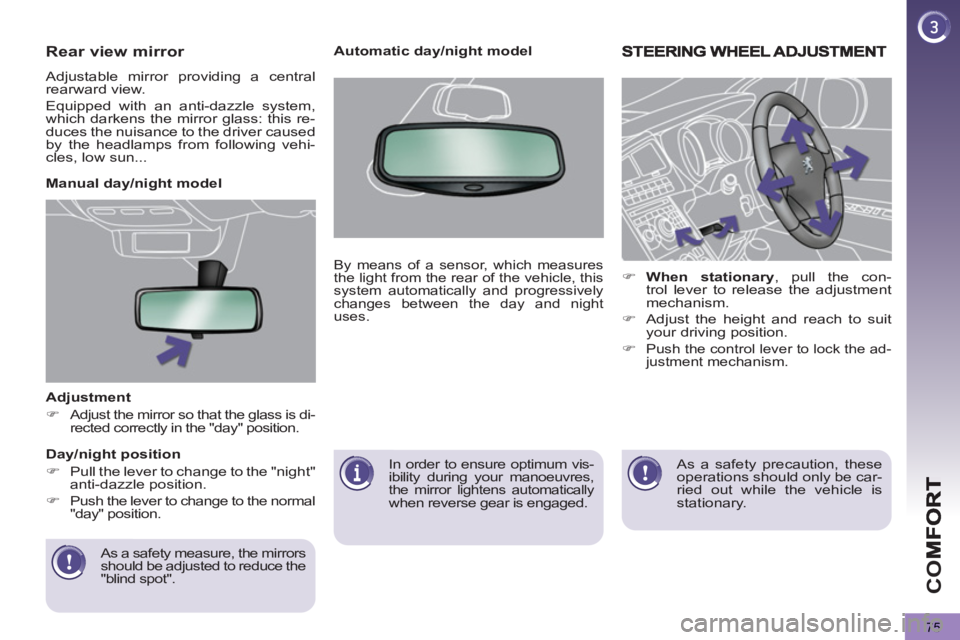

Adjust the mirror so that the glass is di-
rected correctly in the "day" position.


As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".


Manual day/night model

Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the normal
"day" position.


Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...


In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically when reverse gear is engaged.







Automatic day/night model

By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.


)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)

Push the control lever to lock the ad-
justment mechanism.

As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.

VIS
93
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)
A further "headlamp fl ash" switches
the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.


System which permits switching on of the
special lamps at the front (low power), so
that you can be seen during the daytime.
The daytime running lamps come on
automatically when the vehicle is start-
ed, if fi tted * .
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, except when the
lighting is switched on manually or au-
tomatically.

*
According to country.
EXTERIOR WELCOMELIGHTING

The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.
Switching on
Switchin
g off

Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
multifunction screen con-
fi guration menu.
Programming


The lighting duration is se-
lected via the vehicle con-
fi guration menu.
The duration of the welcome
lighting is associated with and
identical to that of the automat-
ic guide-me-home lighting.
In countries in which it is imposed by
regulations:


- by default, this function is activated,

- the sidelamps and the number plate
lamps are also switched on * .




)
Press the open padlock on
the remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.

In some weather conditions
(e.g. low temperature or hu-
midity), the presence of mist-
ing on the internal surface
of the glass of the headlamps and
rear lamps is normal; it disappears
after the lamps have been on for a
few minutes.


The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
