2011 PEUGEOT 4007 four wheel drive

7
89
1011
CONTENTS
3
Parking brake 112
Manual gearbox 112
CVT gearbox 113
DCS gearbox 115
Four wheel drive system 119
Cruise control 121
Audible rear parking sensors 123
Reversing camera 124







DRIVING 112 Î 124
Bonnet 126
Running out of fuel 126
Petrol engine 127
Diesel engine 128
Checking levels 129
Checks 130





CHECKS 125 Î 131
Changing a wheel 132
Changing a bulb 137
Changing a fuse 144
Battery 149
Changing a wiper blade 151
Towing 152
Towing a trailer 154
Fitting roof bars 155
Accessories 156








PRACTICAL
INFORMATION 132 Î 156
Engines 157
Weights 158
Dimensions 159
Identifi cation markings 160



TECHNICAL
DATA 157 Î 161
Audio CD system 162
CD changer 173
Error messages 175
Audio-Telematic System 176
Navigation 178
DVD mode 206
Hands-free telephone 214






AUDIO EQUIPMENT and
TELEMATICS 162 Î 221
VISUAL
SEARCH 222 Î 228
ALPHABETICAL
INDEX 229 Î 232

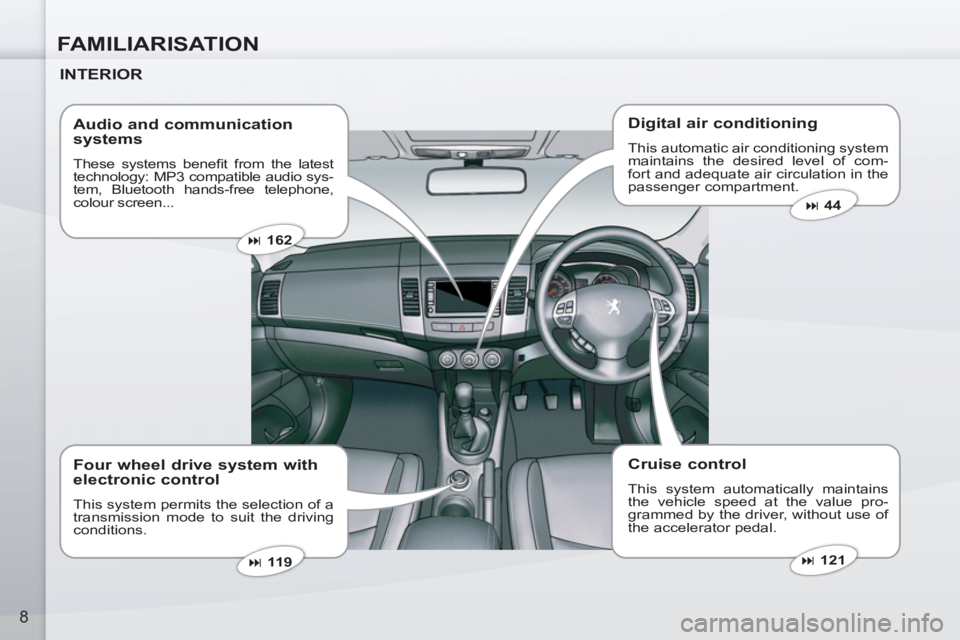

FAMILIARISATION
8

INTERIOR

Digital air conditioning

This automatic air conditioning system
maintains the desired level of com-
fort and adequate air circulation in the
passenger compartment.

Cruise control

This system automatically maintains
the vehicle speed at the value pro-
grammed by the driver, without use of
the accelerator pedal.

Audio and communication
systems
These systems benefi t from the latest
technology: MP3 compatible audio sys-
tem, Bluetooth hands-free telephone,
colour screen...

Four wheel drive system with
electronic control
This system permits the selection of a
transmission mode to suit the driving
conditions.


44




121



162




119

FAMILIARISATION
10

INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Door mirror controls.
Electric window and rear electric
window deactivation controls.

3.
Lighting and direction indicator
control stalk. Headlamp wash
control.

4.
Central adjustable air vents.

5.
Sunshine sensor.

6.
Cooled upper glove box.

7.
Lockable lower glove box.
Passenger’s airbag deactivation.
Fusebox.

8.
Heated seat controls.

9.
Armrest with storage
compartments.
12 volt socket (120 W max).

10.
Cup holder.

11 .
Four wheel drive system position
selector.

12.
Removable ashtray/
12 volt socket (120 W max).

13.
Automatic air conditioning controls.

14.
Temperature sensor.

15.
Hazard warning lamps switch.

16.
Colour screen/Audio system

FAMILIARISATION
18

Cruise control

This maintains a constant vehicle speed
programmed by the driver.


1.
"ON/OFF"
button: activation/de-
activation of cruise control mode.

2.
"COAST SET"
button: storing a
driving speed then decreasing the
cruising speed.

3.
"ACC RES"
button: increasing the
cruising speed and recalling the
stored speed.

4.
"CANCEL"
button: switching off the
cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged. This detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehicle.
The vehicle is fi tted with four sensors:

D.
two side sensors.

E.
two central sensors.


Audible rear parking sensors




121



123



DRIVING SAFELY

Four wheel drive system

Three transmission modes are avail-
able and can be selected manually by
the driver to suit the circumstances:

A. Two wheel drive (2WD),


B. Four wheel drive (4WD AUTO),


C. Four wheel drive (4WD LOCK).




119


Also...
You can change transmission
mode when stationary or when
driving at a speed below 60 mph
(100 km/h).

1

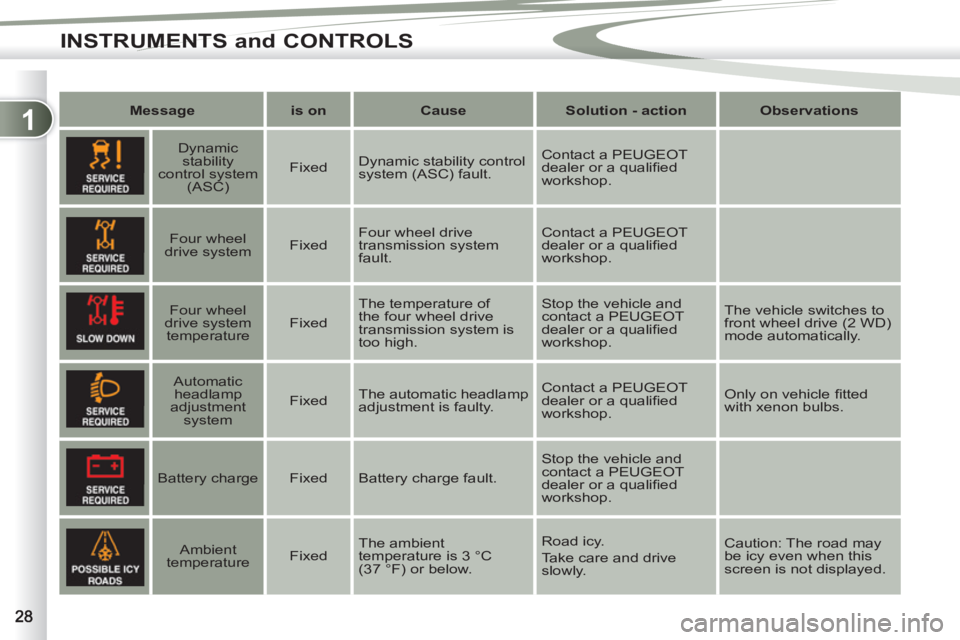

INSTRUMENTS and CONTROLS


Message



is on



Cause



Solution - action



Observations








Dynamic
stability
control system
(ASC)
Fixed Dynamic stability control
system (ASC) fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.






Four wheel
drive system
Fixed Four wheel drive
transmission system
fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.





Four wheel
drive system
temperature
Fixed The temperature of
the four wheel drive
transmission system is
too high. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop. The vehicle switches to
front wheel drive (2 WD)
mode automatically.





Automatic
headlamp
adjustment
system
Fixed The automatic headlamp
adjustment is faulty. Contact a PEUGEOT
dealer or a qualifi ed
workshop. Only on vehicle fi tted
with xenon bulbs.




Battery charge
Fixed Battery charge fault. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop.





Ambient
temperature
Fixed The ambient
temperature is 3 °C
(37 °F) or below. Road icy.
Take care and drive
slowly. Caution: The road may
be icy even when this
screen is not displayed.

1
INSTRUMENTS and CONTROLS

Prevention messages




Information messages (ignition at "ON")



Message



is on



Status of the system







2WD two wheel
drive system
Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.




4WD four wheel
drive system
Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.




4WD LOCK four
wheel drive system
Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.




Ambient
temperature
Fixed This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mph
(20 km/h) the temperature displayed may not be the true
temperature.


Display



is on



Cause



Solution - action



Observations







Service
indicator
Fixed Informs the driver of
the time remaining
before the vehicle’s
scheduled service. Contact a
PEUGEOT dealer
or a qualifi ed
workshop. This is displayed for a few
seconds when the ignition is
switched on.




Break
advised
Fixed Informs the driver that
they should stop to
take a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard
every 5 minutes until the
vehicle stops.

7
DRIVING

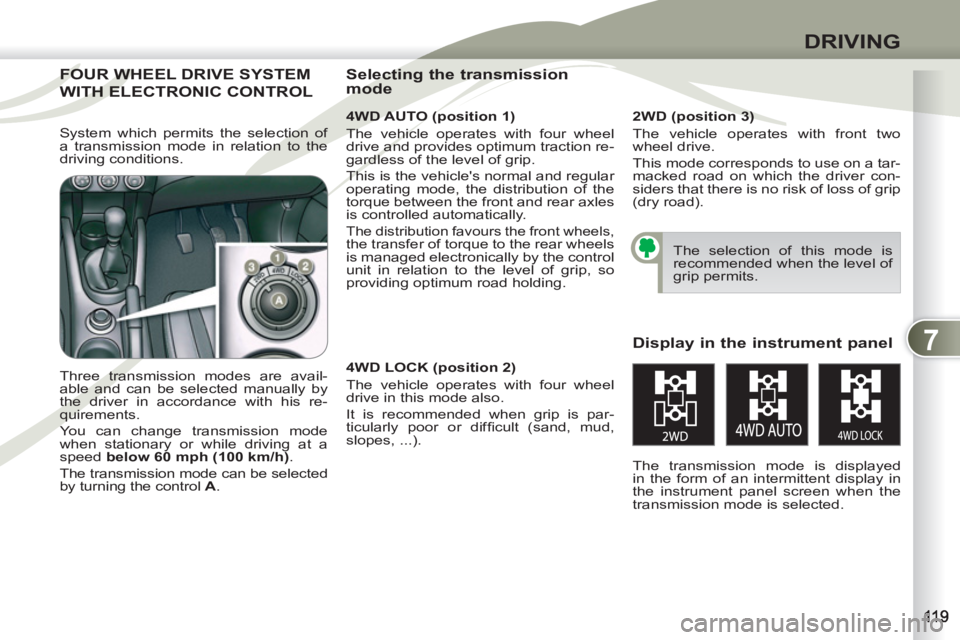

FOUR WHEEL DRIVE SYSTEMFOUR WH
WITH ELECTRONIC CONTROL WITH E

4WD AUTO (position 1)
The vehicle operates with four wheel
drive and provides optimum traction re-
gardless of the level of grip.
This is the vehicle's normal and regular
operating mode, the distribution of the
torque between the front and rear axles
is controlled automatically.
The distribution favours the front wheels, the transfer of torque to the rear wheels
is managed electronically by the control
unit in relation to the level of grip, so
providing optimum road holding.
Three transmission modes are avail-
able and can be selected manually by
the driver in accordance with his re-
quirements.
You can change transmission mode
when stationary or while driving at a
speed below 60 mph (100 km/h)
.
The transmission mode can be selected
by turning the control A
.


Display in the instrument panel

The transmission mode is displayed
in the form of an intermittent display in
the instrument panel screen when the
transmission mode is selected.

Selecting the transmission
mode
The selection of this mode is
recommended when the level of
grip permits.

2WD (position 3)
The vehicle operates with front two
wheel drive.
This mode corresponds to use on a tar-
macked road on which the driver con-
siders that there is no risk of loss of grip
(dry road).

4WD LOCK (position 2)
The vehicle operates with four wheel
drive in this mode also.
It is recommended when grip is par-
ticularly poor or diffi cult (sand, mud,
slopes, ...). System which permits the selection of
a transmission mode in relation to the
driving conditions.

7
DRIVING

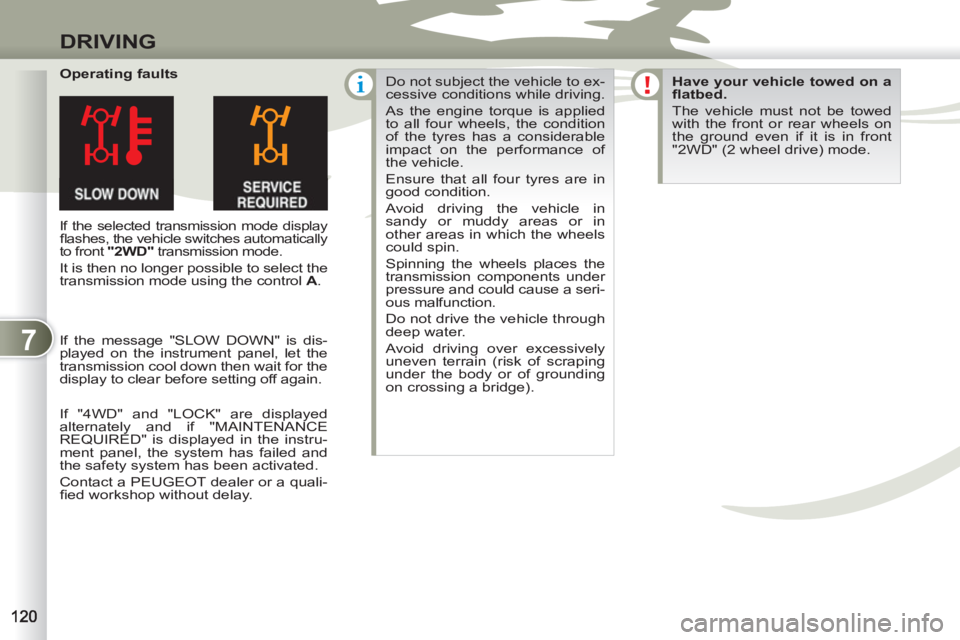

Operating faults

If the selected transmission mode display
fl ashes, the vehicle switches automatically
to front "2WD"
transmission mode.

It is then no longer possible to select the
transmission mode using the control A
. Do not subject the vehicle to ex-
cessive conditions while driving.
As the engine torque is applied
to all four wheels, the condition
of the tyres has a considerable
impact on the performance of
the vehicle.
Ensure that all four tyres are in
good condition.
Avoid driving the vehicle in
sandy or muddy areas or in
other areas in which the wheels
could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a seri-
ous malfunction.
Do not drive the vehicle through
deep water.
Avoid driving over excessively
uneven terrain (risk of scraping
under the body or of grounding
on crossing a bridge).
Have your vehicle towed on a
fl atbed.

The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.


If the message "SLOW DOWN" is dis-
played on the instrument panel, let the
transmission cool down then wait for the
display to clear before setting off again.
If "4WD" and "LOCK" are displayed
alternately and if "MAINTENANCE
REQUIRED" is displayed in the instru-
ment panel, the system has failed and
the safety system has been activated.
Contact a PEUGEOT dealer or a quali-
fi ed workshop without delay.
