9
PRACTICAL INFORMATION

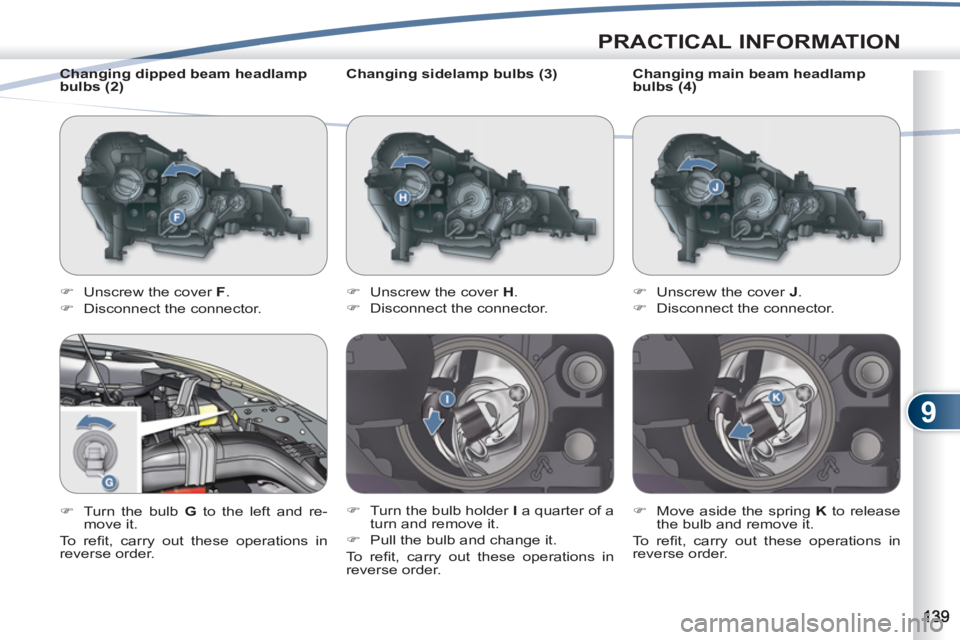

Changing sidelamp bulbs (3)
)
Unscrew the cover H
.
)
Disconnect the connector.
)
Turn the bulb holder I
a quarter of a
turn and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
)
Unscrew the cover F
.
)
Disconnect the connector.
)
Turn the bulb G
to the left and re-
move it.
To r efi t, carry out these operations in
reverse order.
Changing dipped beam headlamp
bulbs (2)
Changing main beam headlamp
bulbs (4)
)
Unscrew the cover J
.
)
Disconnect the connector.
)
Move aside the spring K
to release
the bulb and remove it.
To r efi t, carry out these operations in
reverse order.
Page 147 of 236
9
PRACTICAL INFORMATION
Dashboard fuses
The fuseboxes are placed in the lower
dashboard behind the glove box.
Access to the fuses
)
Open the glove box,
)
Push the two opening guides A
in-
wards to pass the fi rst notch,
)
Remove the retaining tab B
pulling
it outwards,
)
Support the cover and tilt it down-
wards,
)
Change the fuse (refer to the cor-
responding paragraph).
Fuse N°
Rating
Functions
1
30 A
Heating.
2
15 A
Brake lamps, third brake lamp, built-in systems
interface.
3
10 A
Rear foglamps.
4
30 A
Windscreen wipers and screenwash.
5
10 A
Diagnostic socket.
6
20 A
Central locking, door mirrors.
7
15 A
Audio system, telematics, multifunction screen,
hands-free kit.
8
7.5 A
Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9
15 A
Multifunction screen, instrument panel.
10
15 A
Built-in systems interface.
11
15 A
Rear wiper.
12
7.5 A
Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13
-
Not used.
14
10 A
Ignition switch.
15
20 A
Sunroof.
16
10 A
Door mirrors, audio system, telematics.
Page 149 of 236
9
PRACTICAL INFORMATION
Engine compartment fuses
The fuse box is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses
)
Open the bonnet (refer to the "Access" section),
)
Press on the hook A
to release the catch,
)
Remove the cover completely,
)
Change the fuse (refer to the corresponding paragraph).
)
When you have fi nished, close the cover carefully to en-
sure sealing of the fusebox.
Fuse N°
Rating
Functions
1
15 A
Front foglamps.
2
7 A
2.4 litre 16V engine control unit.
3
20 A
CVT automatic gearbox control unit,
CVT automatic gearbox control relay.
4
10 A
Horn.
5
7.5 A
2.4 litre 16V alternator.
6
20 A
Headlamp wash.
7
10 A
Air conditioning.
8
15 A
2.4 litre 16V engine control unit.
9
-
Not used.
10
15 A
Demisting, wipers.
11
-
Not used.
12
-
Not used.
13
-
Not used.
14
10 A
Left-hand main beam headlamp.
15
10 A
Right-hand main beam headlamp.
16
20 A
Left-hand dipped beam headlamp (xenon).
17
20 A
Right-hand dipped beam headlamp (xenon).
18
10 A
Left-hand dipped beam headlamp, manual
and automatic headlamp adjustment.
19
10 A
Right-hand dipped beam headlamp.
20
-
Not used.
21
10 A
Ignition coils.
Page 224 of 236
VISUAL SEARCH
EXTERIOR FRONT
Sunroof ........................................ 82-83
Windscreen wipers ...................... 90-91
Rain sensor .......................................90
Opening the bonnet .........................126
Engine ..................................... 127-128
Towing .............................................152
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................160
Brake pads ......................................131
Alloy wheels ....................................132 Remote control key, starting,
battery....................................... 73-76
Central locking ...................................79
Door mirrors ......................................61
Opening/closing the doors ........... 79-80
Filler cap, fi lling the fuel tank .............84
Fuel gauge ........................................84
Lighting, direction indicators,
foglamps, headlamps ............... 86-89
Changing bulbs ....................... 137-140
Page 227 of 236
VISUAL SEARCH
STEERING MOUNTED CONTROLS
Lighting ........................................ 86-88
- dipped beam headlamps,
- main beam headlamps,
- foglamps.
Automatic illumination of headlamps ... 88
Headlamp wash .................................90
Audio system controls .............162, 176
Headlamp adjustment .......................89
Parking sensors ....................... 123-124
ASC .................................................104
Steering wheel, adjustment ...............63
Horn .................................................102
Airbags ..................................... 108-111 Telephone controls ..........................214 Wipers ......................................... 90-91
Screenwash ................................. 90-91
Cruise control .......................... 121-122
Page 229 of 236
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE
Checking the levels ................. 129-131
- fuel supply,
- engine oil dipstick,
- power steering fl uid,
- brake fl uid,
- coolant.
Screen/headlamp wash,
fi lling reservoir ...................... 127-129
Bulbs ....................................... 137-143
Changing bulbs ....................... 137-143 Engine technical data ......................157
Weights, loads .................................158
Dimensions ......................................159
Identifi cation markings .....................160
Opening the bonnet, stay ................126
Underbonnet view ................... 127-128 Air/oil fi lters, checks ................. 129-131
Fuses ....................................... 144-148
Battery ..................................... 149-150
Page 231 of 236

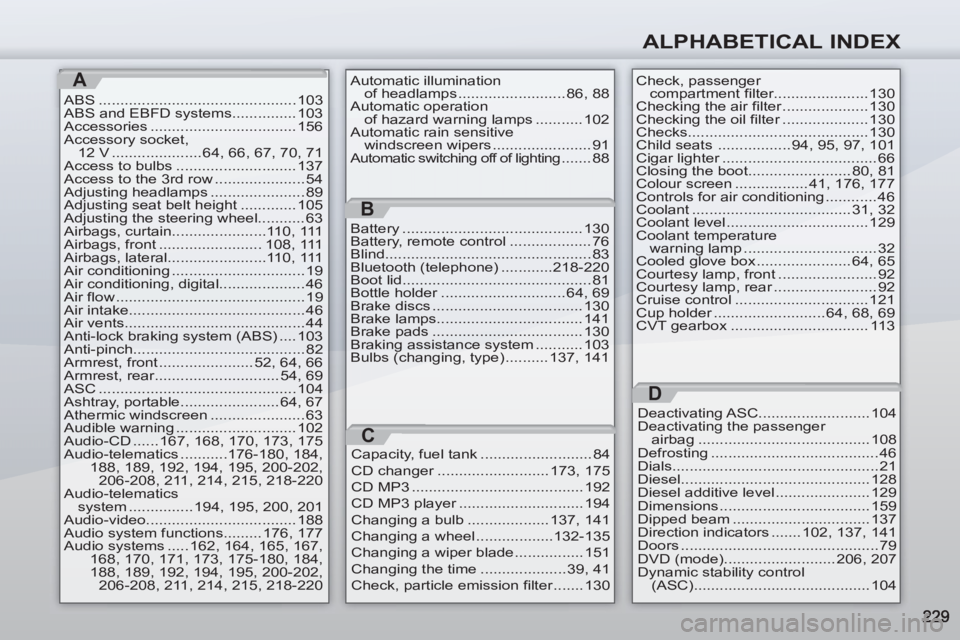

ALPHABETICAL INDEX
A
ABS .............................................. 103
ABS and EBFD systems............... 103
Accessories .................................. 156
Accessory socket,
12 V ..................... 64, 66, 67, 70, 71
Access to bulbs ............................ 137
Access to the 3rd row ..................... 54
Adjusting headlamps ...................... 89
Adjusting seat belt height ............. 105
Adjusting the steering wheel........... 63
Airbags, curtain......................110, 111
Airbags, front ........................ 108, 111
Airbags, lateral.......................110, 111
Air conditioning ............................... 19
Air conditioning, digital.................... 46
Air flow ............................................ 19
Air intake......................................... 46
Air vents.......................................... 44
Anti-lock braking system (ABS) .... 103
Anti-pinch........................................ 82
Armrest, front ...................... 52, 64, 66
Armrest, rear ............................. 54, 69
ASC .............................................. 104
Ashtray, portable ....................... 64, 67
Athermic windscreen ...................... 63
Audible warning ............................ 102
Audio-CD ...... 167, 168, 170, 173, 175
Audio-telematics ...........176-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220
Audio-telematics
system ............... 194, 195, 200, 201
Audio-video................................... 188
Audio system functions......... 176, 177
Audio systems ..... 162, 164, 165, 167,
168, 170, 171, 173, 175-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220Automatic illumination
of headlamps ......................... 86, 88
Automatic operation
of hazard warning lamps ........... 102
Automatic rain sensitive
windscreen wipers ....................... 91
Automatic switching off of lighting ....... 88
Battery .......................................... 130
Battery, remote control ................... 76
Blind................................................ 83
Bluetooth (telephone) ............218-220
Boot lid............................................ 81
Bottle holder ............................. 64, 69
Brake discs ................................... 130
Brake lamps.................................. 141
Brake pads ................................... 130
Braking assistance system ........... 103
Bulbs (changing, type) .......... 137, 141Check, passenger
compartment filter ...................... 130
Checking the air filter .................... 130
Checking the oil filter .................... 130
Checks.......................................... 130
Child seats ................. 94, 95, 97, 101
Cigar lighter .................................... 66
Closing the boot........................ 80, 81
Colour screen ................. 41, 176, 177
Controls for air conditioning ............ 46
Coolant ..................................... 31, 32
Coolant level ................................. 129
Coolant temperature
warning lamp ............................... 32
Cooled glove box ...................... 64, 65
Courtesy lamp, front ....................... 92
Courtesy lamp, rear ........................ 92
Cruise control ............................... 121
Cup holder .......................... 64, 68, 69
CVT gearbox ................................ 113
B
Capacity, fuel tank .......................... 84
CD changer .......................... 173, 175
CD MP3 ........................................ 192
CD MP3 player ............................. 194
Changing a bulb ................... 137, 141
Changing a wheel ..................132-135
Changing a wiper blade ................ 151
Changing the time .................... 39, 41
Check, particle emission filter ....... 130
C
Deactivating ASC.......................... 104
Deactivating the passenger
airbag ........................................ 108
Defrosting ....................................... 46
Dials................................................ 21
Diesel............................................ 128
Diesel additive level ...................... 129
Dimensions ................................... 159
Dipped beam ................................ 137
Direction indicators ....... 102, 137, 141
Doors .............................................. 79
DVD (mode).......................... 206, 207
Dynamic stability control
(ASC) ......................................... 104
D
Page 232 of 236

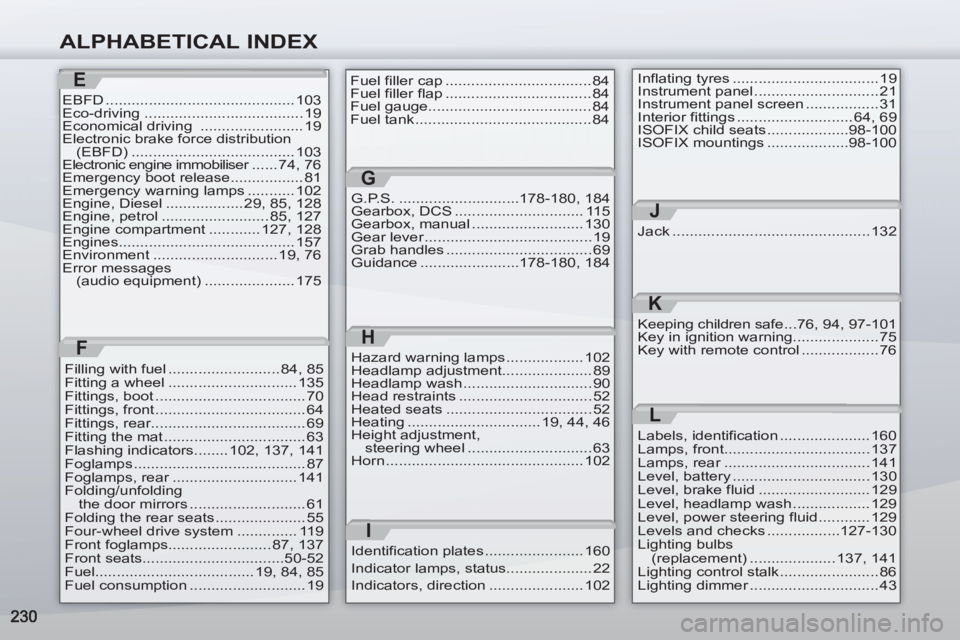

ALPHABETICAL INDEX
E
EBFD ............................................ 103
Eco-driving ..................................... 19
Economical driving ........................ 19
Electronic brake force distribution
(EBFD) ...................................... 103
Electronic engine immobiliser ...... 74, 76
Emergency boot release................. 81
Emergency warning lamps ........... 102
Engine, Diesel .................. 29, 85, 128
Engine, petrol ......................... 85, 127
Engine compartment ............ 127, 128
Engines......................................... 157
Environment ............................. 19, 76
Error messages
(audio equipment) ..................... 175Fuel filler cap .................................. 84
Fuel filler flap .................................. 84
Fuel gauge...................................... 84
Fuel tank ......................................... 84Inflating tyres .................................. 19
Instrument panel ............................. 21
Instrument panel screen ................. 31
Interior fittings ........................... 64, 69
ISOFIX child seats ...................98-100
ISOFIX mountings ...................98-100
K
Keeping children safe ...76, 94, 97-101
Key in ignition warning.................... 75
Key with remote control .................. 76
Filling with fuel .......................... 84, 85
Fitting a wheel .............................. 135
Fittings, boot ................................... 70
Fittings, front ................................... 64
Fittings, rear.................................... 69
Fitting the mat ................................. 63
Flashing indicators........ 102, 137, 141
Foglamps ........................................ 87
Foglamps, rear ............................. 141
Folding/unfolding
the door mirrors ........................... 61
Folding the rear seats ..................... 55
Four-wheel drive system .............. 119
Front foglamps........................ 87, 137
Front seats.................................50-52
Fuel..................................... 19, 84, 85
Fuel consumption ........................... 19
F
G.P.S. ............................178-180, 184
Gearbox, DCS .............................. 115
Gearbox, manual .......................... 130
Gear lever ....................................... 19
Grab handles .................................. 69
Guidance .......................178-180, 184
G
H
Hazard warning lamps .................. 102
Headlamp adjustment..................... 89
Headlamp wash .............................. 90
Head restraints ............................... 52
Heated seats .................................. 52
Heating ............................... 19, 44, 46
Height adjustment,
steering wheel ............................. 63
Horn .............................................. 102
L
Labels, identification ..................... 160
Lamps, front.................................. 137
Lamps, rear .................................. 141
Level, battery ................................ 130
Level, brake fluid .......................... 129
Level, headlamp wash .................. 129
Level, power steering fluid ............ 129
Levels and checks .................127-130
Lighting bulbs
(replacement) .................... 137, 141
Lighting control stalk ....................... 86
Lighting dimmer .............................. 43
J
Jack .............................................. 132
I
Identification plates ....................... 160
Indicator lamps, status.................... 22
Indicators, direction ...................... 102
