SAFETY













For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper
the operation of the airbags or injure
the occupants.


Lateral airbags
Use only approved covers on the seats, compatible with the deployment the
lateral airbags. For information on the range of seat covers suitable for your
vehicle, you can contact a PEUGEOT dealer (see "Practical information - §
Accessories").
Do not fi x or attach anything to the seat backs (clothing...). This could cause
injury to the chest or arms if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.

After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system must
be carried out by a PEUGEOT dealer
or a qualifi ed workshop.

Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is deployed
cannot be ruled out. The bag in-
fl ates almost instantly (within a few
milliseconds) then defl ates within
the same time discharging the hot
gas via openings provided for this
purpose.
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.


Curtain airbags
Do not fi x or attach anything to the roof. This could cause injury to the head if
the curtain airbag is deployed.
If fi tted on your vehicle, do not remove the grab handles installed on the roof,
they play a part in securing the curtain airbags.

7
DRIVING

Gear lever positions


N
: neutral.
With your foot on the brake, select this
position to start.

R
: reverse gear.
With the vehicle stationary, keep your
foot on the brake pedal and push the
gear lever forwards.

D
: automated mode.
Move the lever backwards to select this
mode.
+/-: sequential mode with manual gear
changing.

Functions of the steering
mounted control paddles

+
: manual gear changing in sequential
mode.
Press behind the "+"
steering mounted
control paddle to change up.

-
: manual gear changing in sequential
mode.
Press behind the "-"
steering mounted
control paddle to change down.
- a "-"
steering mounted control pad-
dle 2
for sequential downward gear
changes,

- a "+"
steering mounted control pad-
dle 3
for sequential upward gear
changes. Move the lever backwards, then to the
left to select this mode, then:


- push forward to change up,

- push backward to change down.



Moving off

Select position N
.
CVT GEARBOXCVT GEA

The six-speed automatic gearbox of-
fers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
This gearbox has two driving modes:


- an automated mode for automatic
control of the gears by the gearbox
and therefore without any action on
the part of the driver,

- a sequential mode for manual
changing of the gears by the driver
using the steering mounted controls
or the gear lever.
It consists of the following controls:


- a gear lever 1
on the centre console
for selecting the driving mode, reverse
gear and neutral or for changing gear
in sequential mode,

7
DRIVING

Stopping - Starting on a slope


Do not use the accelerator pedal to
immobilise the vehicle on a slope,
apply the parking brake instead.

When starting on a slope, accelerate
gradually while releasing the parking
brake.


Switching to sequential mode

Once you have moved off, you can
switch to sequential mode by selecting
position +/-
.

"D"
disappears and the gears engaged
appear in succession in the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear.

Switching to automated mode


Automated mode
After using the sequential mode, you
can return to the automated mode by
selecting position D
.

"D"
appears in the instrument panel
screen.
The gearbox then operates in auto-active
mode, without any action on the part of
the driver.
It continuously selects the gear most
suited to the conditions of:


- driving style,

- road characteristics,

- vehicle load.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp vari-
ations in the pressure on the accelerator
pedal.

Auto sequential mode
In the automated mode, you can take
over control temporarily at any time
using the steering mounted controls.
The use of these controls permits manual
selection of the gears in situations which
require a faster changedown than that
offered in automated mode (arrival at a
roundabout, exit from a car park with a
steep gradient, overtaking...).
Stopping the vehicle

Before switching off the engine, you can:


- move to position N
to leave the
gearbox in neutral.

- leave a gear engaged, such as fi rst
or reverse.
In both cases, you must apply the parking
brake to immobilise the vehicle.


Operating anomaly

With the ignition on, if the message "Slow down"
or "Maintenance required"
ap-
pears in the multifunction screen, this in-
dicates a gearbox malfunction.
When a message is displayed, carry
out the following operations:


- slow down and stop your vehicle in
a safe place,

- place the lever in position N
and let
the engine run,

- open the bonnet to allow the engine
to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or ap-
pears frequently, contact a PEUGEOT
dealer or a qualifi ed workshop without
delay.
Press the brake pedal fi rmly
while starting the engine.

Start the engine. "N"
appears in the in-
strument panel screen.
Select fi rst gear (position D
or +/-
) or
reverse (position R
).
Release the parking brake.
Release the brake pedal then accelerate.

"D"
or "1"
or "R"
appear in the instru-
ment panel screen. The gearbox engages the gear re-
quested if the engine speed permits it.
The gear engaged appears.
To return to the automated mode, press
the back of the "+/OFF"
control for ap-
proximately 2 seconds.
At low speeds, when approaching a
stop or traffi c lights for example, the
gearbox changes down to fi rst gear au-
tomatically.

7
DRIVING
DCS GEARBOX DCS GEA
The six-speed electronically controlled
gearbox offers a choice between the
comfort of automatic regulation or the
pleasure of manual gear changing.
This gearbox has three driving modes:


- a manual
mode for changing of the
gears by the driver using the steering
mounted controls or the gear lever,

- a " Normal
" automatic mode for eco-
nomical control of the gears (everyday
use),

- a " Sport
" automatic mode which
permits a more dynamic style of
driving, with improved acceleration
and optimised engine braking.


Displays in the instrument
panel
When you move the lever in the gate
to select a position, the corresponding
indicator or message is displayed in the
instrument panel.

P.
Park.

R.
Reverse.

N.
Neutral.

D.
Drive (Automatic mode).

NORMAL.
Normal mode.

SPORT.
Sport mode.

1,2,3,4,5,6.
Gear engaged during manual
operation.


Gear lever positions


P
: park.
With your foot on the brake,
this position permits starting of
the vehicle.
To exit position P
, raise the ring on the
gear lever.

R
: reverse gear.
With the vehicle stationary, keep your
foot on the brake pedal and push the
gear lever forwards.

N
: neutral.
With your foot on the brake, this position
also permits starting of the vehicle.

D
: automatic mode.
Move the lever rearwards.

+/-
: manual mode with gear changing
using the lever.

7
DRIVING

Moving off

Select position P
or N
.

Press the brake pedal fi rmly
while starting the engine.

Start the engine.

"P"
or "N"
appears in the instrument
panel screen.
Select fi rst gear ( D
or +/-
) or reverse ( R
).
Release the parking brake.
Release the brake pedal then accelerate.

"D"
or "1"
or "R"
appears in the instru-
ment panel screen.


Manual mode


Using the gear lever
Move the gear lever backwards, then to
the left to select position +/-
.
Push forwards ( +
) to change up.
Push backwards ( -
) to change down.
Using the steering mounted controls
Press behind the "+"
steering mounted
control paddle to change up.
Press behind the "-"
steering mounted
control paddle to change down.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear.
At low speeds, when approaching a
stop or traffi c lights for example, the
gearbox changes down to fi rst gear au-
tomatically.

7
DRIVING

Programming



)
Press button 1
.

)
Set the programmed speed by ac-
celerating to the required speed,
then press button 2 "COAST SET"
.

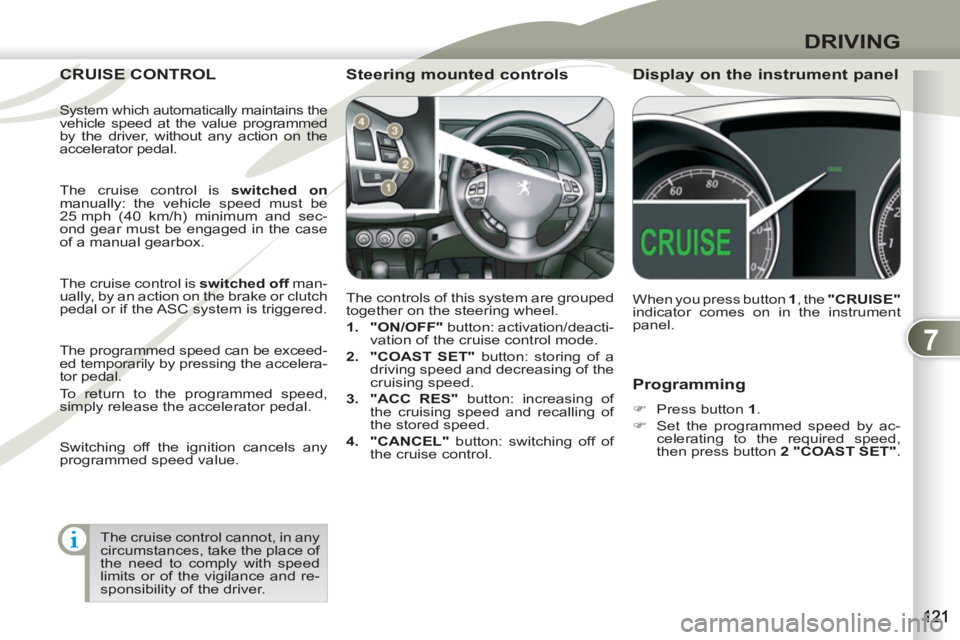

CRUISE CONTROL CRUISE C

The controls of this system are grouped
together on the steering wheel.


1.
"ON/OFF"
button: activation/deacti-
vation of the cruise control mode.

2.
"COAST SET"
button: storing of a
driving speed and decreasing of the
cruising speed.

3.
"ACC RES"
button: increasing of
the cruising speed and recalling of
the stored speed.

4.
"CANCEL"
button: switching off of
the cruise control.
When you press button 1
, the "CRUISE"

indicator comes on in the instrument
panel.


Steering mounted controls
Display on the instrument panel

The cruise control cannot, in any
circumstances, take the place of
the need to comply with speed
limits or of the vigilance and re-
sponsibility of the driver.


System which automatically maintains the vehicle speed at the value programmed
by the driver, without any action on the
accelerator pedal.

The cruise control is switched on

manually: the vehicle speed must be
25 mph (40 km/h) minimum and sec-
ond gear must be engaged in the case
of a manual gearbox.

The cruise control is switched off
man-
ually, by an action on the brake or clutch
pedal or if the ASC system is triggered.


The programmed speed can be exceed-
ed temporarily by pressing the accelera-
tor pedal.
To return to the programmed speed,
simply release the accelerator pedal.

Switching off the ignition cancels any
programmed speed value.

8
CHECKS
PETROL ENGINE


1.
Screenwash and headlamp wash
reservoir.

2.
Coolant reservoir.

3.
Power steering fl uid reservoir.

4.
Brake fl uid reservoir.

5.
Fusebox.

6.
Battery.

7.
CVT gearbox dipstick.

8.
Radiator cap.

9.
Engine oil dipstick.

10.
Engine oil fi ller cap.

11 .
Air fi lter. Access for checking the levels of the various fl uids and the replacement of certain components.

8
CHECKS
SEL ENGINEDIESEL EN
Access for checking the levels of the various fl uids and the replacement of certain components.


1.
Coolant reservoir.

2.
Power steering fl uid reservoir.

3.
Screenwash and headlamp wash
reservoir.

4.
Brake fl uid reservoir.

5.
Fusebox.

6.
Battery.

7.
Engine oil dipstick.

8.
Engine oil fi ller cap.

9.
Air fi lter.
