2011 PEUGEOT 4007 CD player

11
AUDIO EQUIPMENT and TELEMATICS

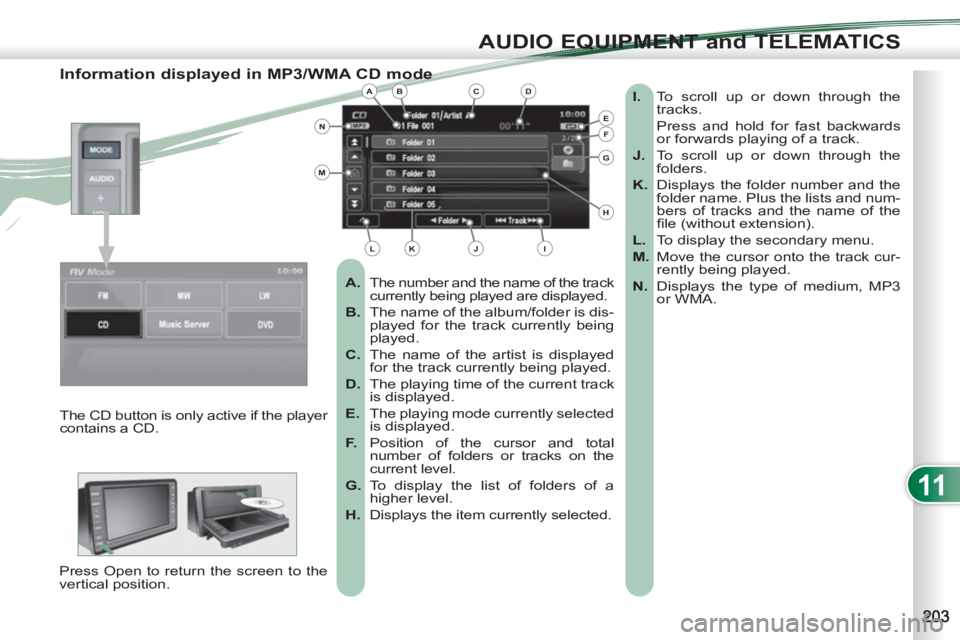

Information displayed in MP3/WMA CD mode



A.
The number and the name of the track
currently being played are displayed.

B.
The name of the album/folder is dis-
played for the track currently being
played.

C.
The name of the artist is displayed
for the track currently being played.

D.
The playing time of the current track
is displayed.

E.
The playing mode currently selected
is displayed.

F.
Position of the cursor and total
number of folders or tracks on the
current level.

G.
To display the list of folders of a
higher level.

H.
Displays the item currently selected.
I.
To scroll up or down through the
tracks.
Press and hold for fast backwards
or forwards playing of a track.

J.
To scroll up or down through the
folders.

K.
Displays the folder number and the
folder name. Plus the lists and num-
bers of tracks and the name of the
fi le (without extension).

L.
To display the secondary menu.

M.
Move the cursor onto the track cur-
rently being played.

N.
Displays the type of medium, MP3
or WMA.

The CD button is only active if the player
contains a CD.
Press Open to return the screen to the
vertical position.
ABC
EF
G
IKL
M
N
D
H
J

11
AUDIO EQUIPMENT and TELEMATICS

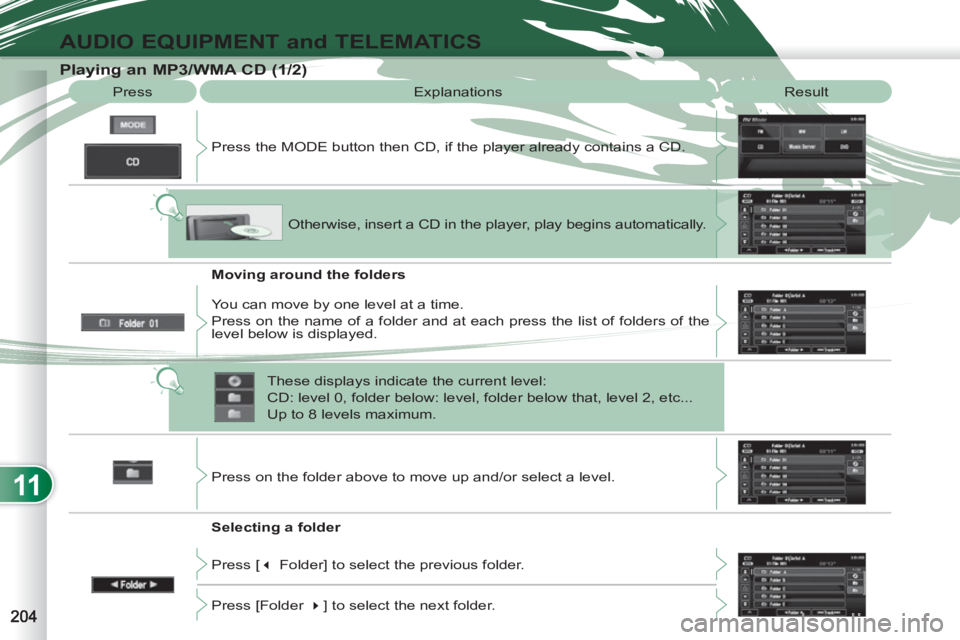

Playing an MP3/WMA CD (1/2)

Press Explanations Result
Press the MODE button then CD, if the player already contains a CD.

Moving around the folders

Selecting a folder Otherwise, insert a CD in the player, play begins automatically.
You can move by one level at a time.
Press on the name of a folder and at each press the list of folders of the
level below is displayed.
Press on the folder above to move up and/or select a level.
Press [
Folder] to select the previous folder.
Press [Folder
] to select the next folder.
These displays indicate the current level:
CD: level 0, folder below: level, folder below that, level 2, etc...
Up to 8 levels maximum.

11
AUDIO EQUIPMENT and TELEMATICS
DVD MODVD MODE
The DVD button is only active if the
player contains a DVD.
Press Open to return the screen to the
vertical position. For safety reasons, the video is
not displayed while driving, how-
ever the audio can be played.
To display the picture and watch
a DVD, park the vehicle in a safe
place.
K.
To display the DVD title menu.

L.
To scroll up or down through the
chapters.
Press and hold for fast backwards
or forwards play.

M.
To scroll up or down through the
titles.

N.
To enter a title or chapter number.

O.
To change the angle.

P.
To change the language of the sub-
titles.

Q.
To change the language.

R.
To select a chapter or title or specify
a number.

A.
This icon is displayed when the op-
eration requested cannot be carried
out.

B.
The number of the chapter currently
being played is displayed.

C.
The number of the title currently be-
ing played is displayed.

D.
Symbols display the current status
of the player.

E.
The playing time is displayed.

F.
To resume normal play when play is
paused or during slow-motion play.

G.
To stop play temporarily.

H.
To stop play. Press the screen to
access the menu.

I.
For slow-motion play.

J.
To play the previously selected zone
on the disc.

Information displayed in DVD
mode ABCDE
FGHIJ
KLM
RQPON

11
AUDIO EQUIPMENT and TELEMATICS

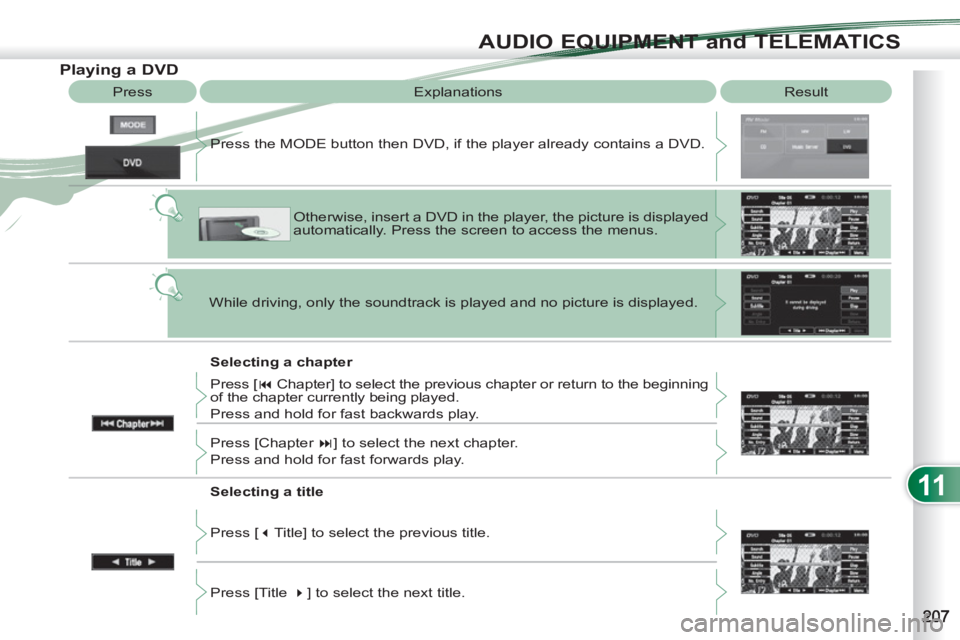

Playing a DVD

Result
Explanations

Selecting a chapter Press the MODE button then DVD, if the player already contains a DVD.
Otherwise, insert a DVD in the player, the picture is displayed
automatically. Press the screen to access the menus.
While driving, only the soundtrack is played and no picture is displayed.
Press [
Chapter] to select the previous chapter or return to the beginning
of the chapter currently being played.
Press and hold for fast backwards play.


Press [Chapter
] to select the next chapter.
Press and hold for fast forwards play.

Selecting a title


Press [
Title] to select the previous title.


Press [Title
] to select the next title.
Press

ALPHABETICAL INDEX
A
ABS .............................................. 103
ABS and EBFD systems............... 103
Accessories .................................. 156
Accessory socket,
12 V ..................... 64, 66, 67, 70, 71
Access to bulbs ............................ 137
Access to the 3rd row ..................... 54
Adjusting headlamps ...................... 89
Adjusting seat belt height ............. 105
Adjusting the steering wheel........... 63
Airbags, curtain......................110, 111
Airbags, front ........................ 108, 111
Airbags, lateral.......................110, 111
Air conditioning ............................... 19
Air conditioning, digital.................... 46
Air flow ............................................ 19
Air intake......................................... 46
Air vents.......................................... 44
Anti-lock braking system (ABS) .... 103
Anti-pinch........................................ 82
Armrest, front ...................... 52, 64, 66
Armrest, rear ............................. 54, 69
ASC .............................................. 104
Ashtray, portable ....................... 64, 67
Athermic windscreen ...................... 63
Audible warning ............................ 102
Audio-CD ...... 167, 168, 170, 173, 175
Audio-telematics ...........176-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220
Audio-telematics
system ............... 194, 195, 200, 201
Audio-video................................... 188
Audio system functions......... 176, 177
Audio systems ..... 162, 164, 165, 167,
168, 170, 171, 173, 175-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220Automatic illumination
of headlamps ......................... 86, 88
Automatic operation
of hazard warning lamps ........... 102
Automatic rain sensitive
windscreen wipers ....................... 91
Automatic switching off of lighting ....... 88
Battery .......................................... 130
Battery, remote control ................... 76
Blind................................................ 83
Bluetooth (telephone) ............218-220
Boot lid............................................ 81
Bottle holder ............................. 64, 69
Brake discs ................................... 130
Brake lamps.................................. 141
Brake pads ................................... 130
Braking assistance system ........... 103
Bulbs (changing, type) .......... 137, 141Check, passenger
compartment filter ...................... 130
Checking the air filter .................... 130
Checking the oil filter .................... 130
Checks.......................................... 130
Child seats ................. 94, 95, 97, 101
Cigar lighter .................................... 66
Closing the boot........................ 80, 81
Colour screen ................. 41, 176, 177
Controls for air conditioning ............ 46
Coolant ..................................... 31, 32
Coolant level ................................. 129
Coolant temperature
warning lamp ............................... 32
Cooled glove box ...................... 64, 65
Courtesy lamp, front ....................... 92
Courtesy lamp, rear ........................ 92
Cruise control ............................... 121
Cup holder .......................... 64, 68, 69
CVT gearbox ................................ 113
B
Capacity, fuel tank .......................... 84
CD changer .......................... 173, 175
CD MP3 ........................................ 192
CD MP3 player ............................. 194
Changing a bulb ................... 137, 141
Changing a wheel ..................132-135
Changing a wiper blade ................ 151
Changing the time .................... 39, 41
Check, particle emission filter ....... 130
C
Deactivating ASC.......................... 104
Deactivating the passenger
airbag ........................................ 108
Defrosting ....................................... 46
Dials................................................ 21
Diesel............................................ 128
Diesel additive level ...................... 129
Dimensions ................................... 159
Dipped beam ................................ 137
Direction indicators ....... 102, 137, 141
Doors .............................................. 79
DVD (mode).......................... 206, 207
Dynamic stability control
(ASC) ......................................... 104
D

ALPHABETICAL INDEX
Lighting on reminder ....................... 87
Loading ........................................... 19
Load space cover ..................... 70, 72P
Parking brake ....................... 112, 130
Parking sensors, rear ................... 123
Player, CD MP3 ............ 164, 170, 175
Protecting children .............94, 97-101
Puncture ................................132-134
Navigation......................178-180, 184
Number plate lamps ..................... 141Screenwash fluid level .................. 129
Seat, rear bench ............................. 58
Seat adjustment.................. 50, 51, 53
Seat belts.............................. 106, 107
Seat belts warning lamp ............... 105
Seat configurations ......................... 57
Seats, electric ................................. 51
Seats, rear ...................................... 53
Serial number, vehicle .................. 160
Service indicator ....................... 31, 33
Servicing ......................................... 19
Settings (Menus) ............................ 31
Setting the clock ....................... 39, 41
Sidelamps ............................. 137, 141
Side repeater ................................ 137
Spare wheel...........................132-135
Speedometer .................................. 21
Starting the vehicle ......................... 75
Steering mounted controls,
audio .......................................... 164
Stopping the vehicle ....................... 75
Storage ..................................... 64, 70
Stowing rings ............................ 70, 71
Sunroof ........................................... 82
Sun visor......................................... 63
System, ABS................................. 103
System,
audio-CD .... 167, 168, 170, 173, 175
System, audio-telematics .....176-180,
184, 188, 189, 192, 202, 206-208,
211, 214, 215, 218-220
N
Oil level ......................................... 129
Opening the boot ............................ 80
Opening the fuel filler flap ............... 84
Opening the sunroof ....................... 82
Opening the tailgate ................. 80, 81
Operation
indicator lamps .......................22-24
O
Radio .................... 167, 168, 188, 189
Range ....................................... 31, 32
Rear demisting ............................... 46
Rear foglamp .................................. 87
Rear screen (demisting) ................. 46
Recirculation/exterior air intake ...... 46
Recording a CD .................... 192, 195
Reinitialising the sunroof ................ 82
Remote control ............................... 76
Removing a wheel ........................ 135
Removing the mat .......................... 63
Replacing bulbs .................... 137, 141
Replacing wiper blades ................ 151
Rev counter .................................... 21
Reversing camera ........................ 124
Reversing lamps ........................... 141
Roof bars ...................................... 155
Running out of fuel (Diesel) .......... 126
R
Safety for children......................... 101
Screen, instrument panel.....21, 25-31
Screen, monochrome ..................... 39
Screenwash, front........................... 90
S
Tailgate ........................................... 80
TCL ............................................... 104
Telephone, hands-free ......... 214, 215,
218-220
T
Main beam .................................... 137
Maintenance ................................... 19
Map (colour screen)...................... 184
Map reading lamps ......................... 92
Mat.................................................. 63
Menus (audio)............................... 177
Mini fuel level .................................. 84
Mirror, rear view .............................. 62
Mirrors, door ................................... 61
Motorway function (direction
indicators) .................................. 102
Mountings for ISOFIX seats ....98-100
MP3 CD ................................ 194, 202
Music server ......... 192, 195, 200, 201
M
