2011 PEUGEOT 4007 driver seat adjustment

FAMILIARISATION
11

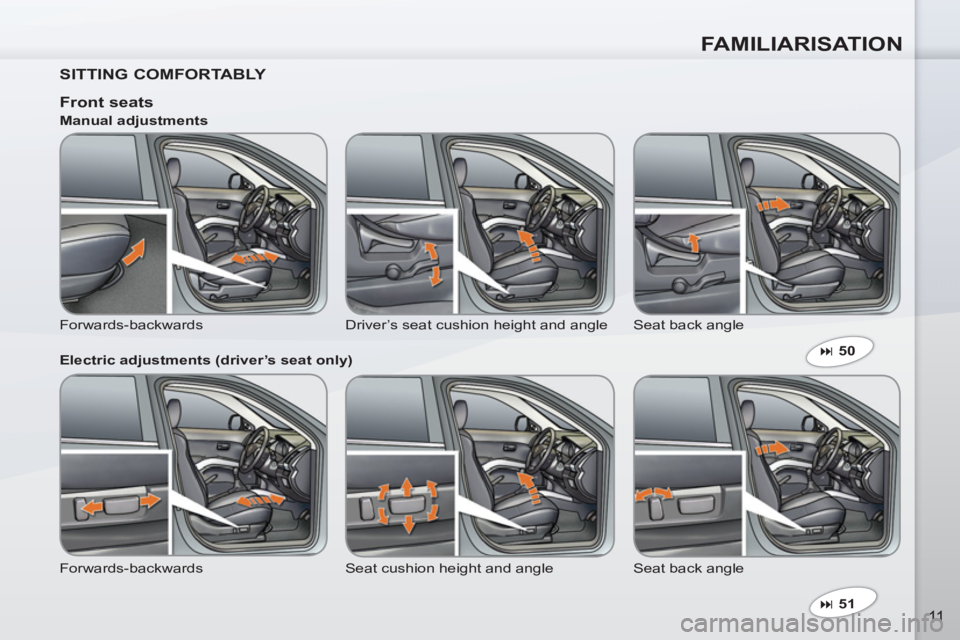

SITTING COMFORTABLY




51




Front seats

Forwards-backwards Driver’s seat cushion height and angle Seat back angle
Manual adjustments

Electric adjustments (driver’s seat only)
Forwards-backwards Seat cushion height and angle Seat back angle


50

2
COMFORT

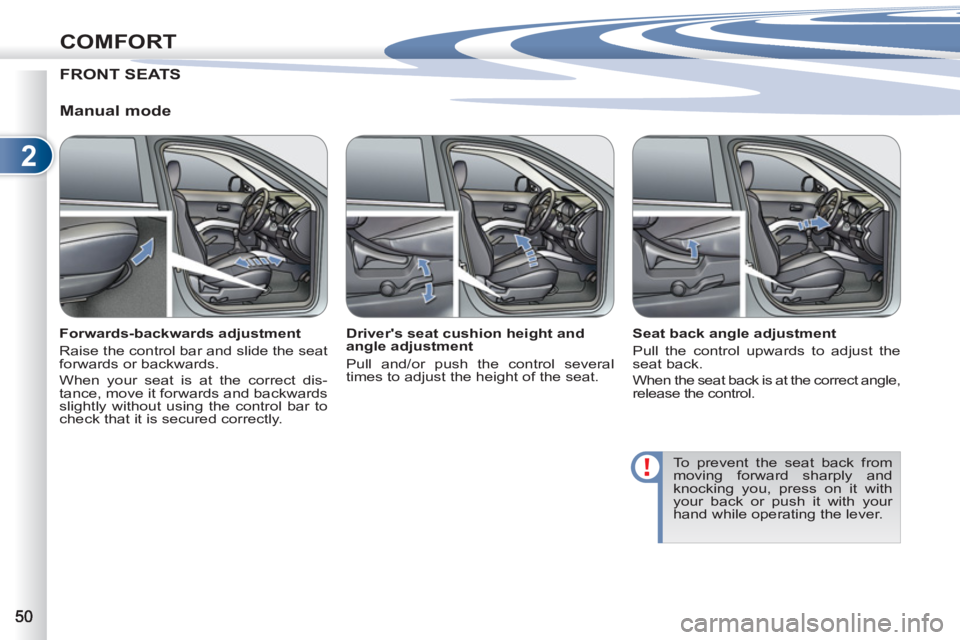

FRONT SEATS

Manual mode


Forwards-backwards adjustment
Raise the control bar and slide the seat
forwards or backwards.
When your seat is at the correct dis-
tance, move it forwards and backwards
slightly without using the control bar to
check that it is secured correctly.
Seat back angle adjustment
Pull the control upwards to adjust the
seat back.
When the seat back is at the correct angle,
release the control.
To prevent the seat back from
moving forward sharply and
knocking you, press on it with
your back or push it with your
hand while operating the lever.

Driver's seat cushion height and
angle adjustment
Pull and/or push the control several
times to adjust the height of the seat.

2
COMFORT

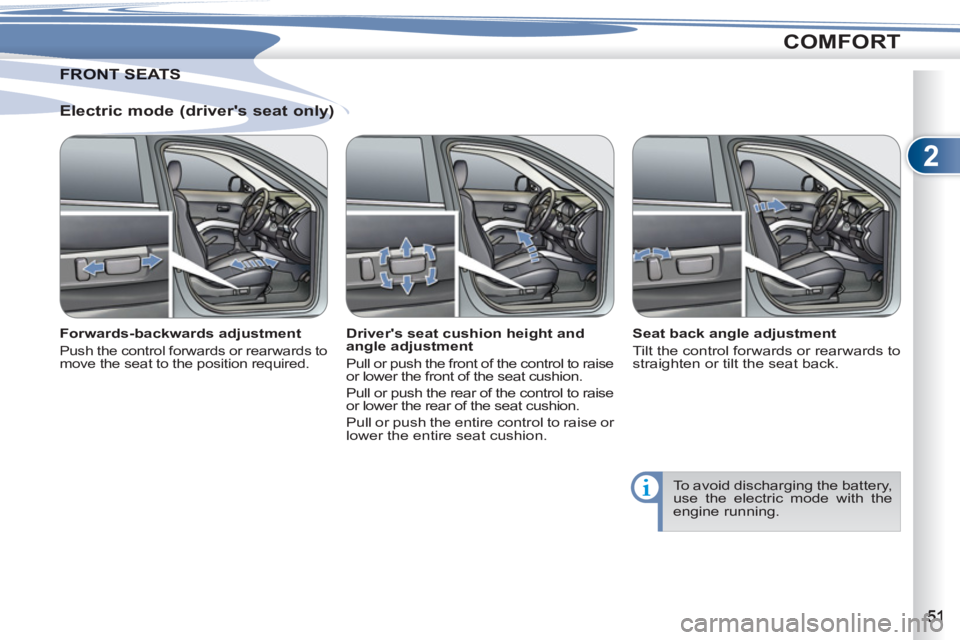

Electric mode (driver's seat only)


Forwards-backwards adjustment

Push the control forwards or rearwards to
move the seat to the position required.


Driver's seat cushion height and
angle adjustment
Pull or push the front of the control to raise
or lower the front of the seat cushion.
Pull or push the rear of the control to raise
or lower the rear of the seat cushion.
Pull or push the entire control to raise or
lower the entire seat cushion.
Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
ONT SEATSFRONT SEATS
To avoid discharging the battery,
use the electric mode with the
engine running.

2
COMFORT

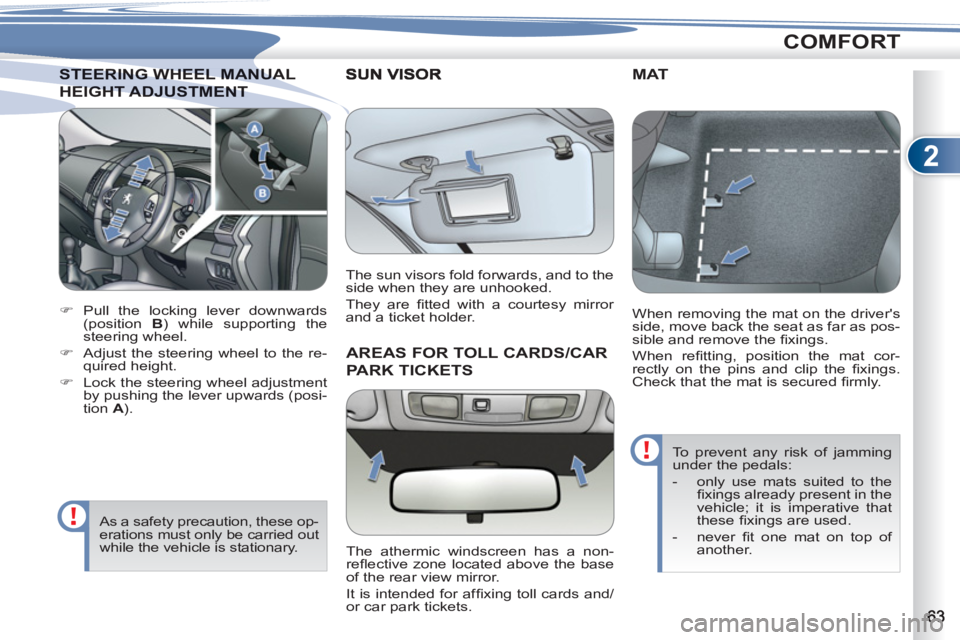

EERING WHEEL MANUALSTEERING WHEEL MANUA
HEIGHT ADJUSTMENTEIGHT ADJUSTMENT



)
Pull the locking lever downwards
(position B
) while supporting the
steering wheel.

)
Adjust the steering wheel to the re-
quired height.

)
Lock the steering wheel adjustment
by pushing the lever upwards (posi-
tion A
).

The sun visors fold forwards, and to the
side when they are unhooked.
They are fi tted with a courtesy mirror
and a ticket holder.
As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
AREAS FOR TOLL CARDS/CAR
PARK TICKETS


The athermic windscreen has a non-
refl ective zone located above the base
of the rear view mirror.
It is intended for affi xing toll cards and/
or car park tickets.
MAT


When removing the mat on the driver's
side, move back the seat as far as pos-
sible and remove the fi xings.
When refi tting, position the mat cor-
rectly on the pins and clip the fi xings.
Check that the mat is secured fi rmly.
To prevent any risk of jamming
under the pedals:


- only use mats suited to the
fi xings already present in the
vehicle; it is imperative that
these fi xings are used.

- never fi t one mat on top of
another.

4
VISIBILITY

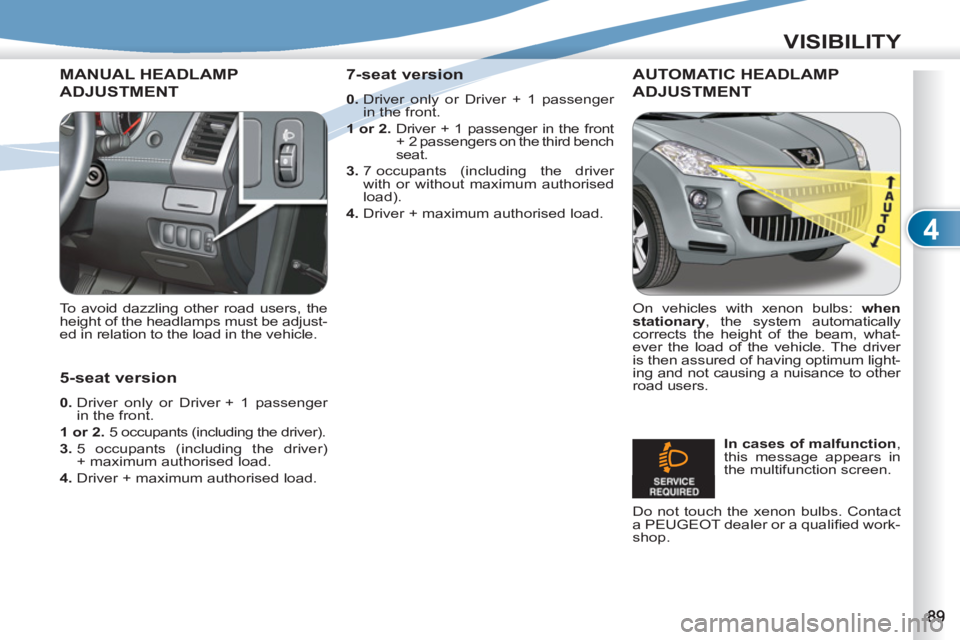

MANUAL HEADLAMP
ADJUSTMENT

To avoid dazzling other road users, the
height of the headlamps must be adjust-
ed in relation to the load in the vehicle.

AUTOMATIC HEADLAMP
ADJUSTMENT

On vehicles with xenon bulbs: when
stationary
, the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driver
is then assured of having optimum light-
ing and not causing a nuisance to other
road users.

In cases of malfunction
,
this message appears in
the multifunction screen.

7-seat version


0.
Driver only or Driver + 1 passenger
in the front.

1 or 2.
Driver + 1 passenger in the front
+ 2 passengers on the third bench
seat.

3.
7 occupants (including the driver
with or without maximum authorised
load).

4.
Driver + maximum authorised load.


5-seat version


0.
Driver only or Driver + 1 passenger
in the front.

1 or 2.
5 occupants (including the driver).

3.

5 occupants (including the driver)
+ maximum authorised load.

4.
Driver + maximum authorised load.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer or a qualifi ed work-
shop.
