Lighting


Ring A

Ring B Raise or lower the lighting stalk
passing the point of resistance; the
corresponding direction indicators will
fl ash for as long as the stalk remains in
this position.

Direction indicators


Switching on "AUTO"


)
Press the stalk down and release it.


Ring B: rear wiper



93





99

Lighting off.
Automatic illumination of headlamps.

Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers



98



Wipers


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.



100




128


"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any
speed, but it is particularly useful when
changing lane on high-speed roads.

27
INSTRUMENTS and CONTROLS


Specifi c operation indicator lamps

The other indicator lamps appear on
the large screen, located in the centre
of the instrument panel.
Automatic locking.
If this is displayed, it indicates
that you have activated auto-
matic locking of the doors and
boot while driving.



Speed limiter.
If this is displayed, it indicates
that you have activated the
speed limiter mode.
If this is displayed, it indi-
cates that you can set the
speed limiter speed value to
be stored.

Cruise control.
If this is displayed, it indicates
that you have activated the
cruise control mode.
If this is displayed it indi-
cates that you can set the
cruise control speed value
to be stored.


Automatic gearbox. This display indicates the
position that you have selected
on the gear selection gate
(R, N, A or M).


Automatic rain sensitive wipers.

If this is displayed, it indicates
that you have activated auto-
matic rain sensitive windscreen
wipers.

Automatic illumination of headlamps.

If this is displayed, it indicates that
you have activated automatic illu-
mination of headlamps.
This display indicates the gear
engaged in automatic or manual
operating mode (1 to 6).
This display indicates the ope-
rating mode selected (auto-
matic or sport).


This display indicates the gear
engaged in the automatic or
manual operation programme.
This display indicates the ope-
rating programme selected
(automatic, sport, snow or
manual).




6-speed electronic gear control gearbox.

This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).

28
INSTRUMENTS and CONTROLS


Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the corre-
sponding system has been switched off
intentionally.



Passenger's airbag system
deactivation.
The passenger's airbag system
is put into service automatically
when the vehicle is started.
A specifi c control switch, located on the
passenger's side of the dashboard, per-
mits deactivation of the system. This is
confi rmed by continuous lighting of this
warning lamp on the instrument panel
or on the seat belt and passenger's
front airbag warning lamps display.


Dynamic stability control
(ESP/ASR) deactivation

The ESP/ASR system is put
into service automatically when
the vehicle is started.
A specifi c button, located on the dash-
board, permits deactivation of the sys-
tem. This is confi rmed by continuous
lighting of this warning lamp and of the
indicator lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.


Common deactivation warning
lamps

Specifi c deactivation warning lamps
Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving.



Automatic rain sensitive
windscreen wipers.
If this is displayed, it indicates that
you have deactivated automatic
rain sensitive windscreen wipers. The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.


Speed limiter.

If this is displayed, it indicates
that you have deactivated the
speed limiter.


Cruise control.

If this is displayed, it indicates
that you have deactivated the
cruise control.



Automatic illumination of
headlamps.

If this is displayed, it indicates
that you have deactivated auto-
matic illumination of headlamps.

i
95
VISIBILITY






Manual guide-me-home lighting

Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)
A further "headlamp fl ash" switches
the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.








Daytime running lamps

Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.


The instruments and controls (instrument
panel, multifunction screen, air condition-
ing control panel, ...) are not illuminated,
except in night mode with manual or au-
tomatic illumination of headlamps.











Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation


)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a message
on the multifunction screen.


Deactivation


)
Turn ring A
to a position other
than "AUTO"
. Deactivation is
accompanied by a message on the
multifunction screen.

This function is assured:


- in countries where it is imposed by
regulations,
by illumination of the dipped beam
headlamps with the sidelamps and
number plate lamps; this function
cannot be deactivated.

- for other countries where it is
provided,
by the use of dedicated lamps; this
function can be activated or deacti-
vated via the vehicle confi guration
menu.

98
VISIBILITY

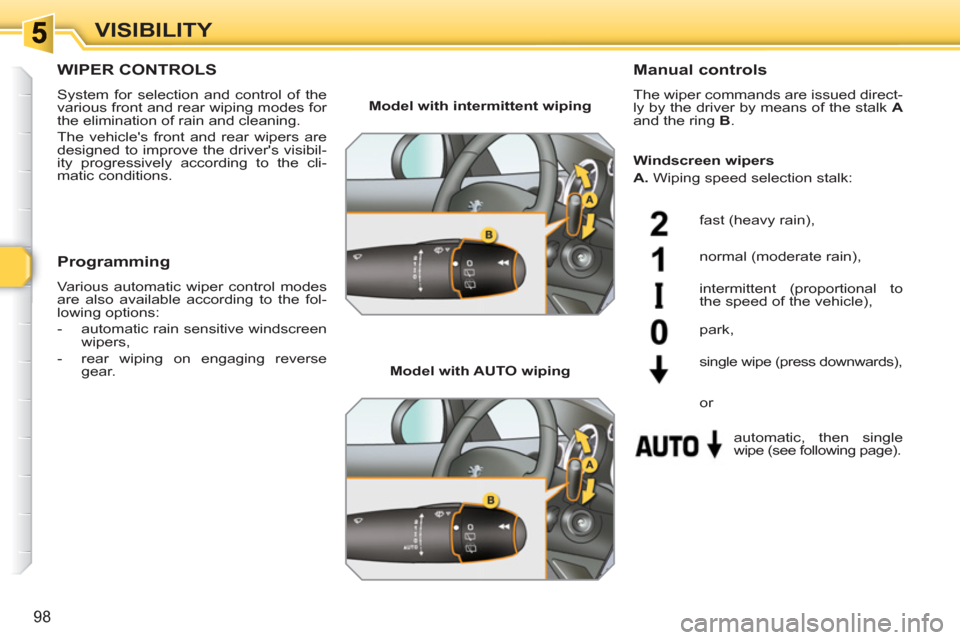

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibil-
ity progressively according to the cli-
matic conditions.

Manual controls

The wiper commands are issued direct-
ly by the driver by means of the stalk A

and the ring B
.

Model with intermittent wiping



Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see following page). park,


single wipe (press downwards),


Programming

Various automatic wiper control modes
are also available according to the fol-
lowing options:


- automatic rain sensitive windscreen
wipers,

- rear wiping on engaging reverse
gear.

Windscreen wipers

A.
Wiping speed selection stalk:





or

!
99
VISIBILITY









Windscreen and headlamp
wash
B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).

Programming

)
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.












Rear wiper
If a signifi cant accumulation of
snow or ice is present, or when us-
ing a tailgate bicycle carrier, deac-
tivate the automatic rear wiper via
the multifunction screen confi gura-
tion menu.









Screenwash/headlamp wash low
In the case of vehicles fi tted
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
lamp and/or the service warning lamp is
displayed on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when
the ignition is switched on, or every time
the stalk is operated, until the reservoir
is fi lled.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.

!
i
i
100
VISIBILITY









Special position of the
windscreen wipers











Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message on the
multifunction screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wip-
ers must be reactivated if the igni-
tion has been off for more than one
minute, by pushing the stalk down-
wards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message on the
multifunction screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
For maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain
cardboard on the windscreen.

- replace them at the fi rst signs of
wear.
