1
i
!
180
PRACTICAL INFORMATION

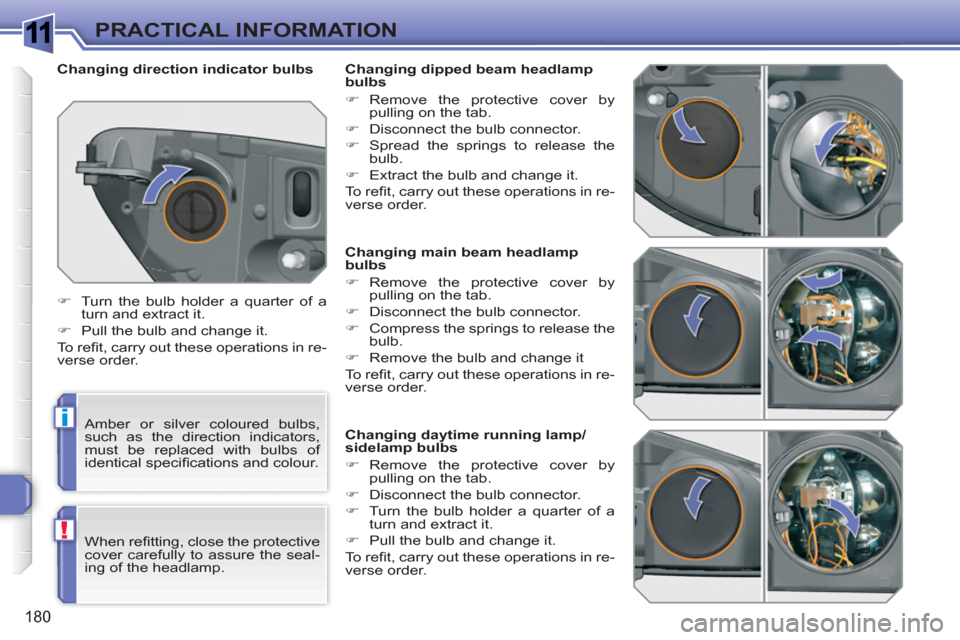

Changing main beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Compress the springs to release the
bulb.
)
Remove the bulb and change it
To r efi t, carry out these operations in re-
verse order.
Changing daytime running lamp/
sidelamp bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Changing dipped beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Extract the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Changing direction indicator bulbs
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the protective
cover carefully to assure the seal-
ing of the headlamp.
Page 191 of 336
1
189
PRACTICAL INFORMATION
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding
paragraph).
)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.
Fuse table
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, injection pump and EGR
electrovalves (2 L HDI), injectors (2 L HDI).
F2
15 A
Horn.
F3
10 A
Front/rear wash-wipe.
F4
20 A
Headlamp wash.
F5
15 A
Canister purge, turbine discharge and Turbo
pressure regulation electrovalves (1.6 l THP 16V),
oil vapour heater (1.6 l THP 16V), diesel heater
(1.6 l HDI).
F6
10 A
Vehicle speed sensor, ABS/ESP control unit.
F7
10 A
Power steering control unit, automatic gearbox,
engine coolant level detector.
F8
25 A
Starter motor control.
F9
10 A
Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel)
F10
30 A
Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters, fuel
pump, electronic thermostat) (Diesel: electrovalves,
heaters).
F11
40 A
Air conditioning blower.
Page 192 of 336
1
190
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F12
30 A
Windscreen wipers slow/fast speed.
F13
40 A
Built-in systems interface supply (ignition positive).
F14
30 A
Air pump.
F15
10 A
Right-hand main beam headlamp.
F16
10 A
Left-hand main beam headlamp.
F17
15 A
Left-hand dipped headlamp.
F18
15 A
Right-hand dipped headlamp.
F19
15 A
Oil vapour heater (1.4 l 16V and 1,6 l VTi 16V),
canister purge electrovalve (1.4 l 16V and
1.6 l VTi 16V), oxygen sensors (petrol), air cooling
electrovalves (Diesel).
F20
10 A
Electronic thermostat, variable timing solenoid
valves, airfl ow sensor (1.6 litre THP 200),Turbo
pressure regulation electrovalve (Diesel), engine
coolant level detector (Diesel).
F21
5 A
Fan assembly relay supply, Valvetronic relay
control (1.4 l 16V and 1.6 l VTi 16V), Turbo cooling
(1.6 l THP 16V), Valvetronic motor (1.s litre THP 200),
air fl ow sensor (1.6 l HDI).
Page 193 of 336
1
191
PRACTICAL INFORMATION

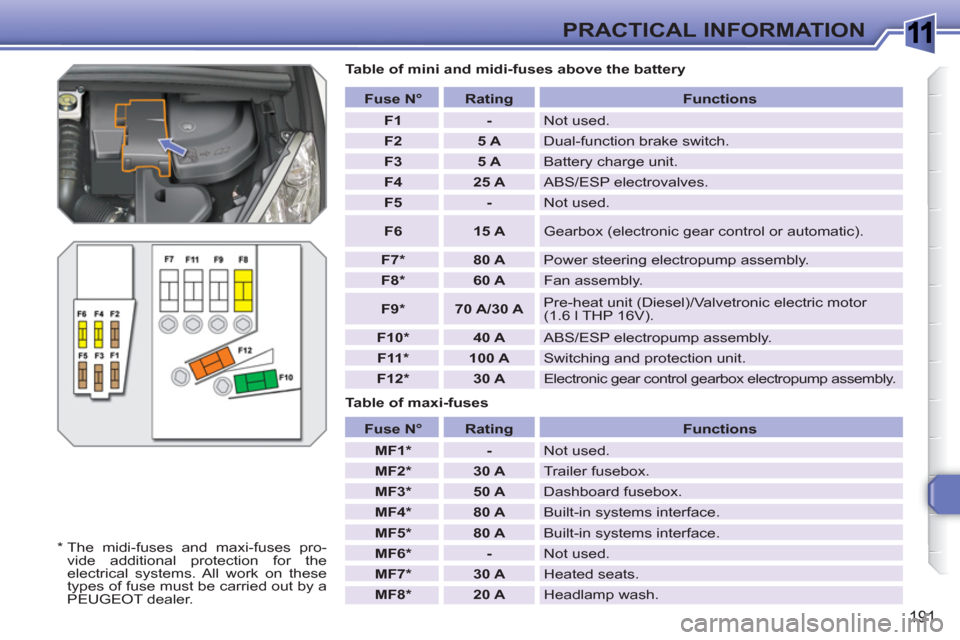

Table of mini and midi-fuses above the battery
Table of maxi-fuses
Fuse N°
Rating
Functions
F1
-
Not used.
F2
5 A
Dual-function brake switch.
F3
5 A
Battery charge unit.
F4
25 A
ABS/ESP electrovalves.
F5
-
Not used.
F6
15 A
Gearbox (electronic gear control or automatic).
F7 *
80 A
Power steering electropump assembly.
F8 *
60 A
Fan assembly.
F9 *
70 A/30 A
Pre-heat unit (Diesel)/Valvetronic electric motor
(1.6 l THP 16V).
F10 *
40 A
ABS/ESP electropump assembly.
F11 *
100 A
Switching and protection unit.
F12 *
30 A
Electronic gear control gearbox electropump assembly.
Fuse N°
Rating
Functions
MF1 *
-
Not used.
MF2 *
30 A
Trailer fusebox.
MF3 *
50 A
Dashboard fusebox.
MF4 *
80 A
Built-in systems interface.
MF5 *
80 A
Built-in systems interface.
MF6 *
-
Not used.
MF7 *
30 A
Heated seats.
MF8 *
20 A
Headlamp wash.
*
The midi-fuses and maxi-fuses pro-
vide additional protection for the
electrical systems. All work on these
types of fuse must be carried out by a
PEUGEOT dealer.
Page 196 of 336
1
!
i
194
PRACTICAL INFORMATION
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph). If the telephone is being used at
this time:
- it will be maintained for 10 minutes
with the hands-free kit of your
Peugeot Connect Sound,
- it will be maintained for 10 minutes
with the Peugeot Connect
Navigation or the Peugeot
Connect Media, then it will transfer
to your telephone depending on
the telephone model.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
Exiting economy mode
These functions are reactivated auto-
matically next time the vehicle is driven.
)
In order to resume the use of these
functions immediately, start the
engine and let it run:
- for less than ten minutes, to use
the equipment for approximately
fi ve minutes,
- for more than ten minutes, to
use the equipment for up to
approximately thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Removing
)
Raise the corresponding wiper arm.
)
Unclip the wiper blade and remove it.
Fitting
)
Put the corresponding new wiper
blade in place and clip it.
)
Fold down the wiper arm carefully.
Before removing a front wiper
blade
)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.
After fitting a front wiper blade
)
Switch on the ignition.
)
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condition-
ing, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
Page 320 of 336
EXTERIOR
Boot .................................................... 88
- opening/closing
- emergency release
Temporary puncture repair kit ....164-168
Changing a wheel ..................... 172, 177
- tools
- removing/refi tting Wiper controls..............................98-100
Changing a wiper blade .................... 194
Changing bulbs..........................182-183
- rear lamps
- 3rd brake lamp
- number plate lamps Parking sensors .........................154-155
Towbar .............................................. 197
Towing .............................................. 195 Remote control key........................78-81
- opening/closing
- anti-theft protection
- starting
- battery
Accessories ...............................199-200
Roof bars .......................................... 198
Panoramic sunroof ............................. 90
Fuel tank ........................................91-92 Door mirrors ...................................75-76
Doors .............................................86-88
- opening/closing
- central locking
- emergency control
Alarm .............................................82-83
Electric windows ............................84-85 Lighting controls ............................93-96
Directional lighting .............................. 97
Headlamp height adjustment .........96-97
Changing bulbs..........................179-181
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance ........................... 130
Trajectory control .............................. 131
Tyre under-infl ation detection ........... 129
Tyre pressures .......................... 168, 227
Page 321 of 336
EXTERIOR
Tailgate/Rear screen......................88-89
- opening/closing
- emergency release
Temporary puncture repair kit ....169-171
Changing a wheel ..................... 174, 177
- tools
- removing/refi tting Wiper controls..............................98-100
Changing a wiper blade .................... 194
Changing bulbs..........................184-185
- rear lamps
- 3rd brake lamp
- number plate lamps Parking sensors .........................154-155
Towbar .............................................. 197
Towing .............................................. 196 Remote control key........................78-81
- opening/closing
- anti-theft protection
- starting
- battery
Accessories ...............................199-200
Roof bars .......................................... 198
Panoramic sunroof ............................. 90
Fuel tank ........................................91-92 Door mirrors ...................................75-76
Doors .............................................86-88
- opening/closing
- central locking
- emergency control
Alarm .............................................82-83
Electric windows ............................84-85 Lighting controls ............................93-96
Directional lighting .............................. 97
Headlamp height adjustment .........96-97
Changing bulbs..........................179-181
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance ........................... 130
Trajectory control .............................. 131
Tyre under-infl ation detection ........... 129
Tyre pressures .................................. 227
Page 325 of 336

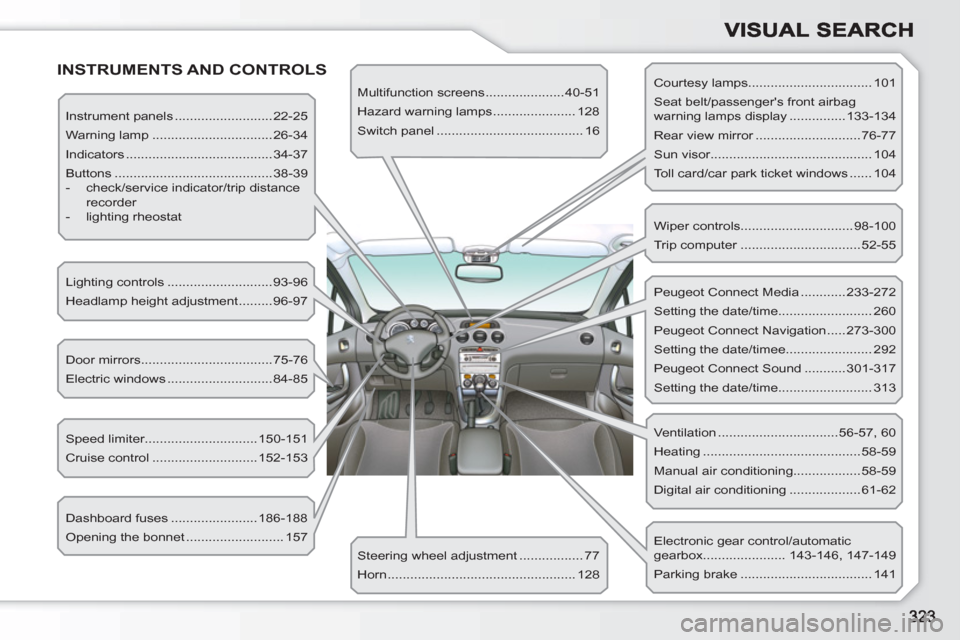

INSTRUMENTS AND CONTROLS
Instrument panels ..........................22-25
Warning lamp ................................26-34
Indicators .......................................34-37
Buttons ..........................................38-39
- check/service indicator/trip distance
recorder
- lighting rheostat
Lighting controls ............................93-96
Headlamp height adjustment .........96-97
Door mirrors ...................................75-76
Electric windows ............................84-85
Speed limiter..............................150-151
Cruise control ............................152-153
Dashboard fuses .......................186-188
Opening the bonnet .......................... 157 Multifunction screens .....................40-51
Hazard warning lamps ...................... 128
Switch panel ....................................... 16
Steering wheel adjustment ................. 77
Horn .................................................. 128 Electronic gear control/automatic
gearbox...................... 143-146, 147-149
Parking brake ................................... 141 Ventilation ................................56-57, 60
Heating ..........................................58-59
Manual air conditioning..................58-59
Digital air conditioning ...................61-62 Peugeot Connect Media ............233-272
Setting the date/time......................... 260
Peugeot Connect Navigation .....273-300
Setting the date/timee....................... 292
Peugeot Connect Sound ...........301-317
Setting the date/time......................... 313 Courtesy lamps................................. 101
Seat belt/passenger's front airbag
warning lamps display ...............133-134
Rear view mirror ............................76-77
Sun visor........................................... 104
Toll card/car park ticket windows ...... 104
Wiper controls..............................98-100
Trip computer ................................52-55
