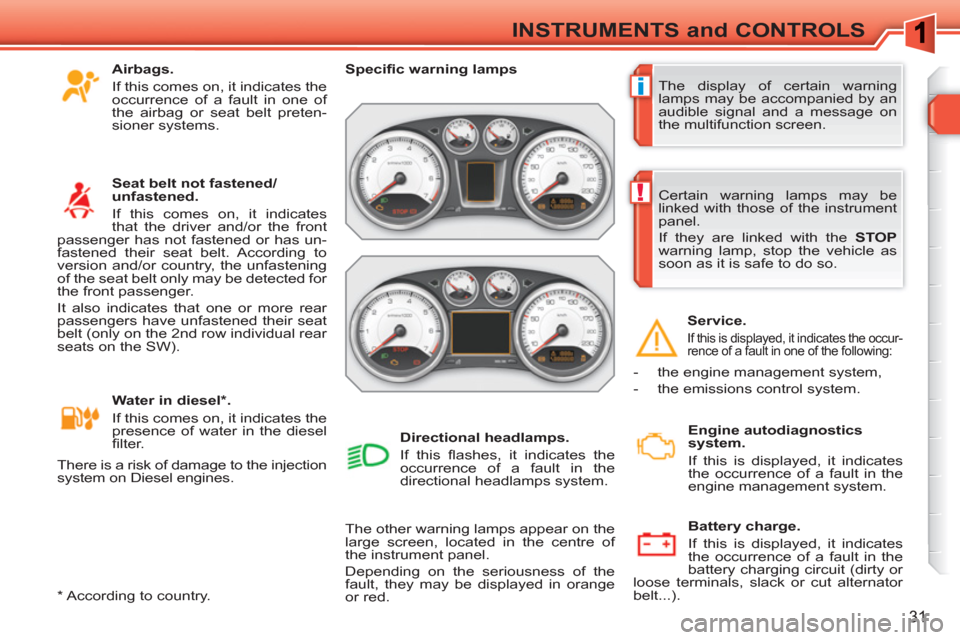

i
!
31
INSTRUMENTS and CONTROLS
The display of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.

Specifi c warning lamps

The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lamps may be
linked with those of the instrument
panel.
If they are linked with the STOP

warning lamp, stop the vehicle as
soon as it is safe to do so.


Directional headlamps.
If this fl ashes, it indicates the
occurrence of a fault in the
directional headlamps system.

Service.

If this is displayed, it indicates the occur-
rence of a fault in one of the following:

Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system.

Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).

- the engine management system,

- the emissions control system.

Airbags.

If this comes on, it indicates the
occurrence of a fault in one of
the airbag or seat belt preten-
sioner systems.

Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened their seat belt. According to
version and/or country, the unfastening
of the seat belt only may be detected for
the front passenger.
It also indicates that one or more rear
passengers have unfastened their seat
belt (only on the 2nd row individual rear
seats on the SW).



Water in diesel * .
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the injection
system on Diesel engines.


*
According to country.

!
32
INSTRUMENTS and CONTROLS

Airbags.

If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.

Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:


- signifi cant drop in the brake fl uid
level,

- electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released.

Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.

Door open.
A door, the boot or the rear
screen is open:
Parking brake.

If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
Fuel level.
When this fi rst comes on, you
have approximately 6 litres
of
fuel remaining in the tank
Refuel as soon as possible to avoid run-
ning out of fuel.
Until suffi cient fuel has been added,
this warning lamp comes on again each
time the ignition is switched on, along
with an audible signal and a message.
According to version, this audible signal
and this message are repeated, at in-
creasingly shorter intervals as the level
decreases towards "0"
.
Capacity of the tank: approximately
60 litres
.

Screenwash fl uid level.

If this is displayed, following an
action on the wiper stalk, it indi-
cates that the screenwash fl uid
level is low.
Fill the screenwash/headlamp wash fl uid
reservoir when you next stop.


-
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,

- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.


Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.
Engine oil pressure.

If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle as soon as it is safe
to do so.

Engine oil level.

If this is displayed, it indicates
that the engine oil level is too
low. Stop the vehicle as soon
as it is safe to do so.

Coolant temperature.

If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the
vehicle as soon as it is safe to
do so.

Coolant level.

If this is displayed, it indicates
that the coolant level is too low.
Stop the vehicle as soon as it is
safe to do so.

33
INSTRUMENTS and CONTROLS


Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.



Under-infl ated tyre.
If this is displayed, it indicates
low pressure in one or more
wheels.
Check the tyre pressures as soon as
possible.

Punctured tyre.

If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Tyre under-infl ation detection.

If this is displayed, it indicates
the occurrence of a fault on one
of the sensors or in the tyre un-
der-infl ation detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
does not have a sensor, is fi tted in place
of a punctured wheel.



Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the auto-
matic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.


Visual and/or audible
parking sensors.

If this comes on, in forward and/
or reverse gear, it indicates a fault
in the parking sensor system.



6-speed electronic gear control
gearbox or automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
6-speed electronic gear control gear-
box or automatic gearbox. The gearbox
will then operate in down-grade mode,
locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the 6-speed
electronic gear control gear-
box or automatic gearbox.

Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position P
or N
in
order to start the engine.

Dynamic stability control
(ESP/ASR).

The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning lamp and the indicator lamp
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR sys-
tem or in the hill start assist.


Power steering.

If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.


Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.

Drive carefully.

44
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C
Main menu

Displays on the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- audio sources (radio, CD...),

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.


"Audio functions" menu


Controls

From the control panel of your Peugeot
Connect Sound, you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip
computer, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or


)
press the "ESC"
button to abandon
the operation in progress.


)
Press the "MENU"
button for access
to the main menu
:


- audio functions,

- diagnosis vehicle,

- personalisation-confi guration,

- telephone (Bleutooth system).

)
Press the "
" or "
" buttons to select
the menu required, then confi rm by
pressing the "OK"
button.


*
With air conditioning only. With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText), the CD or
the CD changer (introscan, shuffl e, CD
repeat).
For more information on the "Audio
functions" application, refer to the
Peugeot Connect Sound part of the
"Audio and Telematics" section.

!
46
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.


"Telephone" menu


Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:


- brightness-video setting,

- date and time setting,

- choice of units.


Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guide-me-home" lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.

)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.

)
Press the "
" or "
" buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"

button to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.
With the Peugeot Connect Sound
switched on, once this menu has been
selected you can confi gure your Blue-
tooth system (pairing), consult the vari-
ous telephone directories (calls log,
services...) and manage your commu-
nications (pick up, hang up, call waiting,
secret mode...).
For more information on the "Tele-
phone" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.

**
According to country.

!
48
MULTIFUNCTION SCREENS



)
Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from the
following functions:


- "Languages",

- "Date and time",

- "Display",

- "Vehicle parameters",

- "Units",

- "System parameters".



Languages
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents). For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

System parameters
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Units
This menu allows you to select the
units: temperature (°C or °F) and
consumption (km/l, l/100 or mpg).


"SETUP" menu


*
According to country.

93

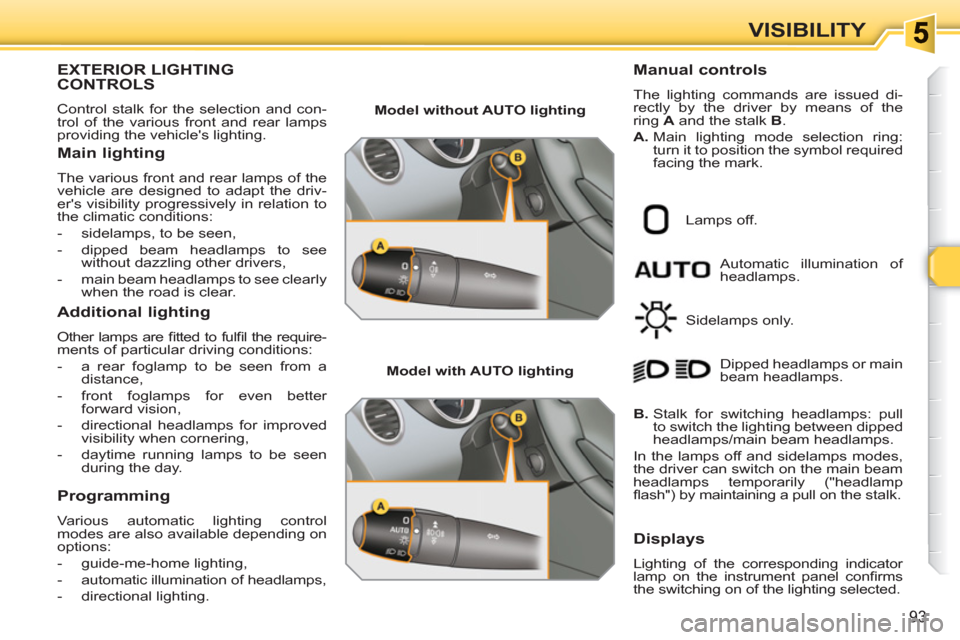

VISIBILITY
EXTERIOR LIGHTINGCONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.

Main lighting

The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see clearly
when the road is clear.



Additional lighting

Other lamps are fi tted to fulfi l the require-
ments of particular driving conditions:


- a rear foglamp to be seen from a
distance,

- front foglamps for even better
forward vision,

- directional headlamps for improved
visibility when cornering,

- daytime running lamps to be seen
during the day.



Programming

Various automatic lighting control
modes are also available depending on
options:


- guide-me-home lighting,

- automatic illumination of headlamps,

- directional lighting.


Model without AUTO lighting



Model with AUTO lighting





Automatic illumination of
headlamps.

Manual controls

The lighting commands are issued di-
rectly by the driver by means of the
ring A
and the stalk B
.

A.
Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
Lamps off.
Sidelamps only.

B.
Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk. Dipped headlamps or main
beam headlamps.

Displays

Lighting of the corresponding indicator
lamp on the instrument panel confi rms
the switching on of the lighting selected.

!
i
94
VISIBILITY


Model with rear foglamp only
Rear foglamp


)
To switch on the foglamp, turn the
ring C
forwards.
When the lighting is switched off au-
tomatically (with AUTO model), the fo-
glamp and the dipped beam headlamps
will remain on.


)
To switch off all of the lighting, turn
the ring C
rearwards.






In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the brightness
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.

Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all of
the lamps turn off immediately, ex-
cept for dipped beam if guide-me-
home lighting is activated.

Model with front foglamps and
a rear foglamp
Front and rear foglamps
Rotate and release the ring C
:


)
forwards a fi rst time to switch on the
front foglamps.

)
forwards a second time to switch on
the rear foglamp,

)
rearwards a fi rst time to switch off
the rear foglamp

)
rearwards a second time to switch
of the front fog lamps.
When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.


)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.










C.
Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.

Switching on the lamps after the
ignition is switched off
To reactivate the lighting control,
rotate ring A
to the "0"
position -
lamps off, then to the desired posi-
tion.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically
after a maximum duration of thir-
ty minutes to prevent discharging of
the battery.
