2011 Peugeot 308 SW BL radio controls

273

The Peugeot Connect Navigation is protected in such a way that it will only operate in your vehicle. If it is to beinstalled in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.

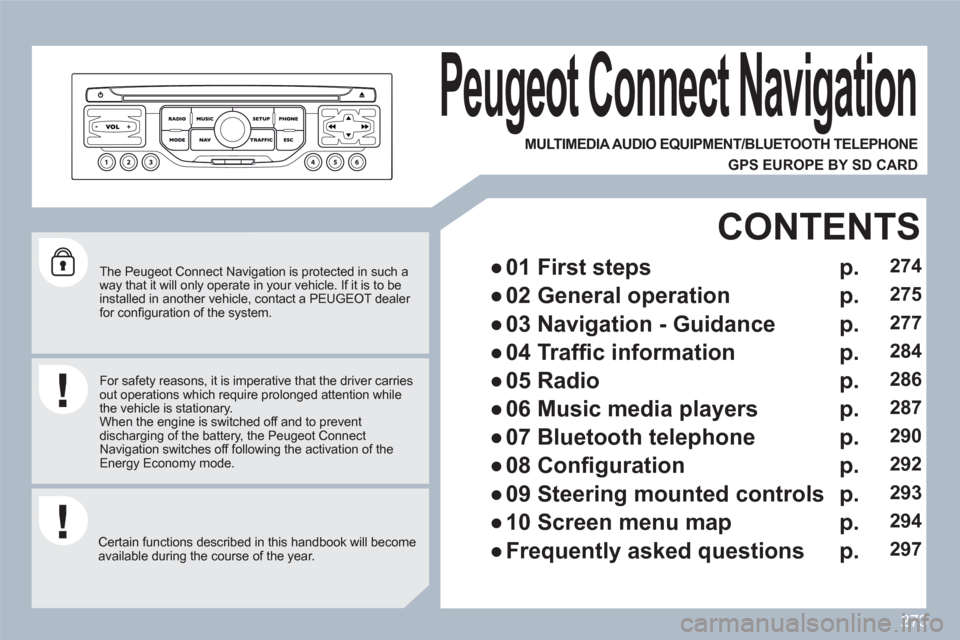

Peugeot Connect Navigation


For safety reasons, it is imperative that the driver carriesout operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the Peugeot Connect Navigation switches off following the activation of theEnergy Economy mode.
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE BY SD CARD



●
01 First steps
CONTENTS


●
02 General operation


●
03 Navigation - Guidance


●
04 Traffi c information


●
05 Radio


●
06 Music media players


●
07 Bluetooth telephone


●
08 Confi guration


●
09 Steering mounted controls


●
10 Screen menu map


●
Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
274
275
277
284
286
287
290
292
293
294
297

293

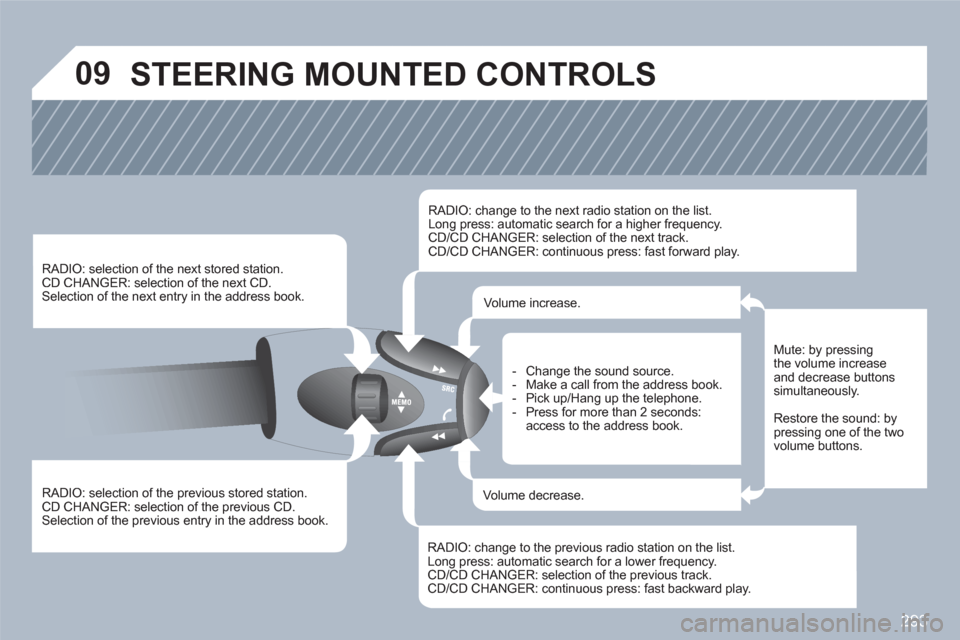

09 STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD. Selection of the previous entry in the address book.
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD.
Selection of the next entry in the address book.


RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency. CD/CD CHANGER: selection of the next track.
CD/CD CHANGER: continuous press: fast forward play.
RADIO: change to the previous radio station on the list. Long press: automatic search for a lower frequency.CD/CD CHANGER: selection of the previous track.CD/CD CHANGER: continuous press: fast backward play.




- Change the sound source.

- Make a call from the address book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:access to the address book.


Volume increase.
Volume decrease.
Mute: by pressingthe volume increase and decrease buttonssimultaneously.
Restore the sound: by pressing one of the twovolume buttons.

311
05
11
22
11
22
33
22
11

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated fromthe vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on theprevious pages. During the pairing phase, the vehiclemust be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm bypressing OK.


Press the steering mounted control OK to accept the call.


From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.


Press the end of the steering mounted control for more than two seconds to gain access to your directory. Or
To dial a number, use your telephoneís keypad, with the vehicle stationary.


MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)

Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriatebluetooth profi les (Profi les A2DP/AVRCP).
*

In certain cases, playing of the Audio fi les must be initiated from thekeypad. **
If the telephone supports the function.
Activate the streaming source bypressing the SOURCE button * . Thetracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls
** . The contextual information can be displayed on the screen.

BLUETOOTH

312

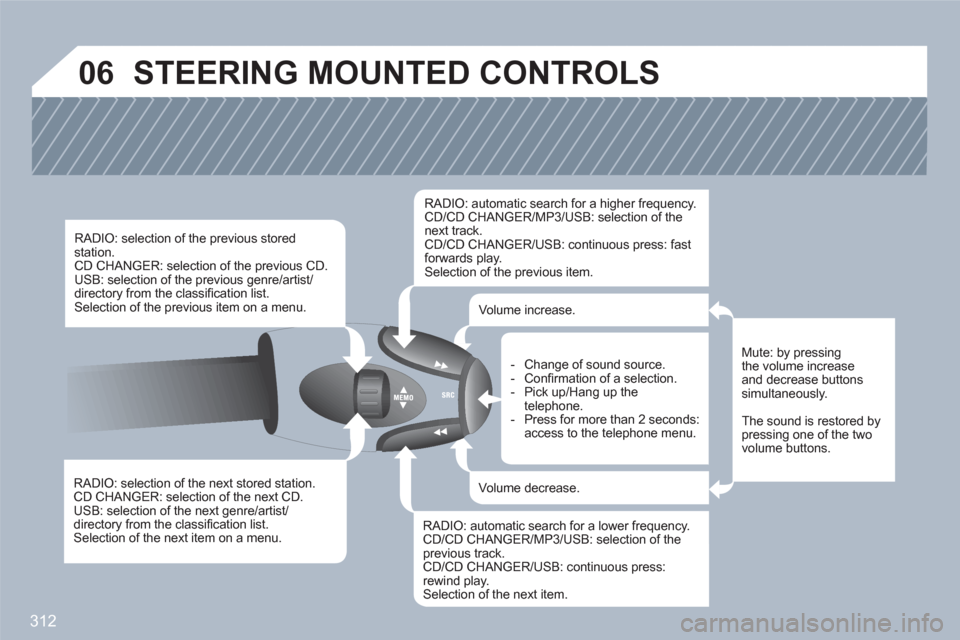

06 STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station.CD CHANGER: selection of the next CD.USB: selection of the next genre/artist/directory from the classifi cation list.Selection of the next item on a menu.
RADIO: selection of the previous storedstation. CD CHANGER: selection of the previous CD. USB: selection of the previous genre/artist/directory from the classifi cation list.Selection of the previous item on a menu.


RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3/USB: selection of thenext track. CD/CD CHANGER/USB: continuous press: fastforwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3/USB: selection of the previous track.CD/CD CHANGER/USB: continuous press: rewind play.Selection of the next item.


Volume increase.
Volume decrease.
Mute: by pressingthe volume increaseand decrease buttonssimultaneously.
The sound is restored bypressing one of the twovolume buttons.
- Change of sound source. - Confi rmation of a selection.- Pick up/Hang up the telephone.- Press for more than 2 seconds: access to the telephone menu.

R
Radio..............................250,286,304Rear armrest ..................................108Rear foglamp....................94,182,184Rear head restraints .........................67Rear parcel shelf............................f110Rear parking sensors .....................154Rear reading lamps........................101Rear screen (demisting)...................60Rear screen, opening .......................89Rear seats............................67,69,71Rear view mirror.........................r76,77Rear wash-wipe................................99Rear wiper........................................r99Recharging the battery...................193Reduction of electrical load ............194Refitting a wheel .............................178Reinitialising the electric windows....85Reinitialising the remote control .......80Remote control............................78-81Removable screen (snow shield) ...199Removing a wheel..........................177Removing the mat ..........................107Repair kit, puncture ................164,169Replacing bulbs.......................179-185Replacing fuses .......................186-191Replacing the air filter....................r162Replacing the oil filter.....................r162Replacing the passengercompartment filter......................r162Replacing wiper blades..........100,194Resetting the service indicator.........r37Resetting the trip recorder................r38Retractable colour screen....47,49,51Rev counter.................................r22-24
T
Table of weights......................205, 217Table position.......................65,69,71Tables, aircraft................................108Tables of engines...................201,214Tables of fuses ...............................186Technical data.........................201-227Telephone ...............231,256,290, 310Telephone, hands-free....256, 290, 310Temperature controlfor heated seats...........................66Temporary tyre repair kit ........164, 169Third brake lamp....................182,185Time................................260, 292,313TMC (Traffic info)....................248,284Toll/car park cards ..........................104Tools.......................................172,174Torch ...............................................117
Reversing lamp......................182, 184Roof bars........................................198Routine checks.......................161, 162Running out of fuel (Diesel)............158
Speedometer...............................r22-24Stability control (ESP) ....................131Starting the vehicle ...........80,143,147Steering mountedcontrols.......................261,293,312Stopping the vehicle .........80,143,147Storage ...103,106,108,109, 111,114Storage box............................106,114Storage drawer...............................r107Storage wells..................................109Storing the driving positions.............66Stowing rings...................109,111,114Sun visor........................................r104Synchronising the remote control .....80Systems, ASR and ESP .................131
S
Safety for children.....85, 118-127, 138Satellite navigation system.....240, 277Screen,colour 16/9..............................47-50Screen, monochrome C..............44-46Screen, multifunction(with audio equipment)............42-51Screen, multifunction(without audio equipment).......40-41Screen-wash reservoir...................r161Screen menu map ..........264,294, 314Screenwash fluid level..............99, 161Seat adjustment.........................63, 64Seat belts................................132-136Seat configurations...........................73Serial number, vehicle ....................227Service indicator...............................r36Setting the clock .............260,292, 313Short-cut menus.....................237, 276Sidelamps.........93,179,180,182, 184Side repeater..................................r181SIM card.........................................258Ski flap ............................................108Snow chains...................................199Spare wheel...........................173, 175Spectacles storage.........................103Speed limiter..................................r150
