2011 PEUGEOT 308 radio

264
03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the
"Screen menu map" section.










Press the MODE button several times in succession for access to the following menus:

For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.

RADIO
/ MUSIC MEDIA
PLAYERS




TELEPHONE



(If a conversation is in progress)

FULL SCREEN MAP




NAVIGATION

(If guidance is in progress)


SETUP:

system language * , date and time * , display, vehicle
settings * , unit and system settings, "Demo mode".

TRAFFIC:

TMC information and messages.

*
Available according to model.

TRIP COMPUTER

266
03 GENERAL OPERATION
DISPLAY ACCORDING TO THE CONTEXT


FULL SCREEN MAP:

Abort guidance

/Resume guidance


Set destination


POIs nearby


Position info


Map settings



Zoom/Scroll



1
1
1
1
1
1


RADIO:

In FM mode

Traffi c info (TA)
RDS
Radiotext
Regional prog.

In AM mode
AM
TA
Refresh AM list

FM
1
2
1
2
2
2
2
2
2
2


MUSIC MEDIA PLAYERS:

Traffi c info (TA)


Play options

Normal order
Random track
Repeat folder

Select music



Scan
1
1
2
2
2
2
1

276
05
2 1
3
2 1

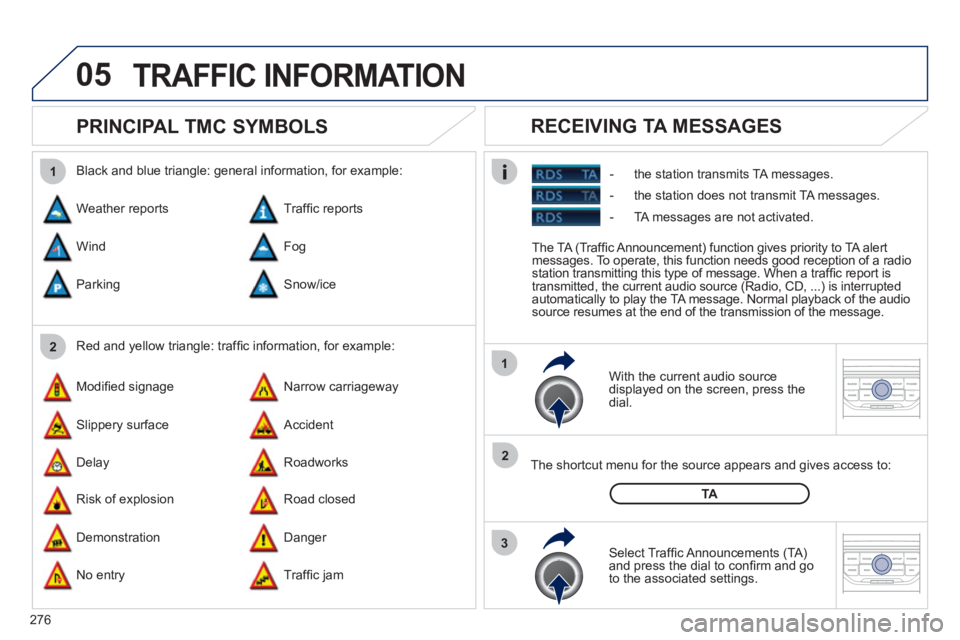

PRINCIPAL TMC SYMBOLS


With the current audio source
displayed on the screen, press the
dial.

The shortcut menu for the source appears and gives access to:

Select Traffi c Announcements (TA)
and press the dial to confi rm and go
to the associated settings.

TA




- the station transmits TA messages.







RECEIVING TA MESSAGES


Red and yellow triangle: traffi c information, for example:
Black and blue triangle: general information, for example:
Weather reports
Modifi ed signage
Risk of explosion Traffi c reports
Narrow carriageway
Road closed Wind
Slippery surface
Demonstration Fog
Accident
Danger Parking
Delay
No entry Snow/ice
Roadworks
Traffi c jam

TRAFFIC INFORMATION


The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a radio
station transmitting this type of message. When a traffi c report is
transmitted, the current audio source (Radio, CD, ...) is interrupted
automatically to play the TA message. Normal playback of the audio
source resumes at the end of the transmission of the message.
- the station does not transmit TA messages.

- TA messages are not activated.

277
06
3 2 1 1







SELECTING A STATION


When the current radio station is
displayed on the screen, press the dial.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and
press the dial to confi rm to gain
access to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.


The external environment (hill, building, tunnel, underground car park...) may
interfere with the reception, including in RDS following mode. This phenomenon
is a normal result of the way in which radio waves are transmitted and does not
in any way indicate a failure of the audio equipment.






RDS - REGIONAL MODE


Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the dial and press to confi rm.

Regional prog.

Radiotext

RDS


While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
station.

AM



A long press of one of the buttons starts the
automatic search for a station with a lower or
higher frequency.

RADIO

285
10
RADIO

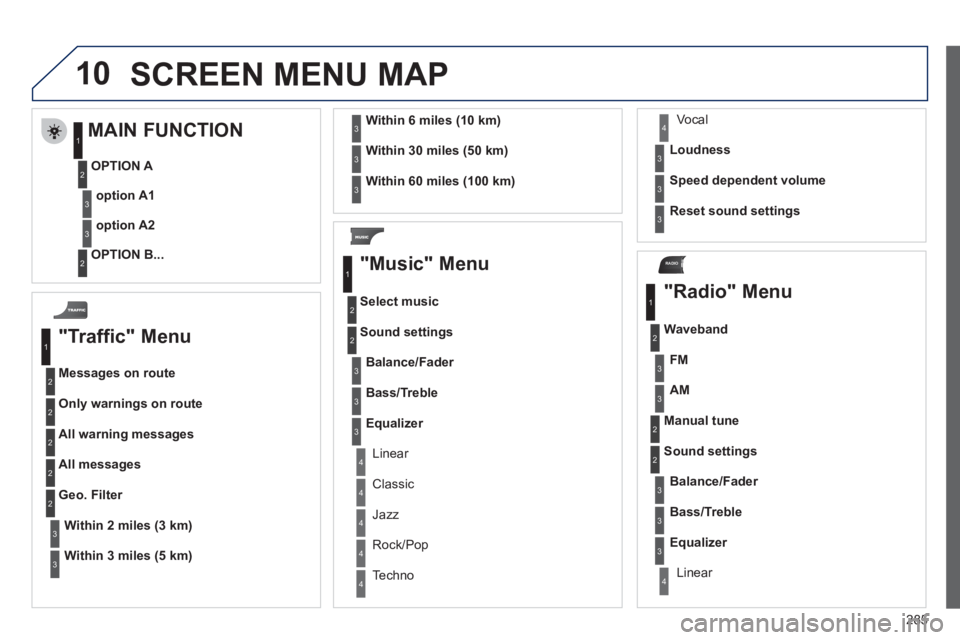

SCREEN MENU MAP


"Traffic" Menu


Messages on route
Only warnings on route
All warning messages
All messages

Within
2 miles (3 km)
Geo. Filter

Within
3 miles (5 km)

Within
6 miles (10 km)


Within
30 miles (50 km)


Within 60 miles (100 km)





"Music" Menu


Select music
Sound settings

Balance/Fader


Bass/Treble

Linear
Equalizer

Classic
Jazz
Rock/Pop
Techno Vocal

Loudness


Speed dependent volume


Reset sound settings




"Radio" Menu


Waveband

AM


Linear
FM


Manual tune
Sound settings

Balance/Fader


Bass/Treble


Equalizer














MAIN FUNCTION


OPTION A

option A1


option A2




OPTION B...

1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
3
1
2
3
2
3

289
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing source
(radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the Linear musical ambience and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the Audio section.

- The audio equipment's CD player does not
play DVDs.

- Because of their quality level, certain
writeable CDs will not be played by the audio
system.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

290


QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a
few minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.

294
01 FIRST STEPS


Eject CD.


Select source:
radio, audio CD/MP3 CD, USB,
Jack connection, Streaming,
AUX.

Select the screen display
mode:
Date, audio functions, trip
computer, telephone.
Automatic frequency search
down/up.
Select previous/next CD, MP3
or USB track.
Audio settings: front/
rear fader, left/right
balance, bass/treble,
loudness, audio
ambiences.
Display the list of
local stations.
Long press: CD
tracks or MP3 folders
(CD/USB).

TA (Traffi c Announcements)
on/off.
Long press: PTY * (radio
Programme TYpe) mode.

Display main menu.

The DARK button changes the screen display
for improved driving comfort at night.
1 st press: upper bar only illuminated.
2 nd press: black screen.
3 rd press: return to standard display.
On/off, volume setting.

Buttons 1 to 6:
Select a pre-set radio station.
Long press: pre-set a station.
Select next frequency down/up.
Select previous/next MP3 folder.
Select previous/next folder/genre/
artist/playlist (USB).
Confi rm.
Select wavebands
FM1, FM2, FMast and
AM.
Abandon the current
operation.


*
Available according to version.
