2011 PEUGEOT 308 height

11
FAMILIARISATION

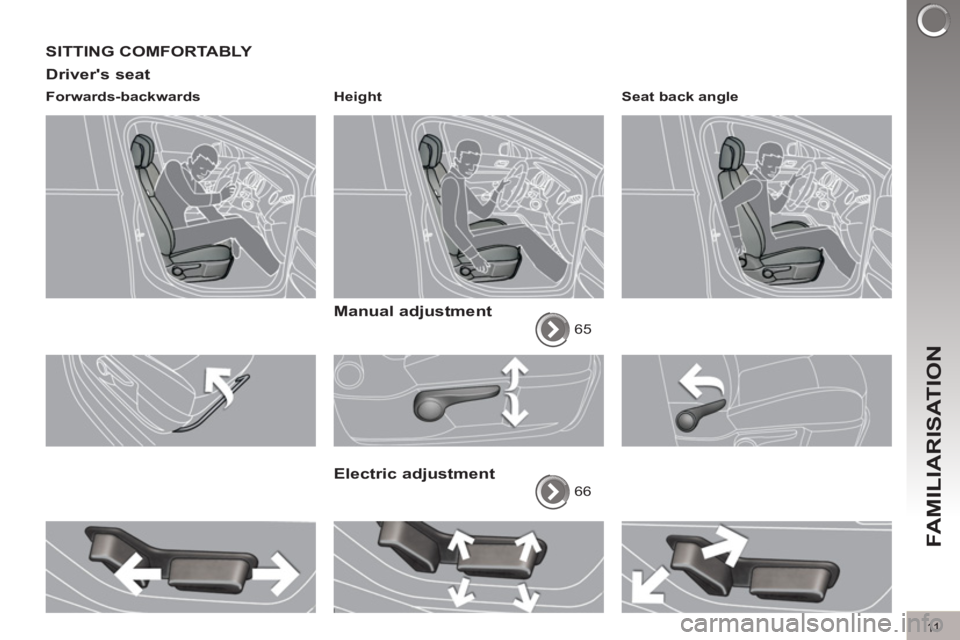

SITTING COMFORTABLY

Driver's seat


Forwards-backwards
Height



Manual adjustment

65


Electric adjustment

66
Seat back angle

12
FAMILIARISATION
SITTING COMFORTABLY

Front seats


Head restraint height and
angle

Lumbar
67



Steering wheel adjustment



1.
Release the steering wheel.

2.
Adjust for height and reach.

3.
Lock the steering wheel.
As a safety precaution, these operations
must only be carried out when stationary.
73


Table position
(front passenger seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
68


Front armrest

This incorporates the Peugeot Connect
USB and/or a JACK auxiliary socket.
102

13
FAMILIARISATION
SITTING COMFORTABLY

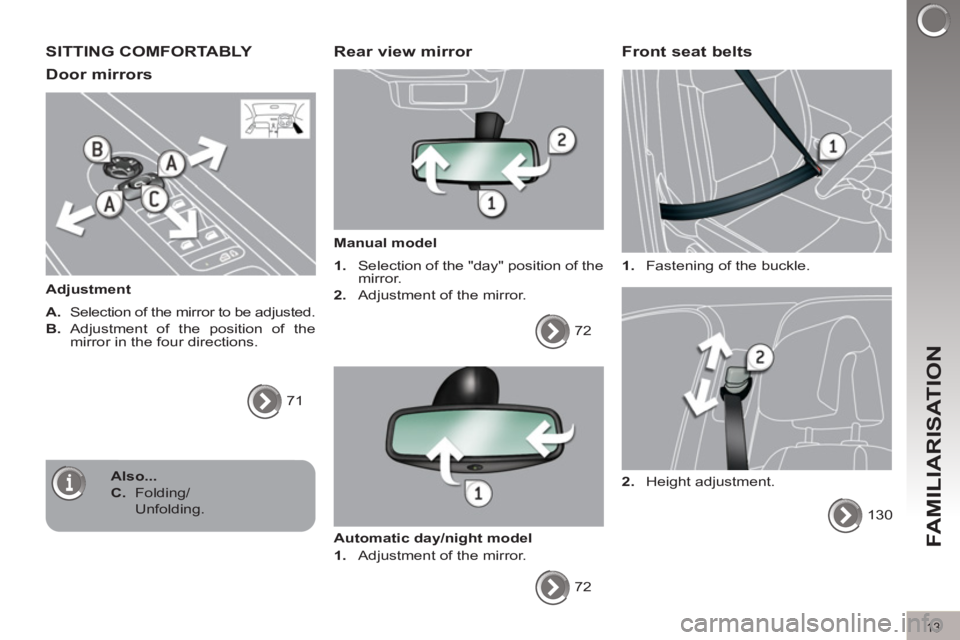

Door mirrors


Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
71



Rear view mirror


Manual model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.
72

Automatic day/night model


1.
Adjustment of the mirror.
72



Front seat belts



1.
Fastening of the buckle.
130
2.
Height adjustment.
Also...


C.
Folding/
Unfolding.

18
FAMILIARISATION
ARRANGE YOUR BOOT

3 position adjustable boot

Low position (150 kg max).
111

)
To release the fl oor, push
slightly forwards then
raise.

)
Use the stops A
, placed on each
side of the boot to change the
height of the fl oor more easily. Intermediate position (100 kg max). High position (50 kg max) with the lower
tailgate closed to isolate the lower part
of the boot.
From the high position, place the fl oor
in this position (at an angle), two stops
support it to allow access underneath it
or to the spare wheel.

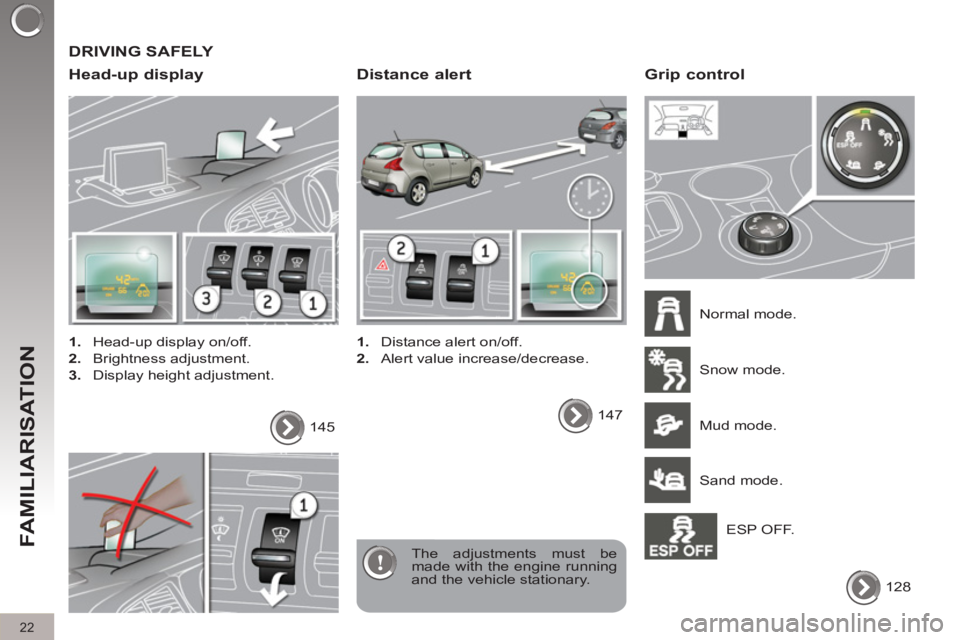

DRIVING SAFELY

Head-up display



1.
Head-up display on/off.

2.
Brightness adjustment.

3.
Display height adjustment.
The adjustments must be
made with the engine running
and the vehicle stationary. 145


Distance alert



1.
Distance alert on/off.

2.
Alert value increase/decrease.
147


Grip control

Normal mode.
128 Snow mode.
Mud mode.
Sand mode.
ESP OFF.
22
FAMILIARISATION

65

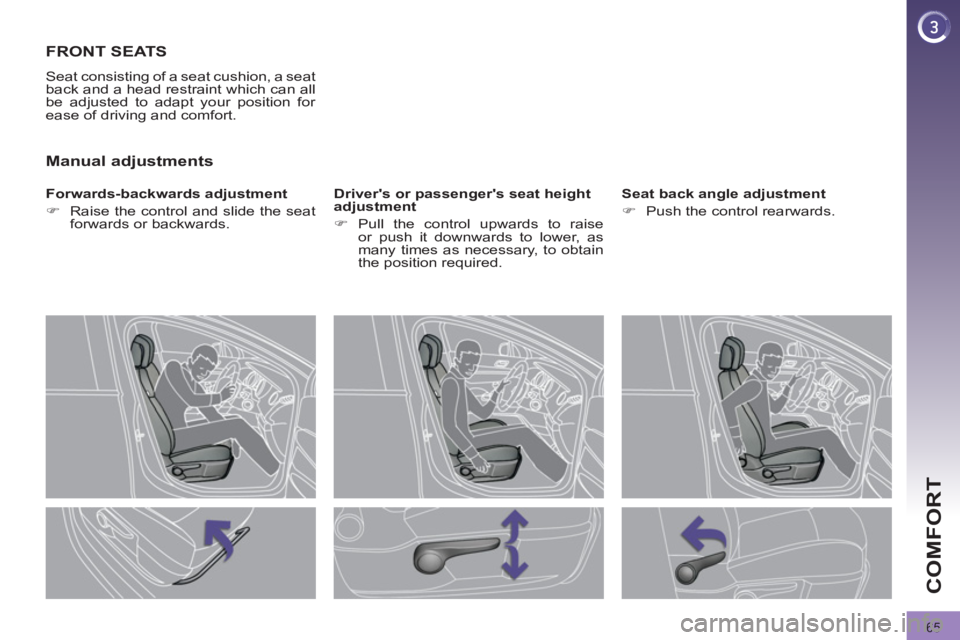

COMFORT








FRONT SEATS

Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment


)
Raise the control and slide the seat
forwards or backwards.

Driver's or passenger's seat height
adjustment


)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.

Seat back angle adjustment


)
Push the control rearwards.




Manual adjustments

66
COMFORT

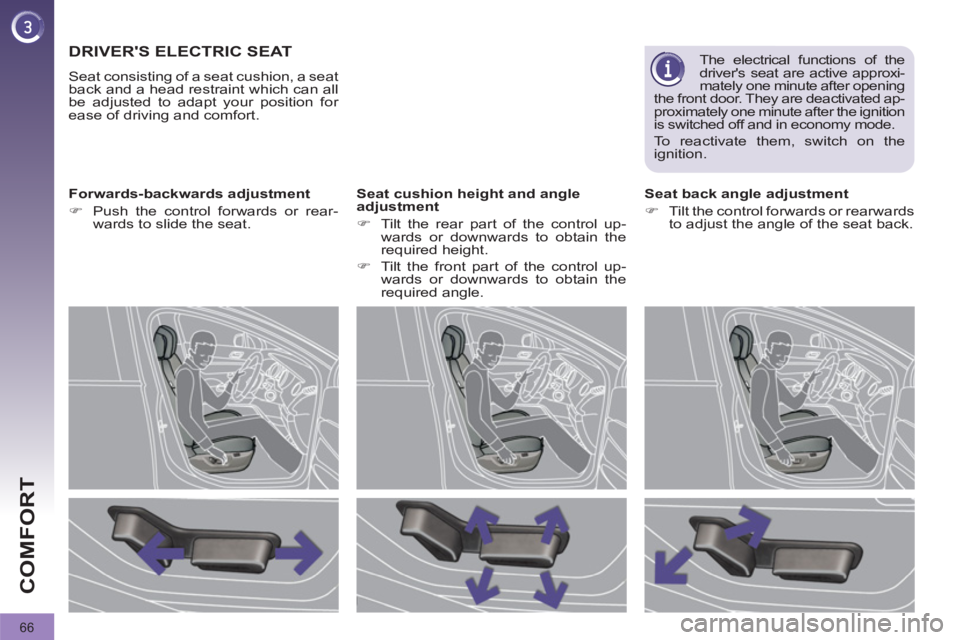

DRIVER'S ELECTRIC SEAT

Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment


)
Push the control forwards or rear-
wards to slide the seat.

Seat cushion height and angle
adjustment


)
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.

)
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.
Seat back angle adjustment


)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.

The electrical functions of the
driver's seat are active approxi-
mately one minute after opening
the front door. They are deactivated ap-
proximately one minute after the ignition
is switched off and in economy mode.
To reactivate them, switch on the
ignition.

67
COMFORT

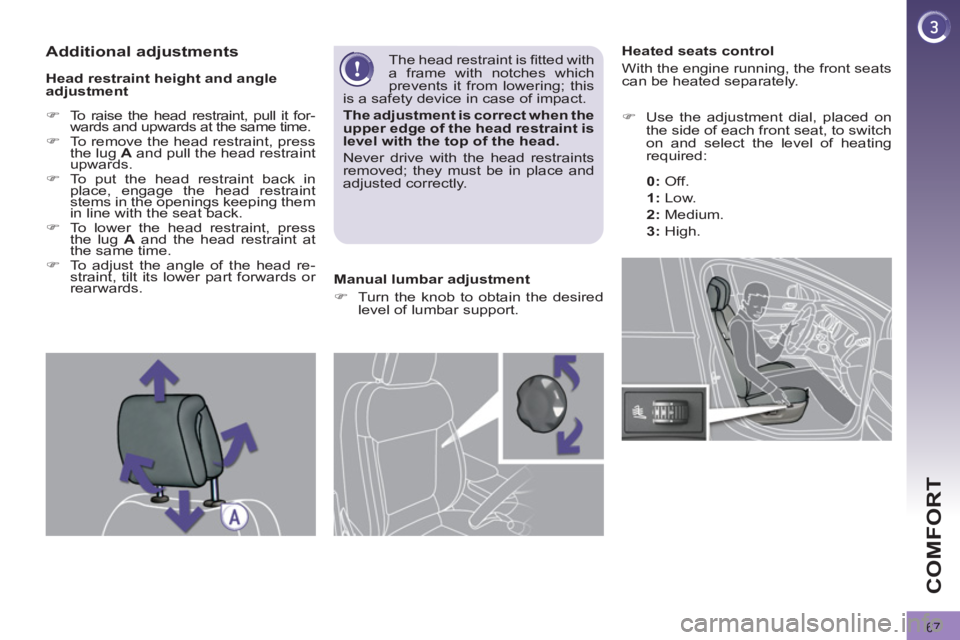

Heated seats control
With the engine running, the front seats
can be heated separately.


)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:

0

:


Off.

1

:
Low.

2

:
Medium.

3

:
High.

Head restraint height and angle
adjustment


)
To raise the head restraint, pull it for-
wards and upwards at the same time.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.

)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.

)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards. The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.

Never drive with the head restraints
removed; they must be in place and
adjusted correctly.



Manual lumbar adjustment


)
Turn the knob to obtain the desired
level of lumbar support.











Additional adjustments
