2011 PEUGEOT 308 radio controls

249
08
1
2
3
1
3
22ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK


Press the end of the steering mounted control to
accept the call or end the call in progress.

Select the "Yes" tab to accept
or "No" to refuse and confi rm by
pressing OK.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display in the screen.


To hang up, press the HANG UP
button or press OK and select "End
call" then confi rm by pressing OK.

End call



Press the PICK UP button.

It is also possible to select a number from the address book. You
can select "Dial from address book". The Peugeot Connect Media
can record up to 4 096 entries.
Select "Dial number", then dial the
telephone number using the virtual
keypad.

Select the Phone menu function and
press OK to confi rm.


Dial number


Phone menu




The list of the last 20 calls made and received in the vehicle
appears under Phone menu. You can select a number and press
OK to make the call.


Yes No



The PICK UP button accepts, the HANG UP button rejects the
incoming call.

USING THE TELEPHONE



Press the end of the steering mounted control for
more than two seconds to open the address book.


Operating the telephone while driving is prohibited. It is recommended
that you park safely or use in preference the steering mounted controls.


It is always possible to start a call directly from the telephone; park
the vehicle as a safety measure.

261

The Peugeot Connect Navigation (RNEG) is protected
in such a way that it will only operate in your vehicle.
If it is to be installed in another vehicle, contact a
PEUGEOT dealer for confi guration of the system.

Certain functions described in this handbook will
become available during the year.


Peugeot Connect Navigation
(RNEG)

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation (RNEG) switches off following the activation
of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE

SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 262
263
264
267
275
277
278
281
284
285
289

263

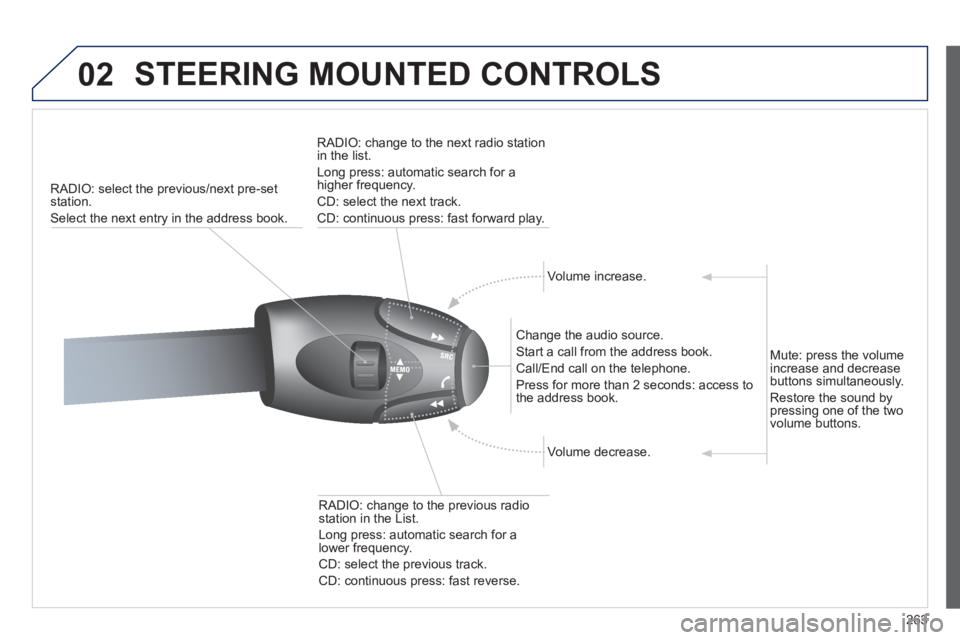

02 STEERING MOUNTED CONTROLS



RADIO: select the previous/next pre-set
station.
Select the next entry in the address book.
RADIO: change to the next radio station
in the list.
Long press: automatic search for a
higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.

Volume increase.

Change the audio source.
Start a call from the address book.
Call/End call on the telephone.
Press for more than 2 seconds: access to
the address book.

Volume decrease.

RADIO: change to the previous radio
station in the List.
Long press: automatic search for a
lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
Mute: press the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.

295
02 STEERING MOUNTED CONTROLS








Radio: select the previous/next pre-set
station.
USB: select genre/artist/folder from the
classifi cation list.
Select the previous/next item in
a menu.

Change audio source.
Confi rm a selection.
Call/hang up telephone.
Press for more than 2 seconds:
telephone main menu.

Radio: automatic search for a lower
frequency.
CD/MP3/USB: selection of the previous
track.
CD/USB: continuous press: fast reverse.
Move in the list.

Radio: automatic search for a higher
frequency.
CD/MP3/USB: selection of the next
track.
CD/USB: continuous press: fast
forwards play.
Move in the list.

Volume increase.

Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
