2011 PEUGEOT 308 fuse box

196
PRACTICAL INFORMATION

Table of mini and midi-fuses above the battery

Table of maxi-fuses
Fuse
N°

Rating
(A)

Functions



F1



-

Not used.


F2



5

Dual function brake switch.


F3



5

Battery charge unit.


F4



25

ABS/ESP electrovalves.


F5



5

ABS/ESP control unit.


F6



15

Automatic gearbox, electronic gear control
gearbox.


F7 *



80

Power steering electropump assembly.


F8

*


60

Fan assembly.


F9 *



80/30

Pre-heater unit (Diesel), Valvetronic electric motor
(1.6 litre THP).


F10 *



40

ABS/ESP electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electronic gear control gearbox electropump
assembly.

Fuse
N°

Rating (A)


Functions



MF1 *



-

Not used.


MF2 *



30

Trailer fusebox.


MF3 *



50

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



30

Heated front seats.


MF8 *



20

Headlamp wash.
*
The maxi-fuses and certain other
fuses provide additional protection
for the electrical systems. All work on
these fuses must be carried out by a
PEUGEOT dealer or a qualifi ed work-
shop.

197
PRACTICAL INFORMATION

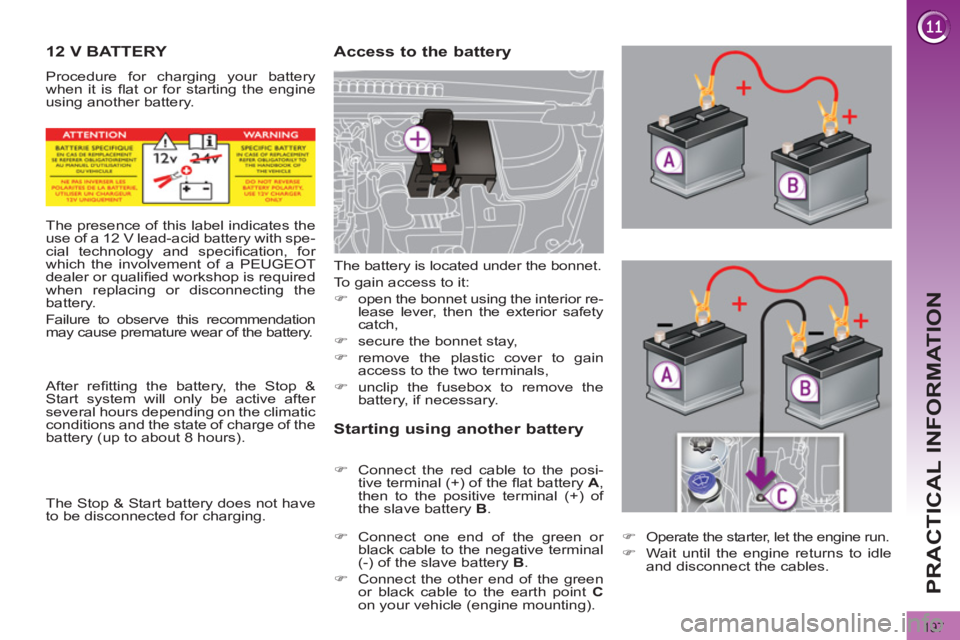

12 V BATTERY

Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

Access to the battery

Starting using another battery



)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
.

)
Connect the other end of the green
or black cable to the earth point C

on your vehicle (engine mounting). The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior re-
lease lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain
access to the two terminals,

)
unclip the fusebox to remove the
battery, if necessary.






The presence of this label indicates the
use of a 12 V lead-acid battery with spe-
cial technology and specifi cation, for
which the involvement of a PEUGEOT
dealer or qualifi ed workshop is required
when replacing or disconnecting the
battery.
Failure to observe this recommendation
may cause premature wear of the battery.

After refi tting the battery, the Stop &
Start system will only be active after
several hours depending on the climatic
conditions and the state of charge of the
battery (up to about 8 hours).

The Stop & Start battery does not have
to be disconnected for charging.

)
Operate the starter, let the engine run.

)
Wait until the engine returns to idle
and disconnect the cables.

204
PRACTICAL INFORMATION

Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).



*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.






ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommendation
and warranty.







"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.

You can also obtain cleaning and main-
tenance products (exterior and interior),
products for topping up (screenwash
fl uid...) and refi lls (sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.


Depending on the legislation
in force in the country, it may
be compulsory to have a high
visibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.



"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.


"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.


"Multimedia":

audio systems, amplifi ers, satellite navi-
gation systems, Bluetooth hands-free
system, CD changer, speakers, DVD
player, USB Box, front and rear parking
sensors, additional Bluetooth wireless
headphones, Bluetooth audio head-
phones mains charger.

E
G
F
H
I
J
316
ALPHABETICAL INDEX
Eco-driving ...................................25
Economical driving ......................25
Economy mode...........................199
Electric window controls ...............81
Electronic
engine immobiliser ...............76, 78
Electronic stability control
(ESC) .......................................126
Emergency call ...................214, 215
Emergency warning lamps .........124
Energy economy mode...............199
Engine,
Diesel ......... 88, 168, 170, 207-209
Engine, petrol ...... 88, 169, 205, 206
Engine compartment ..........169, 170
Engine compartment fusebox .....190
Engine oil level indicator .......40, 171
Engines...............................205, 207
Environment ...........................25, 78
ESC/ASR ....................................126
ESP/ASR ....................................127G.P.S. .................................228, 267
Gearbox, automatic ............158, 173
Gearbox, electronic
gear control ............. 154, 161, 173
Gearbox, manual ....... 153, 161, 173
Gear lever .....................................25
Gear lever, automatic
gearbox ....................................158
Gear lever, electronic
gear control gearbox ................154
Gear lever,
manual gearbox .......................153
Gear shift indicator .....................153
Glove box ...................................101
Grab handle on console .............100
Grab handles ..............................100
Grip control .................................128
Guidance ............................228, 267
Guide-me-home............................92 Filling with fuel ........................87, 88
Fitting a wheel ............................183
Fitting roof bars...........................203
Fittings, boot ...............................107
Flashing indicators......................124
Floor, three-position .................... 111
Foglamps, rear .............................90
Folding the rear seats ...................69
Front foglamps............. 90, 185, 187
Front seats........................65, 66, 68
Fuel...................................25, 87, 88
Fuel consumption .........................25
Fuel fi ller cap ................................87
Fuel fi ller fl ap ..........................87, 88Fuel gauge....................................87
Fuel tank .................................87, 88
Fusebox,
dashboard ................................190
Fuses ..........................................190
Halogen headlamps....................185
Hands-free kit ............ 281, 282, 303
Hazard warning lamps ................124Head-up display......... 145, 149, 151
Headlamp adjustment.............92, 93
Headlamps, directional .........93, 185
Headlamp wash ............................95
Headlamp wash reservoir ...........171
Head restraints, front ....................67
Head restraints, rear .....................69
Heated seats ................................67
Heating ...................................25, 60
Height and reach adjustment,
steering wheel ...........................73
Hill start assist ............................142
Hooks .........................................109
Horn ............................................124
Identifi cation plates ..................... 211
Indicator lamps, status..................31
Indicators, direction ....................124
Infl ating accessories
(using the kit) ...........................174
Infl ating tyres ................................25
Inputs for audio
system ............ 244, 280, 300, 302
Instrument panel lighting ..............41
Instrument panels ...................27, 28
Instrument panel screen .......27, 153
Interior fi ttings .............................100
Interior mood lighting ....................98
ISOFIX child seats .............. 120-122
ISOFIX mountings ......................120
Jack ....................................180, 182
JACK socket .......................300, 302
Jukebox (copy) ...........................242
Jukebox (playing) .......................243

T
U
318
ALPHABETICAL INDEX
Table of weights ......... 206, 208, 209
Tables of engines................205, 207
Tables of fuses............................190
Tank, fuel ......................................88
Technical data..................... 205-209
Telephone .... 215, 245-247, 281, 282
Telephone, hands-free ........ 245-247
Temperature, coolant ....................37
Temperature control
for heated seats .........................67
Temporary tyre repair kit .............174
Third brake lamp.........................189
TMC (Traffi c info) ................237, 275
Tools ...................................180, 182
Torch ..................................... 99, 112
Total distance recorder .................41
Towbar ........................................202
Towed loads............... 206, 208, 209
Towing another vehicle ...............200
Traction control (ASR) ........127, 128
Traffi c information
(TA) ................. 238, 276, 277, 298
Traffi c information
(TMC) ............. 237, 238, 275, 276
Trip computer ...................54, 55, 57
Trip distance recorder ...................41
Tyre pressures ............................ 211
Tyres .............................................25
Tyre under-infl ation detection .....125 Screen, multifunction
(without audio equipment) .........42
Screen-wash reservoir................171
Screen menu
map ................. 251, 285, 308, 310
Screenwash, front.........................95
Screenwash fl uid level ..........95, 171
Seat adjustment......................65, 66
Seat belts............................ 130-132
Seats, electric ...............................66
Seats, rear ....................................69
Serial number, vehicle ................ 211
Service indicator ...........................38
Servicing .......................................25
Setting
the clock ......... 250, 284, 306, 307
Short-cut menus .........................265
Sidelamps ..................... 89, 185-188
Side repeater ..............................187
SIM card .............................101, 248
Ski fl ap ........................................105
Spare wheel........................180, 182
Spectacles storage .....................100
Speed limiter...............................149
Speedometer ................................27
Spotlamps, side ............................98
Stability control (ESP).................127
Starting the vehicle ...... 76, 154, 158
Steering mounted
controls, audio .................222, 295
Stopping the vehicle .... 76, 154, 158
Stop & Start .............. 57, 61, 63, 87,
161, 167, 172, 197
Storage .............. 100, 102, 105, 107
Storage box ................................101
Storage wells ..............................107
Stowing rings ..............................107
Sun visor.....................................101
Synchronising the remote
control ........................................77
System, ASR ..............................128
System, navigation .............228, 267
Systems, ASR and ESP .............127 Reduction of electrical load ........199
Reinitialising the electric
windows .....................................81
Reinitialising the remote
control ........................................77
Remote control .................74, 75, 78
Removable screen
(snow shield) ...........................203
Removing a wheel ......................183
Removing the mat ......................103
Repair kit, puncture ....................174
Replacing bulbs ......... 185, 188, 189
Replacing fuses ..........................190
Replacing the air fi lter .................172
Replacing the oil fi lter .................172
Replacing the particle
emission fi lter ...........................173
Replacing the passenger
compartment fi lter ....................172
Replacing wiper blades ........96, 200
Resetting the service indicator .....39
Resetting the trip recorder ............41
Rev counter ..................................27
Reversing lamp...........................188
Risk areas (update) ............235, 274
Roof bars ....................................203
Routine checks ...................172, 173
Running out of fuel
(Diesel) ....................................168
Under-infl ation (detection) ..........125
Under fl oor storage ..................... 110
Unlocking ......................................74
Unlocking from the inside .............84
Update risk areas ...............235, 274
S
Safety for children......... 81, 118, 123
Screen, colour 16/9 ...........223, 224,
226, 251, 264, 285
Screen,
monochrome ........... 296, 308, 310
Screen, monochrome C................55
Screen, multifunction (with audio
equipment) ........ 44, 46, 49, 51, 53

322
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Courtesy lamps....................... 97, 98
Seat belt/passenger's front airbag
warning lamps display ...... 131, 134
Rear view mirror ........................... 72

Dashboard fuses ................. 190-193

6-speed manual gearbox ............ 153
Electronic gear
control gearbox ................. 154-157
Automatic
gearbox ............................. 158-160
Stop & Start ......................... 161-163
Hill start assist ............................ 142
Eco-driving............................... 25-26
Ventilation ................................ 58-59
Manual air conditioning............ 60-61
Digital air conditioning ............. 62-64

Front armrest .............................. 102
Peugeot Connect
USB .......................... 102, 278, 300


Peugeot Connect Media
Navigation (NG4 3D) ... 217-260
Setting the date/time ..............250


Sun visor..................................... 101

Opening the bonnet .................... 167

Electric
parking brake .....137-141, 143-144
Interior fi ttings .............. 100-101, 103


- glove box

- driver's storage compartments

- mat


12 V accessory socket................ 102



Peugeot Connect
Navigation (RNEG) .... 261-292
Setting the date/time ............284


Peugeot Connect Sound
(RD5) .................. 293-314
Setting the
date/time ............ 306, 307
